GUN155R-SDTMH (2017)

Toyota Fortuner

Production Aug 2017 - Jul 2020
Engine 2GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1507- )1GDFTV,2GDFTV

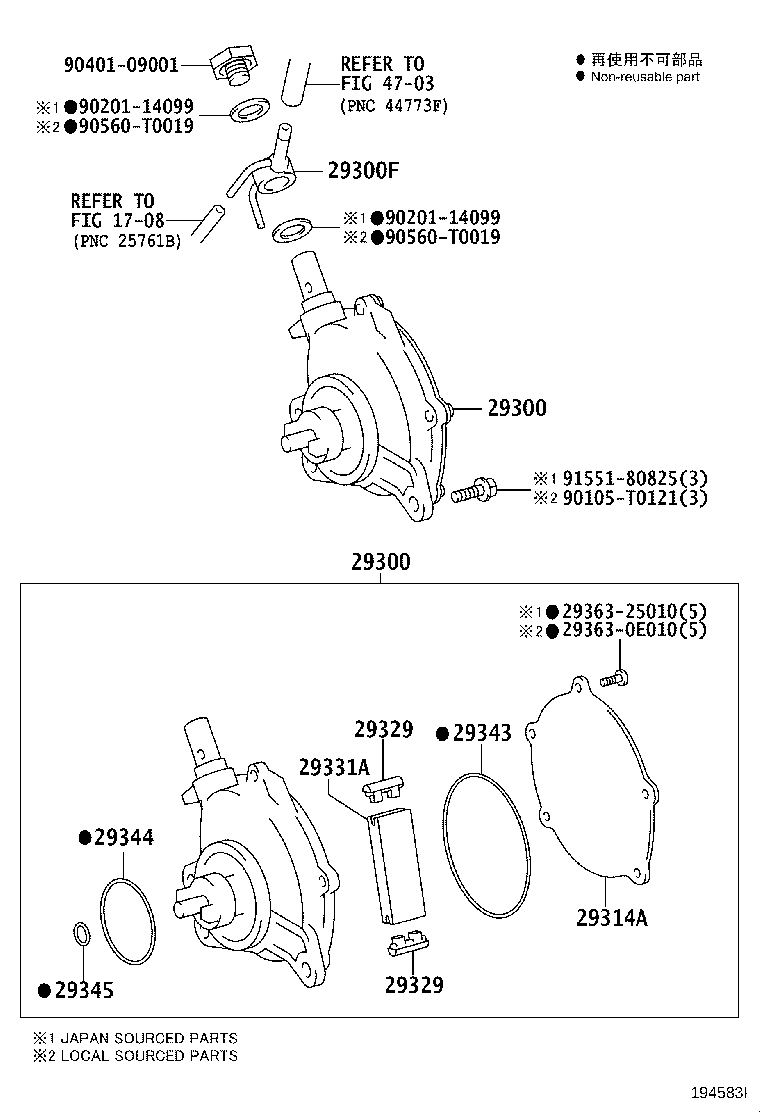

Click highlighted areas on diagram

diagram 1708 29300 29300 29300F 29314A 29329 29329 29331A 29343 29344 29345 293630E010 2936325010 4703 90105T0121 9020114099 9020114099 9040109001 90560T0019 90560T0019 9155180825
Part # Description Qty Price
29300 - PUMP ASSY, VACUUM
29300-0E011

1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

(L),*501

 1
29300-11021

1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

(J),*501

 1
29300 - PUMP ASSY, VACUUM
29300-0E011

1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

(L),*501

 1
29300-11021

1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

(J),*501

 1
29300F - UNION
90405-T0001

2GDFTV..GUN155..M..GEN

KENYA SPEC,(L)

 1
90405-09194

2GDFTV..GUN155..M..GEN

KENYA SPEC,(J)

 1
90405-09194

2GDFTV..GUN155..M..GEN

EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(J)

 1
90405-T0001

2GDFTV..GUN155..M..GEN

EXHAUST EMISSION CONTROL-EURO 4 WITH(ON BOARD DIAGNOSIS),(L)

 1
29314A - COVER, END
29314-0E010

1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

(L),*501

 1
29329 - CAP, VACUUM PUMP VANE
29329-0E010

1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

(L),*501

 2
29329 - CAP, VACUUM PUMP VANE
29329-0E010

1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

(L),*501

 2
29331A - VANE, VACUUM PUMP
29331-0E010

1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

(L),*501

 1
29343 - RING, O VACUUM PUMP, NO.1
29343-0E010

1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

(L),*501

 1
29344 - RING, O VACUUM PUMP, NO.2
29344-0E010

1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

(L),*501

 1
29345 - RING, O VACUUM PUMP, NO.3
29345-0E010

1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

(L),*501

 1
Common parts
29363-0E010
29363-25010
90105-T0121
90201-14099
90401-09001
90560-T0019
91551-80825
Linked diagrams
1708
4703

(2006- )1GDFTV,2GDFTV..AGTSU,IDNSU,THSUV,VNSUV ; (2009- )1GDFTV,2GDFTV..MA,PK

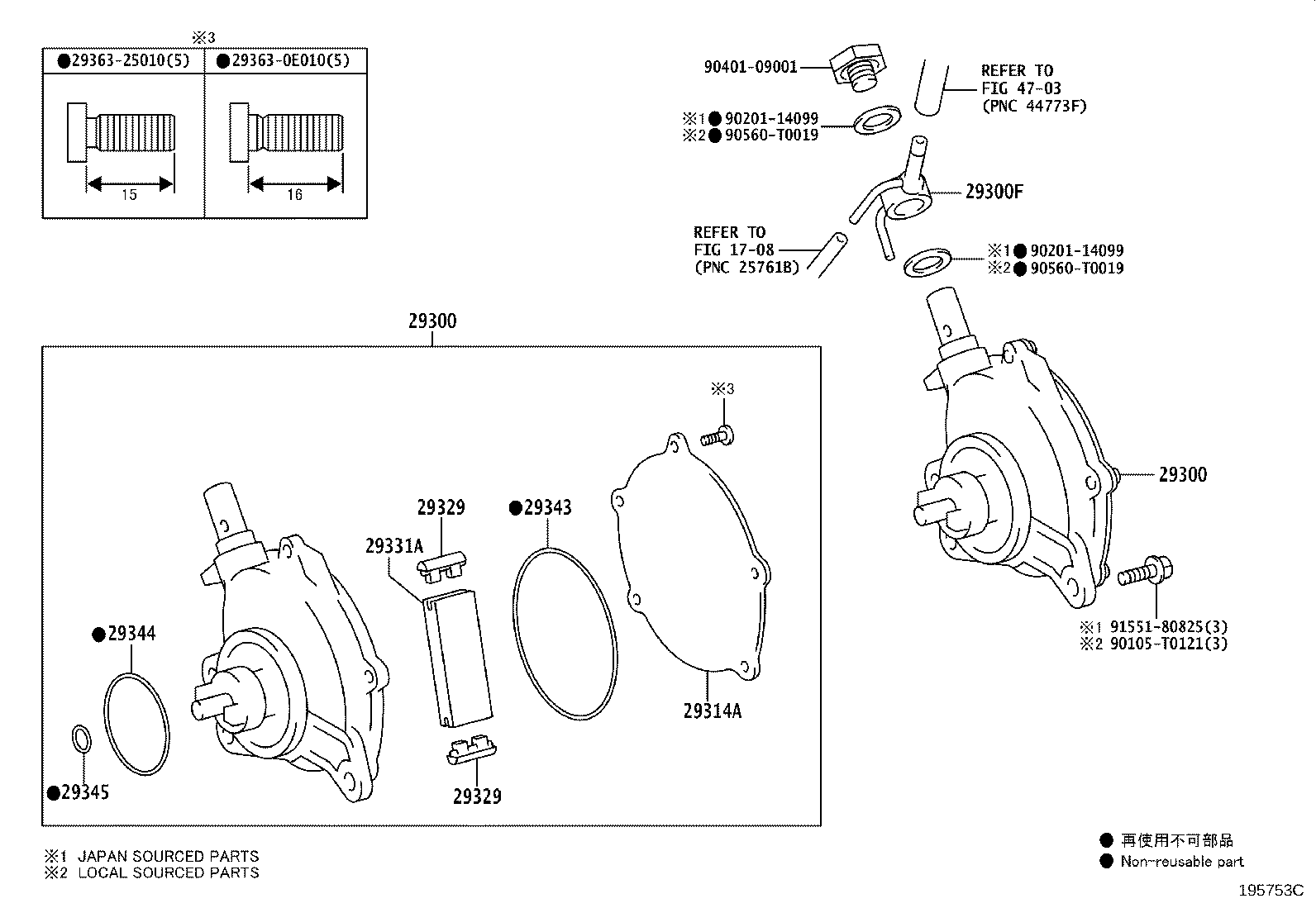

Click highlighted areas on diagram

diagram 1708 29300 29300 29300F 29314A 29329 29329 29331A 29343 29344 29345 293630E010 2936325010 4703 90105T0121 9020114099 9020114099 9040109001 90560T0019 90560T0019 9155180825
Part # Description Qty Price
Common parts
29363-0E010
29363-25010
90105-T0121
90201-14099
90401-09001
90560-T0019
91551-80825
Linked diagrams
1708
4703
