GUN155R-SDTMH (2017)

Toyota Fortuner

Production Aug 2017 - Jul 2020
Engine 2GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1507- )1GDFTV,2GDFTV

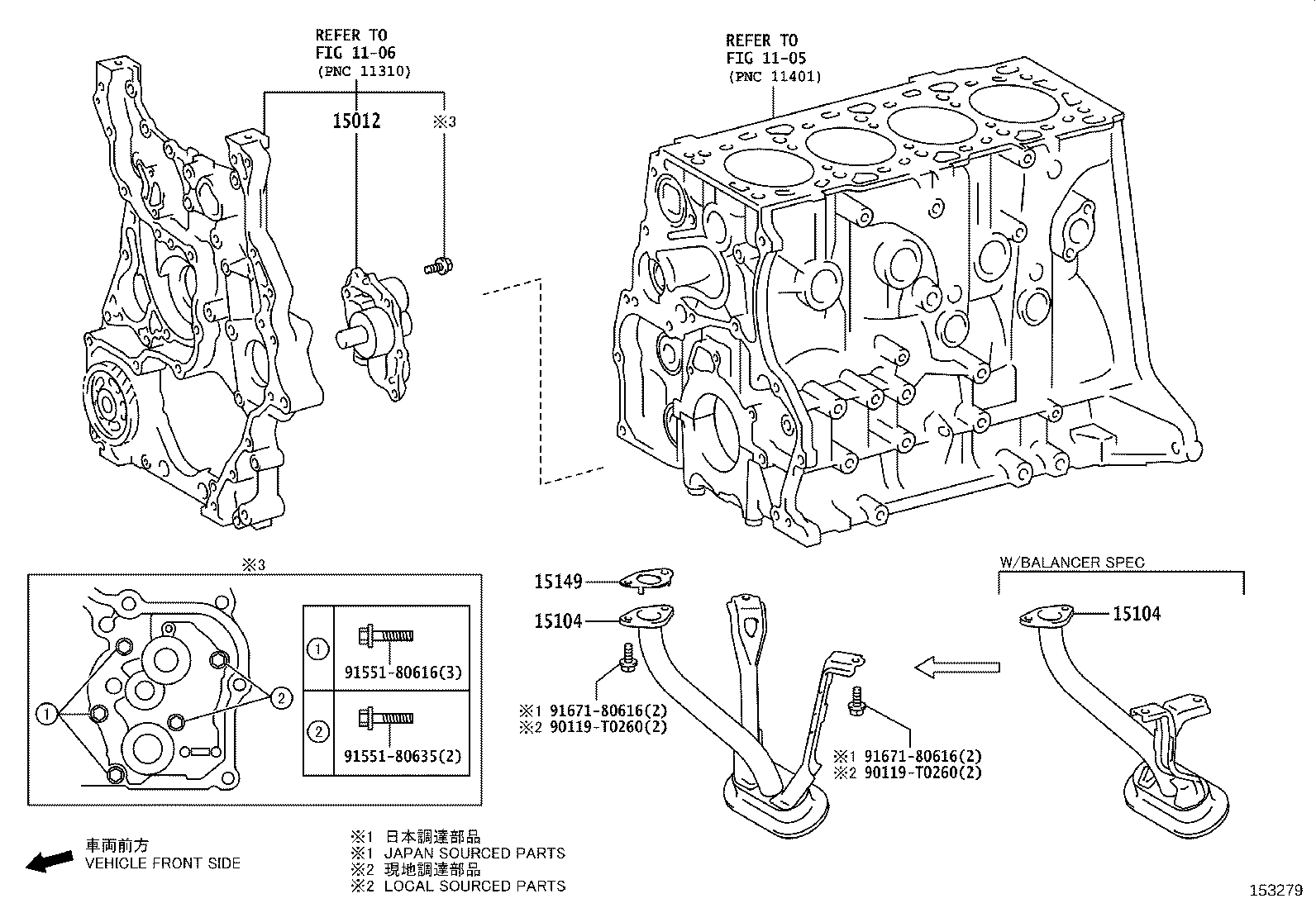

Click highlighted areas on diagram

diagram 1105 1106 15012 15104 15149 90119T0260 90119T0260 9155180616 9155180635 9167180616 9167180616
Part # Description Qty Price
15012 - COVER SUB-ASSY, OIL PUMP
15012-0E010

1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

(L)

 1
15104 - STRAINER SUB-ASSY, OIL
15104-0E010

1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV

THA SOURCED PARTS

 1
15104-0E040

1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,VNSUV

THA SOURCED PARTS

 1
15149 - GASKET, OIL STRAINER FLANGE
15149-0E010

1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

THA SOURCED PARTS

 1
Common parts
90119-T0260
91551-80616
91551-80635
91671-80616
Linked diagrams
1105
1106

(2006- )1GDFTV,2GDFTV

Click highlighted areas on diagram

diagram 1105 1106 15012 15104 15104 15149 90119T0260 90119T0260 9155180616 9155180635 9167180616 9167180616
Part # Description Qty Price
Common parts
90119-T0260
91551-80616
91551-80635
91671-80616
Linked diagrams
1105
1106
