GUN155R-SDTMH (2017)
Toyota Fortuner

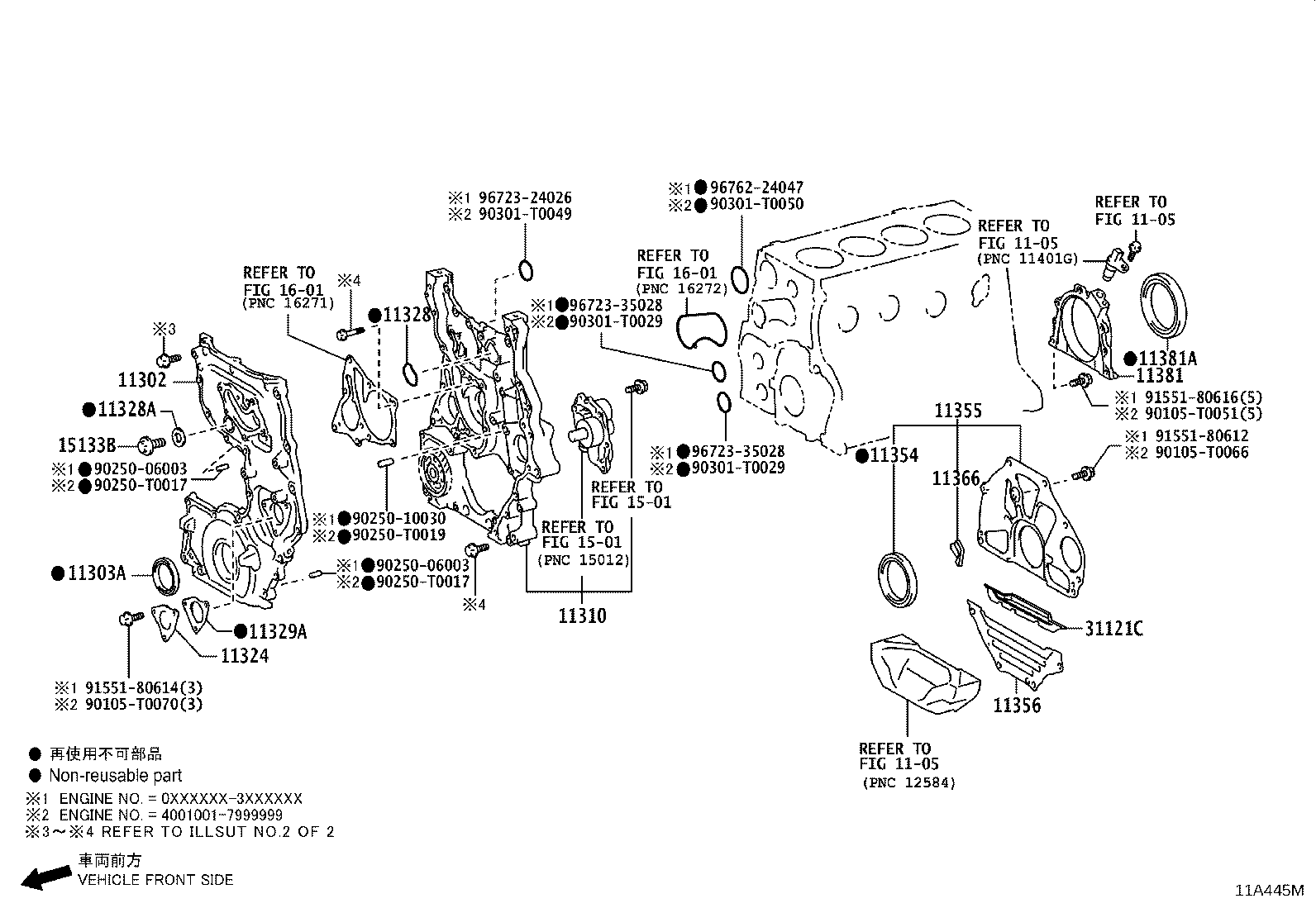

ILLUST NO. 1 OF 2(1507- )1GDFTV,2GDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT | ||||
| 11321-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
1 | ||
| 11303A - SEAL, OIL(FOR CRANKSHAFT FRONT) | ||||
| 90311-T0054 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
1 | ||
| 11310 - COVER ASSY, TIMING CHAIN | ||||
| 11310-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
1 | ||
| 11324 - PLATE, TIMING CHAIN COVER | ||||
| 11324-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
1 | ||
| 11328 - GASKET, TIMING GEAR OR CHAIN COVER | ||||
| 11328-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
1 | ||
| 11328A - GASKET, TIMING BELT COVER, NO.1 | ||||
| 11328-38030 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,MASUV,PKNSU,SASUV,THSUV,VNSUV *582 |
1 | ||
| 11328-11080 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
1 | ||
| 11329A - GASKET, TIMING BELT OR CHAIN COVER, NO.2 | ||||
| 11329-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
1 | ||
| 11354 - SEAL, FLYWHEEL HOUSING DUST | ||||
| 11354-0L020 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
1 | ||
| 11355 - PLATE, REAR END | ||||
| 11355-0E010 |
1GDFTV..GUN156..(AGTSU,SASUV)..6F;1GDFTV,2GDFTV..GUN155,16#..6F..(L,S) *582 |
1 | ||
| 11355-0E010 |
1GDFTV..GUN156..(IDNSU,THSUV)..6F;1GDFTV,2GDFTV..GUN15#,16#..(AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..6FC *582 |
1 | ||
| 11356 - PLATE, REAR END, NO.2 | ||||
| 11356-0L012 |
1GDFTV,2GDFTV..GUN15#,16#..IDNSU,PKNSU,THSUV,VNSUV |
1 | ||
| 11356-0L011 |
1GDFTV,2GDFTV..GUN15#,16#..IDNSU,MASUV,THSUV |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-0E010 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-T0046 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV *582 |
1 | ||
| 15133B - PLUG, OIL PUMP RELIEF VALVE | ||||
| 15133-38071 |
1GDFTV,2GDFTV..GUN15#,16#..AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV |
1 | ||
| Common parts | ||||
| 90105-T0051 | ||||
| 90105-T0066 | ||||
| 90105-T0070 | ||||
| 90250-06003 | ||||
| 90250-10030 | ||||
| 90250-T0017 | ||||
| 90250-T0019 | ||||
| 90301-T0029 | ||||
| 90301-T0049 | ||||
| 90301-T0050 | ||||
| 91551-80612 | ||||
| 91551-80614 | ||||
| 91551-80616 | ||||
| 96723-24026 | ||||
| 96723-35028 | ||||
| 96762-24047 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 1501 | ||||
| 1601 | ||||

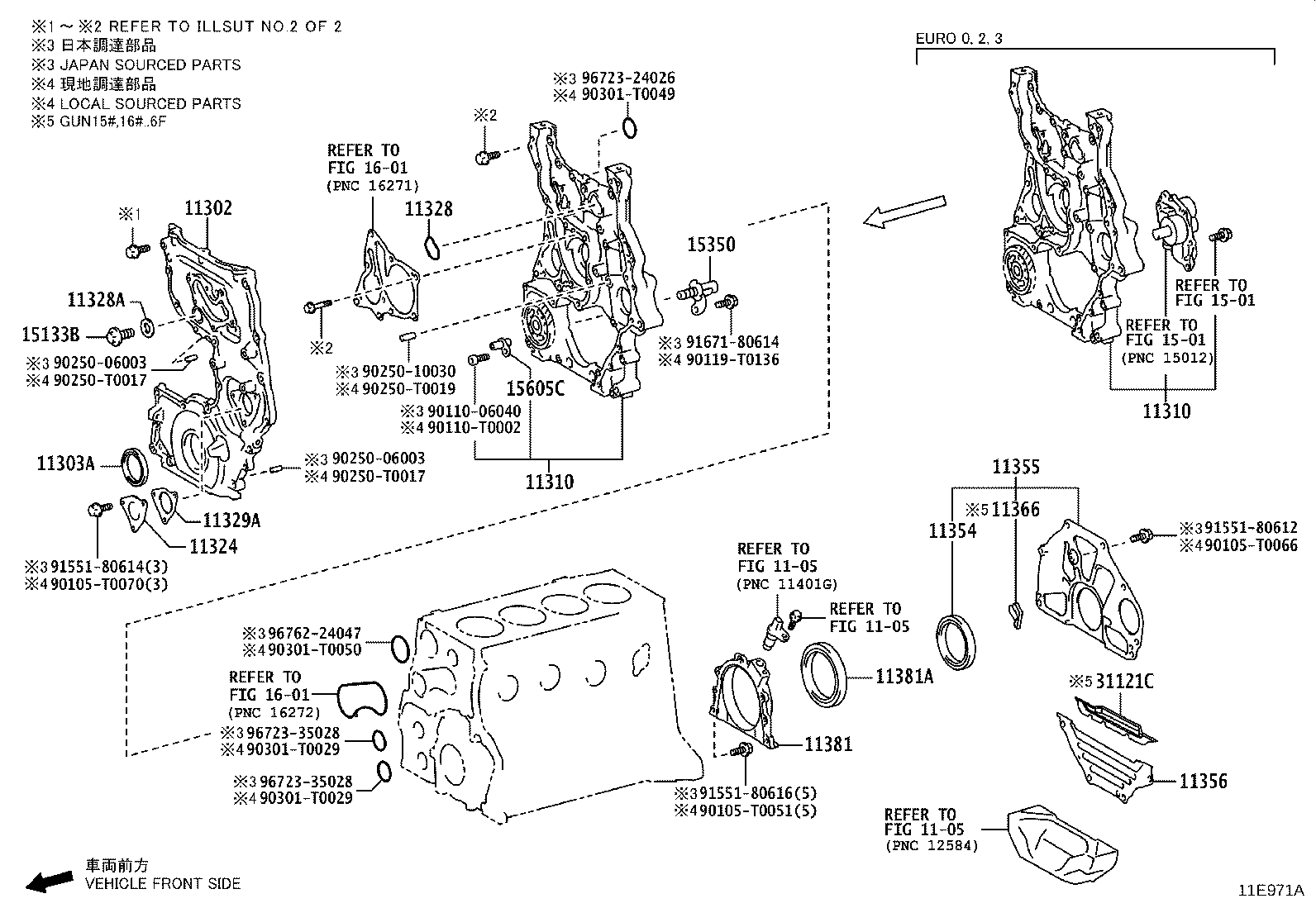

ILLUST NO. 1 OF 2(2006- )1GDFTV,2GDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0051 | ||||
| 90105-T0066 | ||||
| 90105-T0070 | ||||
| 90110-06040 | ||||
| 90110-T0002 | ||||
| 90119-T0136 | ||||
| 90250-06003 | ||||
| 90250-10030 | ||||
| 90250-T0017 | ||||
| 90250-T0019 | ||||
| 90301-T0029 | ||||
| 90301-T0049 | ||||
| 90301-T0050 | ||||
| 91551-80612 | ||||
| 91551-80614 | ||||
| 91551-80616 | ||||
| 91671-80614 | ||||
| 96723-24026 | ||||
| 96723-35028 | ||||
| 96762-24047 | ||||
| Linked diagrams | ||||
| 1105 | ||||
| 1501 | ||||
| 1601 | ||||

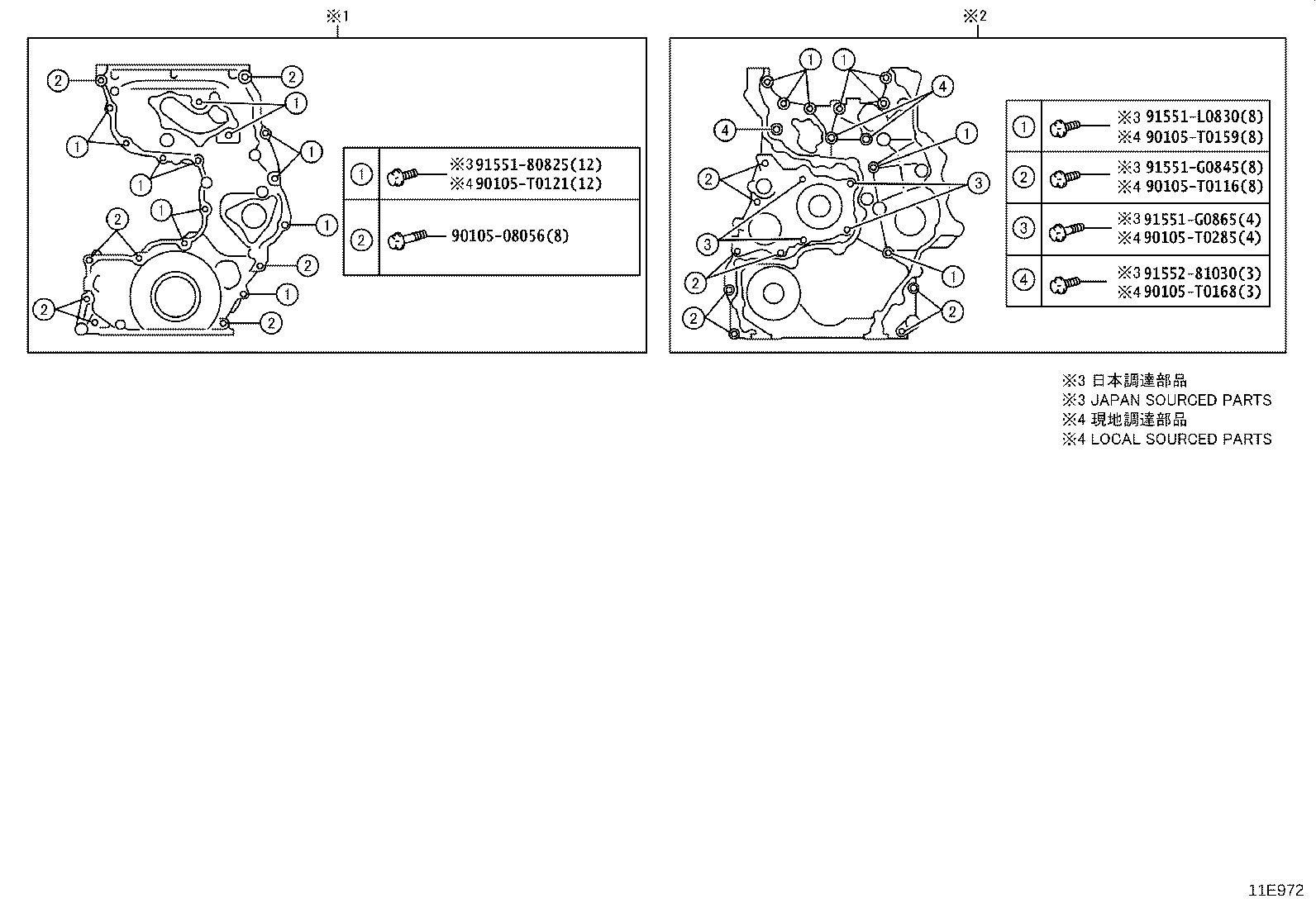

ILLUST NO. 2 OF 2(2006- )1GDFTV,2GDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-08056 | ||||
| 90105-T0116 | ||||
| 90105-T0121 | ||||
| 90105-T0159 | ||||
| 90105-T0168 | ||||
| 90105-T0285 | ||||
| 91551-80825 | ||||
| 91551-G0845 | ||||
| 91551-G0865 | ||||
| 91551-L0830 | ||||
| 91552-81030 | ||||
