GGN60R-NKASKN (2008)

Toyota Fortuner

Production Oct 2008 - Aug 2011
Engine 1GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0810- )GGN50,60..SA

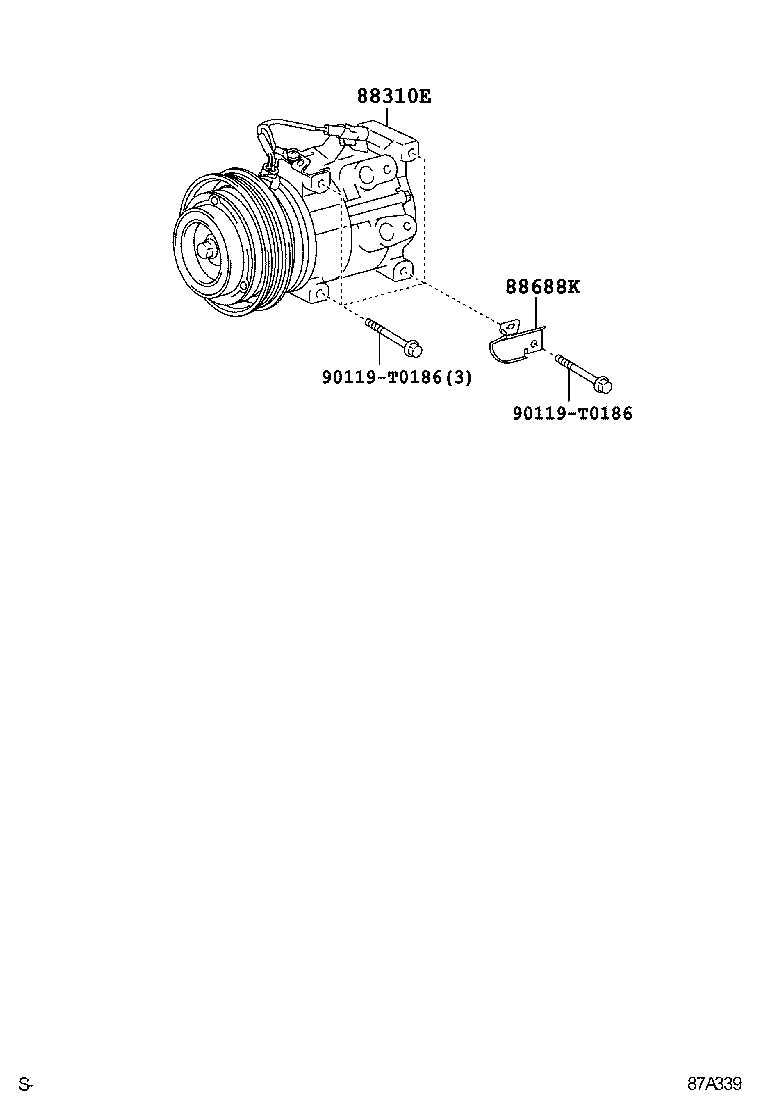

Click highlighted areas on diagram

diagram 88310E 88688K 90119T0186 90119T0186
Part # Description Qty Price
88310E - COMPRESSOR, W/MAGNET CLUTCH
88310-0K460

GGN50,60..SA

 1
88688K - BRACKET, COOLER COMPRESSOR
88688-0K200

GGN50,60..SA

 1
Common parts
90119-T0186
