GGN60R-NKASKN (2008)

Toyota Fortuner

Production Oct 2008 - Aug 2011
Engine 1GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

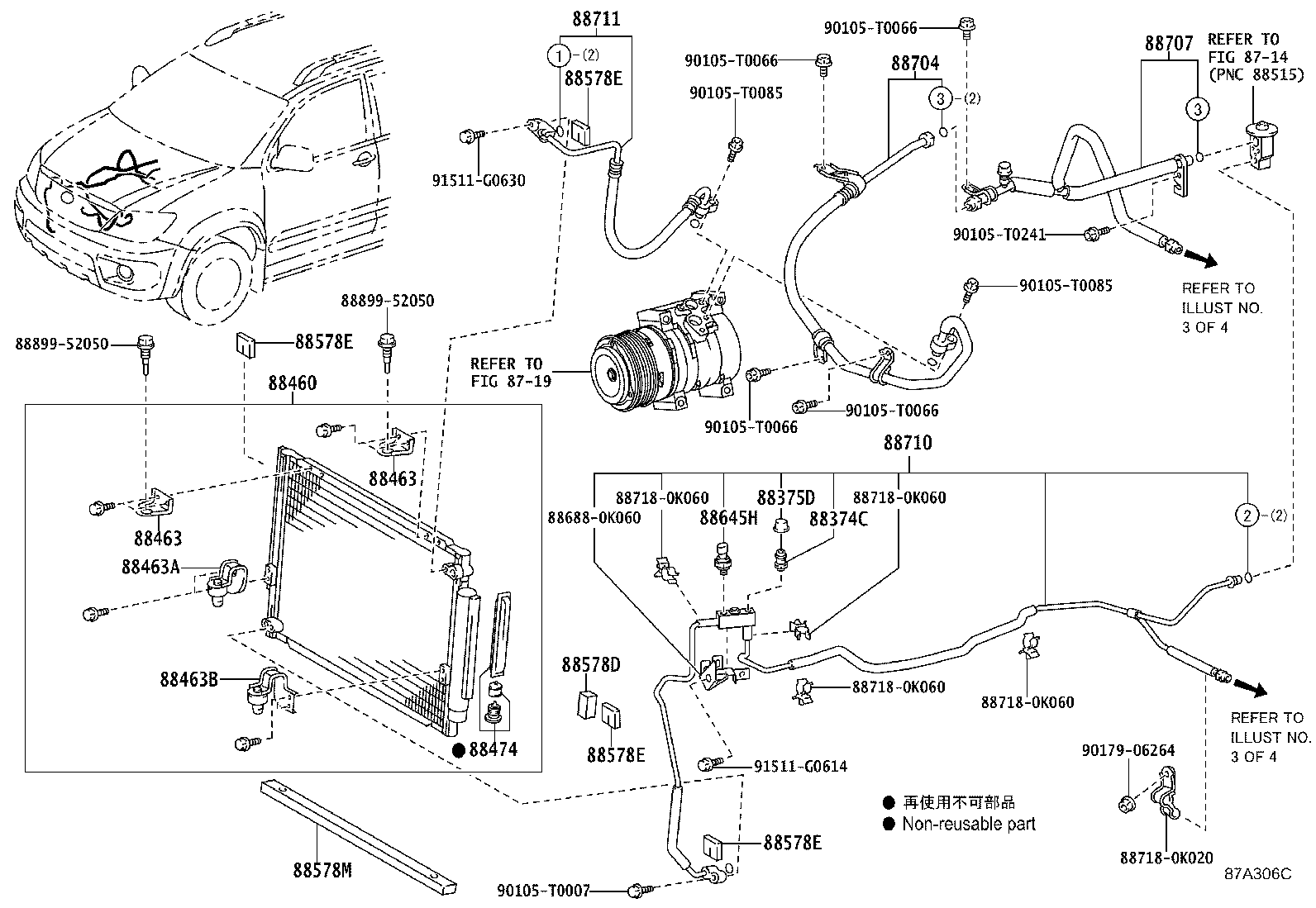

ILLUST NO. 2 OF 4(0810- )GGN50,60..SA

Click highlighted areas on diagram

FRONT---DUAL AIR CONDITIONER

diagram 8714 8719 88374C 88375D 88460 88463 88463 88463A 88463B 88474 88578D 88578E 88578E 88578E 88578E 88578M 88645H 886880K060 88704 88707 88710 88711 887180K020 887180K060 887180K060 887180K060 887180K060 8889952050 8889952050 90105T0007 90105T0066 90105T0066 90105T0066 90105T0066 90105T0085 90105T0085 90105T0241 9017906264 91511G0614 91511G0630
Part # Description Qty Price
88375D - CAP, SERVICE VALVE, NO.2
88375-02150

KUN51..RHD..SA;GGN50,60,KUN61,LAN50,TGN51..SA

 1
88460 - CONDENSER ASSY, COOLER
88460-0K110

GGN50,60,TGN51..SA

 1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-0K220

KUN51..RHD..SA;GGN50,60,KUN61,LAN50,TGN51..SA

 2
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-0K220

KUN51..RHD..SA;GGN50,60,KUN61,LAN50,TGN51..SA

 2
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-0K200

KUN51..RHD..SA;GGN50,60,KUN61,LAN50,TGN51..SA

 1
88463B - BRACKET, COOLER CONDENSER, NO.3
88463-0K210

KUN51..RHD..SA;GGN50,60,KUN61,LAN50,TGN51..SA

 1
88474 - DRYER, COOLER
88474-02220

KUN51..RHD..SA;GGN50,60,KUN61,LAN50,TGN51..SA

 1
88578D - PACKING, COOLER PIPE, NO.1
88578-0K270

GGN50,60,KUN51,61,LAN50,TGN51..SA

 1
88578E - PACKING, COOLER PIPE, NO.2
88578-0K260

GGN50,60,KUN51,61,LAN50,TGN51..SA

 4
88578E - PACKING, COOLER PIPE, NO.2
88578-0K260

GGN50,60,KUN51,61,LAN50,TGN51..SA

 4
88578E - PACKING, COOLER PIPE, NO.2
88578-0K260

GGN50,60,KUN51,61,LAN50,TGN51..SA

 4
88578E - PACKING, COOLER PIPE, NO.2
88578-0K260

GGN50,60,KUN51,61,LAN50,TGN51..SA

 4
88578M - PACKING, COOLING PIPE, NO.3
88578-0K250

GGN50,60,KUN51,61,LAN50..SA

 1
88578-0K251

GGN50,60,KUN51,61,LAN50..SA

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-0K310

GGN50,60..SA

 1
88707 - PIPE SUB-ASSY, SUCTION
88707-0K090

GGN50,60..SA

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-0K390

KUN51..RHD..SA;GGN50,60,KUN61,LAN50,TGN51..SA

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0K230

GGN50,60..SA

 1
88711-0K231

GGN50,60..SA

 1
88711-0K232

GGN50,60..SA

 1
Common parts
88688-0K060
88718-0K020
88718-0K060
88899-52050
90105-T0007
90105-T0066
90105-T0085
90105-T0241
90179-06264
91511-G0614
91511-G0630
Linked diagrams
8714
8719

ILLUST NO. 2 OF 4(1107- )KUN60..SUVW..PHL ; (1107- )KUN51..LHD..SUVW,THSUV..GEN,PHL ; (1202-

Click highlighted areas on diagram

FRONT(DUAL AIR CONDITIONER)

diagram 8714 8719 88374B 88374C 88375B 88375D 88460 88463A 88463B 88467 88467 88467A 88467A 88469D 88469D 88474 88578D 88578E 88578E 88578E 88578E 88578M 88578N 88578N 88704 88710 88711 887180K020 887180K060 887180K060 887180K060 887180K060 888990K020 9009120512 9009120512 9009120619 9009120619 90105T0007 90105T0007 90105T0014 90105T0066 90105T0085 90105T0085 90105T0241 9017906264 91511G0614
Part # Description Qty Price
Common parts
88718-0K020
88718-0K060
88899-0K020
90091-20512
90091-20619
90105-T0007
90105-T0014
90105-T0066
90105-T0085
90105-T0241
90179-06264
91511-G0614
Linked diagrams
8714
8719

ILLUST NO. 2 OF 4(1107- )KUN60..LHD..IDSUV..GEN ; (1107- )KUN5#,60..IDSUV..IDN,PHL ; (1308-

Click highlighted areas on diagram

FRONT(DUAL AIR CONDITIONER)

diagram 8714 8719 88374B 88374C 88375B 88375D 88460 88463A 88463B 88467 88467 88467A 88467A 88469D 88469D 88474 88578D 88578E 88578E 88578E 88578E 88578M 88645H 88704 88710 88711 887180K010 887180K050 887180K050 887180K050 887180K050 887180KF90 8889952050 9009120619 9009120619 9009900313 90105T0007 90105T0007 90105T0014 90105T0066 90105T0085 90105T0085 90105T0241 9017906264 91511G0614
Part # Description Qty Price
Common parts
88718-0K010
88718-0K050
88718-0KF90
88899-52050
90091-20619
90099-00313
90105-T0007
90105-T0014
90105-T0066
90105-T0085
90105-T0241
90179-06264
91511-G0614
Linked diagrams
8714
8719

ILLUST NO. 3 OF 4(1107- )IDSUV..LA ; (1107- )EPT,GCC,GEN,IDN,KZS,MA,PHL,PKN,SA,TH,VN

Click highlighted areas on diagram

REAR

diagram 8714 88716B 88716C 88717 88717A 88718A 88718B 88718C 88718D 88718E 88718F 88718G 9009900313 9009900313 9009900313 9009900313 90105T0148 90105T0148 9017906264 9017906264 9017906264
Part # Description Qty Price
Common parts
90099-00313
90105-T0148
90179-06264
Linked diagrams
8714

ILLUST NO. 4 OF 4(1107- )KUN61 ; (1107- )KUN51..5F..IND ; (1107- )GGN50,60,KUN5#,60,LAN50,T

Click highlighted areas on diagram

O-RING

diagram 9006814022 9006814023 9006814024 9006814034 9006814035 9009914119 9009914120 9009914121
Part # Description Qty Price
Common parts
90068-14022
90068-14023
90068-14024
90068-14034
90068-14035
90099-14119
90099-14120
90099-14121
