GGN60R-NKASKN (2008)

Toyota Fortuner

Production Oct 2008 - Aug 2011
Engine 1GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

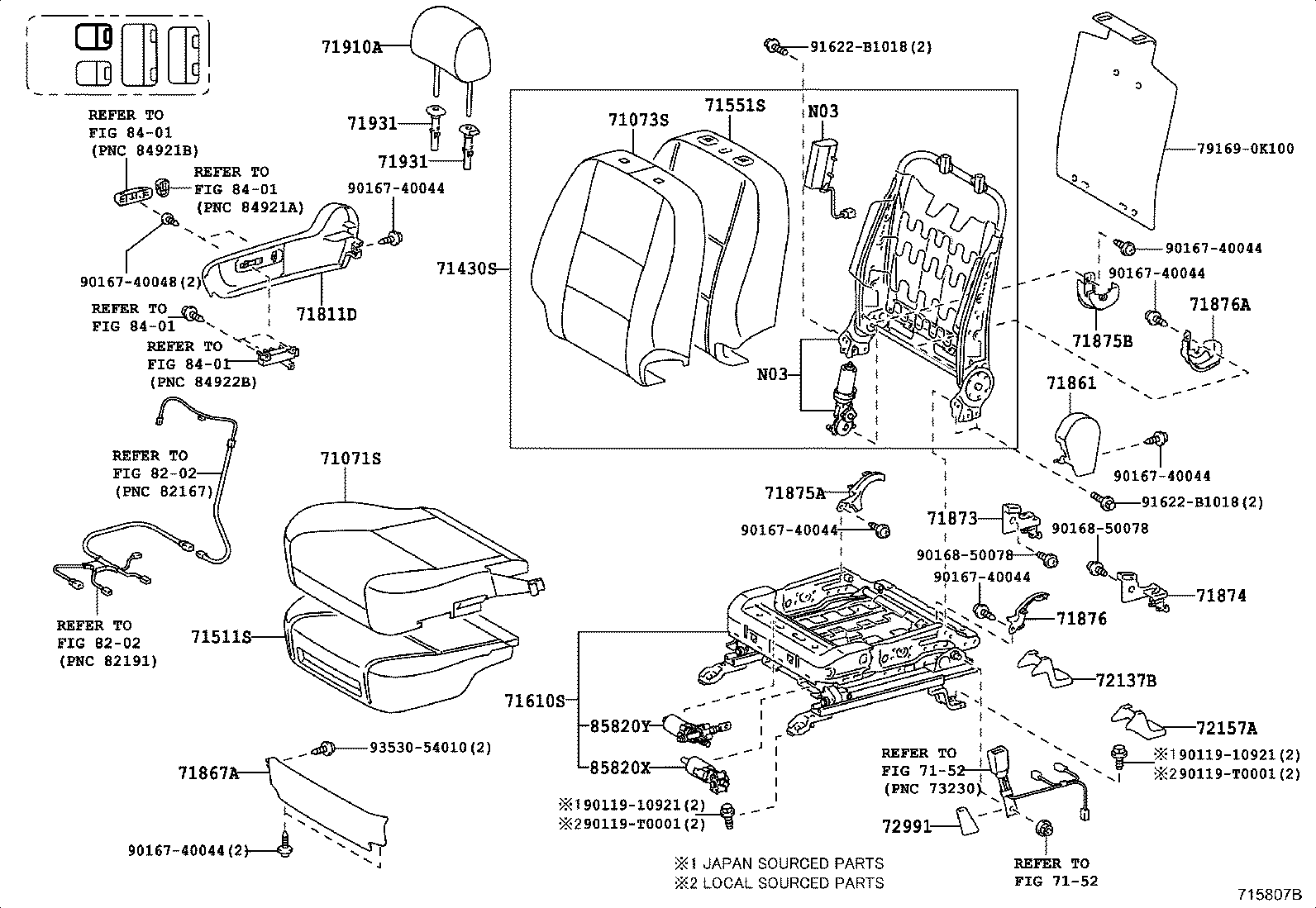

ILLUST NO. 1 OF 4(0810- )RHD..SA

Click highlighted areas on diagram

DRIVER W(POWER & SRS SIDE AIR BAG)

diagram 71071S 71073S 71430S 71511S 7152 7152 71551S 71610S 71811D 71861 71867A 71873 71874 71875A 71875B 71876 71876A 71910A 71931 71931 72137B 72157A 72991 791690K100 8202 8202 8401 8401 8401 8401 85820X 85820Y 9011910921 9011910921 90119T0001 90119T0001 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740048 9016850078 9016850078 91622B1018 91622B1018 9353054010
Part # Description Qty Price
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-0KC60E0

GGN50,60,KUN61..(4FC,5FC)..SA

SAND BEIGE,TRIM4#

 1
71071-0KC60E1

GGN50,60,KUN51,61..(4FC,5FC)..SA

SAND BEIGE,TRIM4#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-0KC10E0

GGN50,60,KUN61..(4FC,5FC)..SA

SAND BEIGE,TRIM4#

 1
71073-0KC20E0

GGN50,60,KUN61..(4FC,5FC)..SA

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),SAND BEIGE,TRIM4#

 1
71073-0KC10E1

GGN50,60,KUN51,61..(4FC,5FC)..SA

SAND BEIGE,TRIM4#

 1
71073-0KC20E1

GGN50,60,KUN51,61..(4FC,5FC)..SA

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),SAND BEIGE,TRIM4#

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-0KB90E1

GGN50,60,KUN51,61..(4FC,5FC)..SA

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),SAND BEIGE,TRIM4#

 1
71430-0KB90E0

GGN50,60,KUN61..(4FC,5FC)..SA

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),SAND BEIGE,TRIM4#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-0K060

KUN51..RHD..SA;GGN50,60,KUN61,LAN50,TGN51..SA

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-0K030

KUN51..RHD;GGN60..ANCOM;KUN61..5F..SA;TGN61..IDSUV..(GCC,IDN);KUN51..(SUVW,THSUV)..(GEN,PHL);GGN60,TGN51..(4FC,5F)..(GCC,IDN,MA,SA,TH);GGN50,KUN60,LAN50,TGN61..(SUVW,THSUV)..(ANCOM,GCC,GEN,IDN,PHL,SA,TH)

 1
71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71610-0K020

GGN50,60,KUN51,61..(4FC,5FC)..SA

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)

 1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-0K040A0

KUN6#..RHD..SUVW..5F;GGN50,60,KUN51,LAN50,TGN51,61..RHD

IVORY,TRIM0#

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-0K040A0

KUN6#..RHD..SUVW..5F;GGN50,60,KUN51,LAN50,TGN51,61..RHD

IVORY,TRIM0#

 1
71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-02060

GGN50,60,KUN51,61..(4FC,5FC)..SA

 1
71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-02060

GGN50,60,KUN51,61..(4FC,5FC)..SA

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-0K220E0

GGN50,60,KUN61..(4FC,5FC)..SA

SAND BEIGE,TRIM4#

 2
71910-0K220E1

GGN50,60,KUN61..(4FC,5FC)..SA

SAND BEIGE,TRIM4#

 2
71910-0K220E2

GGN50,60,KUN51,61..(4FC,5FC)..SA

SAND BEIGE,TRIM4#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02060E1

KUN51..LHD..SA;KUN51,61..4FC..SA;GGN50,60,LAN50,TGN51..SA

W/O(LOCK),SAND BEIGE,TRIM4#

 2
71930-02080E1

KUN51..LHD..SA;KUN51,61..4FC..SA;GGN50,60,LAN50,TGN51..SA

W(LOCK),SAND BEIGE,TRIM4#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02060E1

KUN51..LHD..SA;KUN51,61..4FC..SA;GGN50,60,LAN50,TGN51..SA

W/O(LOCK),SAND BEIGE,TRIM4#

 2
71930-02080E1

KUN51..LHD..SA;KUN51,61..4FC..SA;GGN50,60,LAN50,TGN51..SA

W(LOCK),SAND BEIGE,TRIM4#

 2
72137B - COVER, SEAT TRACK, RH
72137-0K010A0

TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

IVORY,TRIM0#

 1
72157A - COVER, SEAT TRACK BRACKET, INNER RH
72157-0K010A0

TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

IVORY,TRIM0#

 1
72991 - COVER, FRONT SEAT CUSHION, RH
72991-0K010

KUN51..RHD;TGN61..5F..LA;TGN61..IDSUV..(GCC,IDN);KUN51..(SUVW,THSUV)..(GEN,LA,PHL);GGN60,TGN51..(4FC,5F)..(GCC,IDN,MA,SA,TH);GGN50,KUN50,61,LAN50..(SUVW,THSUV)..(5F,5FC);GGN60,KUN60,TGN61..SUVW..(ANCOM,GCC,IDN,PHL,TH)

 1
Common parts
79169-0K100
90119-10921
90119-T0001
90167-40044
90167-40048
90168-50078
91622-B1018
93530-54010
Linked diagrams
7152
8202
8401

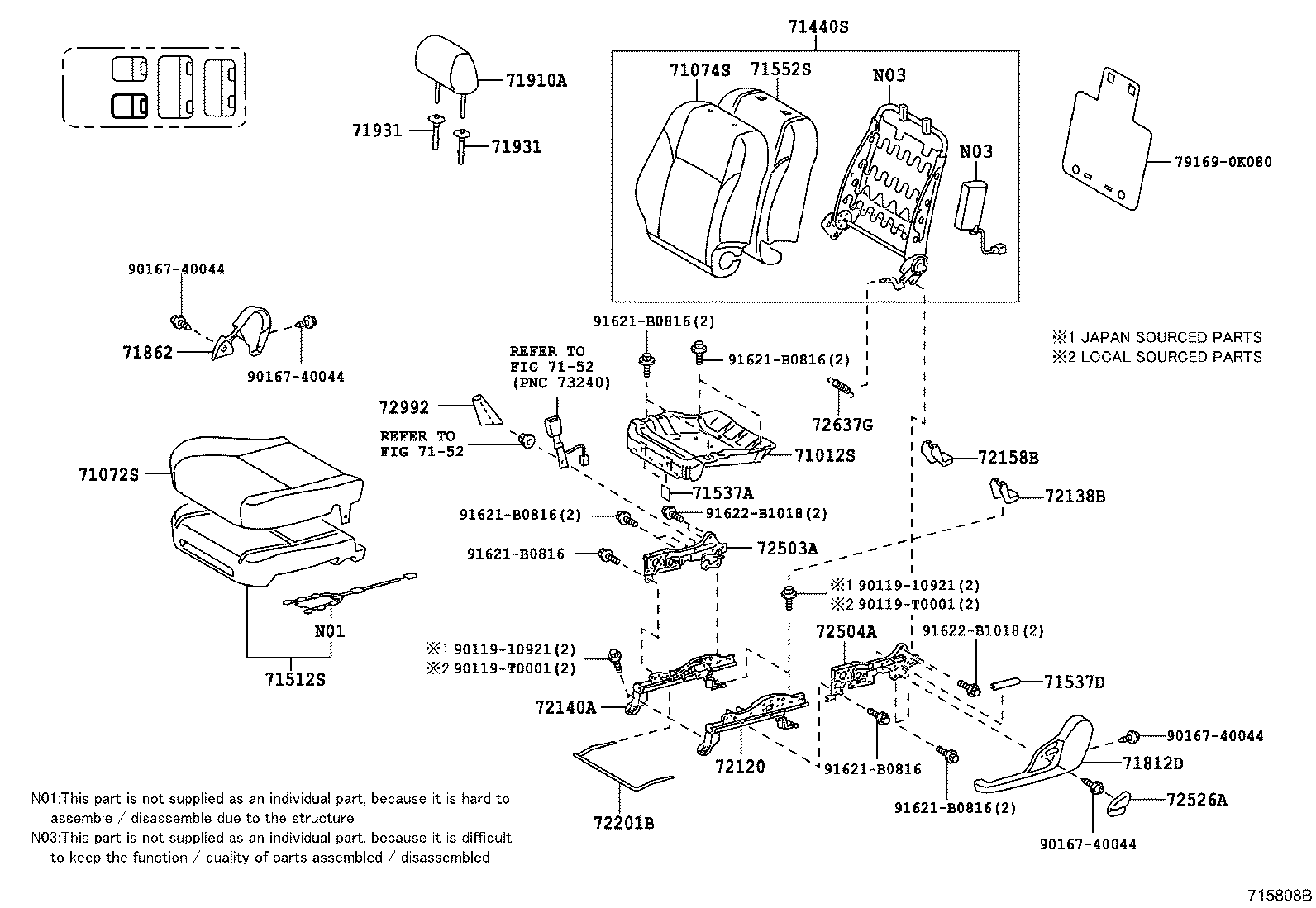

ILLUST NO. 2 OF 4(0810- )RHD..SA

Click highlighted areas on diagram

PASSENGER SEAT W(SRS SIDE AIR BAG)

diagram 71012S 71072S 71074S 71440S 71512S 7152 7152 71537A 71537D 71552S 71812D 71862 71910A 71931 71931 72120 72138B 72140A 72158B 72201B 72503A 72504A 72526A 72637G 72992 791690K080 9011910921 9011910921 90119T0001 90119T0001 9016740044 9016740044 9016740044 9016740044 91621B0816 91621B0816 91621B0816 91621B0816 91621B0816 91621B0816 91622B1018 91622B1018
Part # Description Qty Price
71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH
71011-0K030

KUN51..RHD..SA;GGN50,60,KUN61,LAN50,TGN51..SA

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-0KC10E0

GGN50,60,KUN61..(4FC,5FC)..SA

SAND BEIGE,TRIM4#

 1
71072-0KC10E1

GGN50,60,KUN51,61..(4FC,5FC)..SA

SAND BEIGE,TRIM4#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71073-0KC00E0

GGN50,60,KUN61..(4FC,5FC)..SA

SAND BEIGE,TRIM4#

 1
71074-0K300E0

GGN50,60,KUN61..(4FC,5FC)..SA

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),SAND BEIGE,TRIM4#

 1
71074-0K300E1

GGN50,60,KUN51,61..(4FC,5FC)..SA

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),SAND BEIGE,TRIM4#

 1
71073-0KC00E1

GGN50,60,KUN51,61..(4FC,5FC)..SA

SAND BEIGE,TRIM4#

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-0KB21E0

GGN50,60,KUN51,61..(4FC,5FC)..SA

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),SAND BEIGE,TRIM4#

 1
71440-0KB20E1

GGN50,60,KUN51,61..(4FC,5FC)..SA

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),SAND BEIGE,TRIM4#

 1
71440-0KB20E0

GGN50,60,KUN61..(4FC,5FC)..SA

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN),SAND BEIGE,TRIM4#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71051-0K040

GGN50,60,KUN51,61..(4FC,5FC)..SA

 1
71051-0K030

GGN50,60,KUN51,61..RHD..SA

 1
71537A - PROTECTOR, FRONT SEAT CUSHION
71537-0K020

KUN51..RHD;TGN61..5F..LA;TGN61..IDSUV..(GCC,IDN);KUN51..(SUVW,THSUV)..(GEN,LA,PHL);GGN60,TGN51..(4FC,5F)..(GCC,IDN,MA,SA,TH);GGN50,KUN50,61,LAN50..(SUVW,THSUV)..(5F,5FC);GGN60,KUN60,TGN61..SUVW..(ANCOM,GCC,IDN,PHL,TH)

 4
71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH
71537-71010

KUN51..RHD;TGN61..5F..LA;TGN61..IDSUV..(GCC,IDN);KUN51..(SUVW,THSUV)..(GEN,LA,PHL);GGN60,TGN51..(4FC,5F)..(GCC,IDN,MA,SA,TH);GGN50,KUN50,61,LAN50..(SUVW,THSUV)..(5F,5FC);GGN60,KUN60,TGN61..SUVW..(ANCOM,GCC,IDN,PHL,TH)

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71551-0K030

KUN51..RHD;GGN60..ANCOM;KUN61..5F..SA;TGN61..IDSUV..(GCC,IDN);KUN51..(SUVW,THSUV)..(GEN,PHL);GGN60,TGN51..(4FC,5F)..(GCC,IDN,MA,SA,TH);GGN50,KUN60,LAN50,TGN61..(SUVW,THSUV)..(ANCOM,GCC,GEN,IDN,PHL,SA,TH)

 1
71552-0K040

GGN50,60,KUN51,61..(4FC,5FC)..SA

SRS AIR BAG-WITH(DRIVER&PASSENGER&SIDE&CURTAIN)

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-0K020A0

KUN51,TGN51,61..RHD;GGN50,60,KUN50,6#,LAN50..RHD..SUVW..(5F,5FC)

IVORY,TRIM0#

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-0K020A0

KUN51,TGN51,61..RHD;GGN50,60,KUN50,6#,LAN50..RHD..SUVW..(5F,5FC)

IVORY,TRIM0#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-0K220E0

GGN50,60,KUN61..(4FC,5FC)..SA

SAND BEIGE,TRIM4#

 2
71910-0K220E1

GGN50,60,KUN61..(4FC,5FC)..SA

SAND BEIGE,TRIM4#

 2
71910-0K220E2

GGN50,60,KUN51,61..(4FC,5FC)..SA

SAND BEIGE,TRIM4#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02060E1

KUN51..LHD..SA;KUN51,61..4FC..SA;GGN50,60,LAN50,TGN51..SA

W/O(LOCK),SAND BEIGE,TRIM4#

 2
71930-02080E1

KUN51..LHD..SA;KUN51,61..4FC..SA;GGN50,60,LAN50,TGN51..SA

W(LOCK),SAND BEIGE,TRIM4#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02060E1

KUN51..LHD..SA;KUN51,61..4FC..SA;GGN50,60,LAN50,TGN51..SA

W/O(LOCK),SAND BEIGE,TRIM4#

 2
71930-02080E1

KUN51..LHD..SA;KUN51,61..4FC..SA;GGN50,60,LAN50,TGN51..SA

W(LOCK),SAND BEIGE,TRIM4#

 2
72120 - TRACK ASSY, FRONT SEAT, OUTER LH
72120-0K010

KUN51,TGN51,61..RHD;GGN50,60,KUN50,6#,LAN50..RHD..SUVW..(5F,5FC)

 1
72138B - COVER, SEAT TRACK, LH
72137-0K010A0

TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

IVORY,TRIM0#

 1
72140A - TRACK ASSY, FRONT SEAT,INNER LH
72140-0K010

KUN51,TGN51,61..RHD;GGN50,60,KUN50,6#,LAN50..RHD..SUVW..(5F,5FC)

 1
72158B - COVER, SEAT TRACK BRACKET, INNER LH
72158-0K010A0

TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

IVORY,TRIM0#

 1
72201B - HANDLE SUB-ASSY, SEAT TRACK LH
72211-0K010

KUN51..RHD;TGN61..5F..LA;TGN61..IDSUV..(GCC,IDN);KUN51..(SUVW,THSUV)..(GEN,LA,PHL);GGN60,TGN51..(4FC,5F)..(GCC,IDN,MA,SA,TH);GGN50,KUN50,61,LAN50..(SUVW,THSUV)..(5F,5FC);GGN60,KUN60,TGN61..SUVW..(ANCOM,GCC,IDN,PHL,TH)

 1
72503A - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER RH
72503-0K040

KUN51,TGN51,61..RHD;GGN50,60,KUN50,6#,LAN50..RHD..SUVW..(5F,5FC)

 1
72504A - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER LH
72504-0K030

KUN51,TGN51,61..RHD;GGN50,60,KUN50,6#,LAN50..RHD..SUVW..(5F,5FC)

 1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-0K040A0

KUN51..RHD;TGN61..5F..LA;TGN61..IDSUV..(GCC,IDN);KUN51..(SUVW,THSUV)..(GEN,LA,PHL);GGN60,TGN51..(4FC,5F)..(GCC,IDN,MA,SA,TH);GGN50,KUN50,61,LAN50..(SUVW,THSUV)..(5F,5FC);GGN60,KUN60,TGN61..SUVW..(ANCOM,GCC,IDN,PHL,TH)

IVORY,TRIM0#

 1
72637G - SPRING, SEAT BACK, LH
72637-0K010

KUN51..RHD;TGN61..5F..LA;TGN61..IDSUV..(GCC,IDN);KUN51..(SUVW,THSUV)..(GEN,LA,PHL);GGN60,TGN51..(4FC,5F)..(GCC,IDN,MA,SA,TH);GGN50,KUN50,61,LAN50..(SUVW,THSUV)..(5F,5FC);GGN60,KUN60,TGN61..SUVW..(ANCOM,GCC,IDN,PHL,TH)

 1
72992 - COVER, FRONT SEAT CUSHION, LH
72991-0K020

GGN50,60,KUN51,61..(4FC,5FC)..SA

 1
Common parts
79169-0K080
90119-10921
90119-T0001
90167-40044
91621-B0816
91622-B1018
Linked diagrams
7152

ILLUST NO. 1 OF 4(1107- )RHD

Click highlighted areas on diagram

DRIVER SEAT W(VERTICAL ADJUSTER)

diagram 443440K010 71011S 71071S 71073S 71511S 7152 7152 7152 71537A 71537C 71551S 71630S 71811D 71861 71910A 71931 71931 72110A 72130A 72130A 72137B 72157A 72201A 72409 72422A 72448 72457B 72503 72504 72525A 72637F 727020K100 727020K100 72991 791690K080 90119T0001 90119T0001 9016740044 9016740044 9016740044 9016740044 9052001006 91621B0816 91621B0816 91621B0816 91622B1018 91622B1018 9616000600 9616000600
Part # Description Qty Price
Common parts
44344-0K010
72702-0K100
79169-0K080
90119-T0001
90167-40044
90520-01006
91621-B0816
91622-B1018
96160-00600
Linked diagrams
7152

ILLUST NO. 4 OF 4(1107- )

Click highlighted areas on diagram

REAR NO.2 SEAT(LH)

diagram 71075E 71486A 7152 7152 71617A 71693 71779 71779 71779 71779 71779 71844A 71931C 71931C 71940D 721890K010 721890K010 72507E 72526D 72613B 72613B 72615A 72615A 72656 72656B 727020K070 72749A 72997 78960B 79022 79024 79036 79096A 79117C 79202 79204A 79206B 79216A 79225B 79245C 79246E 79285 79391 79956D 79958A 9010908095 9010908095 90109T0035 90119T0204 90119T0204 90119T0204 9015960280 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 90167T0019 90167T0019 9151581020 9151581020 9155180825 9155180825 9356054016 9356054016 9356054016 9356054016
Part # Description Qty Price
Common parts
72189-0K010
72702-0K070
90109-08095
90109-T0035
90119-T0204
90159-60280
90167-40044
90167-T0019
91515-81020
91551-80825
93560-54016
Linked diagrams
7152

ILLUST NO. 1 OF 4(1107- )RHD

Click highlighted areas on diagram

DRIVER SEAT W(POWER SEAT)

diagram 71071S 71073S 71511S 7152 7152 71551S 71610S 71630S 71811D 71861 71867A 71873 71874 71875A 71875B 71876 71876A 71910A 71931 71931 72137B 72157A 72991 791690K100 8202 8202 8401 8401 8401 8401 85821H 85821J 85821L 90119T0001 90119T0001 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740048 9016850078 9016850078 91622B1018 91622B1018 9353054010
Part # Description Qty Price
Common parts
79169-0K100
90119-T0001
90167-40044
90167-40048
90168-50078
91622-B1018
93530-54010
Linked diagrams
7152
8202
8401

ILLUST NO. 1 OF 4(1107- )RHD

Click highlighted areas on diagram

*DRS W(POWER & SRS SIDE AIR BAG)

diagram 71071S 71073S 71430S 71511S 7152 7152 71551S 71610S 71811D 71861 71867A 71873 71874 71875A 71875B 71876 71876A 71910A 71931 71931 72137B 72157A 72991 791690K100 8202 8202 8401 8401 8401 8401 85821H 85821L 90119T0001 90119T0001 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740048 9016850078 9016850078 91622B1018 91622B1018 9353054010
Part # Description Qty Price
Common parts
79169-0K100
90119-T0001
90167-40044
90167-40048
90168-50078
91622-B1018
93530-54010
Linked diagrams
7152
8202
8401

ILLUST NO. 2 OF 4(1107- )RHD

Click highlighted areas on diagram

PASSENGER SEAT

diagram 71012S 71072S 71074S 71512S 7152 7152 71537A 71537D 71552S 71640S 71812D 71862 71910A 71931 71931 72120 72138B 72140A 72158B 72201B 72503A 72504A 72526A 72637G 72992 791690K080 90119T0001 90119T0001 9016740044 9016740044 9016740044 9016740044 91621B0816 91621B0816 91621B0816 91621B0816 91621B0816 91621B0816 91622B1018 91622B1018
Part # Description Qty Price
Common parts
79169-0K080
90119-T0001
90167-40044
91621-B0816
91622-B1018
Linked diagrams
7152

ILLUST NO. 2 OF 4(1107- )RHD

Click highlighted areas on diagram

PASSENGER SEAT W(SRS SIDE AIR BAG)

diagram 71012S 71072S 71074S 71440S 71512S 7152 7152 71537A 71537D 71552S 71812D 71862 71910A 71931 71931 72120 72138B 72140A 72158B 72201B 72503A 72504A 72526A 72637G 72992 791690K080 90119T0001 90119T0001 9016740044 9016740044 9016740044 9016740044 91621B0816 91621B0816 91621B0816 91621B0816 91621B0816 91621B0816 91622B1018 91622B1018
Part # Description Qty Price
Common parts
79169-0K080
90119-T0001
90167-40044
91621-B0816
91622-B1018
Linked diagrams
7152

ILLUST NO. 3 OF 4(1107- )

Click highlighted areas on diagram

REAR NO.1 SEAT(RH) W(SLIDE)

diagram 71350B 71350D 7152 7152 7152 7152 7152 7152 71629 71629A 717690K010 717690K010 71833A 71833C 71881 71931A 71931A 71940A 72160 72160B 72181 72211B 72507A 72525B 72593 72649 72649B 72650F 72650G 72661C 72661C 72665C 72665F 72695B 727020K040 727020K040 727020K040 727020K070 727020K080 727020K090 727020K090 72830D 72835 72836B 72907B 78950 78953 78953A 79011 79013 79101B 79103A 79135A 79139B 791690K050 79175E 9008017114 9008038090 9008038090 90119T0204 90126T0005 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 90178T0039 90178T0039 90178T0039 9151581020 9151581020 91651G0820 91651G0820 9616000400
Part # Description Qty Price
Common parts
71769-0K010
72702-0K040
72702-0K070
72702-0K080
72702-0K090
79169-0K050
90080-17114
90080-38090
90119-T0204
90126-T0005
90167-40044
90178-T0039
91515-81020
91651-G0820
96160-00400
Linked diagrams
7152

ILLUST NO. 3 OF 4(1107- )

Click highlighted areas on diagram

REAR NO.1 SEAT(LH) W(SLIDE)

diagram 71360A 71360D 7152 7152 71629B 71639 717690K010 717690K010 71834A 71834B 71882A 71931A 71931A 71940A 72170B 72170D 72182 72211E 72507C 72526B 72594A 72649 72649B 72660F 72661C 72661C 72666B 72666C 72680B 72695C 727020K040 727020K040 727020K040 727020K040 727020K070 727020K080 727020K090 727020K090 72908B 78953 78953A 78960 79012 79014 79102 79104 79136B 79139B 791690K050 79185 90119T0204 90126T0005 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 90178T0039 90178T0039 90178T0039 9151581020 9151581020 9616000400
Part # Description Qty Price
Common parts
71769-0K010
72702-0K040
72702-0K070
72702-0K080
72702-0K090
79169-0K050
90119-T0204
90126-T0005
90167-40044
90178-T0039
91515-81020
96160-00400
Linked diagrams
7152

ILLUST NO. 4 OF 4(1107- )

Click highlighted areas on diagram

REAR NO.2 SEAT(RH)

diagram 71075E 71485 7152 7152 71617A 71694D 71779 71779 71779 71779 71779 71843A 71931C 71931C 71940D 721890K010 721890K010 72507D 72525C 72613B 72613B 72615A 72615A 72656 72656B 727020K070 72749 72966B 78960A 79021 79023 79035 79095 79117B 79201B 79203A 79205B 79216A 79235D 79236D 79275C 79391 79952 79955A 79957A 9010908095 9010908095 90109T0035 90119T0204 90119T0204 90119T0204 9015960280 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 90167T0019 90167T0019 9151581020 9151581020 9155180825 9155180825 9356054016 9356054016 9356054016 9356054016
Part # Description Qty Price
Common parts
72189-0K010
72702-0K070
90109-08095
90109-T0035
90119-T0204
90159-60280
90167-40044
90167-T0019
91515-81020
91551-80825
93560-54016
Linked diagrams
7152

ILLUST NO. 1 OF 4(1107- )RHD

Click highlighted areas on diagram

DRIVER SEAT W/O(VERTICAL ADJUSTER)

diagram 71011S 71071S 71073S 71511S 7152 7152 7152 71537A 71537C 71551S 71630S 71811D 71861 71910A 71931 71931 72110A 72130A 72137B 72157A 72201A 72503 72504 72504 72525A 72637F 72991 791690K080 90119T0001 90119T0001 9016740044 9016740044 9016740044 9016740044 91621B0816 91621B0816 91621B0816 91621B0816 91621B0816 91621B0816 91622B1018 91622B1018
Part # Description Qty Price
Common parts
79169-0K080
90119-T0001
90167-40044
91621-B0816
91622-B1018
Linked diagrams
7152
