GGN60R-NKASKN (2008)

Toyota Fortuner

Production Oct 2008 - Aug 2011
Engine 1GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

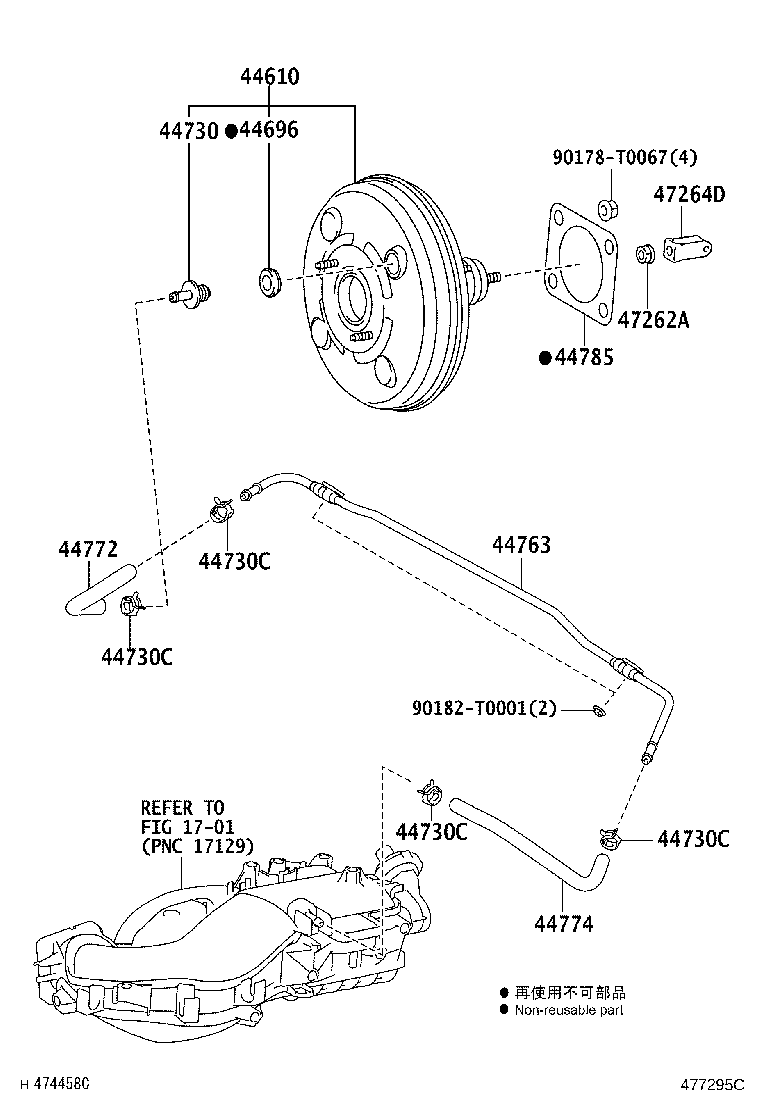

(1010- )GGN50,60..SA

Click highlighted areas on diagram

diagram 1701 44610 44696 44730 44730C 44730C 44730C 44730C 44763 44772 44774 44785 47262A 47264D 90178T0067 90182T0001
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-09280

GGN50,60..SA

 1
44610-0K130

GGN50,60..SA

 1
44610-0K030

KUN50,60..RHD..SUVW

 1
44730C - CLIP(FOR VACUUM HOSE)
90466-T0019

KUN51,6#..LHD..(SUVW,THSUV);GGN50,60,LAN50,TGN51,61..RHD

 4
90466-T0019

KUN51..RHD;LAN50..LHD;KUN50,6#..RHD..SUVW..5F

 6
44730C - CLIP(FOR VACUUM HOSE)
90466-T0019

KUN51,6#..LHD..(SUVW,THSUV);GGN50,60,LAN50,TGN51,61..RHD

 4
90466-T0019

KUN51..RHD;LAN50..LHD;KUN50,6#..RHD..SUVW..5F

 6
44730C - CLIP(FOR VACUUM HOSE)
90466-T0019

KUN51,6#..LHD..(SUVW,THSUV);GGN50,60,LAN50,TGN51,61..RHD

 4
90466-T0019

KUN51..RHD;LAN50..LHD;KUN50,6#..RHD..SUVW..5F

 6
44730C - CLIP(FOR VACUUM HOSE)
90466-T0019

KUN51,6#..LHD..(SUVW,THSUV);GGN50,60,LAN50,TGN51,61..RHD

 4
90466-T0019

KUN51..RHD;LAN50..LHD;KUN50,6#..RHD..SUVW..5F

 6
44763 - TUBE, BOOSTER VACUUM
44763-0K010

KUN61..SA;GGN50,60,KUN51,60,TGN51,61..RHD..SUVW..(IDN,SA,TH)

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-0K030

GGN50,60..SA

 1
44772-0K020

GGN50,60..SA

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-0K030

GGN50,60..SA

 1
44774-0K020

KUN50,61..5F;KUN51,60..SUVW,THSUV

 1
44785 - GASKET, BRAKE BOOSTER
44785-17010

TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

 1
47262A - NUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK
47262-0K010

GGN50,60..SA

 1
90179-10065

GGN50,60..SA

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-0K020

GGN50,60..SA

 1
47264-0K050

GGN50,60..SA

 1
Common parts
90178-T0067
90182-T0001
Linked diagrams
1701

(1107- )KUN5#,6#..RHD

Click highlighted areas on diagram

W(VSC)

diagram 1905 1905 1905 1905 44610 44696 44696 44730 44730C 44730C 44730C 44730C 44730C 44730C 44730K 44763 44763A 44771 44772 44774 44785 4702 4702 4708 47262A 47264D 8401 90105T0059 90105T0059 90178T0067 90182T0001
Part # Description Qty Price
Common parts
90105-T0059
90178-T0067
90182-T0001
Linked diagrams
1905
4702
4708
8401

(1107- )GGN50..5F..CO,LA ; (1107- )GGN50..IDSUV..5FC..LA ; (1107- )GGN50,6

Click highlighted areas on diagram

diagram 04444 1701 44610 44610 44696 44730 44730C 44730C 44773F 44785 4702 4702 4702 4702 47262A 47264D 47381K 47381K 90178T0067
Part # Description Qty Price
Common parts
90178-T0067
Linked diagrams
1701
4702

(1107- )KUN5#,6#..RHD

Click highlighted areas on diagram

diagram 04444 1905 1905 1905 1905 44610 44610 44696 44730 44730C 44730C 44730C 44730C 44730C 44730C 44730K 44763 44763A 44771 44772 44774 44785 4702 4702 4702 4702 47262A 47264D 47381K 47381K 8401 8401 90105T0059 90178T0067 90182T0001
Part # Description Qty Price
Common parts
90105-T0059
90178-T0067
90182-T0001
Linked diagrams
1905
4702
8401
