GGN60R-NKASKN (2008)
Toyota Fortuner
(0810- )KUN51..5F..LA,SA ; (0810- )GGN50,60,KUN61,LAN50,TGN51,61..LA,SA ; (08

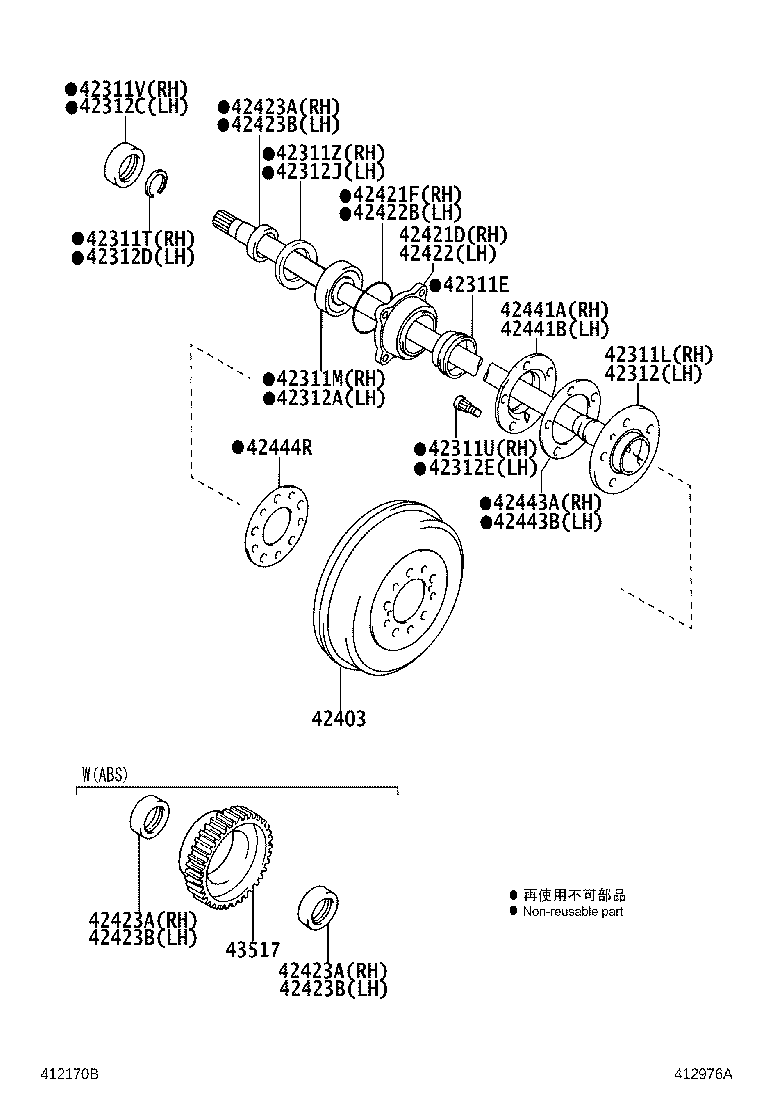

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311E - SEAL, OIL (FOR REAR AXLE SHAFT OUTER) | ||||
| 90313-T0001 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR |
2 | ||
| 90313-T0001 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR |
2 | ||
| 42311L - SHAFT, REAR AXLE, RH | ||||
| 42311-0K040 |
TGN61..5F..LA;TGN61..IDSUV..IDN;GGN50,KUN50,61..5F,5FC;GGN60,TGN51..ANCOM,IDN,MA,TH;GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GEN,IDN,LA,PHL,SA,TH) |
1 | ||
| 42311-0K040 |
TGN61..5F..LA;TGN61..IDSUV..IDN;GGN50,KUN50,61..5F,5FC;GGN60,TGN51..ANCOM,IDN,MA,TH;GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GEN,IDN,LA,PHL,SA,TH) |
1 | ||
| 42311M - BEARING (FOR REAR AXLE SHAFT RH) | ||||
| 90080-36217 |
GGN50,60,KUN51,61,LAN50..SA |
1 | ||
| 90080-36217 |
GGN50,60,KUN51,61,LAN50..SA |
1 | ||
| 42311T - RING, SNAP (FOR REAR AXLE SHAFT RH) | ||||
| 90520-T0036 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR |
1 | ||
| 90520-T0036 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02052 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR |
6 | ||
| 90942-02052 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR |
6 | ||
| 42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH) | ||||
| 90310-T0006 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR |
1 | ||
| 90310-T0006 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR |
1 | ||
| 42312 - SHAFT, REAR AXLE, LH | ||||
| 42311-0K040 |
TGN61..5F..LA;TGN61..IDSUV..IDN;GGN50,KUN50,61..5F,5FC;GGN60,TGN51..ANCOM,IDN,MA,TH;GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GEN,IDN,LA,PHL,SA,TH) |
1 | ||
| 42311-0K040 |
TGN61..5F..LA;TGN61..IDSUV..IDN;GGN50,KUN50,61..5F,5FC;GGN60,TGN51..ANCOM,IDN,MA,TH;GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GEN,IDN,LA,PHL,SA,TH) |
1 | ||
| 42312A - BEARING (FOR REAR AXLE SHAFT LH) | ||||
| 90080-36217 |
GGN50,60,KUN51,61,LAN50..SA |
1 | ||
| 90080-36217 |
GGN50,60,KUN51,61,LAN50..SA |
1 | ||
| 42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH) | ||||
| 90310-T0006 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR |
1 | ||
| 90310-T0006 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR |
1 | ||
| 42312D - RING, SNAP (FOR REAR AXLE SHAFT LH) | ||||
| 90520-T0036 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR |
1 | ||
| 90520-T0036 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02052 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR |
6 | ||
| 90942-02052 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR |
6 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-0K130 |
GGN50,60,KUN51,61,LAN50,TGN51..SA |
2 | ||
| 42431-0K130 |
GGN50,60,KUN51,61,LAN50,TGN51..SA |
2 | ||
| 42421F - RING, O (FOR REAR AXLE BEARING CASE RH) | ||||
| 90301-T0016 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR |
1 | ||
| 90301-T0016 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR |
1 | ||
| 42422B - RING, O (FOR REAR AXLE BEARING CASE LH) | ||||
| 90301-T0016 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR |
1 | ||
| 90301-T0016 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR |
1 | ||
| 42423A - RETAINER, REAR AXLE BEARING, INNER RH | ||||
| 42423-20010 |
TGN61..IDSUV..IDN;GGN60,TGN51..ANCOM,IDN,MA,TH;GGN50,KUN50,61..(5F,5FC)..(ANCOM,GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GEN,IDN,LA,PHL,SA,TH) |
2 | ||
| 42423-20010 |
TGN61..IDSUV..IDN;GGN60,TGN51..ANCOM,IDN,MA,TH;GGN50,KUN50,61..(5F,5FC)..(ANCOM,GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GEN,IDN,LA,PHL,SA,TH) |
2 | ||
| 42423A - RETAINER, REAR AXLE BEARING, INNER RH | ||||
| 42423-20010 |
TGN61..IDSUV..IDN;GGN60,TGN51..ANCOM,IDN,MA,TH;GGN50,KUN50,61..(5F,5FC)..(ANCOM,GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GEN,IDN,LA,PHL,SA,TH) |
2 | ||
| 42423-20010 |
TGN61..IDSUV..IDN;GGN60,TGN51..ANCOM,IDN,MA,TH;GGN50,KUN50,61..(5F,5FC)..(ANCOM,GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GEN,IDN,LA,PHL,SA,TH) |
2 | ||
| 42423A - RETAINER, REAR AXLE BEARING, INNER RH | ||||
| 42423-20010 |
TGN61..IDSUV..IDN;GGN60,TGN51..ANCOM,IDN,MA,TH;GGN50,KUN50,61..(5F,5FC)..(ANCOM,GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GEN,IDN,LA,PHL,SA,TH) |
2 | ||
| 42423-20010 |
TGN61..IDSUV..IDN;GGN60,TGN51..ANCOM,IDN,MA,TH;GGN50,KUN50,61..(5F,5FC)..(ANCOM,GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GEN,IDN,LA,PHL,SA,TH) |
2 | ||
| 42423B - RETAINER, REAR AXLE BEARING, INNER LH | ||||
| 42423-20010 |
TGN61..IDSUV..IDN;GGN60,TGN51..ANCOM,IDN,MA,TH;GGN50,KUN50,61..(5F,5FC)..(ANCOM,GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GEN,IDN,LA,PHL,SA,TH) |
2 | ||
| 42423-20010 |
TGN61..IDSUV..IDN;GGN60,TGN51..ANCOM,IDN,MA,TH;GGN50,KUN50,61..(5F,5FC)..(ANCOM,GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GEN,IDN,LA,PHL,SA,TH) |
2 | ||
| 42423B - RETAINER, REAR AXLE BEARING, INNER LH | ||||
| 42423-20010 |
TGN61..IDSUV..IDN;GGN60,TGN51..ANCOM,IDN,MA,TH;GGN50,KUN50,61..(5F,5FC)..(ANCOM,GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GEN,IDN,LA,PHL,SA,TH) |
2 | ||
| 42423-20010 |
TGN61..IDSUV..IDN;GGN60,TGN51..ANCOM,IDN,MA,TH;GGN50,KUN50,61..(5F,5FC)..(ANCOM,GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GEN,IDN,LA,PHL,SA,TH) |
2 | ||
| 42423B - RETAINER, REAR AXLE BEARING, INNER LH | ||||
| 42423-20010 |
TGN61..IDSUV..IDN;GGN60,TGN51..ANCOM,IDN,MA,TH;GGN50,KUN50,61..(5F,5FC)..(ANCOM,GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GEN,IDN,LA,PHL,SA,TH) |
2 | ||
| 42423-20010 |
TGN61..IDSUV..IDN;GGN60,TGN51..ANCOM,IDN,MA,TH;GGN50,KUN50,61..(5F,5FC)..(ANCOM,GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GEN,IDN,LA,PHL,SA,TH) |
2 | ||
| 42441A - DEFLECTOR, BRAKE DRUM OIL RH | ||||
| 42441-35020 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR |
1 | ||
| 42441-35020 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR |
1 | ||
| 42441-0K041 |
GGN60..SUVW;TGN51..GCC,IDN,MA,VN;GGN50,KUN5#,6#,LAN50,TGN61 |
1 | ||
| 42441-0K041 |
GGN60..SUVW;TGN51..GCC,IDN,MA,VN;GGN50,KUN5#,6#,LAN50,TGN61 |
1 | ||
| 42441B - DEFLECTOR, BRAKE DRUM OIL LH | ||||
| 42441-0K041 |
GGN60..SUVW;TGN51..GCC,IDN,MA,VN;GGN50,KUN5#,6#,LAN50,TGN61 |
1 | ||
| 42441-0K041 |
GGN60..SUVW;TGN51..GCC,IDN,MA,VN;GGN50,KUN5#,6#,LAN50,TGN61 |
1 | ||
| 42441-35020 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR |
1 | ||
| 42441-35020 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR |
1 | ||
| 42443A - GASKET, BRAKE DRUM OIL DEFLECTOR, RH | ||||
| 42443-55020 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR |
1 | ||
| 42443-55020 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR |
1 | ||
| 42443B - GASKET, BRAKE DRUM OIL DEFLECTOR, LH | ||||
| 42443-55020 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR |
1 | ||
| 42443-55020 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR |
1 | ||
| 42444R - GASKET, BRAKE DRUM (FOR REAR AXLE) | ||||
| 42444-35050 |
TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH) |
2 | ||
| 42444-35050 |
TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH) |
2 | ||
| 43517 - ROTOR, SKID CONTROL, REAR | ||||
| 43517-35010 |
TGN61..IDSUV..IDN;GGN60,TGN51..ANCOM,IDN,MA,TH;GGN50,KUN50,61..(5F,5FC)..(ANCOM,GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GEN,IDN,LA,PHL,SA,TH) |
2 | ||
| 43517-35010 |
TGN61..IDSUV..IDN;GGN60,TGN51..ANCOM,IDN,MA,TH;GGN50,KUN50,61..(5F,5FC)..(ANCOM,GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GEN,IDN,LA,PHL,SA,TH) |
2 | ||
