GGN60R-NKASKN (2008)

Toyota Fortuner

Production Oct 2008 - Aug 2011
Engine 1GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0810- )1GRFE..LA,SA ; (0812- )1GRFE..ANCOM

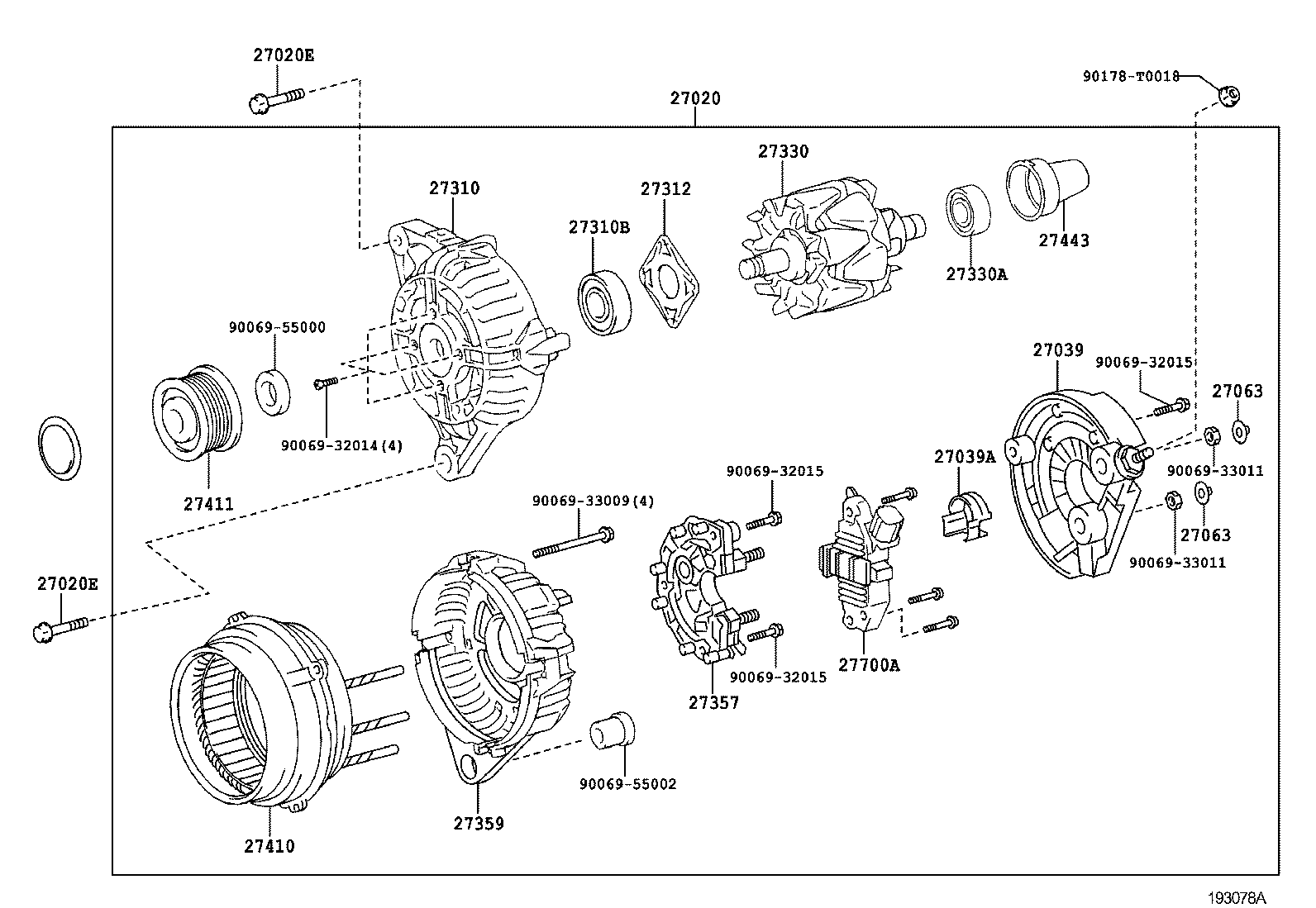

Click highlighted areas on diagram

12V 90A

diagram 27020 27020E 27020E 27039 27039A 27063 27063 27310 27310B 27312 27330 27330A 27357 27359 27410 27411 27443 27700A 9006932014 9006932015 9006932015 9006932015 9006933009 9006933011 9006933011 9006955000 9006955002 90178T0018
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-0P100

1GRFE..GGN50,60..SA

12V 90A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-0P100

1GRFE..GGN50,60..SA

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-0P090

1GRFE..GGN50,60..SA

 1
27411 - PULLEY, ALTERNATOR
27411-0P090

1GRFE..GGN50,60..SA

 1
Common parts
90069-32014
90069-32015
90069-33009
90069-33011
90069-55000
90069-55002
90178-T0018
