GGN60R-NKASKN (2008)
Toyota Fortuner
Production
Oct 2008
-
Aug 2011
Engine
1GRFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

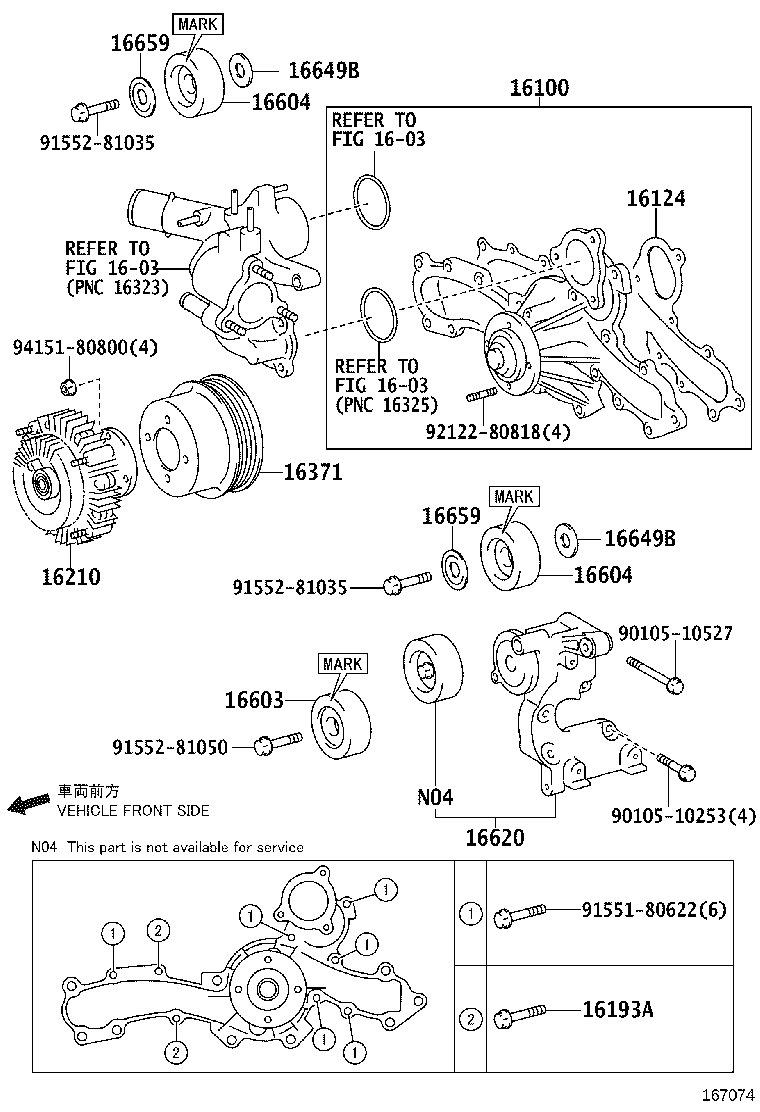

(0903- )1GRFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16100 - PUMP ASSY, ENGINE WATER | ||||
| 16100-39406 |
1GRFE..GGN50;1GRFE..GGN60..SUVW |
1 | ||
| 16603 - PULLEY SUB-ASSY, IDLER, NO.1 | ||||
| 16603-31050 |
1GRFE..GGN50;1GRFE..GGN60..SUVW |
1 | ||
| Common parts | ||||
| 90105-10253 | ||||
| 90105-10527 | ||||
| 91551-80622 | ||||
| 91552-81035 | ||||
| 91552-81050 | ||||
| 92122-80818 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1603 | ||||
(1107- )1GRFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-10253 | ||||
| 90105-10527 | ||||
| 91551-80622 | ||||
| 91552-81035 | ||||
| 91552-81050 | ||||
| 92122-80818 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1106 | ||||
| 1603 | ||||
