GGN50R-NKASKN (2006)
Toyota Fortuner

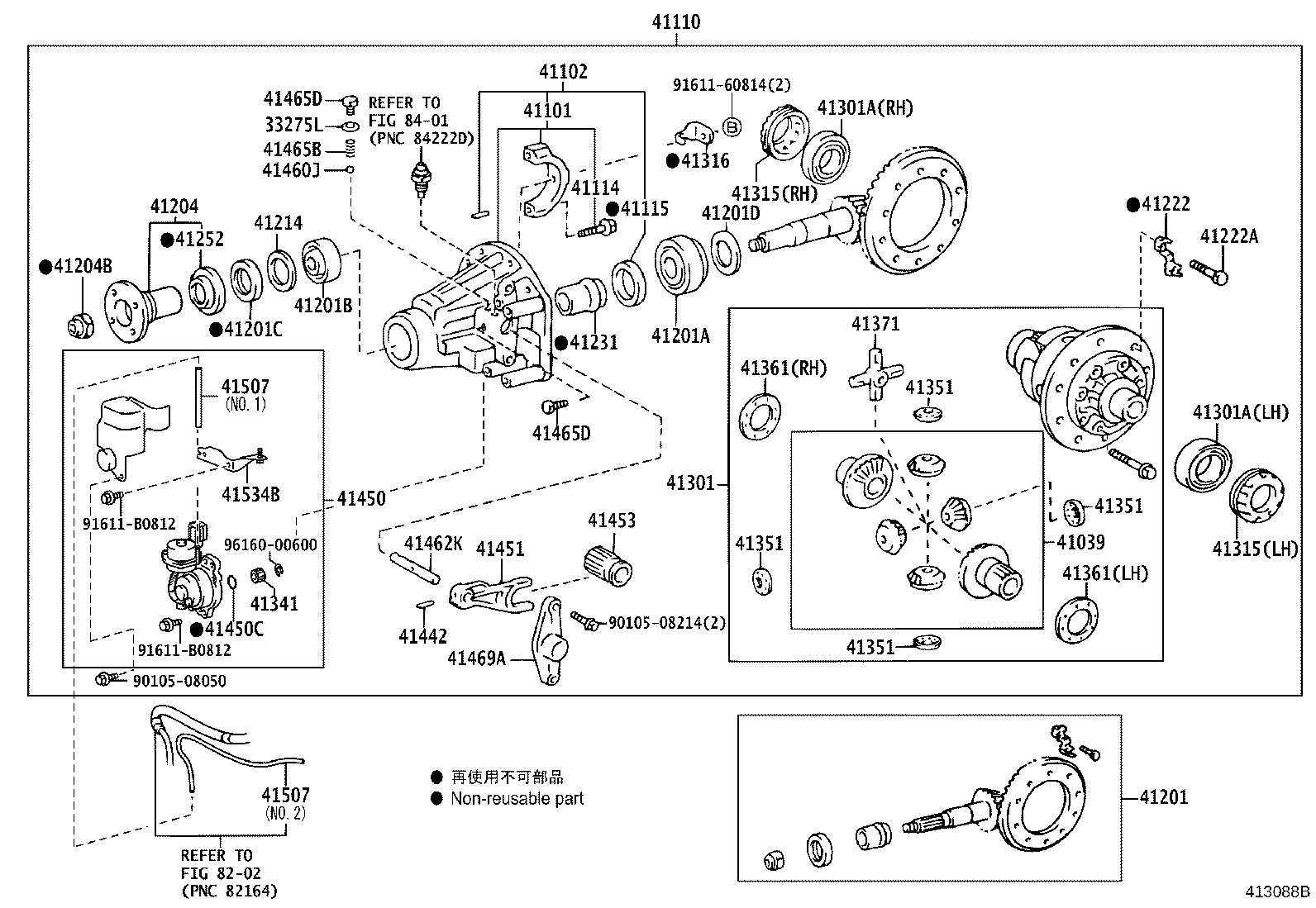

ILLUST NO. 1 OF 2(0707- )GGN50,60,KUN51,61,LAN50,TGN51..IDSUV,SUVW..GCC,GEN,SA ; (0808- )KUN51
W(REAR DIFFRENTIAL LOCK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33275L - SEAT, REAR DIFFERENTIAL LOCK SHIFT DETENT BALL SPRING | ||||
| 33275-16010 |
GGN50..GCC;KUN51,61..SA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) |
1 | ||
| 41039 - GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41039-34060 |
GGN50..GCC;KUN51,61..SA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) |
1 | ||
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-35150 |
GGN50..GCC;KUN51,61..SA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) |
1 | ||
| 41102 - CARRIER SUB-ASSY, DIFFERENTIAL W/PIN, REAR | ||||
| 41102-35010 |
GGN50,60,KUN51,61..SA |
1 | ||
| 41102-35010 |
GGN50..GCC;KUN51,61..SA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-12053 |
GGN50..GCC;KUN51,61..SA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) |
4 | ||
| 41115 - RING, DIFFERENTIAL OIL STORAGE | ||||
| 41115-35010 |
KUN51..SA;GGN50..GCC;KUN61..LA,SA;TGN61..4FC..LA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35498 |
KUN51..SA;GGN50..GCC;KUN61..LA,SA;TGN61..4FC..LA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) OD=47,T=1.73 |
1 | ||
| 90201-35497 |
KUN51..SA;GGN50..GCC;KUN61..LA,SA;TGN61..4FC..LA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) OD=47,T=1.70 |
1 | ||
| 90201-35503 |
KUN51..SA;GGN50..GCC;KUN61..LA,SA;TGN61..4FC..LA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) OD=47,T=1.88 |
1 | ||
| 90201-35502 |
KUN51..SA;GGN50..GCC;KUN61..LA,SA;TGN61..4FC..LA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) OD=47,T=1.85 |
1 | ||
| 90201-35501 |
KUN51..SA;GGN50..GCC;KUN61..LA,SA;TGN61..4FC..LA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) OD=47,T=1.82 |
1 | ||
| 90201-35509 |
KUN51..SA;GGN50..GCC;KUN61..LA,SA;TGN61..4FC..LA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) OD=47,T=2.06 |
1 | ||
| 90201-35506 |
KUN51..SA;GGN50..GCC;KUN61..LA,SA;TGN61..4FC..LA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) OD=47,T=1.97 |
1 | ||
| 90201-35499 |
KUN51..SA;GGN50..GCC;KUN61..LA,SA;TGN61..4FC..LA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) OD=47,T=1.76 |
1 | ||
| 90201-35513 |
KUN51..SA;GGN50..GCC;KUN61..LA,SA;TGN61..4FC..LA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) OD=47,T=2.18 |
1 | ||
| 90201-35507 |
KUN51..SA;GGN50..GCC;KUN61..LA,SA;TGN61..4FC..LA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) OD=47,T=2.00 |
1 | ||
| 90201-35504 |
KUN51..SA;GGN50..GCC;KUN61..LA,SA;TGN61..4FC..LA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) OD=47,T=1.91 |
1 | ||
| 90201-35500 |
KUN51..SA;GGN50..GCC;KUN61..LA,SA;TGN61..4FC..LA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) OD=47,T=1.79 |
1 | ||
| 90201-35512 |
KUN51..SA;GGN50..GCC;KUN61..LA,SA;TGN61..4FC..LA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) OD=47,T=2.15 |
1 | ||
| 90201-35510 |
KUN51..SA;GGN50..GCC;KUN61..LA,SA;TGN61..4FC..LA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) OD=47,T=2.09 |
1 | ||
| 90201-35511 |
KUN51..SA;GGN50..GCC;KUN61..LA,SA;TGN61..4FC..LA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) OD=47,T=2.12 |
1 | ||
| 90201-35515 |
KUN51..SA;GGN50..GCC;KUN61..LA,SA;TGN61..4FC..LA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) OD=47,T=2.24,MARK 01 |
1 | ||
| 90201-35508 |
KUN51..SA;GGN50..GCC;KUN61..LA,SA;TGN61..4FC..LA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) OD=47,T=2.03 |
1 | ||
| 90201-35517 |
KUN51..SA;GGN50..GCC;KUN61..LA,SA;TGN61..4FC..LA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) OD=47,T=2.30,MARK 03 |
1 | ||
| 90201-35505 |
KUN51..SA;GGN50..GCC;KUN61..LA,SA;TGN61..4FC..LA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) OD=47,T=1.94 |
1 | ||
| 90201-35516 |
KUN51..SA;GGN50..GCC;KUN61..LA,SA;TGN61..4FC..LA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) OD=47,T=2.27,MARK 02 |
1 | ||
| 90201-35514 |
KUN51..SA;GGN50..GCC;KUN61..LA,SA;TGN61..4FC..LA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) OD=47,T=2.21 |
1 | ||
| 90201-35518 |
KUN51..SA;GGN50..GCC;KUN61..LA,SA;TGN61..4FC..LA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) OD=47,T=2.33,MARK 04 |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90177-22003 |
TGN51..4FC;TGN61..SUVW..4FC;TGN61..IDSUV..4FC..(GCC,IDN);GGN50,KUN50,61..(5F,5FC)..(GCC,GEN,LA,MA,SA);GGN60,KUN51,60..(SUVW,THSUV)..(4FC,5F)..(GEN,IDN,PHL,SA,TH) OD=39.5 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26011 |
TGN51..GCC,IDN,MA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61..(5F,5FC)..(GCC,GEN,LA,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH) |
1 | ||
| 41214-26011 |
KUN61;TGN61..4FC;TGN61..5F..GCC;GGN50,60..5FC..SA;GGN50,TGN51..GCC,GEN,IDN,MA,VN;KUN51,60..GEN,IDN,IND,PHL,SA,TH,VN |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-60010 |
GGN50..GCC;KUN51,61..SA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) |
5 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
TGN51..GCC,IDN,MA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61..(5F,5FC)..(GCC,GEN,LA,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH) |
10 | ||
| 90101-11353 |
KUN61;TGN61..4FC;TGN61..5F..GCC;GGN50,60..5FC..SA;GGN50,TGN51..GCC,GEN,IDN,MA,VN;KUN51,60..GEN,IDN,IND,PHL,SA,TH,VN |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-24010 |
KUN61;TGN61..4FC;TGN61..5F..GCC;GGN50,60..5FC..SA;GGN50,TGN51..GCC,GEN,IDN,MA,VN;KUN51,60..GEN,IDN,IND,PHL,SA,TH,VN |
1 | ||
| 41231-24010 |
TGN51..GCC,IDN,MA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61..(5F,5FC)..(GCC,GEN,LA,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH) |
1 | ||
| 41301 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-60060 |
GGN50..GCC;KUN51,61..SA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-60010 |
GGN50..GCC;KUN51,61..SA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) LH |
1 | ||
| 41315-35020 |
GGN50..GCC;KUN51,61..SA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) RH |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-60010 |
GGN50..GCC;KUN51,61..SA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) LH |
1 | ||
| 41315-35020 |
GGN50..GCC;KUN51,61..SA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) RH |
1 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-35010 |
KUN51..SA;GGN50..GCC;KUN61..LA,SA;TGN61..4FC..LA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-35070 |
GGN50..GCC;KUN51,61..SA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
KUN51..SA;GGN50..GCC;KUN61..LA,SA;TGN61..4FC..LA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
KUN51..SA;GGN50..GCC;KUN61..LA,SA;TGN61..4FC..LA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
KUN51..SA;GGN50..GCC;KUN61..LA,SA;TGN61..4FC..LA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
KUN51..SA;GGN50..GCC;KUN61..LA,SA;TGN61..4FC..LA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-35310 |
GGN50..GCC;KUN51,61..SA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) T=0.9,RH,ID=46 |
1 | ||
| 41361-35340 |
GGN50..GCC;KUN51,61..SA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) T=1.2,RH,ID=46 |
1 | ||
| 41361-60300 |
GGN50..GCC;KUN51,61..SA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) T=1.00,RH & LH,ID=54 |
2 | ||
| 41361-60320 |
GGN50..GCC;KUN51,61..SA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) T=1.20,RH & LH,ID=54 |
2 | ||
| 41361-35350 |
GGN50..GCC;KUN51,61..SA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) T=1.3,RH,ID=46 |
1 | ||
| 41361-35330 |
GGN50..GCC;KUN51,61..SA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) T=1.1,RH,ID=46 |
1 | ||
| 41361-35320 |
GGN50..GCC;KUN51,61..SA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) T=1.0,RH,ID=46 |
1 | ||
| 41361-60290 |
GGN50..GCC;KUN51,61..SA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) T=0.90,RH & LH,ID=54 |
2 | ||
| 41361-60330 |
GGN50..GCC;KUN51,61..SA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) T=1.30,RH & LH,ID=54 |
2 | ||
| 41361-60310 |
GGN50..GCC;KUN51,61..SA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) T=1.10,RH & LH,ID=54 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-35310 |
GGN50..GCC;KUN51,61..SA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) T=0.9,RH,ID=46 |
1 | ||
| 41361-35340 |
GGN50..GCC;KUN51,61..SA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) T=1.2,RH,ID=46 |
1 | ||
| 41361-60300 |
GGN50..GCC;KUN51,61..SA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) T=1.00,RH & LH,ID=54 |
2 | ||
| 41361-60320 |
GGN50..GCC;KUN51,61..SA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) T=1.20,RH & LH,ID=54 |
2 | ||
| 41361-35350 |
GGN50..GCC;KUN51,61..SA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) T=1.3,RH,ID=46 |
1 | ||
| 41361-35330 |
GGN50..GCC;KUN51,61..SA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) T=1.1,RH,ID=46 |
1 | ||
| 41361-35320 |
GGN50..GCC;KUN51,61..SA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) T=1.0,RH,ID=46 |
1 | ||
| 41361-60290 |
GGN50..GCC;KUN51,61..SA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) T=0.90,RH & LH,ID=54 |
2 | ||
| 41361-60330 |
GGN50..GCC;KUN51,61..SA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) T=1.30,RH & LH,ID=54 |
2 | ||
| 41361-60310 |
GGN50..GCC;KUN51,61..SA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) T=1.10,RH & LH,ID=54 |
2 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41371-35020 |
GGN50..GCC;KUN51,61..SA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) |
1 | ||
| 41442 - BOLT OR PIN, SHIFT FORK LOCK | ||||
| 90254-05016 |
GGN50..GCC;KUN51,61..SA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) |
1 | ||
| 41450 - ACTUATOR, DIFFERENTIAL LOCK SHIFT | ||||
| 41450-35030 |
GGN50..GCC;KUN51,61..SA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) |
1 | ||
| 41450C - RING, O (FOR REAR DIFFERENTIAL LOCK SHIFT ACTUATOR) | ||||
| 90301-20005 |
GGN50..GCC;KUN51,61..SA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) |
1 | ||
| 41451 - FORK, REAR DIFFERENTIAL LOCK SHIFT | ||||
| 41451-60020 |
GGN50..GCC;KUN51,61..SA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) |
1 | ||
| 41453 - SLEEVE, REAR DIFFERENTIAL LOCK | ||||
| 41453-60020 |
GGN50..GCC;KUN51,61..SA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) |
1 | ||
| 41460J - BALL (FOR REAR DIFFERENTIAL LOCK CYLINDER) | ||||
| 90360-08009 |
GGN50..GCC;KUN51,61..SA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) |
1 | ||
| 41462K - SHAFT, REAR DIFFERENTIAL LOCK SHIFT FORK | ||||
| 41462-60020 |
GGN50..GCC;KUN51,61..SA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) |
1 | ||
| 41465B - SPRING, COMPRESSION (FOR REAR DIFFERENTIAL LOCK RETAINE | ||||
| 90501-12110 |
GGN50..GCC;KUN51,61..SA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) |
1 | ||
| 41465D - PLUG (FOR REAR DIFFERENTIAL LOCK CYLINDER) | ||||
| 90341-10065 |
GGN50..GCC;KUN51,61..SA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) |
2 | ||
| 41465D - PLUG (FOR REAR DIFFERENTIAL LOCK CYLINDER) | ||||
| 90341-10065 |
GGN50..GCC;KUN51,61..SA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) |
2 | ||
| 41469A - RETAINER, REAR DIFFERENTIAL LOCK SHAFT | ||||
| 41469-60010 |
GGN50..GCC;KUN51,61..SA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) |
1 | ||
| 41534B - BRACKET, DIFFERENTIAL BREATHER | ||||
| 41534-35030 |
GGN50..GCC;KUN51,61..SA;GGN50,60,TGN51..(4FC,5FC)..(SA,VN) |
1 | ||
| Common parts | ||||
| 90105-08050 | ||||
| 90105-08214 | ||||
| 91611-60814 | ||||
| 91611-B0812 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||
