GGN50L-NKMSKV (2005)

Toyota Fortuner

Production Jul 2005 - Aug 2008
Engine 1GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0507- )KUN51..5F ; (0507- )THSUV..4FC ; (0507- )KUN51..4FC..LA,PHL,TH ; (

Click highlighted areas on diagram

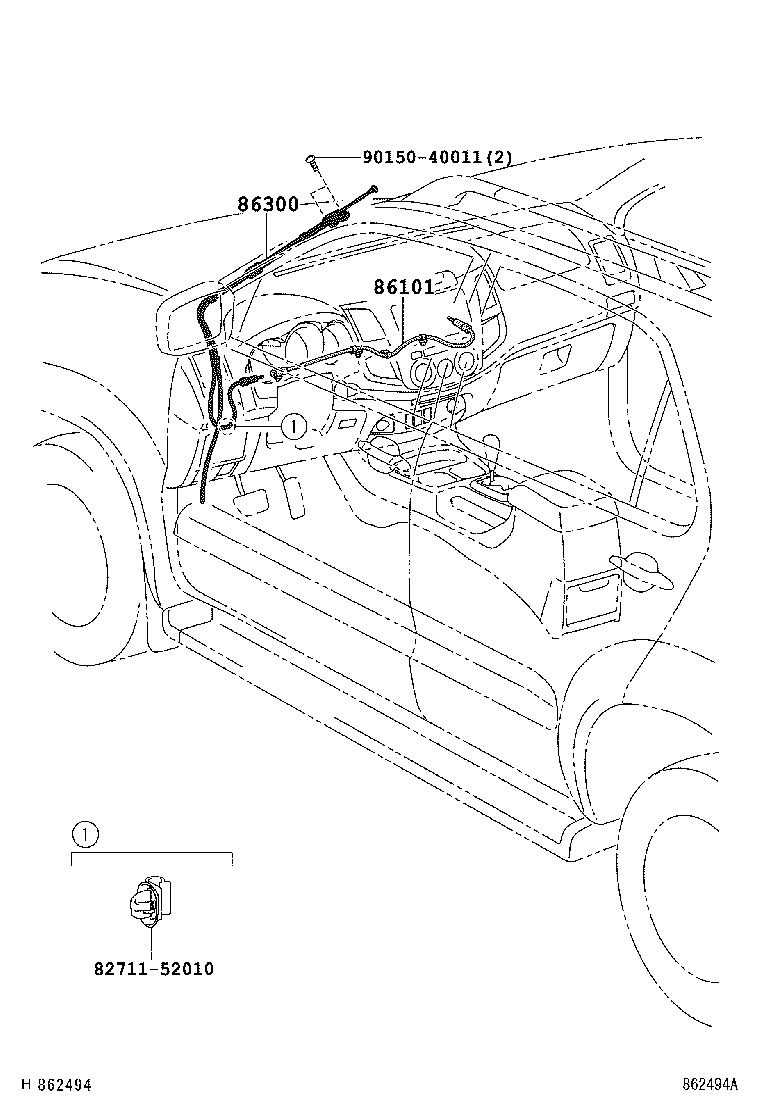

PILLAR ANTENNA

diagram 8271152010 86101 86300 9015040011
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-0K070

GGN50,KUN51,TGN51,61..GCC,GEN

 1
86300 - ANTENNA ASSY, W/HOLDER
86300-0K050

GGN50,KUN51,TGN51,61..GCC,GEN

 1
Common parts
82711-52010
90150-40011
