GGN50L-NKMSKV (2005)

Toyota Fortuner

Production Jul 2005 - Aug 2008
Engine 1GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501-0604)LA ; (0501-0608)GCC,IDN,PHL,TH ; (0501-0609)MA ; (0501-0610)SA ; (0501-0

Click highlighted areas on diagram

diagram 51407A 51441 51442 51457B 51457B 51473A 51474 52161K 90119T0142 90119T0142 90119T0142 90119T0142 90119T0142 90119T0142 90119T0194 90119T0194 90119T0194
Part # Description Qty Price
51441 - COVER, ENGINE UNDER, NO.1
51410-0K030

GGN50..GCC,GEN

 1
51442 - COVER, ENGINE UNDER, NO.2
51420-0K040

GGN50,TGN51,61..GCC

 1
51457B - BRACE, FRONT SIDE MEMBER TO FRONT SUSPENSION CROSSMEMBE
51405-0K020

TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

 2
51457B - BRACE, FRONT SIDE MEMBER TO FRONT SUSPENSION CROSSMEMBE
51405-0K020

TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

 2
51473A - COVER SUB-ASSY, ENGINE SIDE, RH
51473-71020

GGN50,KUN51,60,TGN51,61..GCC,IDN,PHL,TH

 1
51473-71031

TGN51..GCC,IDN;GGN50,KUN51,60,TGN61..GCC,GEN,IDN,PHL,TH

 1
51474 - COVER SUB-ASSY, ENGINE SIDE, LH
51474-71020

GGN50,KUN51,60,TGN51,61..GCC,IDN,PHL,TH

 1
51474-71031

TGN51..GCC,IDN;GGN50,KUN51,60,TGN61..GCC,GEN,IDN,PHL,TH

 1
52161K - PIECE, FRONT BUMPER
52161-0K050

TGN51..GCC,IDN;GGN50,KUN51,60,TGN61..GCC,GEN,IDN,PHL,TH

 4
Common parts
90119-T0142
90119-T0194

(0608- )GCC,GEN,IDN,IND,PHL,TH,VN ; (0609-)MA ; (0610- )LA,SA ; (0612-

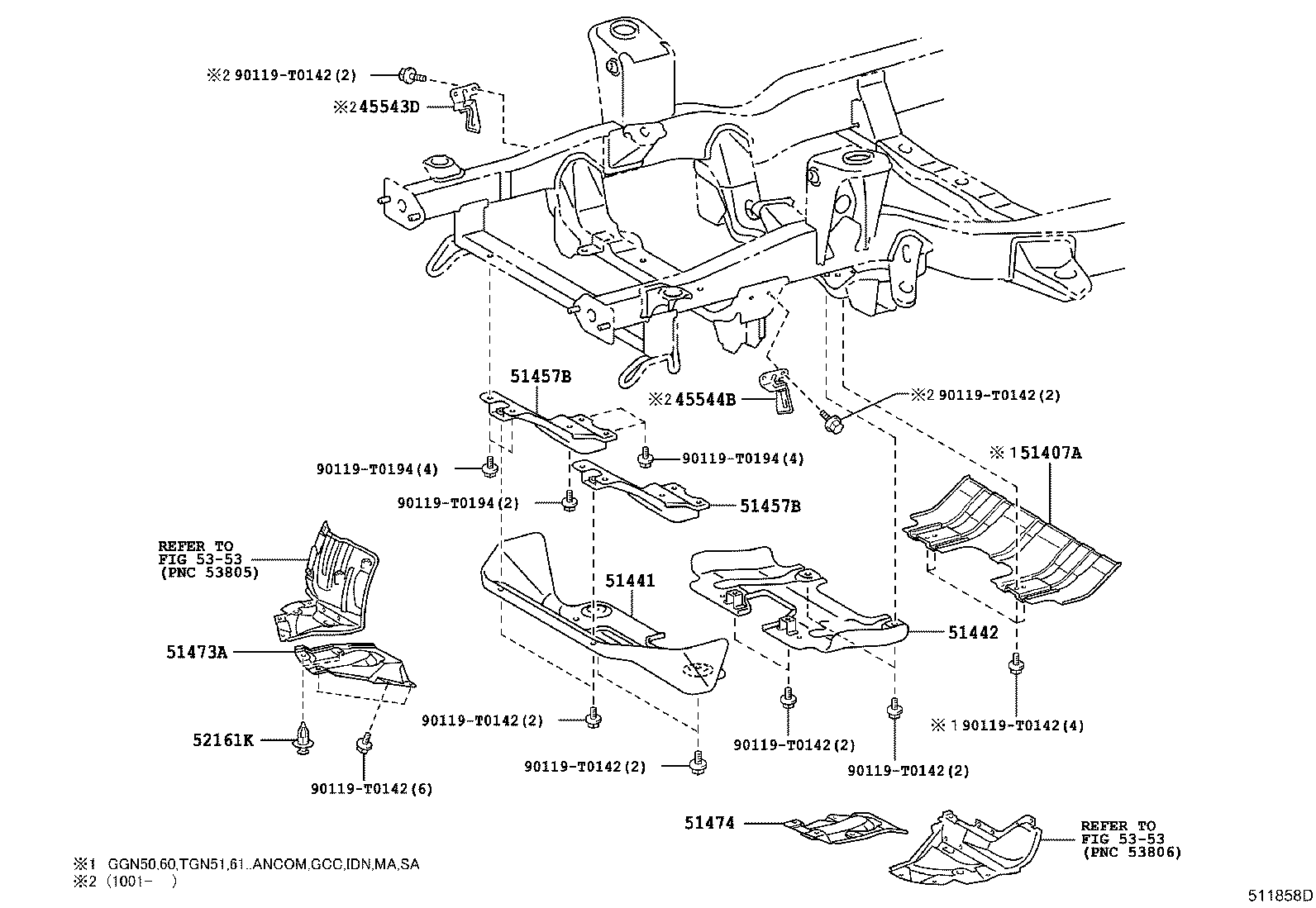

Click highlighted areas on diagram

diagram 45543D 45544B 51407A 51441 51442 51457B 51457B 51473A 51474 52161K 5353 5353 90119T0142 90119T0142 90119T0142 90119T0142 90119T0142 90119T0142 90119T0142 90119T0142 90119T0194 90119T0194 90119T0194
Part # Description Qty Price
51441 - COVER, ENGINE UNDER, NO.1
51410-0K030

GGN50..GCC,GEN

 1
51442 - COVER, ENGINE UNDER, NO.2
51420-0K040

GGN50,TGN51,61..GCC

 1
51457B - BRACE, FRONT SIDE MEMBER TO FRONT SUSPENSION CROSSMEMBE
51405-0K020

TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

 2
51457B - BRACE, FRONT SIDE MEMBER TO FRONT SUSPENSION CROSSMEMBE
51405-0K020

TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

 2
51473A - COVER SUB-ASSY, ENGINE SIDE, RH
51473-71020

GGN50,KUN51,60,TGN51,61..GCC,IDN,PHL,TH

 1
51473-71031

TGN51..GCC,IDN;GGN50,KUN51,60,TGN61..GCC,GEN,IDN,PHL,TH

 1
51474 - COVER SUB-ASSY, ENGINE SIDE, LH
51474-71020

GGN50,KUN51,60,TGN51,61..GCC,IDN,PHL,TH

 1
51474-71031

TGN51..GCC,IDN;GGN50,KUN51,60,TGN61..GCC,GEN,IDN,PHL,TH

 1
52161K - PIECE, FRONT BUMPER
52161-0K050

TGN51..GCC,IDN;GGN50,KUN51,60,TGN61..GCC,GEN,IDN,PHL,TH

 4
Common parts
90119-T0142
90119-T0194
Linked diagrams
5353
