GGN50L-EKASKV (2008)
Toyota Fortuner

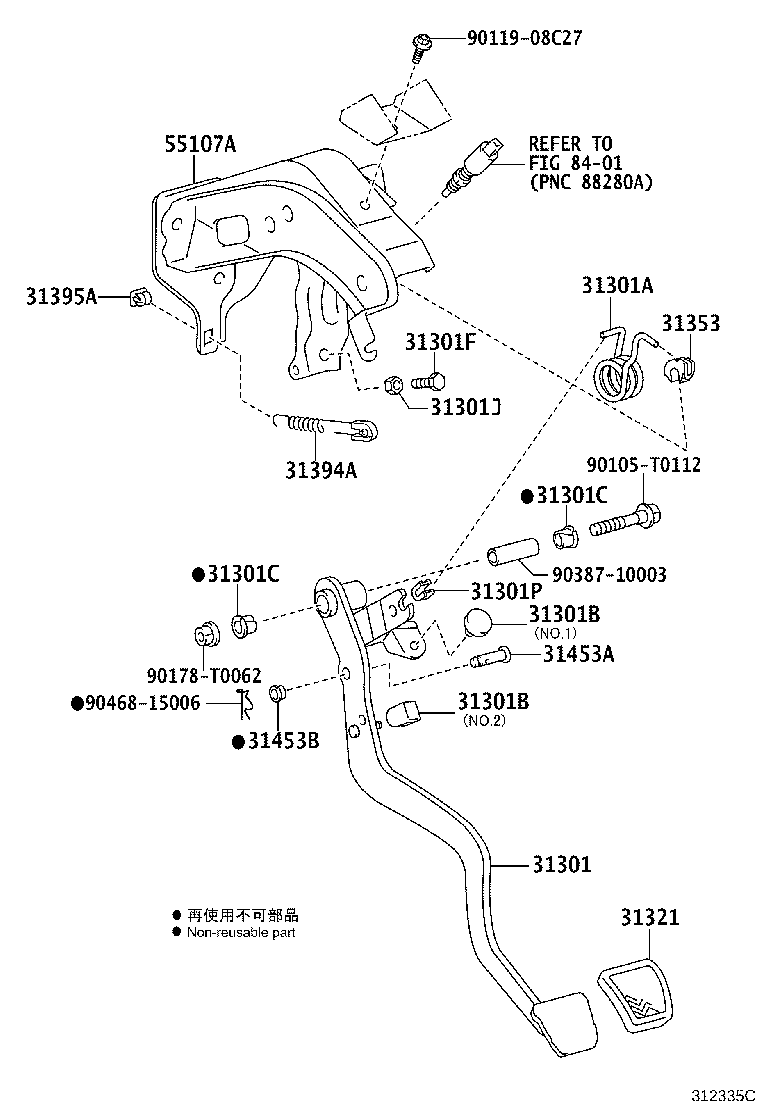

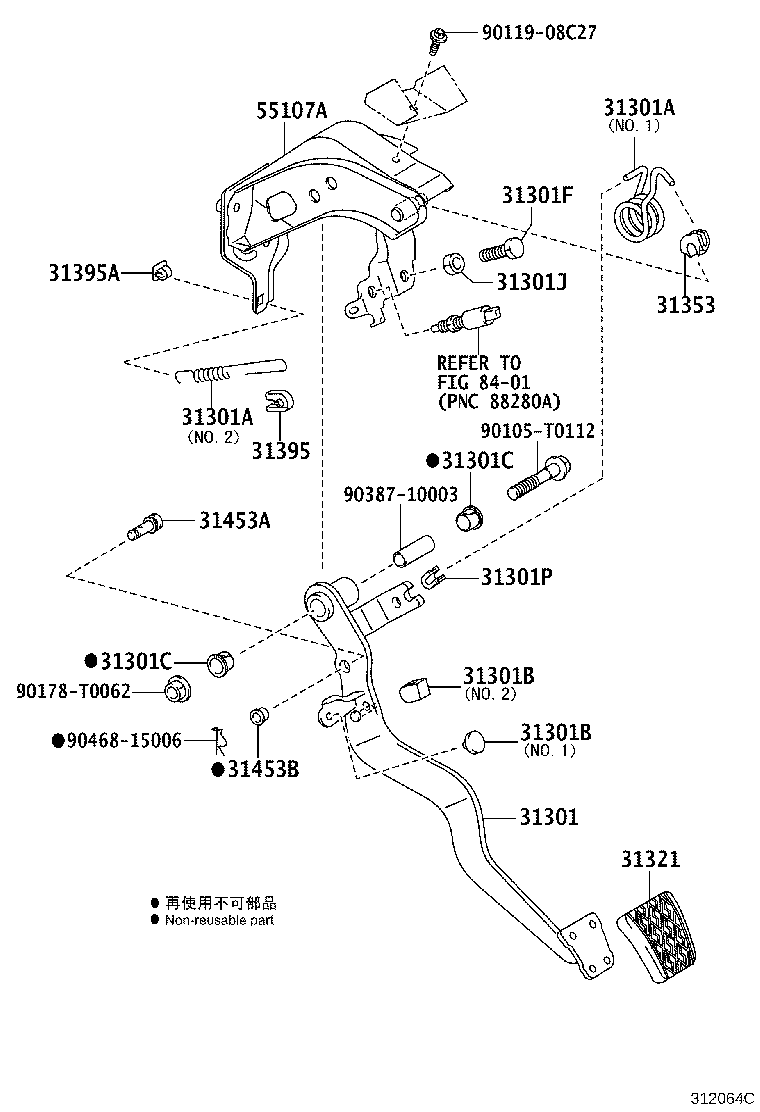

ILLUST NO. 1 OF 2(0501-0810)GGN50,60,KUN5#,6#..5F ; (0810-1008)IDSUV..5F..PHL ; (0810-1008)KUN51,60.
W/O(CRUISE CONTROL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-0K120 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 31301-0K120 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 31301-0K040 |
GGN50..5F..(GCC,GEN) |
1 | ||
| 31301-0K040 |
GGN50..5F..(GCC,GEN) |
1 | ||
| 31301-0K180 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 31301-0K180 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90905-06079 |
GGN50,KUN51,60..5F..(GCC,GEN,IDN,PHL,TH,VN) NO.2 |
1 | ||
| 90905-06079 |
GGN50,KUN51,60..5F..(GCC,GEN,IDN,PHL,TH,VN) NO.2 |
1 | ||
| 90949-T3001 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 90949-T3001 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 90905-06079 |
GGN50..5F..(GCC,GEN) |
1 | ||
| 90905-06079 |
GGN50..5F..(GCC,GEN) |
1 | ||
| 90905-06079 |
GGN50,60,KUN5#,61..5F;KUN60..SUVW..5F..(IDN,PHL) NO.2 |
1 | ||
| 90905-06079 |
GGN50,60,KUN5#,61..5F;KUN60..SUVW..5F..(IDN,PHL) NO.2 |
1 | ||
| 90949-T3001 |
GGN50,60,KUN5#,61..5F;KUN60..SUVW..5F..(IDN,PHL) NO.1 |
1 | ||
| 90949-T3001 |
GGN50,60,KUN5#,61..5F;KUN60..SUVW..5F..(IDN,PHL) NO.1 |
1 | ||
| 90949-T3001 |
GGN50..LHD..5F NO.1 |
1 | ||
| 90949-T3001 |
GGN50..LHD..5F NO.1 |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90905-06079 |
GGN50,KUN51,60..5F..(GCC,GEN,IDN,PHL,TH,VN) NO.2 |
1 | ||
| 90905-06079 |
GGN50,KUN51,60..5F..(GCC,GEN,IDN,PHL,TH,VN) NO.2 |
1 | ||
| 90949-T3001 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 90949-T3001 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 90905-06079 |
GGN50..5F..(GCC,GEN) |
1 | ||
| 90905-06079 |
GGN50..5F..(GCC,GEN) |
1 | ||
| 90905-06079 |
GGN50,60,KUN5#,61..5F;KUN60..SUVW..5F..(IDN,PHL) NO.2 |
1 | ||
| 90905-06079 |
GGN50,60,KUN5#,61..5F;KUN60..SUVW..5F..(IDN,PHL) NO.2 |
1 | ||
| 90949-T3001 |
GGN50,60,KUN5#,61..5F;KUN60..SUVW..5F..(IDN,PHL) NO.1 |
1 | ||
| 90949-T3001 |
GGN50,60,KUN5#,61..5F;KUN60..SUVW..5F..(IDN,PHL) NO.1 |
1 | ||
| 90949-T3001 |
GGN50..LHD..5F NO.1 |
1 | ||
| 90949-T3001 |
GGN50..LHD..5F NO.1 |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER),NO.1 |
1 | ||
| 90541-06036 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER),NO.1 |
1 | ||
| 90541-T0005 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER),NO.2 |
1 | ||
| 90541-T0005 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER),NO.2 |
1 | ||
| 90541-T0005 |
GGN50,LAN50,TGN51,61..LHD..5F |
1 | ||
| 90541-T0005 |
GGN50,LAN50,TGN51,61..LHD..5F |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F |
2 | ||
| 90386-13015 |
KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F |
2 | ||
| 90386-13015 |
GGN50..LHD..5F;KUN60,LAN50,TGN51,61..5F;KUN51,61..5F..(GEN,IND,SA,TH) |
2 | ||
| 90386-13015 |
GGN50..LHD..5F;KUN60,LAN50,TGN51,61..5F;KUN51,61..5F..(GEN,IND,SA,TH) |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F |
2 | ||
| 90386-13015 |
KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F |
2 | ||
| 90386-13015 |
GGN50..LHD..5F;KUN60,LAN50,TGN51,61..5F;KUN51,61..5F..(GEN,IND,SA,TH) |
2 | ||
| 90386-13015 |
GGN50..LHD..5F;KUN60,LAN50,TGN51,61..5F;KUN51,61..5F..(GEN,IND,SA,TH) |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F |
1 | ||
| 90101-10369 |
KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F |
1 | ||
| 90101-10369 |
GGN50..LHD..5F;KUN60,LAN50,TGN51,61..5F;KUN51,61..5F..(GEN,IND,SA,TH) |
1 | ||
| 90101-10369 |
GGN50..LHD..5F;KUN60,LAN50,TGN51,61..5F;KUN51,61..5F..(GEN,IND,SA,TH) |
1 | ||
| 31301J - NUT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90170-T0011 |
KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F |
1 | ||
| 90170-T0011 |
KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F |
1 | ||
| 90170-T0011 |
GGN50..LHD..5F;KUN60,LAN50,TGN51,61..5F;KUN51,61..5F..(GEN,IND,SA,TH) |
1 | ||
| 90170-T0011 |
GGN50..LHD..5F;KUN60,LAN50,TGN51,61..5F;KUN51,61..5F..(GEN,IND,SA,TH) |
1 | ||
| 31301P - BUSH(FOR CLUTCH PEDAL TURNOVER) | ||||
| 90389-06055 |
GGN50,KUN51,60..5F..(GCC,GEN,IDN,PHL,TH) |
1 | ||
| 90389-06055 |
GGN50,KUN51,60..5F..(GCC,GEN,IDN,PHL,TH) |
1 | ||
| 90389-06055 |
KUN51,61..5F..(GEN,IND,SA,TH);GGN50,KUN60..5F..(ANCOM,GCC,GEN,IDN,PHL,TH,VN) |
1 | ||
| 90389-06055 |
KUN51,61..5F..(GEN,IND,SA,TH);GGN50,KUN60..5F..(ANCOM,GCC,GEN,IDN,PHL,TH,VN) |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-52010 |
KUN60..SUVW..5F;GGN50,60,KUN5#,61,LAN50,TGN51,61..5F..(GCC,GEN,MA,SA,TH) |
1 | ||
| 31321-52010 |
KUN60..SUVW..5F;GGN50,60,KUN5#,61,LAN50,TGN51,61..5F..(GCC,GEN,MA,SA,TH) |
1 | ||
| 31321-52010 |
GGN50..5F..(GCC,GEN);KUN51,6#,LAN50,TGN51,61..5F..(GCC,GEN,IDN,IND,PHL,SA,TH,VN) |
1 | ||
| 31321-52010 |
GGN50..5F..(GCC,GEN);KUN51,6#,LAN50,TGN51,61..5F..(GCC,GEN,IDN,IND,PHL,SA,TH,VN) |
1 | ||
| 31353 - HOLDER, CLUTCH PEDAL SPRING | ||||
| 31353-26010 |
KUN51,61..5F..(GEN,IND,SA,TH);GGN50,KUN60..5F..(ANCOM,GCC,GEN,IDN,PHL,TH,VN) |
1 | ||
| 31353-26010 |
KUN51,61..5F..(GEN,IND,SA,TH);GGN50,KUN60..5F..(ANCOM,GCC,GEN,IDN,PHL,TH,VN) |
1 | ||
| 31353-26010 |
GGN50,KUN51,60..5F..(GCC,GEN,IDN,PHL,TH) |
1 | ||
| 31353-26010 |
GGN50,KUN51,60..5F..(GCC,GEN,IDN,PHL,TH) |
1 | ||
| 31395 - HOOK, PEDAL SPRING | ||||
| 31395-33010 |
GGN50,KUN51,60..5F..(GCC,GEN,IDN,PHL,TH) |
1 | ||
| 31395-33010 |
GGN50,KUN51,60..5F..(GCC,GEN,IDN,PHL,TH) |
1 | ||
| 31395-33010 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 31395-33010 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 31395-33010 |
GGN50..LHD..5F |
1 | ||
| 31395-33010 |
GGN50..LHD..5F |
1 | ||
| 31395A - HOOK, PEDAL SPRING, NO.1 | ||||
| 31395-33020 |
GGN50,KUN51,60..5F..(GCC,GEN,IDN,PHL,TH) |
1 | ||
| 31395-33020 |
GGN50,KUN51,60..5F..(GCC,GEN,IDN,PHL,TH) |
1 | ||
| 31395-33020 |
KUN51,61..5F..(GEN,IND,SA,TH);GGN50,KUN60..5F..(ANCOM,GCC,GEN,IDN,PHL,TH,VN) |
1 | ||
| 31395-33020 |
KUN51,61..5F..(GEN,IND,SA,TH);GGN50,KUN60..5F..(ANCOM,GCC,GEN,IDN,PHL,TH,VN) |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 47148-0K011 |
KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F L=29.4 |
1 | ||
| 47148-0K011 |
KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F L=29.4 |
1 | ||
| 47148-0K011 |
GGN50..LHD..5F;KUN60,LAN50,TGN51,61..5F;KUN51,61..5F..(GEN,IND,SA,TH) L=29.4 |
1 | ||
| 47148-0K011 |
GGN50..LHD..5F;KUN60,LAN50,TGN51,61..5F;KUN51,61..5F..(GEN,IND,SA,TH) L=29.4 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F |
1 | ||
| 90386-08002 |
KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F |
1 | ||
| 90386-08002 |
GGN50..LHD..5F;KUN60,LAN50,TGN51,61..5F;KUN51,61..5F..(GEN,IND,SA,TH) |
1 | ||
| 90386-08002 |
GGN50..LHD..5F;KUN60,LAN50,TGN51,61..5F;KUN51,61..5F..(GEN,IND,SA,TH) |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-0K040 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 55107-0K040 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 55107-0K030 |
GGN50,KUN51,60..5F..(GCC,GEN,IDN,PHL,TH,VN) |
1 | ||
| 55107-0K030 |
GGN50,KUN51,60..5F..(GCC,GEN,IDN,PHL,TH,VN) |
1 | ||
| 55107-0K010 |
GGN50,60,KUN5#,61..5F;KUN60..SUVW..5F..(IDN,PHL) |
1 | ||
| 55107-0K010 |
GGN50,60,KUN5#,61..5F;KUN60..SUVW..5F..(IDN,PHL) |
1 | ||
| 55107-0K031 |
GGN50..5F..(GCC,GEN) |
1 | ||
| 55107-0K031 |
GGN50..5F..(GCC,GEN) |
1 | ||
| 55107-0K060 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 55107-0K060 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| Common parts | ||||
| 90105-T0112 | ||||
| 90119-08C27 | ||||
| 90178-T0062 | ||||
| 90387-10003 | ||||
| 90468-15006 | ||||
| 90468-16142 | ||||

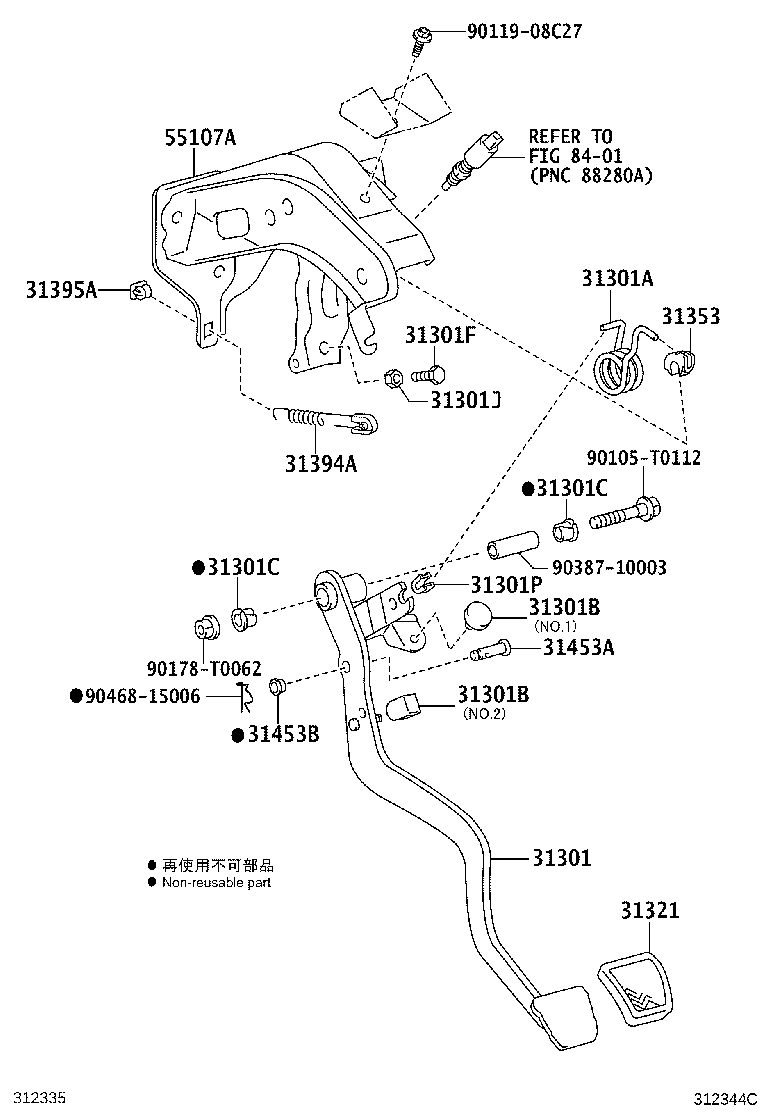

ILLUST NO. 1 OF 2(0810-1010)KUN51,61..5F..LA,SA ; (0810- )GGN50..5F
W/O(CRUISE CONTROL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-0K120 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 31301-0K120 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 31301-0K040 |
GGN50..5F..(GCC,GEN) |
1 | ||
| 31301-0K040 |
GGN50..5F..(GCC,GEN) |
1 | ||
| 31301-0K180 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 31301-0K180 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90905-06079 |
GGN50,KUN51,60..5F..(GCC,GEN,IDN,PHL,TH,VN) NO.2 |
1 | ||
| 90905-06079 |
GGN50,KUN51,60..5F..(GCC,GEN,IDN,PHL,TH,VN) NO.2 |
1 | ||
| 90949-T3001 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 90949-T3001 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 90905-06079 |
GGN50..5F..(GCC,GEN) |
1 | ||
| 90905-06079 |
GGN50..5F..(GCC,GEN) |
1 | ||
| 90905-06079 |
GGN50,60,KUN5#,61..5F;KUN60..SUVW..5F..(IDN,PHL) NO.2 |
1 | ||
| 90905-06079 |
GGN50,60,KUN5#,61..5F;KUN60..SUVW..5F..(IDN,PHL) NO.2 |
1 | ||
| 90949-T3001 |
GGN50,60,KUN5#,61..5F;KUN60..SUVW..5F..(IDN,PHL) NO.1 |
1 | ||
| 90949-T3001 |
GGN50,60,KUN5#,61..5F;KUN60..SUVW..5F..(IDN,PHL) NO.1 |
1 | ||
| 90949-T3001 |
GGN50..LHD..5F NO.1 |
1 | ||
| 90949-T3001 |
GGN50..LHD..5F NO.1 |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90905-06079 |
GGN50,KUN51,60..5F..(GCC,GEN,IDN,PHL,TH,VN) NO.2 |
1 | ||
| 90905-06079 |
GGN50,KUN51,60..5F..(GCC,GEN,IDN,PHL,TH,VN) NO.2 |
1 | ||
| 90949-T3001 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 90949-T3001 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 90905-06079 |
GGN50..5F..(GCC,GEN) |
1 | ||
| 90905-06079 |
GGN50..5F..(GCC,GEN) |
1 | ||
| 90905-06079 |
GGN50,60,KUN5#,61..5F;KUN60..SUVW..5F..(IDN,PHL) NO.2 |
1 | ||
| 90905-06079 |
GGN50,60,KUN5#,61..5F;KUN60..SUVW..5F..(IDN,PHL) NO.2 |
1 | ||
| 90949-T3001 |
GGN50,60,KUN5#,61..5F;KUN60..SUVW..5F..(IDN,PHL) NO.1 |
1 | ||
| 90949-T3001 |
GGN50,60,KUN5#,61..5F;KUN60..SUVW..5F..(IDN,PHL) NO.1 |
1 | ||
| 90949-T3001 |
GGN50..LHD..5F NO.1 |
1 | ||
| 90949-T3001 |
GGN50..LHD..5F NO.1 |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER),NO.1 |
1 | ||
| 90541-06036 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER),NO.1 |
1 | ||
| 90541-T0005 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER),NO.2 |
1 | ||
| 90541-T0005 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER),NO.2 |
1 | ||
| 90541-T0005 |
GGN50,LAN50,TGN51,61..LHD..5F |
1 | ||
| 90541-T0005 |
GGN50,LAN50,TGN51,61..LHD..5F |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F |
2 | ||
| 90386-13015 |
KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F |
2 | ||
| 90386-13015 |
GGN50..LHD..5F;KUN60,LAN50,TGN51,61..5F;KUN51,61..5F..(GEN,IND,SA,TH) |
2 | ||
| 90386-13015 |
GGN50..LHD..5F;KUN60,LAN50,TGN51,61..5F;KUN51,61..5F..(GEN,IND,SA,TH) |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F |
2 | ||
| 90386-13015 |
KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F |
2 | ||
| 90386-13015 |
GGN50..LHD..5F;KUN60,LAN50,TGN51,61..5F;KUN51,61..5F..(GEN,IND,SA,TH) |
2 | ||
| 90386-13015 |
GGN50..LHD..5F;KUN60,LAN50,TGN51,61..5F;KUN51,61..5F..(GEN,IND,SA,TH) |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F |
1 | ||
| 90101-10369 |
KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F |
1 | ||
| 90101-10369 |
GGN50..LHD..5F;KUN60,LAN50,TGN51,61..5F;KUN51,61..5F..(GEN,IND,SA,TH) |
1 | ||
| 90101-10369 |
GGN50..LHD..5F;KUN60,LAN50,TGN51,61..5F;KUN51,61..5F..(GEN,IND,SA,TH) |
1 | ||
| 31301J - NUT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90170-T0011 |
KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F |
1 | ||
| 90170-T0011 |
KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F |
1 | ||
| 90170-T0011 |
GGN50..LHD..5F;KUN60,LAN50,TGN51,61..5F;KUN51,61..5F..(GEN,IND,SA,TH) |
1 | ||
| 90170-T0011 |
GGN50..LHD..5F;KUN60,LAN50,TGN51,61..5F;KUN51,61..5F..(GEN,IND,SA,TH) |
1 | ||
| 31301P - BUSH(FOR CLUTCH PEDAL TURNOVER) | ||||
| 90389-06055 |
GGN50,KUN51,60..5F..(GCC,GEN,IDN,PHL,TH) |
1 | ||
| 90389-06055 |
GGN50,KUN51,60..5F..(GCC,GEN,IDN,PHL,TH) |
1 | ||
| 90389-06055 |
KUN51,61..5F..(GEN,IND,SA,TH);GGN50,KUN60..5F..(ANCOM,GCC,GEN,IDN,PHL,TH,VN) |
1 | ||
| 90389-06055 |
KUN51,61..5F..(GEN,IND,SA,TH);GGN50,KUN60..5F..(ANCOM,GCC,GEN,IDN,PHL,TH,VN) |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-52010 |
KUN60..SUVW..5F;GGN50,60,KUN5#,61,LAN50,TGN51,61..5F..(GCC,GEN,MA,SA,TH) |
1 | ||
| 31321-52010 |
KUN60..SUVW..5F;GGN50,60,KUN5#,61,LAN50,TGN51,61..5F..(GCC,GEN,MA,SA,TH) |
1 | ||
| 31321-52010 |
GGN50..5F..(GCC,GEN);KUN51,6#,LAN50,TGN51,61..5F..(GCC,GEN,IDN,IND,PHL,SA,TH,VN) |
1 | ||
| 31321-52010 |
GGN50..5F..(GCC,GEN);KUN51,6#,LAN50,TGN51,61..5F..(GCC,GEN,IDN,IND,PHL,SA,TH,VN) |
1 | ||
| 31353 - HOLDER, CLUTCH PEDAL SPRING | ||||
| 31353-26010 |
KUN51,61..5F..(GEN,IND,SA,TH);GGN50,KUN60..5F..(ANCOM,GCC,GEN,IDN,PHL,TH,VN) |
1 | ||
| 31353-26010 |
KUN51,61..5F..(GEN,IND,SA,TH);GGN50,KUN60..5F..(ANCOM,GCC,GEN,IDN,PHL,TH,VN) |
1 | ||
| 31353-26010 |
GGN50,KUN51,60..5F..(GCC,GEN,IDN,PHL,TH) |
1 | ||
| 31353-26010 |
GGN50,KUN51,60..5F..(GCC,GEN,IDN,PHL,TH) |
1 | ||
| 31395 - HOOK, PEDAL SPRING | ||||
| 31395-33010 |
GGN50,KUN51,60..5F..(GCC,GEN,IDN,PHL,TH) |
1 | ||
| 31395-33010 |
GGN50,KUN51,60..5F..(GCC,GEN,IDN,PHL,TH) |
1 | ||
| 31395-33010 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 31395-33010 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 31395-33010 |
GGN50..LHD..5F |
1 | ||
| 31395-33010 |
GGN50..LHD..5F |
1 | ||
| 31395A - HOOK, PEDAL SPRING, NO.1 | ||||
| 31395-33020 |
GGN50,KUN51,60..5F..(GCC,GEN,IDN,PHL,TH) |
1 | ||
| 31395-33020 |
GGN50,KUN51,60..5F..(GCC,GEN,IDN,PHL,TH) |
1 | ||
| 31395-33020 |
KUN51,61..5F..(GEN,IND,SA,TH);GGN50,KUN60..5F..(ANCOM,GCC,GEN,IDN,PHL,TH,VN) |
1 | ||
| 31395-33020 |
KUN51,61..5F..(GEN,IND,SA,TH);GGN50,KUN60..5F..(ANCOM,GCC,GEN,IDN,PHL,TH,VN) |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 47148-0K011 |
KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F L=29.4 |
1 | ||
| 47148-0K011 |
KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F L=29.4 |
1 | ||
| 47148-0K011 |
GGN50..LHD..5F;KUN60,LAN50,TGN51,61..5F;KUN51,61..5F..(GEN,IND,SA,TH) L=29.4 |
1 | ||
| 47148-0K011 |
GGN50..LHD..5F;KUN60,LAN50,TGN51,61..5F;KUN51,61..5F..(GEN,IND,SA,TH) L=29.4 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F |
1 | ||
| 90386-08002 |
KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F |
1 | ||
| 90386-08002 |
GGN50..LHD..5F;KUN60,LAN50,TGN51,61..5F;KUN51,61..5F..(GEN,IND,SA,TH) |
1 | ||
| 90386-08002 |
GGN50..LHD..5F;KUN60,LAN50,TGN51,61..5F;KUN51,61..5F..(GEN,IND,SA,TH) |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-0K040 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 55107-0K040 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 55107-0K030 |
GGN50,KUN51,60..5F..(GCC,GEN,IDN,PHL,TH,VN) |
1 | ||
| 55107-0K030 |
GGN50,KUN51,60..5F..(GCC,GEN,IDN,PHL,TH,VN) |
1 | ||
| 55107-0K010 |
GGN50,60,KUN5#,61..5F;KUN60..SUVW..5F..(IDN,PHL) |
1 | ||
| 55107-0K010 |
GGN50,60,KUN5#,61..5F;KUN60..SUVW..5F..(IDN,PHL) |
1 | ||
| 55107-0K031 |
GGN50..5F..(GCC,GEN) |
1 | ||
| 55107-0K031 |
GGN50..5F..(GCC,GEN) |
1 | ||
| 55107-0K060 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 55107-0K060 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| Common parts | ||||
| 90105-T0112 | ||||
| 90119-08C27 | ||||
| 90178-T0062 | ||||
| 90387-10003 | ||||
| 90468-15006 | ||||
| 90468-16142 | ||||
ILLUST NO. 1 OF 2(0808-1008)GGN50..5F..GCC
W(CRUISE CONTROL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-0K120 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 31301-0K040 |
GGN50..5F..(GCC,GEN) |
1 | ||
| 31301-0K180 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90905-06079 |
GGN50,KUN51,60..5F..(GCC,GEN,IDN,PHL,TH,VN) NO.2 |
1 | ||
| 90949-T3001 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 90905-06079 |
GGN50..5F..(GCC,GEN) |
1 | ||
| 90905-06079 |
GGN50,60,KUN5#,61..5F;KUN60..SUVW..5F..(IDN,PHL) NO.2 |
1 | ||
| 90949-T3001 |
GGN50,60,KUN5#,61..5F;KUN60..SUVW..5F..(IDN,PHL) NO.1 |
1 | ||
| 90949-T3001 |
GGN50..LHD..5F NO.1 |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90905-06079 |
GGN50,KUN51,60..5F..(GCC,GEN,IDN,PHL,TH,VN) NO.2 |
1 | ||
| 90949-T3001 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 90905-06079 |
GGN50..5F..(GCC,GEN) |
1 | ||
| 90905-06079 |
GGN50,60,KUN5#,61..5F;KUN60..SUVW..5F..(IDN,PHL) NO.2 |
1 | ||
| 90949-T3001 |
GGN50,60,KUN5#,61..5F;KUN60..SUVW..5F..(IDN,PHL) NO.1 |
1 | ||
| 90949-T3001 |
GGN50..LHD..5F NO.1 |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER),NO.1 |
1 | ||
| 90541-T0005 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER),NO.2 |
1 | ||
| 90541-T0005 |
GGN50,LAN50,TGN51,61..LHD..5F |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER),NO.1 |
1 | ||
| 90541-T0005 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER),NO.2 |
1 | ||
| 90541-T0005 |
GGN50,LAN50,TGN51,61..LHD..5F |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F |
2 | ||
| 90386-13015 |
GGN50..LHD..5F;KUN60,LAN50,TGN51,61..5F;KUN51,61..5F..(GEN,IND,SA,TH) |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F |
2 | ||
| 90386-13015 |
GGN50..LHD..5F;KUN60,LAN50,TGN51,61..5F;KUN51,61..5F..(GEN,IND,SA,TH) |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F |
1 | ||
| 90101-10369 |
GGN50..LHD..5F;KUN60,LAN50,TGN51,61..5F;KUN51,61..5F..(GEN,IND,SA,TH) |
1 | ||
| 31301J - NUT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90170-T0011 |
KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F |
1 | ||
| 90170-T0011 |
GGN50..LHD..5F;KUN60,LAN50,TGN51,61..5F;KUN51,61..5F..(GEN,IND,SA,TH) |
1 | ||
| 31301P - BUSH(FOR CLUTCH PEDAL TURNOVER) | ||||
| 90389-06055 |
GGN50,KUN51,60..5F..(GCC,GEN,IDN,PHL,TH) |
1 | ||
| 90389-06055 |
KUN51,61..5F..(GEN,IND,SA,TH);GGN50,KUN60..5F..(ANCOM,GCC,GEN,IDN,PHL,TH,VN) |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-52010 |
KUN60..SUVW..5F;GGN50,60,KUN5#,61,LAN50,TGN51,61..5F..(GCC,GEN,MA,SA,TH) |
1 | ||
| 31321-52010 |
GGN50..5F..(GCC,GEN);KUN51,6#,LAN50,TGN51,61..5F..(GCC,GEN,IDN,IND,PHL,SA,TH,VN) |
1 | ||
| 31353 - HOLDER, CLUTCH PEDAL SPRING | ||||
| 31353-26010 |
KUN51,61..5F..(GEN,IND,SA,TH);GGN50,KUN60..5F..(ANCOM,GCC,GEN,IDN,PHL,TH,VN) |
1 | ||
| 31353-26010 |
GGN50,KUN51,60..5F..(GCC,GEN,IDN,PHL,TH) |
1 | ||
| 31395 - HOOK, PEDAL SPRING | ||||
| 31395-33010 |
GGN50,KUN51,60..5F..(GCC,GEN,IDN,PHL,TH) |
1 | ||
| 31395-33010 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 31395-33010 |
GGN50..LHD..5F |
1 | ||
| 31395A - HOOK, PEDAL SPRING, NO.1 | ||||
| 31395-33020 |
GGN50,KUN51,60..5F..(GCC,GEN,IDN,PHL,TH) |
1 | ||
| 31395-33020 |
KUN51,61..5F..(GEN,IND,SA,TH);GGN50,KUN60..5F..(ANCOM,GCC,GEN,IDN,PHL,TH,VN) |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 47148-0K011 |
KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F L=29.4 |
1 | ||
| 47148-0K011 |
GGN50..LHD..5F;KUN60,LAN50,TGN51,61..5F;KUN51,61..5F..(GEN,IND,SA,TH) L=29.4 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F |
1 | ||
| 90386-08002 |
GGN50..LHD..5F;KUN60,LAN50,TGN51,61..5F;KUN51,61..5F..(GEN,IND,SA,TH) |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-0K040 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 55107-0K030 |
GGN50,KUN51,60..5F..(GCC,GEN,IDN,PHL,TH,VN) |
1 | ||
| 55107-0K010 |
GGN50,60,KUN5#,61..5F;KUN60..SUVW..5F..(IDN,PHL) |
1 | ||
| 55107-0K031 |
GGN50..5F..(GCC,GEN) |
1 | ||
| 55107-0K060 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| Common parts | ||||
| 90105-T0112 | ||||
| 90119-08C27 | ||||
| 90178-T0062 | ||||
| 90387-10003 | ||||
| 90468-15006 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(1008- )GGN50..5F..GCC
W(CRUISE CONTROL)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-0K120 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 31301-0K040 |
GGN50..5F..(GCC,GEN) |
1 | ||
| 31301-0K180 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90905-06079 |
GGN50..5F..(GCC,GEN) |
1 | ||
| 90905-06079 |
GGN50,KUN51,60..5F..(GCC,GEN,IDN,PHL,TH,VN) NO.2 |
1 | ||
| 90949-T3001 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 90905-06079 |
GGN50,60,KUN5#,61..5F;KUN60..SUVW..5F..(IDN,PHL) NO.2 |
1 | ||
| 90949-T3001 |
GGN50,60,KUN5#,61..5F;KUN60..SUVW..5F..(IDN,PHL) NO.1 |
1 | ||
| 90949-T3001 |
GGN50..LHD..5F NO.1 |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER),NO.1 |
1 | ||
| 90541-T0005 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER),NO.2 |
1 | ||
| 90541-T0005 |
GGN50,LAN50,TGN51,61..LHD..5F |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER),NO.1 |
1 | ||
| 90541-T0005 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER),NO.2 |
1 | ||
| 90541-T0005 |
GGN50,LAN50,TGN51,61..LHD..5F |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F |
2 | ||
| 90386-13015 |
GGN50..LHD..5F;KUN60,LAN50,TGN51,61..5F;KUN51,61..5F..(GEN,IND,SA,TH) |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F |
2 | ||
| 90386-13015 |
GGN50..LHD..5F;KUN60,LAN50,TGN51,61..5F;KUN51,61..5F..(GEN,IND,SA,TH) |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F |
1 | ||
| 90101-10369 |
GGN50..LHD..5F;KUN60,LAN50,TGN51,61..5F;KUN51,61..5F..(GEN,IND,SA,TH) |
1 | ||
| 31301J - NUT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90170-T0011 |
KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F |
1 | ||
| 90170-T0011 |
GGN50..LHD..5F;KUN60,LAN50,TGN51,61..5F;KUN51,61..5F..(GEN,IND,SA,TH) |
1 | ||
| 31301P - BUSH(FOR CLUTCH PEDAL TURNOVER) | ||||
| 90389-06055 |
GGN50,KUN51,60..5F..(GCC,GEN,IDN,PHL,TH) |
1 | ||
| 90389-06055 |
KUN51,61..5F..(GEN,IND,SA,TH);GGN50,KUN60..5F..(ANCOM,GCC,GEN,IDN,PHL,TH,VN) |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-52010 |
KUN60..SUVW..5F;GGN50,60,KUN5#,61,LAN50,TGN51,61..5F..(GCC,GEN,MA,SA,TH) |
1 | ||
| 31321-52010 |
GGN50..5F..(GCC,GEN);KUN51,6#,LAN50,TGN51,61..5F..(GCC,GEN,IDN,IND,PHL,SA,TH,VN) |
1 | ||
| 31353 - HOLDER, CLUTCH PEDAL SPRING | ||||
| 31353-26010 |
KUN51,61..5F..(GEN,IND,SA,TH);GGN50,KUN60..5F..(ANCOM,GCC,GEN,IDN,PHL,TH,VN) |
1 | ||
| 31353-26010 |
GGN50,KUN51,60..5F..(GCC,GEN,IDN,PHL,TH) |
1 | ||
| 31394A - SPRING, PEDAL W/HOOK | ||||
| 31394-25010 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 31395A - HOOK, PEDAL SPRING, NO.1 | ||||
| 31395-33020 |
GGN50,KUN51,60..5F..(GCC,GEN,IDN,PHL,TH) |
1 | ||
| 31395-33020 |
KUN51,61..5F..(GEN,IND,SA,TH);GGN50,KUN60..5F..(ANCOM,GCC,GEN,IDN,PHL,TH,VN) |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 47148-0K011 |
KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F L=29.4 |
1 | ||
| 47148-0K011 |
GGN50..LHD..5F;KUN60,LAN50,TGN51,61..5F;KUN51,61..5F..(GEN,IND,SA,TH) L=29.4 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F |
1 | ||
| 90386-08002 |
GGN50..LHD..5F;KUN60,LAN50,TGN51,61..5F;KUN51,61..5F..(GEN,IND,SA,TH) |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-0K040 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 55107-0K030 |
GGN50,KUN51,60..5F..(GCC,GEN,IDN,PHL,TH,VN) |
1 | ||
| 55107-0K010 |
GGN50,60,KUN5#,61..5F;KUN60..SUVW..5F..(IDN,PHL) |
1 | ||
| 55107-0K031 |
GGN50..5F..(GCC,GEN) |
1 | ||
| 55107-0K060 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| Common parts | ||||
| 90105-T0112 | ||||
| 90119-08C27 | ||||
| 90178-T0062 | ||||
| 90387-10003 | ||||
| 90468-15006 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(1008- )KUN51,60..LHD..IDSUV,THSUV..5F ; (1009- )KUN60..LHD..SUVW..5F ; (1010
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-0K120 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 31301-0K040 |
GGN50..5F..(GCC,GEN) |
1 | ||
| 31301-0K180 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90905-06079 |
GGN50..5F..(GCC,GEN) |
1 | ||
| 90905-06079 |
GGN50,KUN51,60..5F..(GCC,GEN,IDN,PHL,TH,VN) NO.2 |
1 | ||
| 90949-T3001 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 90905-06079 |
GGN50,60,KUN5#,61..5F;KUN60..SUVW..5F..(IDN,PHL) NO.2 |
1 | ||
| 90949-T3001 |
GGN50,60,KUN5#,61..5F;KUN60..SUVW..5F..(IDN,PHL) NO.1 |
1 | ||
| 90949-T3001 |
GGN50..LHD..5F NO.1 |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER),NO.1 |
1 | ||
| 90541-T0005 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER),NO.2 |
1 | ||
| 90541-T0005 |
GGN50,LAN50,TGN51,61..LHD..5F |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER),NO.1 |
1 | ||
| 90541-T0005 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER),NO.2 |
1 | ||
| 90541-T0005 |
GGN50,LAN50,TGN51,61..LHD..5F |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F |
2 | ||
| 90386-13015 |
GGN50..LHD..5F;KUN60,LAN50,TGN51,61..5F;KUN51,61..5F..(GEN,IND,SA,TH) |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F |
2 | ||
| 90386-13015 |
GGN50..LHD..5F;KUN60,LAN50,TGN51,61..5F;KUN51,61..5F..(GEN,IND,SA,TH) |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F |
1 | ||
| 90101-10369 |
GGN50..LHD..5F;KUN60,LAN50,TGN51,61..5F;KUN51,61..5F..(GEN,IND,SA,TH) |
1 | ||
| 31301J - NUT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90170-T0011 |
KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F |
1 | ||
| 90170-T0011 |
GGN50..LHD..5F;KUN60,LAN50,TGN51,61..5F;KUN51,61..5F..(GEN,IND,SA,TH) |
1 | ||
| 31301P - BUSH(FOR CLUTCH PEDAL TURNOVER) | ||||
| 90389-06055 |
GGN50,KUN51,60..5F..(GCC,GEN,IDN,PHL,TH) |
1 | ||
| 90389-06055 |
KUN51,61..5F..(GEN,IND,SA,TH);GGN50,KUN60..5F..(ANCOM,GCC,GEN,IDN,PHL,TH,VN) |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-52010 |
KUN60..SUVW..5F;GGN50,60,KUN5#,61,LAN50,TGN51,61..5F..(GCC,GEN,MA,SA,TH) |
1 | ||
| 31321-52010 |
GGN50..5F..(GCC,GEN);KUN51,6#,LAN50,TGN51,61..5F..(GCC,GEN,IDN,IND,PHL,SA,TH,VN) |
1 | ||
| 31353 - HOLDER, CLUTCH PEDAL SPRING | ||||
| 31353-26010 |
KUN51,61..5F..(GEN,IND,SA,TH);GGN50,KUN60..5F..(ANCOM,GCC,GEN,IDN,PHL,TH,VN) |
1 | ||
| 31353-26010 |
GGN50,KUN51,60..5F..(GCC,GEN,IDN,PHL,TH) |
1 | ||
| 31394A - SPRING, PEDAL W/HOOK | ||||
| 31394-25010 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 31395A - HOOK, PEDAL SPRING, NO.1 | ||||
| 31395-33020 |
GGN50,KUN51,60..5F..(GCC,GEN,IDN,PHL,TH) |
1 | ||
| 31395-33020 |
KUN51,61..5F..(GEN,IND,SA,TH);GGN50,KUN60..5F..(ANCOM,GCC,GEN,IDN,PHL,TH,VN) |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 47148-0K011 |
KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F L=29.4 |
1 | ||
| 47148-0K011 |
GGN50..LHD..5F;KUN60,LAN50,TGN51,61..5F;KUN51,61..5F..(GEN,IND,SA,TH) L=29.4 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F |
1 | ||
| 90386-08002 |
GGN50..LHD..5F;KUN60,LAN50,TGN51,61..5F;KUN51,61..5F..(GEN,IND,SA,TH) |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-0K040 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| 55107-0K030 |
GGN50,KUN51,60..5F..(GCC,GEN,IDN,PHL,TH,VN) |
1 | ||
| 55107-0K010 |
GGN50,60,KUN5#,61..5F;KUN60..SUVW..5F..(IDN,PHL) |
1 | ||
| 55107-0K031 |
GGN50..5F..(GCC,GEN) |
1 | ||
| 55107-0K060 |
GGN50..5F..GCC SRS AIR BAG-WITH(DRIVER & PASSENGER) |
1 | ||
| Common parts | ||||
| 90105-T0112 | ||||
| 90119-08C27 | ||||
| 90178-T0062 | ||||
| 90387-10003 | ||||
| 90468-15006 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
