GGN50L-EKASKV (2011)

Toyota Fortuner

Production Jul 2011 - Oct 2015
Engine 1GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )GGN50..CO,EPT,GCC,GEN,LA

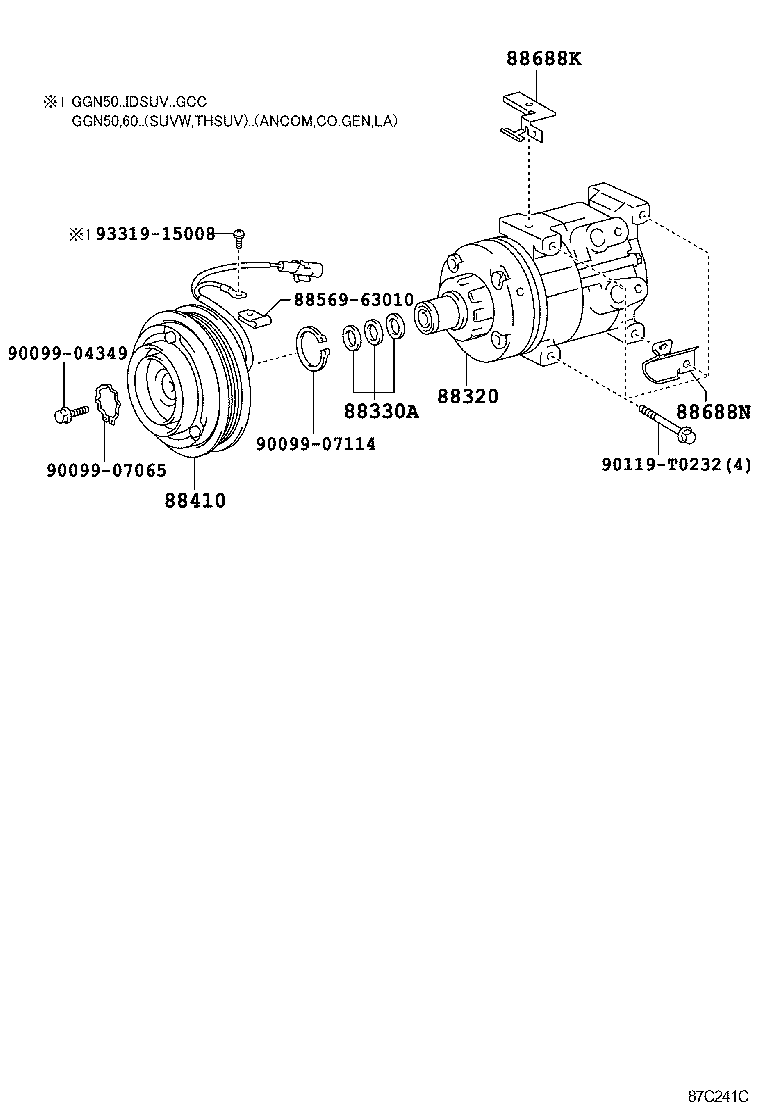

Click highlighted areas on diagram

diagram 88320 88330A 88410 8856963010 88688K 88688N 9009904349 9009907065 9009907114 90119T0232 9331915008
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-0K170

GGN50..EPT,GCC

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

KUN51..SUVW..(CO,IND,LA);KUN60,TGN51,61..CO,EPT,GCC,IND,LA;GGN50,60,KUN61..ANCOM,CO,EPT,GCC,GEN,IND,LA

 1
88410 - CLUTCH ASSY, MAGNET
88410-0K030

GGN50,TGN51,61..EPT,GCC

 1
88688K - BRACKET, COOLER COMPRESSOR
88688-0K590

GGN50..IDSUV

 1
88688N - BRACKET, COOLER
88688-0K430

GGN50..EPT,GCC

 1
Common parts
88569-63010
90099-04349
90099-07065
90099-07114
90119-T0232
93319-15008
