GGN50L-EKASKV (2011)
Toyota Fortuner

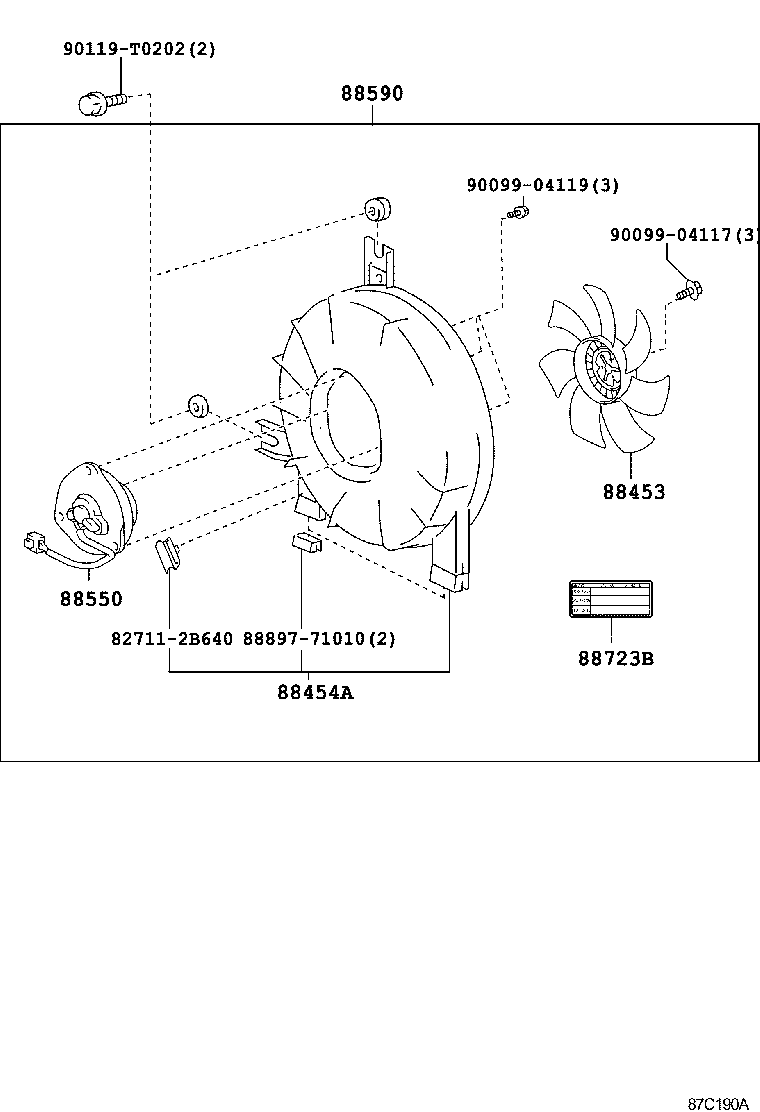

ILLUST NO. 1 OF 4(1107- )IDSUV..GCC
FUN SHROUD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-60010 |
GGN50,TGN51,61..EPT,GCC |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-0K010 |
GGN50,TGN51,61..EPT,GCC |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-12160 |
GGN50,TGN51,61..EPT,GCC |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-0K030 |
GGN50,TGN51,61..IDSUV..GCC |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-20081 |
GGN50,TGN51,61..IDSUV..GCC |
1 | ||
| Common parts | ||||
| 82711-2B640 | ||||
| 88897-71010 | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90119-T0202 | ||||

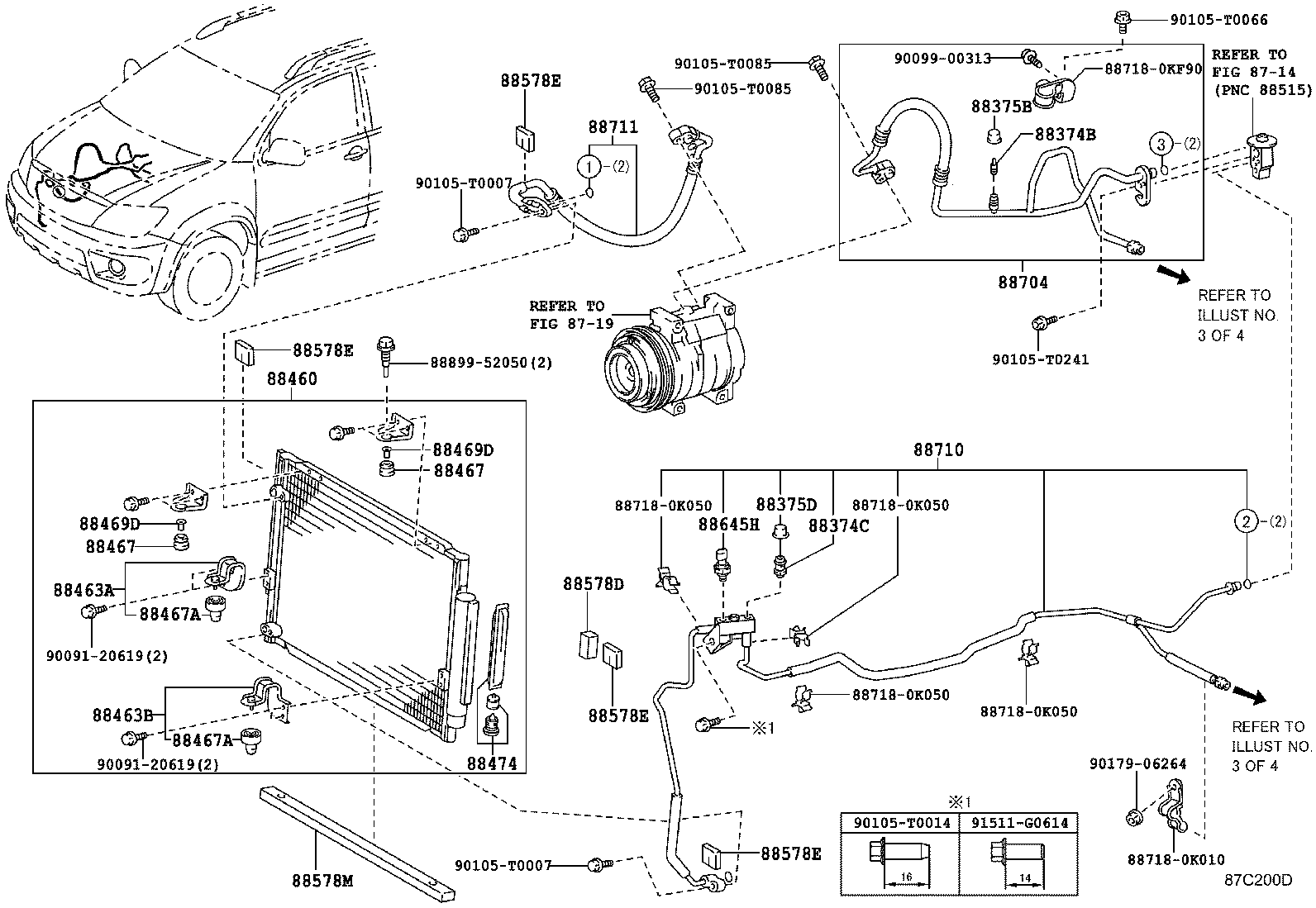

ILLUST NO. 2 OF 4(1107- )KUN60..SUVW..PHL ; (1107- )KUN51..LHD..SUVW,THSUV..GEN,PHL ; (1202-
FRONT(DUAL AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
KUN51..IDSUV..5FC;KUN51,61..RHD..5FC;KUN60..LHD..SUVW..5F;TGN51,61..IDSUV..GCC;GGN50,KUN50..IDSUV,THSUV;KUN51,60..RHD..IDSUV..GEN;TGN51,61..GEN,IDN,KZS,MA,PHL,PKN,VN;KUN51..LHD..(SUVW,THSUV)..(GEN,PHL);KUN60..SUVW..(4FC,5FC)..(GEN,IND,PHL,TH) |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-33070 |
GGN50,TGN51,61..IDSUV..GCC;GGN50,TGN51,61..SUVW..(CO,LA) |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
KUN51..IDSUV..5FC;KUN51,61..RHD..5FC;KUN60..LHD..SUVW..5F;TGN51,61..IDSUV..GCC;GGN50,KUN50..IDSUV,THSUV;KUN51,60..RHD..IDSUV..GEN;TGN51,61..GEN,IDN,KZS,MA,PHL,PKN,VN;KUN51..LHD..(SUVW,THSUV)..(GEN,PHL);KUN60..SUVW..(4FC,5FC)..(GEN,IND,PHL,TH) |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
KUN51..5FC..CO;TGN61..GEN,IDN,PHL,VN;GGN50,TGN51,61..LHD..(IDSUV,THSUV)..(GCC,GEN,LA);KUN50,6#,TGN51..GEN,IDN,IND,KZS,MA,PHL,PKN,TH,VN;KUN51..(IDSUV,SUVW,THSUV)..SR..(GEN,IND,LA,PHL,TH) |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-0K540 |
GGN50,TGN51,61..IDSUV..GCC |
1 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-0K410 |
GGN50,KUN5#,60,TGN51,61..IDSUV |
1 | ||
| 88463B - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88463-0K420 |
GGN50,KUN5#,60,TGN51,61..IDSUV |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
KUN51..SUVW..(CO,IND,LA);GGN50,KUN6#,TGN51,61..CO,IND,LA;GGN50,TGN51,61..IDSUV..(GCC,GEN,IDN,PHL) |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
KUN51..SUVW..(CO,IND,LA);GGN50,KUN6#,TGN51,61..CO,IND,LA;GGN50,TGN51,61..IDSUV..(GCC,GEN,IDN,PHL) |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-28040 |
TGN61..GEN,IDN,PHL;GGN50,KUN50..IDSUV,THSUV;KUN51,TGN51,61..IDSUV..(GCC,LA);KUN51,6#,TGN51..(IDSUV,SUVW,THSUV)..(GEN,IDN,KZS,PHL,TH) |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-28040 |
TGN61..GEN,IDN,PHL;GGN50,KUN50..IDSUV,THSUV;KUN51,TGN51,61..IDSUV..(GCC,LA);KUN51,6#,TGN51..(IDSUV,SUVW,THSUV)..(GEN,IDN,KZS,PHL,TH) |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88467-52010 |
GGN50,TGN51,61..IDSUV |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88467-52010 |
GGN50,TGN51,61..IDSUV |
2 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
KUN61..5FC..TH;KUN61..4FC..(IND,TH);TGN61..CO,GCC,GEN,IDN,LA,PHL;GGN50,60,KUN5#,60,TGN51..(IDSUV,SUVW,THSUV)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,TH) |
1 | ||
| 88578D - PACKING, COOLER PIPE, NO.1 | ||||
| 88578-0K150 |
GGN50,KUN5#,60,TGN51,61..IDSUV |
1 | ||
| 88578E - PACKING, COOLER PIPE, NO.2 | ||||
| 88578-0K140 |
GGN50,KUN5#,60,TGN51,61..IDSUV |
4 | ||
| 88578E - PACKING, COOLER PIPE, NO.2 | ||||
| 88578-0K140 |
GGN50,KUN5#,60,TGN51,61..IDSUV |
4 | ||
| 88578E - PACKING, COOLER PIPE, NO.2 | ||||
| 88578-0K140 |
GGN50,KUN5#,60,TGN51,61..IDSUV |
4 | ||
| 88578E - PACKING, COOLER PIPE, NO.2 | ||||
| 88578-0K140 |
GGN50,KUN5#,60,TGN51,61..IDSUV |
4 | ||
| 88578M - PACKING, COOLING PIPE, NO.3 | ||||
| 88578-0K131 |
GGN50,KUN5#,60..IDSUV |
1 | ||
| 88578N - PACKING, COOLING PIPE, NO.4 | ||||
| 88578-0K680 |
GGN50,TGN51,61..IDSUV..GCC |
2 | ||
| 88578N - PACKING, COOLING PIPE, NO.4 | ||||
| 88578-0K680 |
GGN50,TGN51,61..IDSUV..GCC |
2 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-0KA00 |
GGN50..IDSUV..GCC |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-71070 |
GGN50,TGN51,61..IDSUV..GCC |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-0K591 |
GGN50..IDSUV..GCC |
1 | ||
| Common parts | ||||
| 88718-0K020 | ||||
| 88718-0K060 | ||||
| 88899-0K020 | ||||
| 90091-20512 | ||||
| 90091-20619 | ||||
| 90105-T0007 | ||||
| 90105-T0014 | ||||
| 90105-T0066 | ||||
| 90105-T0085 | ||||
| 90105-T0241 | ||||
| 90179-06264 | ||||
| 91511-G0614 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||

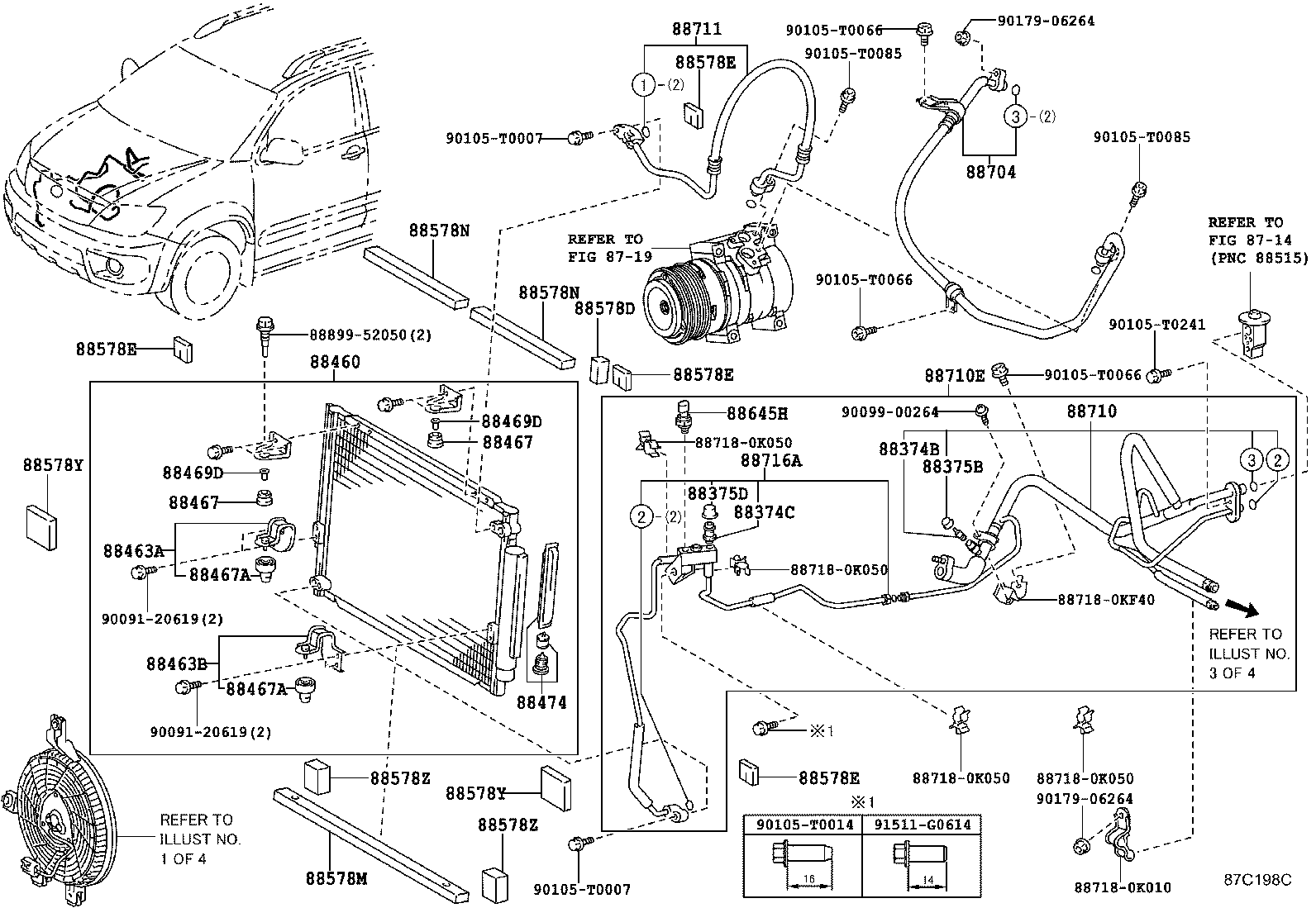

ILLUST NO. 2 OF 4(1107- )IDSUV..GCC
FRONT(DUAL AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
KUN51..IDSUV..5FC;KUN51,61..RHD..5FC;KUN60..LHD..SUVW..5F;TGN51,61..IDSUV..GCC;GGN50,KUN50..IDSUV,THSUV;KUN51,60..RHD..IDSUV..GEN;TGN51,61..GEN,IDN,KZS,MA,PHL,PKN,VN;KUN51..LHD..(SUVW,THSUV)..(GEN,PHL);KUN60..SUVW..(4FC,5FC)..(GEN,IND,PHL,TH) |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-33070 |
GGN50,TGN51,61..IDSUV..GCC;GGN50,TGN51,61..SUVW..(CO,LA) |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
KUN51..IDSUV..5FC;KUN51,61..RHD..5FC;KUN60..LHD..SUVW..5F;TGN51,61..IDSUV..GCC;GGN50,KUN50..IDSUV,THSUV;KUN51,60..RHD..IDSUV..GEN;TGN51,61..GEN,IDN,KZS,MA,PHL,PKN,VN;KUN51..LHD..(SUVW,THSUV)..(GEN,PHL);KUN60..SUVW..(4FC,5FC)..(GEN,IND,PHL,TH) |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
KUN51..5FC..CO;TGN61..GEN,IDN,PHL,VN;GGN50,TGN51,61..LHD..(IDSUV,THSUV)..(GCC,GEN,LA);KUN50,6#,TGN51..GEN,IDN,IND,KZS,MA,PHL,PKN,TH,VN;KUN51..(IDSUV,SUVW,THSUV)..SR..(GEN,IND,LA,PHL,TH) |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-0K540 |
GGN50,TGN51,61..IDSUV..GCC |
1 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-0K410 |
GGN50,KUN5#,60,TGN51,61..IDSUV |
1 | ||
| 88463B - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88463-0K420 |
GGN50,KUN5#,60,TGN51,61..IDSUV |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
KUN51..SUVW..(CO,IND,LA);GGN50,KUN6#,TGN51,61..CO,IND,LA;GGN50,TGN51,61..IDSUV..(GCC,GEN,IDN,PHL) |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
KUN51..SUVW..(CO,IND,LA);GGN50,KUN6#,TGN51,61..CO,IND,LA;GGN50,TGN51,61..IDSUV..(GCC,GEN,IDN,PHL) |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-28040 |
TGN61..GEN,IDN,PHL;GGN50,KUN50..IDSUV,THSUV;KUN51,TGN51,61..IDSUV..(GCC,LA);KUN51,6#,TGN51..(IDSUV,SUVW,THSUV)..(GEN,IDN,KZS,PHL,TH) |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-28040 |
TGN61..GEN,IDN,PHL;GGN50,KUN50..IDSUV,THSUV;KUN51,TGN51,61..IDSUV..(GCC,LA);KUN51,6#,TGN51..(IDSUV,SUVW,THSUV)..(GEN,IDN,KZS,PHL,TH) |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88467-52010 |
GGN50,TGN51,61..IDSUV |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88467-52010 |
GGN50,TGN51,61..IDSUV |
2 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
KUN61..5FC..TH;KUN61..4FC..(IND,TH);TGN61..CO,GCC,GEN,IDN,LA,PHL;GGN50,60,KUN5#,60,TGN51..(IDSUV,SUVW,THSUV)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,TH) |
1 | ||
| 88578D - PACKING, COOLER PIPE, NO.1 | ||||
| 88578-0K150 |
GGN50,KUN5#,60,TGN51,61..IDSUV |
1 | ||
| 88578E - PACKING, COOLER PIPE, NO.2 | ||||
| 88578-0K140 |
GGN50,KUN5#,60,TGN51,61..IDSUV |
4 | ||
| 88578E - PACKING, COOLER PIPE, NO.2 | ||||
| 88578-0K140 |
GGN50,KUN5#,60,TGN51,61..IDSUV |
4 | ||
| 88578E - PACKING, COOLER PIPE, NO.2 | ||||
| 88578-0K140 |
GGN50,KUN5#,60,TGN51,61..IDSUV |
4 | ||
| 88578E - PACKING, COOLER PIPE, NO.2 | ||||
| 88578-0K140 |
GGN50,KUN5#,60,TGN51,61..IDSUV |
4 | ||
| 88578M - PACKING, COOLING PIPE, NO.3 | ||||
| 88578-0K131 |
GGN50,KUN5#,60..IDSUV |
1 | ||
| 88578N - PACKING, COOLING PIPE, NO.4 | ||||
| 88578-0K680 |
GGN50,TGN51,61..IDSUV..GCC |
2 | ||
| 88578N - PACKING, COOLING PIPE, NO.4 | ||||
| 88578-0K680 |
GGN50,TGN51,61..IDSUV..GCC |
2 | ||
| 88578Y - PACKING, COOLING PIPE, NO.5 | ||||
| 88578-0K400 |
GGN50,TGN51,61..IDSUV..GCC |
2 | ||
| 88578Y - PACKING, COOLING PIPE, NO.5 | ||||
| 88578-0K400 |
GGN50,TGN51,61..IDSUV..GCC |
2 | ||
| 88578Z - PACKING, COOLER, NO.1 | ||||
| 88578-0K780 |
GGN50,TGN51,61..IDSUV..GCC |
2 | ||
| 88578Z - PACKING, COOLER, NO.1 | ||||
| 88578-0K780 |
GGN50,TGN51,61..IDSUV..GCC |
2 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-60040 |
GGN50,TGN51,61..IDSUV..GCC |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-0KA00 |
GGN50..IDSUV..GCC |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-71070 |
GGN50,TGN51,61..IDSUV..GCC |
1 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-0KC70 |
GGN50,TGN51,61..IDSUV..GCC |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-0K591 |
GGN50..IDSUV..GCC |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-0KJ10 |
GGN50,TGN51,61..IDSUV..GCC |
1 | ||
| Common parts | ||||
| 88718-0K010 | ||||
| 88718-0K050 | ||||
| 88718-0KF40 | ||||
| 88899-52050 | ||||
| 90091-20619 | ||||
| 90099-00264 | ||||
| 90105-T0007 | ||||
| 90105-T0014 | ||||
| 90105-T0066 | ||||
| 90105-T0085 | ||||
| 90105-T0241 | ||||
| 90179-06264 | ||||
| 91511-G0614 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||

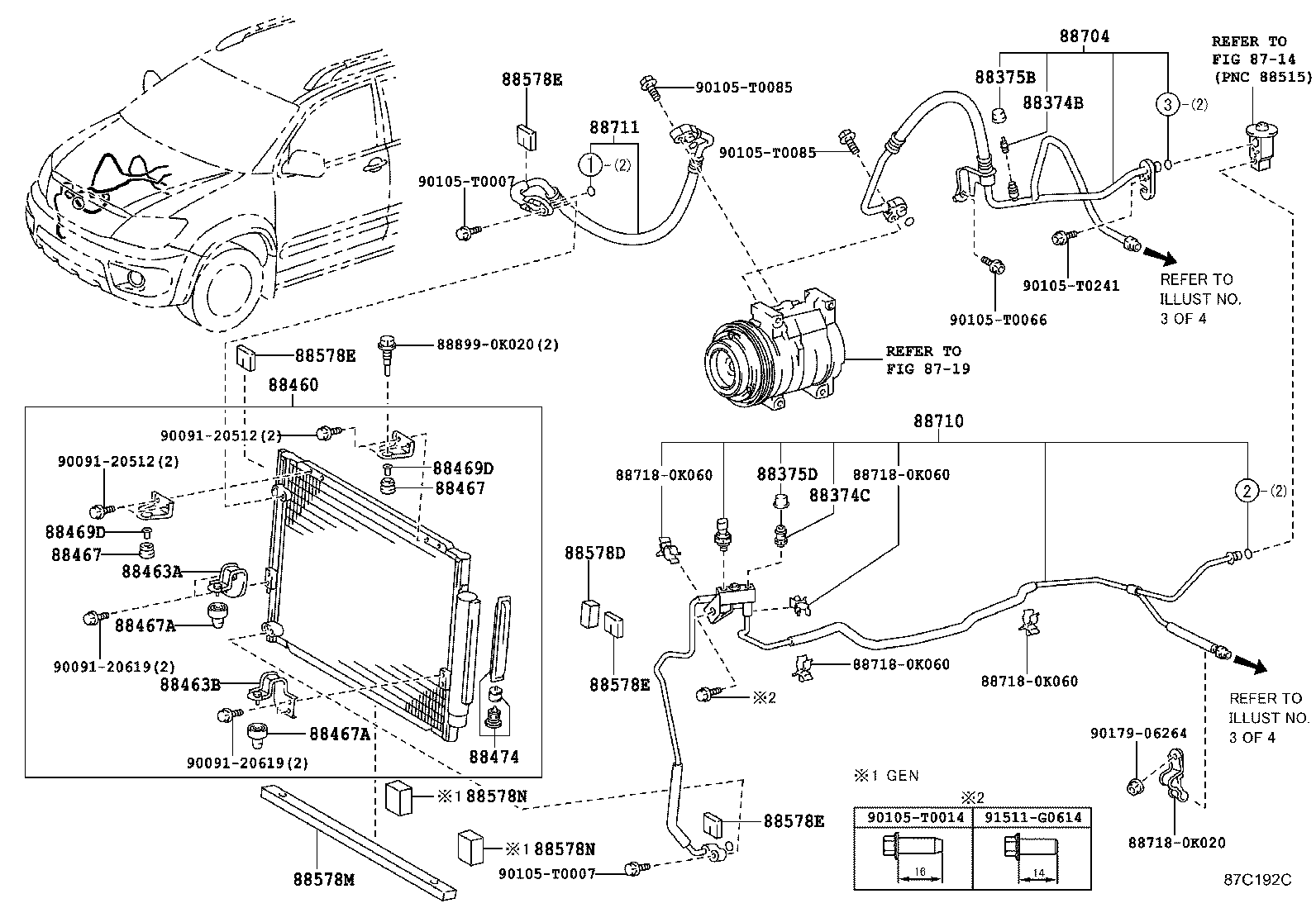

ILLUST NO. 2 OF 4(1107- )KUN60..LHD..IDSUV..GEN ; (1107- )KUN5#,60..IDSUV..IDN,PHL ; (1308-
FRONT(DUAL AIR CONDITIONER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
KUN51..IDSUV..5FC;KUN51,61..RHD..5FC;KUN60..LHD..SUVW..5F;TGN51,61..IDSUV..GCC;GGN50,KUN50..IDSUV,THSUV;KUN51,60..RHD..IDSUV..GEN;TGN51,61..GEN,IDN,KZS,MA,PHL,PKN,VN;KUN51..LHD..(SUVW,THSUV)..(GEN,PHL);KUN60..SUVW..(4FC,5FC)..(GEN,IND,PHL,TH) |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-33070 |
GGN50,TGN51,61..IDSUV..GCC;GGN50,TGN51,61..SUVW..(CO,LA) |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
KUN51..IDSUV..5FC;KUN51,61..RHD..5FC;KUN60..LHD..SUVW..5F;TGN51,61..IDSUV..GCC;GGN50,KUN50..IDSUV,THSUV;KUN51,60..RHD..IDSUV..GEN;TGN51,61..GEN,IDN,KZS,MA,PHL,PKN,VN;KUN51..LHD..(SUVW,THSUV)..(GEN,PHL);KUN60..SUVW..(4FC,5FC)..(GEN,IND,PHL,TH) |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
KUN51..5FC..CO;TGN61..GEN,IDN,PHL,VN;GGN50,TGN51,61..LHD..(IDSUV,THSUV)..(GCC,GEN,LA);KUN50,6#,TGN51..GEN,IDN,IND,KZS,MA,PHL,PKN,TH,VN;KUN51..(IDSUV,SUVW,THSUV)..SR..(GEN,IND,LA,PHL,TH) |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-0K540 |
GGN50,TGN51,61..IDSUV..GCC |
1 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-0K410 |
GGN50,KUN5#,60,TGN51,61..IDSUV |
1 | ||
| 88463B - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88463-0K420 |
GGN50,KUN5#,60,TGN51,61..IDSUV |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
KUN51..SUVW..(CO,IND,LA);GGN50,KUN6#,TGN51,61..CO,IND,LA;GGN50,TGN51,61..IDSUV..(GCC,GEN,IDN,PHL) |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-12180 |
KUN51..SUVW..(CO,IND,LA);GGN50,KUN6#,TGN51,61..CO,IND,LA;GGN50,TGN51,61..IDSUV..(GCC,GEN,IDN,PHL) |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-28040 |
TGN61..GEN,IDN,PHL;GGN50,KUN50..IDSUV,THSUV;KUN51,TGN51,61..IDSUV..(GCC,LA);KUN51,6#,TGN51..(IDSUV,SUVW,THSUV)..(GEN,IDN,KZS,PHL,TH) |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-28040 |
TGN61..GEN,IDN,PHL;GGN50,KUN50..IDSUV,THSUV;KUN51,TGN51,61..IDSUV..(GCC,LA);KUN51,6#,TGN51..(IDSUV,SUVW,THSUV)..(GEN,IDN,KZS,PHL,TH) |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88467-52010 |
GGN50,TGN51,61..IDSUV |
2 | ||
| 88469D - COLLAR, CONDENSER BRACKET, NO.1 | ||||
| 88467-52010 |
GGN50,TGN51,61..IDSUV |
2 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
KUN61..5FC..TH;KUN61..4FC..(IND,TH);TGN61..CO,GCC,GEN,IDN,LA,PHL;GGN50,60,KUN5#,60,TGN51..(IDSUV,SUVW,THSUV)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,TH) |
1 | ||
| 88578D - PACKING, COOLER PIPE, NO.1 | ||||
| 88578-0K150 |
GGN50,KUN5#,60,TGN51,61..IDSUV |
1 | ||
| 88578E - PACKING, COOLER PIPE, NO.2 | ||||
| 88578-0K140 |
GGN50,KUN5#,60,TGN51,61..IDSUV |
4 | ||
| 88578E - PACKING, COOLER PIPE, NO.2 | ||||
| 88578-0K140 |
GGN50,KUN5#,60,TGN51,61..IDSUV |
4 | ||
| 88578E - PACKING, COOLER PIPE, NO.2 | ||||
| 88578-0K140 |
GGN50,KUN5#,60,TGN51,61..IDSUV |
4 | ||
| 88578E - PACKING, COOLER PIPE, NO.2 | ||||
| 88578-0K140 |
GGN50,KUN5#,60,TGN51,61..IDSUV |
4 | ||
| 88578M - PACKING, COOLING PIPE, NO.3 | ||||
| 88578-0K131 |
GGN50,KUN5#,60..IDSUV |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-60040 |
GGN50,TGN51,61..IDSUV..GCC |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-0KA00 |
GGN50..IDSUV..GCC |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-71070 |
GGN50,TGN51,61..IDSUV..GCC |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-0K591 |
GGN50..IDSUV..GCC |
1 | ||
| Common parts | ||||
| 88718-0K010 | ||||
| 88718-0K050 | ||||
| 88718-0KF90 | ||||
| 88899-52050 | ||||
| 90091-20619 | ||||
| 90099-00313 | ||||
| 90105-T0007 | ||||
| 90105-T0014 | ||||
| 90105-T0066 | ||||
| 90105-T0085 | ||||
| 90105-T0241 | ||||
| 90179-06264 | ||||
| 91511-G0614 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||

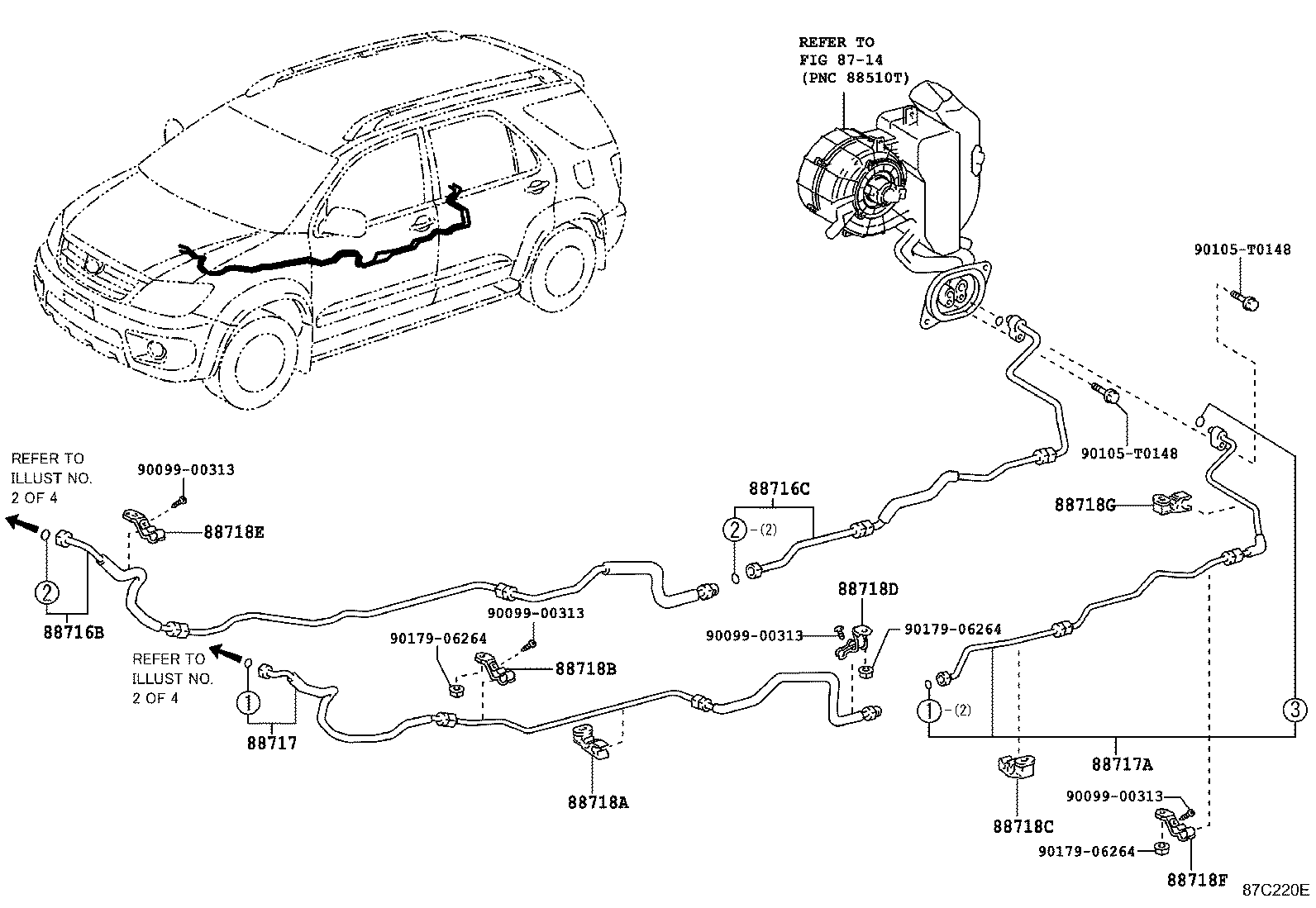

ILLUST NO. 3 OF 4(1107- )IDSUV..LA ; (1107- )EPT,GCC,GEN,IDN,KZS,MA,PHL,PKN,SA,TH,VN
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88706-0K010 |
KUN51..IDSUV..(4FC,5F);GGN50,KUN50,60,TGN51,61..IDSUV |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88706-0K020 |
KUN51..IDSUV..(4FC,5F);GGN50,KUN50,60,TGN51,61..IDSUV |
1 | ||
| 88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88707-0K280 |
KUN51..IDSUV..(4FC,5F);GGN50,KUN50,60,TGN51,61..IDSUV |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88707-0K290 |
KUN51..IDSUV..(4FC,5F);GGN50,KUN50,60,TGN51,61..IDSUV |
1 | ||
| 88718A - CLAMP, NO.1(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-0K110 |
KUN51..IDSUV..(4FC,5F);GGN50,KUN50,60,TGN51,61..IDSUV |
1 | ||
| 88718B - CLAMP, NO.2(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-0K100 |
KUN51..IDSUV..(4FC,5F);GGN50,KUN50,60,TGN51,61..IDSUV |
1 | ||
| 88718C - CLAMP, NO.3(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-0K330 |
KUN51..IDSUV..(4FC,5F);GGN50,KUN50,60,TGN51,61..IDSUV |
1 | ||
| 88718D - CLAMP, NO.4(FOR COOLER REFRIGERANT PIPE) | ||||
| 88718-0K120 |
KUN51..IDSUV..(4FC,5F);GGN50,KUN50,60,TGN51,61..IDSUV |
1 | ||
| 88718F - CLAMP, NO.1(FOR COOLER REFRIGERANT HOSE) | ||||
| 88718-0K100 |
KUN51..IDSUV..(4FC,5F);GGN50,KUN50,60,TGN51,61..IDSUV |
1 | ||
| 88718G - CLAMP, NO.2(FOR COOLER REFRIGERANT HOSE) | ||||
| 88718-0K110 |
KUN51..IDSUV..(4FC,5F);GGN50,KUN50,60,TGN51,61..IDSUV |
1 | ||
| Common parts | ||||
| 90099-00313 | ||||
| 90105-T0148 | ||||
| 90179-06264 | ||||
| Linked diagrams | ||||
| 8714 | ||||
ILLUST NO. 4 OF 4(1107- )KUN61 ; (1107- )KUN51..5F..IND ; (1107- )GGN50,60,KUN5#,60,LAN50,T
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90068-14022 | ||||
| 90068-14023 | ||||
| 90068-14024 | ||||
| 90068-14034 | ||||
| 90068-14035 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
