GGN50L-EKASKV (2011)

Toyota Fortuner

Production Jul 2011 - Oct 2015
Engine 1GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )GGN50..IDSUV..LA ; (1107- )GGN50..EPT,GCC,GEN

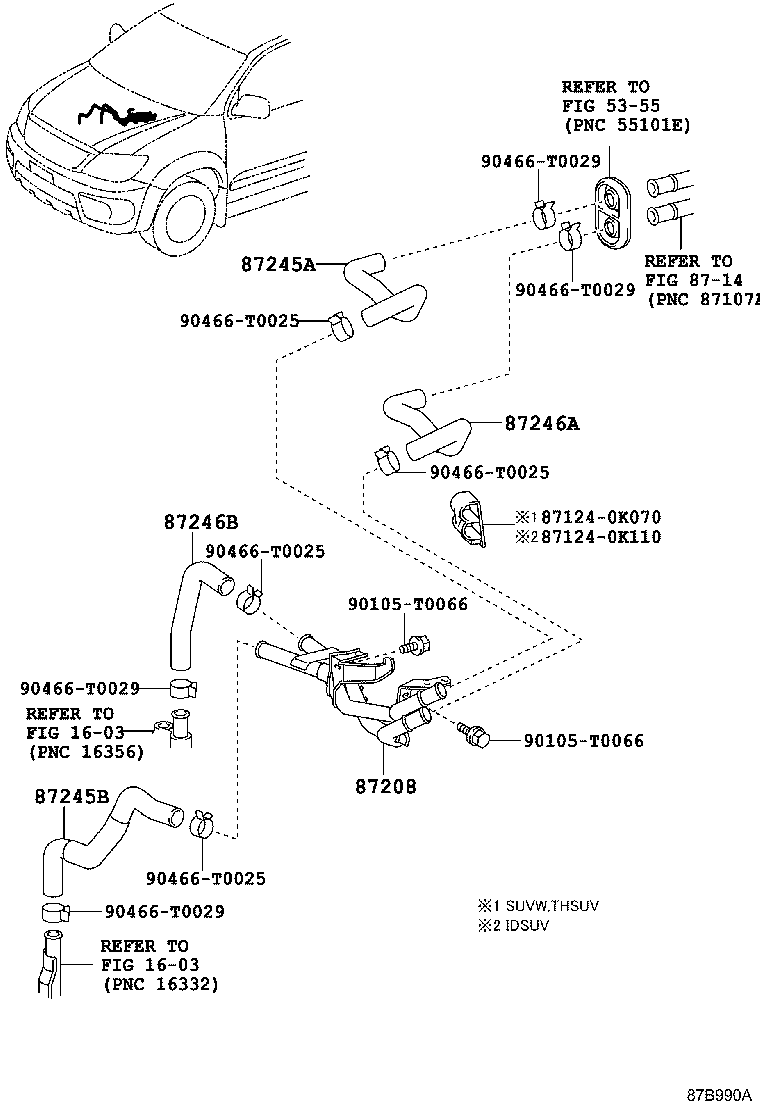

Click highlighted areas on diagram

diagram 1603 1603 5355 871240K070 871240K110 8714 87208 87245A 87245B 87246A 87246B 90105T0066 90105T0066 90466T0025 90466T0025 90466T0025 90466T0025 90466T0029 90466T0029 90466T0029 90466T0029
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-0K160

GGN50..IDSUV

 1
87245A - HOSE, HEATER WATER, INLET A
87245-0K270

GGN50..IDSUV

 1
87245B - HOSE, HEATER WATER, INLET B
87245-0K450

GGN50..IDSUV

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-0K280

GGN50..IDSUV

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-0K290

GGN50..IDSUV

 1
Common parts
87124-0K070
87124-0K110
90105-T0066
90466-T0025
90466-T0029
Linked diagrams
1603
5355
8714
