Toyota Fortuner GGN50 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
GR
FORTUNER
GGN50L-EKASKV (2011)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

GGN50L-EKASKV (2011)

Toyota Fortuner

Production Jul 2011 - Oct 2015

Engine 1GRFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

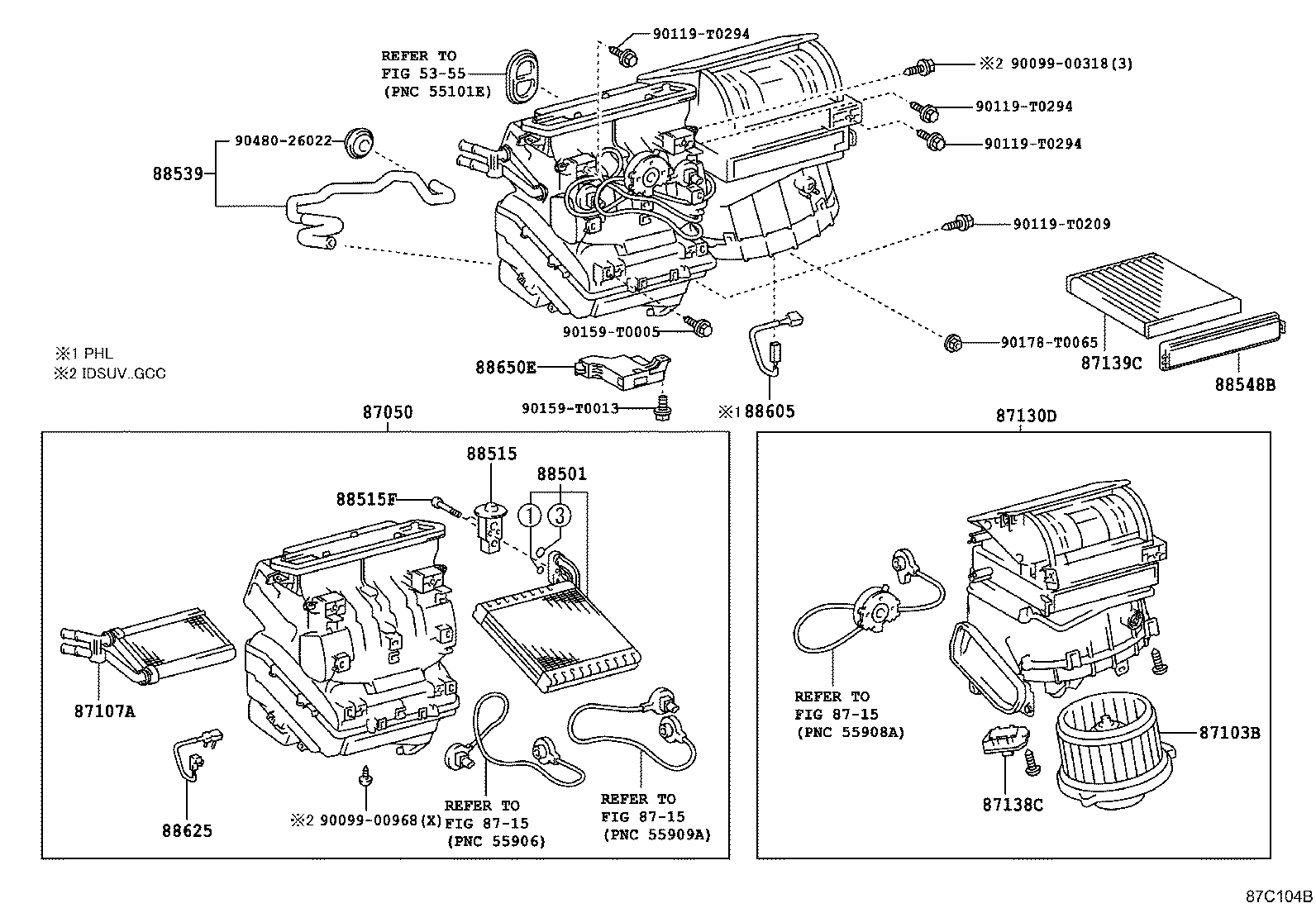

ILLUST NO. 1 OF 3(1107- )TGN61..GCC ; (1107- )KUN60,TGN51..GCC,PHL ; (1202- )KUN60..VN ; (1

Click highlighted areas on diagram

FRONT(MANUAL AIR CONDITIONER)

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-0K480	GGN50..EPT,GCC	07/2011 - 12/2016	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-0K200	KUN51,60..LHD..(SUVW,THSUV)..GEN;GGN50,TGN51,61..LHD..(EPT,GCC,GEN,KZS)	07/2011 - 03/2017	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-0K010	TGN51,61..GEN,VN;GGN50,KUN51..IDSUV..LA;GGN50,KUN51,60..(IDSUV,SUVW,THSUV)..(EPT,GCC,GEN)	07/2011 - 12/2016	1
87130D - BLOWER ASSY
87130-0K240	GGN50..IDSUV..GCC	07/2011 - 10/2015	1
87139C - FILTER, CLEAN AIR
87139-50100	LAN50..LHD;TGN51..4FC..SA;KUN51..SUVW..5FC;KUN51..IDSUV,SASUV;KUN61..(5F,5FC)..(IND,TH);TGN51..CO,EPT,KZS,MA,PKN,VN;KUN60,TGN61..CO,IND,LA,SA,TH,VN;KUN51..SUVW..(4FC,5F)..(CO,IND,LA,SA);GGN50,60,KUN50,61..ANCOM,CO,EPT,IDN,LA,MA,SA;GGN50,KUN60,TGN51,61..IDSUV..(GCC,GEN,IDN,PHL) *DPF	07/2011 - 12/2999	1
87139-52020	GGN50,KUN51..IDSUV..LA;GGN50,60,KUN51,6#,LAN50,TGN51,61..ANCOM,EPT,GCC,GEN,KZS,SA STANDARD	07/2011 - 12/2999	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-0K160	GGN50,TGN51..EPT;GGN50,TGN51,61..IDSUV..GCC	07/2011 - 04/2015	1
88515 - VALVE, COOLER EXPANSION
88515-0K250	GGN50,TGN51,61..IDSUV..GCC	07/2011 - 09/2011	1
88515-0K250	GGN50,TGN51,61..IDSUV..GCC	10/2011 - 10/2015	1
88515F - BOLT(FOR COOLER EXPANSION VALVE)
90099-04542	GGN50,KUN51..IDSUV..LA;GGN50,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(EPT,GCC,GEN,IDN,IND,MA,PHL,PKN,TH,VN)	07/2011 - 12/2016	2
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-0K020	GGN50,KUN51,60,TGN51,61..LHD..IDSUV	07/2011 - 10/2015	1
88548B - CASE, AIR FILTER
88548-0K020	GGN50,KUN51..IDSUV..LA;GGN50,60,KUN51,60,LAN50,TGN51,61..LHD..(ANCOM,EPT,GCC,GEN,KZS,PHL,SA,VN)	07/2011 - 12/2999	1
88625 - THERMISTOR, COOLER, NO.1
88620-02110	GGN50,KUN51..IDSUV..LA;GGN50,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,TH,VN)	07/2011 - 03/2017	1
Common parts
90099-00318
90099-00968
90119-T0209
90119-T0294
90159-T0005
90159-T0013
90178-T0065
90480-26022
Linked diagrams
5355
8715

ILLUST NO. 1 OF 3(1107- )KUN50,60,TGN51..IDN,PKN ; (1107- )KUN51,61,TGN61..4FC,5FC..IDN,TH ; (

Click highlighted areas on diagram

FRONT(AUTO COOLER)

Part #	Description	Period	Qty
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-0K200	KUN51,60..LHD..(SUVW,THSUV)..GEN;GGN50,TGN51,61..LHD..(EPT,GCC,GEN,KZS)	07/2011 - 03/2017	1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-0K100	TGN51,61..GEN,KZS,VN;GGN50,KUN51..IDSUV..LA;GGN50,KUN51,60..(IDSUV,SUVW,THSUV)..(EPT,GCC,GEN)	07/2011 - 12/2999	1
87106J - SERVO SUB-ASSY, DAMPER(FOR MODE)
87106-0K070	GGN50,KUN51..IDSUV..LA;TGN51,61..GEN,KZS,PHL,VN;GGN50,KUN51,60..(IDSUV,SUVW,THSUV)..(EPT,GCC,GEN,PHL)	07/2011 - 12/2999	1
87139C - FILTER, CLEAN AIR
87139-50100	LAN50..LHD;TGN51..4FC..SA;KUN51..SUVW..5FC;KUN51..IDSUV,SASUV;KUN61..(5F,5FC)..(IND,TH);TGN51..CO,EPT,KZS,MA,PKN,VN;KUN60,TGN61..CO,IND,LA,SA,TH,VN;KUN51..SUVW..(4FC,5F)..(CO,IND,LA,SA);GGN50,60,KUN50,61..ANCOM,CO,EPT,IDN,LA,MA,SA;GGN50,KUN60,TGN51,61..IDSUV..(GCC,GEN,IDN,PHL) *DPF	07/2011 - 12/2999	1
87139-52020	GGN50,KUN51..IDSUV..LA;GGN50,60,KUN51,6#,LAN50,TGN51,61..ANCOM,EPT,GCC,GEN,KZS,SA STANDARD	07/2011 - 12/2999	1
87165C - CONTROL, BLOWER MOTOR
87165-71020	KUN61;KUN51..RHD..4FC..SA;KUN51..LHD..SASUV..4FC;KUN51..LHD..5F..(CO,GEN,LA);KUN51..RHD..5F..(GEN,IND,SA);TGN51..GEN,IDN,KZS,MA,PKN,VN;TGN61..4FC..HTWC..(GEN,IDN,LA,PHL,TH,VN);KUN51..(IDSUV,SUVW,THSUV)..(4FC,5FC)..(CO,GEN,IND,LA,PHL,TH);GGN50,60,KUN50,60..SR..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,SA)	07/2011 - 12/2999	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-0K160	GGN50,TGN51..EPT;GGN50,TGN51,61..IDSUV..GCC	07/2011 - 04/2015	1
88515 - VALVE, COOLER EXPANSION
88515-0K250	GGN50,TGN51,61..IDSUV..GCC	07/2011 - 09/2011	1
88515-0K250	GGN50,TGN51,61..IDSUV..GCC	10/2011 - 10/2015	1
88515F - BOLT(FOR COOLER EXPANSION VALVE)
90099-04542	GGN50,KUN51..IDSUV..LA;GGN50,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(EPT,GCC,GEN,IDN,IND,MA,PHL,PKN,TH,VN)	07/2011 - 12/2016	2
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-0K020	GGN50,KUN51,60,TGN51,61..LHD..IDSUV	07/2011 - 10/2015	1
88548B - CASE, AIR FILTER
88548-0K020	GGN50,KUN51..IDSUV..LA;GGN50,60,KUN51,60,LAN50,TGN51,61..LHD..(ANCOM,EPT,GCC,GEN,KZS,PHL,SA,VN)	07/2011 - 12/2999	1
88625 - THERMISTOR, COOLER, NO.1
88620-02110	GGN50,KUN51..IDSUV..LA;GGN50,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,TH,VN)	07/2011 - 03/2017	1
Common parts
90099-00317
90099-00968
90119-T0209
90119-T0294
90159-T0005
90178-T0065
90480-26022
Linked diagrams
5355

ILLUST NO. 1 OF 3(1107- )LHD

Click highlighted areas on diagram

FRONT(AUTO AIR CONDITIONER)

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-0K480	GGN50..EPT,GCC	07/2011 - 12/2016	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-0K200	KUN51,60..LHD..(SUVW,THSUV)..GEN;GGN50,TGN51,61..LHD..(EPT,GCC,GEN,KZS)	07/2011 - 03/2017	1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-0K100	TGN51,61..GEN,KZS,VN;GGN50,KUN51..IDSUV..LA;GGN50,KUN51,60..(IDSUV,SUVW,THSUV)..(EPT,GCC,GEN)	07/2011 - 12/2999	1
87106J - SERVO SUB-ASSY, DAMPER(FOR MODE)
87106-0K070	GGN50,KUN51..IDSUV..LA;TGN51,61..GEN,KZS,PHL,VN;GGN50,KUN51,60..(IDSUV,SUVW,THSUV)..(EPT,GCC,GEN,PHL)	07/2011 - 12/2999	1
87106N - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87106-0K060	GGN50,KUN51..IDSUV..LA;GGN50,KUN60..LHD..(EPT,GCC,GEN,PHL);KUN51,TGN51,61..LHD..(IDSUV,SUVW,THSUV)..(GEN,KZS,PHL,VN)	07/2011 - 12/2999	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-0K010	TGN51,61..GEN,VN;GGN50,KUN51..IDSUV..LA;GGN50,KUN51,60..(IDSUV,SUVW,THSUV)..(EPT,GCC,GEN)	07/2011 - 12/2016	1
87130D - BLOWER ASSY
87130-0K240	GGN50..IDSUV..GCC	07/2011 - 10/2015	1
87139C - FILTER, CLEAN AIR
87139-50100	LAN50..LHD;TGN51..4FC..SA;KUN51..SUVW..5FC;KUN51..IDSUV,SASUV;KUN61..(5F,5FC)..(IND,TH);TGN51..CO,EPT,KZS,MA,PKN,VN;KUN60,TGN61..CO,IND,LA,SA,TH,VN;KUN51..SUVW..(4FC,5F)..(CO,IND,LA,SA);GGN50,60,KUN50,61..ANCOM,CO,EPT,IDN,LA,MA,SA;GGN50,KUN60,TGN51,61..IDSUV..(GCC,GEN,IDN,PHL) *DPF	07/2011 - 12/2999	1
87139-52020	GGN50,KUN51..IDSUV..LA;GGN50,60,KUN51,6#,LAN50,TGN51,61..ANCOM,EPT,GCC,GEN,KZS,SA STANDARD	07/2011 - 12/2999	1
87165C - CONTROL, BLOWER MOTOR
87165-71020	KUN61;KUN51..RHD..4FC..SA;KUN51..LHD..SASUV..4FC;KUN51..LHD..5F..(CO,GEN,LA);KUN51..RHD..5F..(GEN,IND,SA);TGN51..GEN,IDN,KZS,MA,PKN,VN;TGN61..4FC..HTWC..(GEN,IDN,LA,PHL,TH,VN);KUN51..(IDSUV,SUVW,THSUV)..(4FC,5FC)..(CO,GEN,IND,LA,PHL,TH);GGN50,60,KUN50,60..SR..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,SA)	07/2011 - 12/2999	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-0K160	GGN50,TGN51..EPT;GGN50,TGN51,61..IDSUV..GCC	07/2011 - 04/2015	1
88515 - VALVE, COOLER EXPANSION
88515-0K250	GGN50,TGN51,61..IDSUV..GCC	07/2011 - 09/2011	1
88515-0K250	GGN50,TGN51,61..IDSUV..GCC	10/2011 - 10/2015	1
88515F - BOLT(FOR COOLER EXPANSION VALVE)
90099-04542	GGN50,KUN51..IDSUV..LA;GGN50,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(EPT,GCC,GEN,IDN,IND,MA,PHL,PKN,TH,VN)	07/2011 - 12/2016	2
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-0K020	GGN50,KUN51,60,TGN51,61..LHD..IDSUV	07/2011 - 10/2015	1
88548B - CASE, AIR FILTER
88548-0K020	GGN50,KUN51..IDSUV..LA;GGN50,60,KUN51,60,LAN50,TGN51,61..LHD..(ANCOM,EPT,GCC,GEN,KZS,PHL,SA,VN)	07/2011 - 12/2999	1
88625 - THERMISTOR, COOLER, NO.1
88620-02110	GGN50,KUN51..IDSUV..LA;GGN50,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,TH,VN)	07/2011 - 03/2017	1
Common parts
90068-00034
90094-90426
90099-00318
90099-00968
90119-T0209
90119-T0294
90159-T0005
90159-T0013
90178-T0065
90480-26022
Linked diagrams
5355

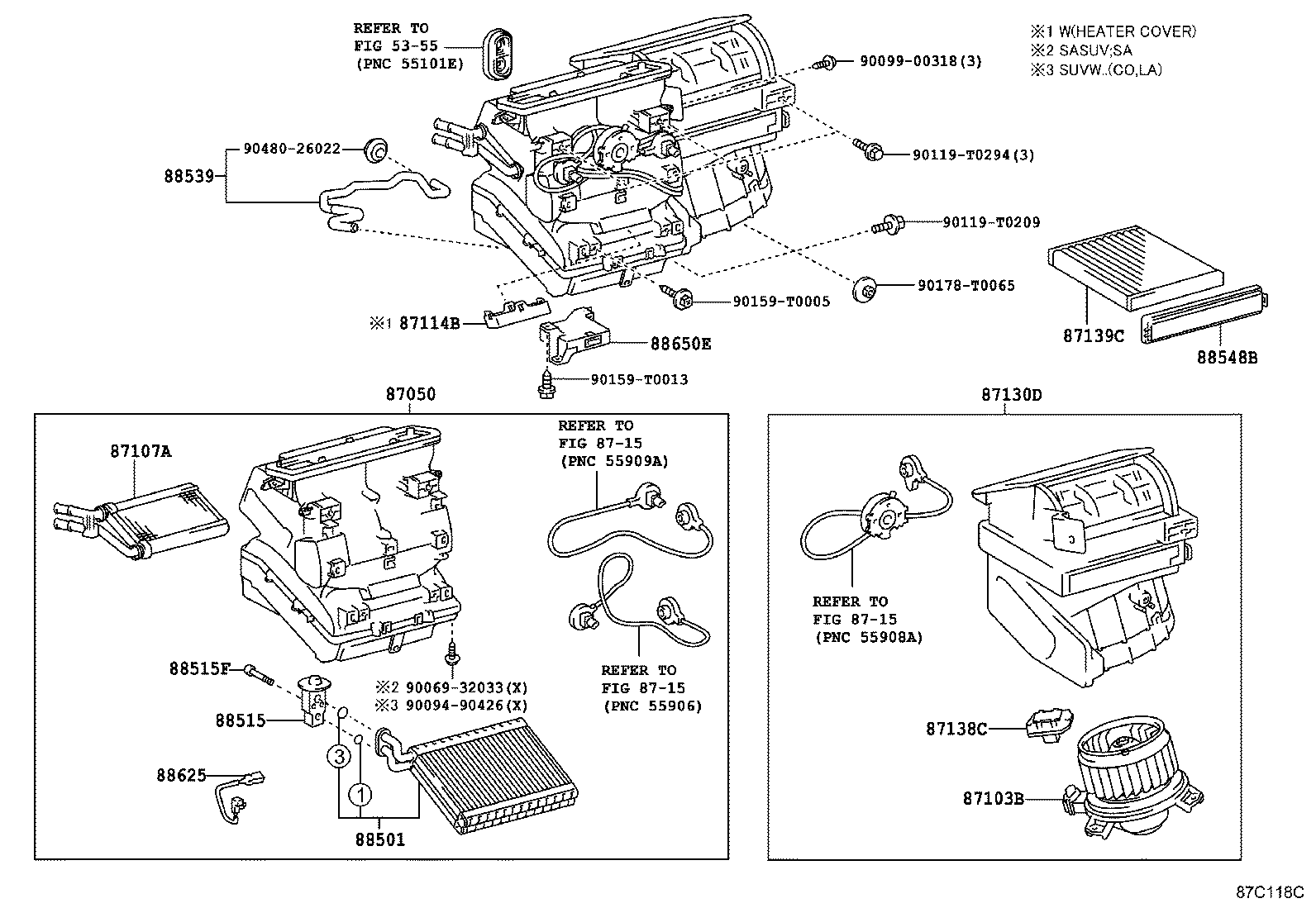

ILLUST NO. 1 OF 3(1108- )4FC..HTWCF ; (1108- )TGN61..5F..LA; (1108- )KUN51..LHD..SA ; (110

Click highlighted areas on diagram

FRONT(MANUAL AIR CONDITIONER)

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-0K480	GGN50..EPT,GCC	07/2011 - 12/2016	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-0K200	KUN51,60..LHD..(SUVW,THSUV)..GEN;GGN50,TGN51,61..LHD..(EPT,GCC,GEN,KZS)	07/2011 - 03/2017	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-0K010	TGN51,61..GEN,VN;GGN50,KUN51..IDSUV..LA;GGN50,KUN51,60..(IDSUV,SUVW,THSUV)..(EPT,GCC,GEN)	07/2011 - 12/2016	1
87130D - BLOWER ASSY
87130-0K240	GGN50..IDSUV..GCC	07/2011 - 10/2015	1
87139C - FILTER, CLEAN AIR
87139-50100	LAN50..LHD;TGN51..4FC..SA;KUN51..SUVW..5FC;KUN51..IDSUV,SASUV;KUN61..(5F,5FC)..(IND,TH);TGN51..CO,EPT,KZS,MA,PKN,VN;KUN60,TGN61..CO,IND,LA,SA,TH,VN;KUN51..SUVW..(4FC,5F)..(CO,IND,LA,SA);GGN50,60,KUN50,61..ANCOM,CO,EPT,IDN,LA,MA,SA;GGN50,KUN60,TGN51,61..IDSUV..(GCC,GEN,IDN,PHL) *DPF	07/2011 - 12/2999	1
87139-52020	GGN50,KUN51..IDSUV..LA;GGN50,60,KUN51,6#,LAN50,TGN51,61..ANCOM,EPT,GCC,GEN,KZS,SA STANDARD	07/2011 - 12/2999	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-0K160	GGN50,TGN51..EPT;GGN50,TGN51,61..IDSUV..GCC	07/2011 - 04/2015	1
88515 - VALVE, COOLER EXPANSION
88515-0K250	GGN50,TGN51,61..IDSUV..GCC	07/2011 - 09/2011	1
88515-0K250	GGN50,TGN51,61..IDSUV..GCC	10/2011 - 10/2015	1
88515F - BOLT(FOR COOLER EXPANSION VALVE)
90099-04542	GGN50,KUN51..IDSUV..LA;GGN50,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(EPT,GCC,GEN,IDN,IND,MA,PHL,PKN,TH,VN)	07/2011 - 12/2016	2
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-0K020	GGN50,KUN51,60,TGN51,61..LHD..IDSUV	07/2011 - 10/2015	1
88548B - CASE, AIR FILTER
88548-0K020	GGN50,KUN51..IDSUV..LA;GGN50,60,KUN51,60,LAN50,TGN51,61..LHD..(ANCOM,EPT,GCC,GEN,KZS,PHL,SA,VN)	07/2011 - 12/2999	1
88625 - THERMISTOR, COOLER, NO.1
88620-02110	GGN50,KUN51..IDSUV..LA;GGN50,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,TH,VN)	07/2011 - 03/2017	1
Common parts
90069-32033
90094-90426
90099-00318
90119-T0209
90119-T0294
90159-T0005
90159-T0013
90178-T0065
90480-26022
Linked diagrams
5355
8715

ILLUST NO. 2 OF 3(1107- )

Click highlighted areas on diagram

REAR

Part #	Description	Period	Qty
87103D - MOTOR SUB-ASSY, BLOWER W/FAN(FOR REAR)
87103-0K011	GGN50,KUN5#,60,TGN51,61..IDSUV	07/2011 - 10/2015	1
87138D - RESISTOR, BLOWER (REAR)
87138-0K260	GGN50,KUN5#,60,TGN51,61..IDSUV	07/2011 - 10/2015	1
88501R - EVAPORATOR SUB-ASSY (REAR)
88501-0K010	GGN50,KUN5#,60,TGN51,61..IDSUV	07/2011 - 10/2015	1
88510T - UNIT ASSY, COOLING (REAR)
88500-0K211	GGN50,KUN5#,60,TGN51,61..IDSUV	07/2011 - 10/2015	1
88515B - VALVE, REAR COOLING UNIT EXPANSION
88515-0K010	GGN50,KUN5#,60,TGN51,61..IDSUV	07/2011 - 10/2015	1
88539C - HOSE, COOLER UNIT DRAIN, NO.2
88539-0K090	GGN50,KUN5#,60,TGN51,61..IDSUV	07/2011 - 10/2015	1
88566 - DUCT, COOLER AIR, NO.1
88566-0K480	GGN50,KUN5#,60,TGN51,61..IDSUV	07/2011 - 10/2015	1
88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-0K180	GGN50,KUN5#,60,TGN51,61..IDSUV	07/2011 - 10/2015	1
88891S - COVER, COOLER, NO.1
88891-0K010	GGN50,KUN5#,60,TGN51,61..IDSUV	07/2011 - 10/2015	1
Common parts
87193-87101
90099-00968
90099-04497
90099-14119
90099-14120
90099-14121
90119-06830
Linked diagrams
8401

ILLUST NO. 3 OF 3(1107- )

Click highlighted areas on diagram

O-RING FOR FRONT AIR CONDITIONER

Part #	Description	Period	Qty	Price
Common parts
90068-14022
90068-14023
90068-14024
90068-14034
90068-14035
90068-14042
90068-14043
90068-14044
90099-14119
90099-14120
90099-14121
