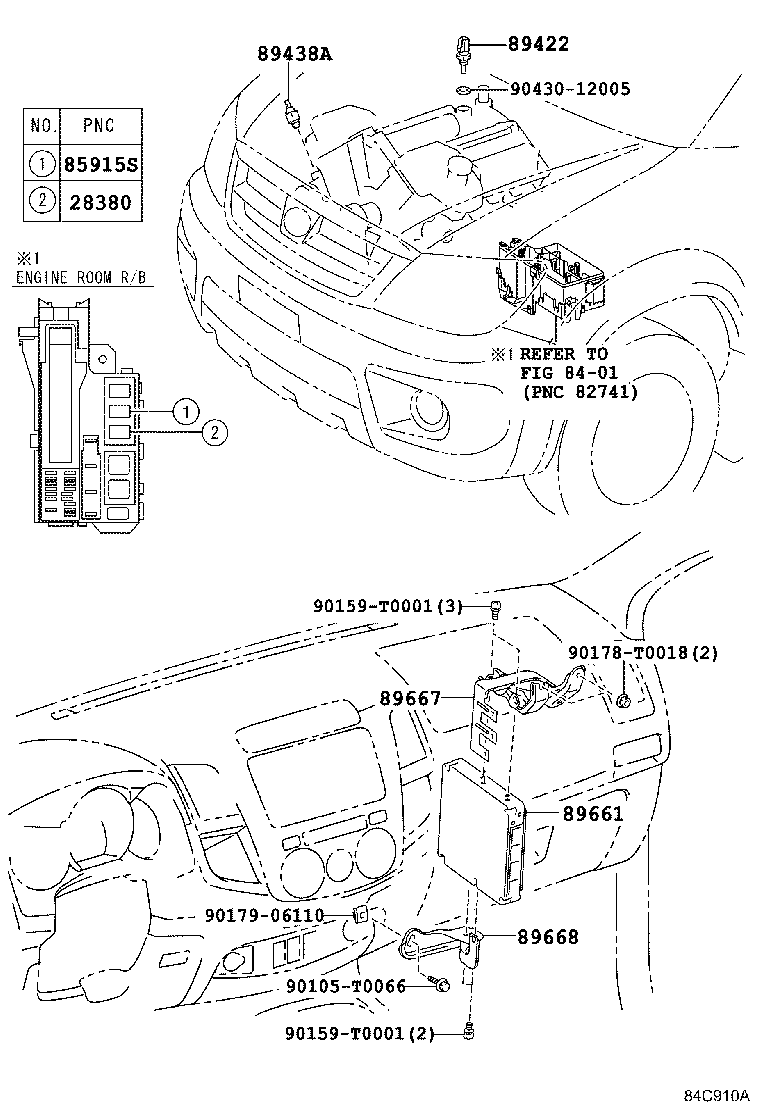

Toyota Fortuner GGN50 ELECTRONIC FUEL INJECTION SYSTEM

Part #	Description	Period	Qty
28380 - RELAY ASSY, FUEL PUMP
90987-04004	1GRFE..GGN50..CO,LA;1GRFE..GGN50..IDSUV..GCC (J)	07/2011 - 10/2015	1
90080-87009	1GRFE..GGN50..CO,LA;1GRFE..GGN50..IDSUV..GCC (L)	07/2011 - 10/2015	1
85915S - RELAY, HEATER (FOR AIR FUEL RATIO SENSOR)
90987-02027	GGN50..CO,LA;TGN61..HTWC..LA;GGN50..IDSUV..GCC (J)	07/2011 - 10/2015	1
90987-T2001	GGN50..CO,LA;TGN61..HTWC..LA;GGN50..IDSUV..GCC (L)	07/2011 - 10/2015	1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030	GGN50,TGN51,61..CO,LA;GGN50,TGN51,61..IDSUV..(GCC,GEN,IDN,PHL)	07/2011 - 10/2015	1
89438A - SWITCH, POWER STEERING OIL PRESSURE
89438-33010	GGN50,60,TGN61;TGN51..4FC..SA;TGN51..CO,EPT,GCC,GEN,IDN,KZS,MA,PKN,VN	07/2011 - 01/2017	1
89661 - COMPUTER, ENGINE CONTROL
89666-0K080	GGN50..5F	07/2011 - 10/2015	1
89666-0K090	GGN50,60..5FC..(ANCOM,EPT,GCC)	07/2011 - 12/2999	1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-0K020	GGN50,TGN51,61..HTWC..(CO,LA);GGN50,TGN51,61..IDSUV..(GCC,PHL)	07/2011 - 10/2015	1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-0K020	GGN50,TGN51,61..HTWC..(CO,LA);GGN50,TGN51,61..IDSUV..(GCC,PHL)	07/2011 - 10/2015	1
Common parts
90105-T0066
90159-T0001
90178-T0018
90179-06110
90430-12005
Linked diagrams
8401

GGN50L-EKASKV (2011)
