Toyota Fortuner GGN50 SWITCH & RELAY & COMPUTER

Manufacturers Home
Toyota
GR
FORTUNER
GGN50L-EKASKV (2011)
8401 - SWITCH & RELAY & COMPUTER

GGN50L-EKASKV (2011)

Toyota Fortuner

Production Jul 2011 - Oct 2015

Engine 1GRFE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 8 OF 8(1107- )

Click highlighted areas on diagram

DOOR,ROOF,FLOOR & BACK DOOR

Part #	Description	Period	Qty
83320 - GAGE ASSY, FUEL SENDER
83320-0K060	KUN51..LHD..SA;KUN51..IDSUV..LA;KUN51..RHD..5F..(IND,SA);KUN51..LHD..(SASUV,THSUV);KUN51..RHD..(4FC,5FC)..(GEN,IND,SA);GGN50,60,KUN61,LAN50..ANCOM,CO,EPT,GCC,GEN,IND,LA,SA;KUN60,TGN51,61..(HDCR,HTWC)..(CO,EPT,GCC,IND,KZS,LA,SA)	07/2011 - 12/2999	1
83320 - GAGE ASSY, FUEL SENDER
83320-0K060	KUN51..LHD..SA;KUN51..IDSUV..LA;KUN51..RHD..5F..(IND,SA);KUN51..LHD..(SASUV,THSUV);KUN51..RHD..(4FC,5FC)..(GEN,IND,SA);GGN50,60,KUN61,LAN50..ANCOM,CO,EPT,GCC,GEN,IND,LA,SA;KUN60,TGN51,61..(HDCR,HTWC)..(CO,EPT,GCC,IND,KZS,LA,SA)	07/2011 - 12/2999	1
84222D - SWITCH, TRANSFER INDICATOR, NO.4
84222-12010	GGN50..GCC;TGN51..KZS;TGN51..4FC..SA;KUN51..RHD..4FC..GEN	07/2011 - 03/2017	1
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-0K020	GGN50,KUN51,60,TGN51,61..IDSUV	07/2011 - 08/2012	2
84231-0K050	GGN50,KUN5#,60,TGN51,61..IDSUV	08/2012 - 10/2015	2
84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR)
84231-0K020	GGN50,KUN51,60,TGN51,61..IDSUV	07/2011 - 08/2012	2
84231-0K050	GGN50,KUN5#,60,TGN51,61..IDSUV	08/2012 - 10/2015	2
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84231-0K020	GGN50,KUN51,60,TGN51,61..IDSUV	07/2011 - 08/2012	2
84231-0K050	GGN50,KUN5#,60,TGN51,61..IDSUV	08/2012 - 10/2015	2
84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR)
84231-0K020	GGN50,KUN51,60,TGN51,61..IDSUV	07/2011 - 08/2012	2
84231-0K050	GGN50,KUN5#,60,TGN51,61..IDSUV	08/2012 - 10/2015	2
84660R - SWITCH, COOLER(REAR)
88610-0K010	KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);KUN51..SR..(CO,GEN,LA,PHL,SA,TH);GGN50,60,KUN50,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH	07/2011 - 12/2999	1
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-0K010	GGN50,KUN51,60,TGN51,61..IDSUV	07/2011 - 12/2012	1
84810-0K060	GGN50,KUN5#,60,TGN51,61..IDSUV	12/2012 - 10/2015	1
84810 - SWITCH ASSY, POWER WINDOW REGULATOR
84810-0K010	GGN50,KUN51,60,TGN51,61..IDSUV	07/2011 - 12/2012	1
84810-0K060	GGN50,KUN5#,60,TGN51,61..IDSUV	12/2012 - 10/2015	1
84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR
84810-0K060	GGN50,KUN5#,60,TGN51,61..IDSUV	12/2012 - 10/2015	2
84810-0K010	GGN50,KUN51,60,TGN51,61..IDSUV	07/2011 - 12/2012	2
84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR
84810-0K060	GGN50,KUN5#,60,TGN51,61..IDSUV	12/2012 - 10/2015	2
84810-0K010	GGN50,KUN51,60,TGN51,61..IDSUV	07/2011 - 12/2012	2
84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR
84820-0K021	GGN50,TGN51,61..IDSUV..GCC	07/2011 - 12/2012	1
84820-0K160	GGN50,TGN51,61..IDSUV..(GCC,LA)	12/2012 - 10/2015	1
84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR
84820-0K021	GGN50,TGN51,61..IDSUV..GCC	07/2011 - 12/2012	1
84820-0K160	GGN50,TGN51,61..IDSUV..(GCC,LA)	12/2012 - 10/2015	1
85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1
85530-0K030	GGN50,KUN5#,60,TGN51,61..IDSUV	12/2012 - 10/2015	1
85530-0K010	GGN50,KUN51,60,TGN51,61..IDSUV	07/2011 - 12/2012	1
85535C - COVER, POWER OUTLET SOCKET, REAR
85535-0K060E0	GGN50,KUN5#,60,TGN51,61..IDSUV SAND BEIGE,TRIM4#	12/2012 - 10/2015	1
85535-0K030E0	GGN50,KUN51,60,TGN51,61..IDSUV SAND BEIGE,TRIM4#	07/2011 - 12/2012	1
85535-0K060C0	GGN50,KUN5#,60..IDSUV;TGN51,61..GEN,IDN,PHL BLACK,TRIM2#	08/2013 - 10/2015	1
85539A - LABEL, POWER OUTLET NOTICE, REAR
85539-60020	GGN50,60,KUN5#,6#,LAN50,TGN51,61	07/2011 - 12/2999	1
88630Y - RELAY, REAR COOLER
88630-0K090	GGN50,KUN5#,60,TGN51,61..IDSUV	07/2011 - 10/2015	1
Common parts
90109-06296
90164-T0005
90430-18008
Linked diagrams
8715

ILLUST NO. 7 OF 8(1107- )

Click highlighted areas on diagram

SEAT

Part #	Description	Period	Qty
84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING)
84921-06170E1	GGN50..5F..CO;KUN51..5F..TH;GGN50..GCC,GEN,LA;KUN51..RHD..4FC..GEN;KUN51..LHD..SASUV..4FC;KUN51..LHD..SUVW..5FC..DCR;KUN51..(4FC,5F)..(CO,LA,PHL);TGN51,61..4FC..HTWC..(KZS,LA);KUN51..LHD..(IDSUV,THSUV)..GEN;KUN60,TGN61..(HDCR,HTWCF)..(LA,TH) SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4#	07/2011 - 03/2017	1
84921A - KNOB, POWER SEAT SWITCH (FOR RECLINING)
84921-06170E1	GGN50..5F..CO;KUN51..5F..TH;GGN50..GCC,GEN,LA;KUN51..RHD..4FC..GEN;KUN51..LHD..SASUV..4FC;KUN51..LHD..SUVW..5FC..DCR;KUN51..(4FC,5F)..(CO,LA,PHL);TGN51,61..4FC..HTWC..(KZS,LA);KUN51..LHD..(IDSUV,THSUV)..GEN;KUN60,TGN61..(HDCR,HTWCF)..(LA,TH) SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4#	07/2011 - 03/2017	1
84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL)
84921-06180E1	GGN50..5F..CO;KUN51..5F..TH;GGN50..GCC,GEN,LA;KUN51..RHD..4FC..GEN;KUN51..LHD..SASUV..4FC;KUN51..LHD..SUVW..5FC..DCR;KUN51..(4FC,5F)..(CO,LA,PHL);TGN51,61..4FC..HTWC..(KZS,LA);KUN51..LHD..(IDSUV,THSUV)..GEN;KUN60,TGN61..(HDCR,HTWCF)..(LA,TH) SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4#	07/2011 - 03/2017	1
84921B - KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL)
84921-06180E1	GGN50..5F..CO;KUN51..5F..TH;GGN50..GCC,GEN,LA;KUN51..RHD..4FC..GEN;KUN51..LHD..SASUV..4FC;KUN51..LHD..SUVW..5FC..DCR;KUN51..(4FC,5F)..(CO,LA,PHL);TGN51,61..4FC..HTWC..(KZS,LA);KUN51..LHD..(IDSUV,THSUV)..GEN;KUN60,TGN61..(HDCR,HTWCF)..(LA,TH) SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4#	07/2011 - 03/2017	1
84922C - SWITCH, FRONT POWER SEAT, LH
84922-0K060	GGN50..5F..CO;GGN50..GCC,GEN,LA;KUN51..LHD..SASUV..4FC;KUN51..LHD..SUVW..5FC..DCR;TGN51,61..4FC..HTWC..(KZS,LA);KUN51..LHD..(IDSUV,THSUV)..GEN;KUN51,TGN61..(4FC,5F)..(DCR,HTWCF)..(CO,LA,PHL) SEAT COVER MATERIAL-LEATHER	07/2011 - 03/2017	1
Common parts
90167-40044

ILLUST NO. 6 OF 8(1107- )

Click highlighted areas on diagram

STEERING

Part #	Description	Period	Qty
84052 - SWITCH ASSY, UN-LOCK WARNING
84052-0K020	KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH	07/2011 - 12/2999	1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-0K210	GGN50,KUN51..IDSUV	07/2011 - 12/2012	1
84140-0K121	GGN50..IDSUV HEADLAMP-HALOGEN	07/2011 - 12/2012	1
84140-0K290	GGN50,KUN51..LHD..IDSUV	12/2012 - 10/2015	1
84140-0K270	GGN50..IDSUV..GCC HEADLAMP-HALOGEN	12/2012 - 10/2015	1
84140-0K270	GGN50..GCC HEADLAMP-PROJECTOR(SMOKED)&FRONT FOG LAMP-WITH(SILVER BEZEL)	08/2014 - 10/2015	1
84140 - SWITCH ASSY, HEADLAMP DIMMER
84140-0K210	GGN50,KUN51..IDSUV	07/2011 - 12/2012	1
84140-0K121	GGN50..IDSUV HEADLAMP-HALOGEN	07/2011 - 12/2012	1
84140-0K290	GGN50,KUN51..LHD..IDSUV	12/2012 - 10/2015	1
84140-0K270	GGN50..IDSUV..GCC HEADLAMP-HALOGEN	12/2012 - 10/2015	1
84140-0K270	GGN50..GCC HEADLAMP-PROJECTOR(SMOKED)&FRONT FOG LAMP-WITH(SILVER BEZEL)	08/2014 - 10/2015	1
84250A - SWITCH ASSY, STEERING PAD
84250-0K010	TGN51,61..IDSUV..IDN;GGN50,60,TGN51..ANCOM,MA,PKN;GGN50,KUN60..IDSUV..(GCC,IDN) MARK = SF	07/2011 - 08/2013	1
84250-0K020	GGN50..IDSUV AUDIO-*DA(EXTRA) & CD & 6SPEAKER,MARK = SH	07/2011 - 08/2013	1
84250-0K280	GGN50..5F..GCC MARK = WB	08/2013 - 08/2014	1
84250-0K290	GGN50..5F..GCC AUDIO-*DA(EXTRA) & DVD & 6SPEAKER,MARK = WC	08/2013 - 08/2014	1
84250-0K280	TGN61..IDN;KUN51..IDSUV..5F..GEN;GGN50,KUN51..LHD..(4FC,5FC)..(ANCOM,GCC,SA);GGN60,KUN50,60,TGN51..SR..(ANCOM,GEN,IDN,MA,PKN) MARK = WB	08/2013 - 12/2999	1
84306 - CABLE SUB-ASSY, SPIRAL
84306-0K051	GGN50,KUN51,60..IDSUV;TGN51,61..IDSUV..(IDN,PHL) TYPE A:REFER ILLUST.	07/2011 - 12/2012	1
84306-0D120	GGN50,KUN5#,60..IDSUV;TGN51,61..IDSUV..(GEN,IDN,PHL) TYPE A:REFER ILLUST.	12/2012 - 10/2015	1
84306 - CABLE SUB-ASSY, SPIRAL
84306-0K051	GGN50,KUN51,60..IDSUV;TGN51,61..IDSUV..(IDN,PHL) TYPE A:REFER ILLUST.	07/2011 - 12/2012	1
84306-0D120	GGN50,KUN5#,60..IDSUV;TGN51,61..IDSUV..(GEN,IDN,PHL) TYPE A:REFER ILLUST.	12/2012 - 10/2015	1
84306 - CABLE SUB-ASSY, SPIRAL
84306-0K051	GGN50,KUN51,60..IDSUV;TGN51,61..IDSUV..(IDN,PHL) TYPE A:REFER ILLUST.	07/2011 - 12/2012	1
84306-0D120	GGN50,KUN5#,60..IDSUV;TGN51,61..IDSUV..(GEN,IDN,PHL) TYPE A:REFER ILLUST.	12/2012 - 10/2015	1
84306 - CABLE SUB-ASSY, SPIRAL
84306-0K051	GGN50,KUN51,60..IDSUV;TGN51,61..IDSUV..(IDN,PHL) TYPE A:REFER ILLUST.	07/2011 - 12/2012	1
84306-0D120	GGN50,KUN5#,60..IDSUV;TGN51,61..IDSUV..(GEN,IDN,PHL) TYPE A:REFER ILLUST.	12/2012 - 10/2015	1
84306 - CABLE SUB-ASSY, SPIRAL
84306-0K051	GGN50,KUN51,60..IDSUV;TGN51,61..IDSUV..(IDN,PHL) TYPE A:REFER ILLUST.	07/2011 - 12/2012	1
84306-0D120	GGN50,KUN5#,60..IDSUV;TGN51,61..IDSUV..(GEN,IDN,PHL) TYPE A:REFER ILLUST.	12/2012 - 10/2015	1
84306 - CABLE SUB-ASSY, SPIRAL
84306-0K051	GGN50,KUN51,60..IDSUV;TGN51,61..IDSUV..(IDN,PHL) TYPE A:REFER ILLUST.	07/2011 - 12/2012	1
84306-0D120	GGN50,KUN5#,60..IDSUV;TGN51,61..IDSUV..(GEN,IDN,PHL) TYPE A:REFER ILLUST.	12/2012 - 10/2015	1
84450 - SWITCH ASSY, IGNITION OR STARTER
84450-0K010	KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH	07/2011 - 12/2999	1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-0K051	GGN50,KUN51,60,TGN51,61..LHD..IDSUV	07/2011 - 12/2012	1
84652-0K180	KUN51..LHD..IDSUV..(GEN,PHL);GGN50,KUN60,TGN51,61..LHD..IDSUV	12/2012 - 10/2015	1
84650 - SWITCH ASSY, WINDSHIELD WIPER
84652-0K051	GGN50,KUN51,60,TGN51,61..LHD..IDSUV	07/2011 - 12/2012	1
84652-0K180	KUN51..LHD..IDSUV..(GEN,PHL);GGN50,KUN60,TGN51,61..LHD..IDSUV	12/2012 - 10/2015	1
85432 - SOLENOID, KEY INTER LOCK
85432-0K010	KUN61..4FC;KUN61..5FC..TH;GGN50,60,KUN5#,60,TGN51,61..(4FC,5FC)..(ANCOM,CO,EPT,GCC,GEN,IDN,KZS,LA,MA,PHL,SA,TH)	07/2011 - 12/2016	1
Common parts
90159-50199
90159-T0007
90168-T0004
Linked diagrams
4501
4504

ILLUST NO. 4 OF 8(1107- )LHD

Click highlighted areas on diagram

COWL

Part #	Description	Period	Qty
28371 - RELAY, IGNITION, NO.1
90987-T2002	1GRFE,1KDFTV,2KDFTV,5LE,2TRFE..GGN50,60,KUN5#,6#,LAN50,TGN51,61	07/2011 - 12/2999	1
81980 - FLASHER ASSY, TURN SIGNAL
81980-06030	KUN61..4FC;TGN51..CO,GCC,GEN,IDN,SA;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH	07/2011 - 12/2999	1
82210J - FUSIBLE LINK
90982-08280	GGN50,60,KUN5#,6#,LAN50,TGN51,61 30A,TERM.:FEMALE,PNK	07/2011 - 12/2999	1
82210N - INSTRUMENT PANEL FUSIBLE LINK
90982-08284	GGN50,60,KUN5#,6#,LAN50,TGN51,61 40A,TERM.:FEMALE,GRN	07/2011 - 12/2999	1
82210N - INSTRUMENT PANEL FUSIBLE LINK
90982-08284	GGN50,60,KUN5#,6#,LAN50,TGN51,61 40A,TERM.:FEMALE,GRN	07/2011 - 12/2999	1
82600D - INSTRUMENT PANEL FUSE
90982-09022	GGN50,60,KUN5#,6#,LAN50,TGN51,61 15A,MINI FUSE,BLUE	07/2011 - 12/2999	1
90982-09023	GGN50,60,KUN5#,6#,LAN50,TGN51,61 20A,MINI FUSE,YELLOW	07/2011 - 12/2999	1
90982-09020	GGN50,60,KUN5#,6#,LAN50,TGN51,61 7.5A,MINI FUSE,BROWN	07/2011 - 12/2999	1
90982-09021	GGN50,60,KUN5#,6#,LAN50,TGN51,61 10A,MINI FUSE,RED	07/2011 - 12/2999	1
82600D - INSTRUMENT PANEL FUSE
90982-09022	GGN50,60,KUN5#,6#,LAN50,TGN51,61 15A,MINI FUSE,BLUE	07/2011 - 12/2999	1
90982-09023	GGN50,60,KUN5#,6#,LAN50,TGN51,61 20A,MINI FUSE,YELLOW	07/2011 - 12/2999	1
90982-09020	GGN50,60,KUN5#,6#,LAN50,TGN51,61 7.5A,MINI FUSE,BROWN	07/2011 - 12/2999	1
90982-09021	GGN50,60,KUN5#,6#,LAN50,TGN51,61 10A,MINI FUSE,RED	07/2011 - 12/2999	1
82600F - FUSE, FUSE BLOCK
90982-09024	GGN50,60,KUN5#,6#,LAN50,TGN51,61 25A,MINI FUSE	07/2011 - 12/2999	1
90982-09023	GGN50,60,KUN5#,6#,LAN50,TGN51,61 20A,MINI FUSE,YELLOW	07/2011 - 12/2999	1
82660B - BLOCK ASSY, RELAY
82660-0K010	GGN50,60,KUN5#,6#,LAN50,TGN51,61	07/2011 - 12/2999	1
82730A - BLOCK ASSY, DRIVER SIDE JUNCTION
82730-0K060	GGN50..5FC..GCC MARK =L3	07/2011 - 08/2012	1
82730-0K050	GGN50..5FC..GCC HEADLAMP-HALOGEN,LABEL=L2	08/2012 - 10/2012	1
82730-0K060	GGN50..IDSUV..5FC HEADLAMP-HALOGEN,LABEL=L3	07/2011 - 08/2013	1
82730-0K060	GGN50..5FC..GCC HEADLAMP-HALOGEN,LABEL=L3	08/2013 - 03/2014	1
82730-0K060	GGN50..5FC..GCC HEADLAMP-HALOGEN,LABEL=L3	03/2014 - 10/2015	1
82730-0K060	GGN50..5FC..GCC HEADLAMP-PROJECTOR(SMOKED),LABEL=L3	08/2014 - 10/2015	1
82730-0K060	GGN50..5F..GCC;TGN51,61..SUVW..5F..(GCC,KZS)	07/2011 - 03/2017	1
84340 - SWITCH ASSY, STOP LAMP
84340-09040	KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,PHL,SA,TH	07/2011 - 06/2017	1
84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING
84345-0K010	KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,PHL,SA,TH	07/2011 - 12/2999	1
84550 - SWITCH ASSY, PARKING BRAKE
84550-02030	LAN50..LHD;KUN61..(5F,5FC)..(SA,TH);TGN51..CO,GCC,GEN,IDN,MA;KUN61,TGN51..4FC..(IND,SA,TH);GGN50,60,KUN5#,60,TGN61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH	07/2011 - 12/2999	1
85912 - RELAY, DEFOGGER
90987-T2001	KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH	07/2011 - 12/2999	1
85913C - RELAY, HEATER, NO.1
90987-T2003	GGN50,60,KUN5#,6#,LAN50,TGN51,61	07/2011 - 12/2999	1
85916N - RELAY, TAIL LAMP
90987-T2001	KUN6#..(5F,5FC)..SR..(SA,TH);GGN50,60,KUN51..ANCOM,CO,GCC,GEN,LA,PHL,SA,TH;KUN61,TGN61..4FC..(DCR,HTWC)..(GEN,IND,LA,SA,TH)	07/2011 - 12/2999	1
85930G - RELAY, ACC
90987-T2001	GGN50,60,KUN5#,6#,LAN50,TGN51,61	07/2011 - 12/2999	1
85934 - RELAY, MAGNET-CLUTCH
90987-02028	KUN51..RHD..4FC..SA;KUN51..LHD..SASUV..4FC;KUN51..RHD..5F..(GEN,SA);KUN61..(5F,5FC)..(SA,TH);KUN51..LHD..5F..(CO,GEN,LA);TGN61..4FC..HTWC..(GEN,IDN,LA,PHL,TH);KUN61,TGN51..RHD..4FC..(GEN,IDN,IND,MA,SA,TH);GGN50,60,KUN50,60..SR..(ANCOM,CO,GCC,GEN,IDN,LA,PHL,SA);KUN51..(IDSUV,SUVW,THSUV)..(4FC,5FC)..(CO,GEN,LA,PHL,TH)	07/2011 - 12/2999	1
88280A - SWITCH ASSY, CLUTCH
88280-42010	KUN51,6#..5F;GGN50..5F..GCC	07/2011 - 12/2999	1
89533A - COMPUTER, 4 WHEEL DRIVE CONTROL, NO.2
89533-71030	GGN50..GCC;TGN51..KZS;TGN51..4FC..SA	07/2011 - 03/2017	1
89960 - COMPUTER ASSY, HEADLAMP LEVELING
89960-71020	TGN61..4FC..HTWC..LA;GGN50,60,KUN51,LAN50..LHD..SR..(ANCOM,CO,GCC,GEN,LA,PHL,SA)	07/2011 - 12/2999	1
Common parts
82711-1E320
90105-T0066
90119-T0420
90159-60613
90159-T0003
90159-T0037
90178-T0018
91671-80618

ILLUST NO. 2 OF 8(1107- )

Click highlighted areas on diagram

ENGINE ROOM

Part #	Description	Period	Qty
28380A - RESISTER, FUEL PUMP
23080-75020	1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA	07/2011 - 12/2999	1
85942 - RELAY, HEADLAMP CLEANER CONTROL
85942-58010	KUN61..5F..SA;KUN61,TGN61..4FC..(DCR,HTWC)..(IND,LA,SA);GGN50,60,KUN51,LAN50..SR..(ANCOM,CO,GCC,GEN,LA,PHL,SA,TH)	07/2011 - 12/2999	1
Common parts
90119-06915
90119-T0037
90178-T0018

ILLUST NO. 5 OF 8(1107- )LHD

Click highlighted areas on diagram

INSTRUMENT PANEL

Part #	Description	Period	Qty
84118 - KNOB, LIGHT CONTROL RHEOSTAT
84118-0K010	TGN51,61..IDSUV..4FC;GGN50,KUN51,60..IDSUV	07/2011 - 12/2012	1
84118-0K030	TGN51,61..IDSUV..4FC;GGN50,KUN5#,60..IDSUV	12/2012 - 10/2015	1
84119 - RHEOSTAT, LIGHT CONTROL
84119-0K030	TGN51,61..IDSUV..4FC;GGN50,KUN5#,60..IDSUV	12/2012 - 10/2015	1
84119-0K010	TGN51,61..IDSUV..4FC;GGN50,KUN51,60..IDSUV	07/2011 - 12/2012	1
84150D - SWITCH ASSY, HEADLAMP CLEANER
84150-0K020	GGN50,KUN51..IDSUV	07/2011 - 12/2012	1
84150-0K010	GGN50,KUN51..IDSUV	12/2012 - 10/2015	1
84152 - SWITCH, HEADLAMP LEVELING
84152-0K020	GGN50..IDSUV HEADLAMP-HALOGEN	07/2011 - 12/2012	1
84152-0K040	GGN50..GCC;KUN51..RHD..IDSUV..4FC HEADLAMP-PROJECTOR(SMOKED)	08/2014 - 11/2014	1
84152-0K040	GGN50..IDSUV..GCC;KUN51..RHD..IDSUV HEADLAMP-HALOGEN	12/2012 - 11/2014	1
84152-0K041	GGN50..GCC;KUN51..RHD..IDSUV..4FC HEADLAMP-PROJECTOR(SMOKED)	12/2014 - 10/2015	1
84152-0K041	GGN50..GCC;KUN51..RHD..IDSUV HEADLAMP-HALOGEN	12/2014 - 10/2015	1
84660D - BULB(FOR COOLER SWITCH)
90010-01062	KUN51..IDSUV;KUN51..SUVW..SR..LA;KUN51..(5F,5FC)..CO;GGN50,TGN51,61..CO,LA;GGN50,KUN50,60,TGN51,61..IDSUV..(GCC,GEN,IDN,PHL) 14V0.63W,W/GREEN CAP	07/2011 - 10/2015	1
90010-01061	KUN51..IDSUV;KUN51..SUVW..SR..LA;KUN51..(5F,5FC)..CO;GGN50,TGN51,61..CO,LA;GGN50,KUN50,60,TGN51,61..IDSUV..(GCC,GEN,IDN,PHL) 14V0.84W,W/GREEN CAP	07/2011 - 10/2015	1
84660D - BULB(FOR COOLER SWITCH)
90010-01062	KUN51..IDSUV;KUN51..SUVW..SR..LA;KUN51..(5F,5FC)..CO;GGN50,TGN51,61..CO,LA;GGN50,KUN50,60,TGN51,61..IDSUV..(GCC,GEN,IDN,PHL) 14V0.63W,W/GREEN CAP	07/2011 - 10/2015	1
90010-01061	KUN51..IDSUV;KUN51..SUVW..SR..LA;KUN51..(5F,5FC)..CO;GGN50,TGN51,61..CO,LA;GGN50,KUN50,60,TGN51,61..IDSUV..(GCC,GEN,IDN,PHL) 14V0.84W,W/GREEN CAP	07/2011 - 10/2015	1
84725A - SWITCH, DIFFERENTIAL LOCK
84725-0K020	GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC	12/2012 - 10/2015	1
84725-0K010	GGN50..IDSUV	07/2011 - 12/2012	1
84725B - BLUB, DIFFERENTIAL LOCK SWITCH
90011-01055	GGN50..IDSUV 14V 0.84W,W(CAP)	07/2011 - 12/2012	1
84870A - SWITCH ASSY, OUTER MIRROR
84870-0D030	GGN50,KUN51,60,TGN51,61..IDSUV	07/2011 - 10/2012	1
84870-0K050	GGN50,KUN5#,60,TGN51,61..IDSUV	10/2012 - 10/2015	1
84870D - SWITCH ASSY, OUTER MIRROR, NO.2
84872-06020	GGN50,KUN51,60,TGN51,61..IDSUV	07/2011 - 10/2012	1
85500 - LIGHTER ASSY, CIGARETTE
85500-28050	KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH	07/2011 - 12/2999	1
85500B - BULB, CIGARETTE LIGHTER
90010-01022	GGN50,60,KUN5#,6#,LAN50,TGN51,61 14V1.4W,W(GREEN CAP)	07/2011 - 12/2999	1
85510 - SOCKET & RETAINER ASSY, CIGARLIGHTER
85510-22110	GGN50,60,KUN5#,6#,LAN50,TGN51,61	07/2011 - 12/2999	1
85513 - COVER, CIGARETTE LIGHTER
85513-28010	GGN50,60,KUN5#,6#,LAN50,TGN51,61	07/2011 - 12/2999	1
85515 - STAY, CIGARETTE LIGHTER BEZEL
85515-60010	GGN50,60,KUN5#,6#,LAN50,TGN51,61	07/2011 - 12/2999	1
85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER
85520-28010	GGN50,60,KUN5#,6#,LAN50,TGN51,61	07/2011 - 12/2999	1
85530 - SOCKET ASSY, POWER OUTLET, NO.1
85530-0K030	GGN50,KUN5#,60,TGN51,61..IDSUV	12/2012 - 10/2015	1
85530-0K010	GGN50,KUN51,60,TGN51,61..IDSUV	07/2011 - 12/2012	1
85535B - COVER, POWER OUTLET SOCKET, NO.1
85535-0K010E0	GGN50,KUN51,60,TGN51,61..IDSUV SAND BEIGE,TRIM4#	07/2011 - 12/2012	1
85535-0K050E0	GGN50,KUN51,60,TGN51,61..IDSUV SAND BEIGE,TRIM4#	12/2012 - 08/2013	1
85535-0K050C0	GGN50,KUN5#,60..IDSUV;TGN51,61..GEN,IDN,PHL BLACK,TRIM2#,4#	08/2013 - 10/2015	1
85539 - LABEL, POWER OUTLET NOTICE
85539-60020	GGN50,60,KUN5#,6#,LAN50,TGN51,61	07/2011 - 12/2999	1
88660C - SWITCH ASSY, COOLER CONTROL
84660-0K090	GGN50,KUN5#,60,TGN51,61..IDSUV	07/2011 - 10/2015	1
Common parts
90170-T0001
Linked diagrams
8302
8417
8601
8715

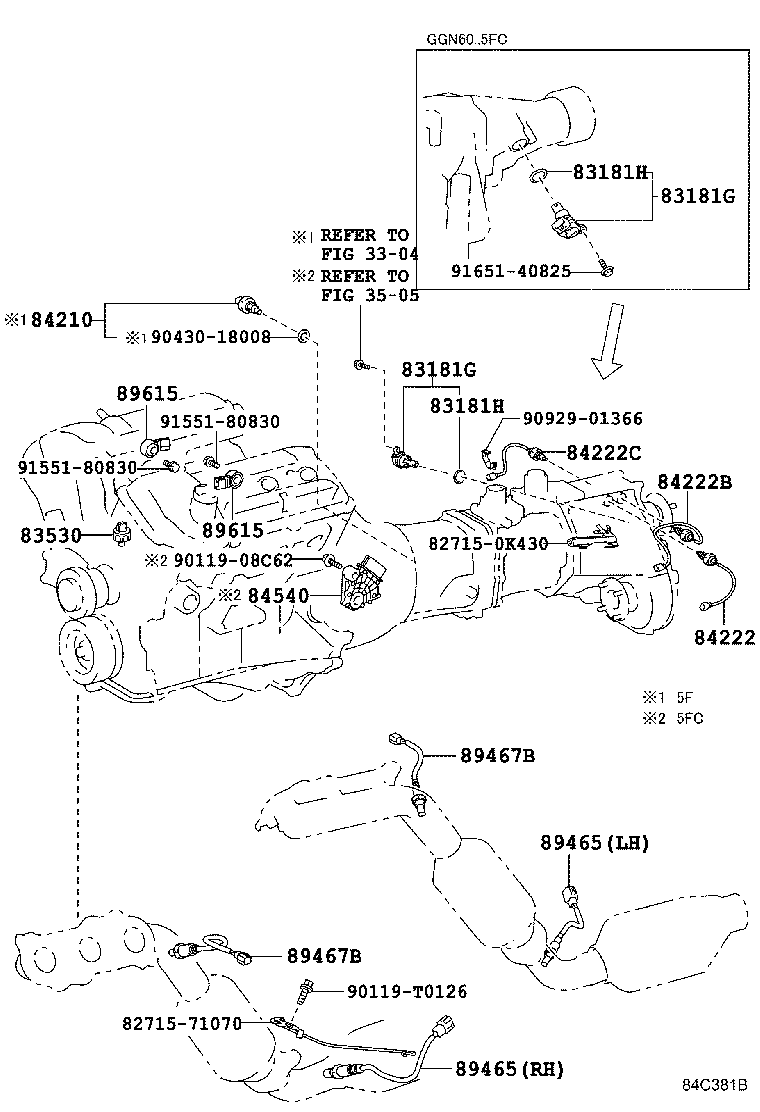

ILLUST NO. 1 OF 8(1107- )GGN50,60

Click highlighted areas on diagram

ENGINE & TRANSMISSION

Part #	Description	Period	Qty
83181G - SENSOR, SPEEDOMETER
83181-12020	KUN6#,TGN61..5F;GGN50,KUN5#,LAN50,TGN51	07/2011 - 12/2999	1
83181G - SENSOR, SPEEDOMETER
83181-12020	KUN6#,TGN61..5F;GGN50,KUN5#,LAN50,TGN51	07/2011 - 12/2999	1
83181H - RING, O (FOR SPEEDOMETER SENSOR)
96711-24030	KUN6#,TGN61..5F;GGN50,KUN5#,LAN50,TGN51	07/2011 - 12/2999	1
83181H - RING, O (FOR SPEEDOMETER SENSOR)
96711-24030	KUN6#,TGN61..5F;GGN50,KUN5#,LAN50,TGN51	07/2011 - 12/2999	1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-28020	GGN50..IDSUV..GCC;GGN50,TGN51,61..CO,LA;TGN51,61..IDSUV..(GEN,IDN,PHL) DENSO	07/2011 - 10/2015	1
83530-60020	GGN50..IDSUV..GCC;GGN50,TGN51,61..CO,LA;TGN51,61..IDSUV..(GEN,IDN,PHL) YAZAKI	07/2011 - 10/2015	1
84210 - SWITCH ASSY, BACK-UP LAMP
84210-04010	GGN50,KUN51,6#..5F..(CO,GCC,GEN,IDN,LA,PHL,SA,TH,VN) TYPE D:REFER 33-01	07/2011 - 11/2016	1
84210-0K010	GGN50..IDSUV..5F..GCC;KUN51..5F..(CO,GEN,LA,SA,TH);GGN50,KUN6#..(IDSUV,SUVW)..5F..(CO,GEN,IDN,LA,PHL,SA,TH,VN) TYPE C:REFER 33-01	07/2011 - 11/2016	1
84222 - SWITCH, TRANSFER INDICATOR, NO.1
84222-35080	TGN51..5F..CO;KUN51..SASUV..5F;KUN51..RHD..(GEN,SA,TH);TGN51..4FC..(CO,GCC,GEN,IDN,MA,SA);KUN51,LAN50..LHD..(IDSUV,SUVW,THSUV);GGN50,KUN50..ANCOM,CO,GCC,GEN,IDN,LA,MA,SA	07/2011 - 12/2999	1
84222B - SWITCH, TRANSFER INDICATOR, NO.2
84222-35090	KUN51..RHD..(4FC,5FC)..(GEN,SA,TH);KUN51..LHD..(IDSUV,SUVW,THSUV)..(4FC,5FC);GGN50,KUN50,TGN51..(4FC,5FC)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,SA)	07/2011 - 12/2999	1
84222C - SWITCH, TRANSFER INDICATOR, NO.3
84222-60100	TGN51..4FC..SA;KUN51..SASUV..5F;KUN51..RHD..(GEN,SA,TH);TGN51..CO,GCC,GEN,IDN,MA;KUN51,LAN50..LHD..(IDSUV,SUVW,THSUV);GGN50,KUN50..ANCOM,CO,GCC,GEN,IDN,LA,MA,SA	07/2011 - 12/2999	1
84540 - SWITCH ASSY, NEUTRAL START
84540-71010	GGN50,60,KUN5#,6#..4FC,5FC	07/2011 - 09/2013	1
84540-71010	GGN50,60,KUN5#,6#..(4FC,5FC)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) (J)	09/2013 - 12/2999	1
84540-04010	GGN50,60,KUN5#,6#..(4FC,5FC)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) (L)	09/2013 - 12/2999	1
89465 - SENSOR, OXYGEN
89465-0K040	GGN50..5F LH	07/2011 - 10/2015	1
89465-0K080	GGN50..IDSUV..5FC..LA;GGN50,60..5FC..(ANCOM,CO,EPT,GCC,GEN,SA) LH	07/2011 - 12/2999	1
89465-0K060	GGN50..5F RH	07/2011 - 10/2015	1
89465-0K070	GGN50..IDSUV..5FC..LA;GGN50,60..5FC..(ANCOM,CO,EPT,GCC,GEN,SA) RH	07/2011 - 12/2999	1
89465 - SENSOR, OXYGEN
89465-0K040	GGN50..5F LH	07/2011 - 10/2015	1
89465-0K080	GGN50..IDSUV..5FC..LA;GGN50,60..5FC..(ANCOM,CO,EPT,GCC,GEN,SA) LH	07/2011 - 12/2999	1
89465-0K060	GGN50..5F RH	07/2011 - 10/2015	1
89465-0K070	GGN50..IDSUV..5FC..LA;GGN50,60..5FC..(ANCOM,CO,EPT,GCC,GEN,SA) RH	07/2011 - 12/2999	1
89467B - SENSOR, AIR FUEL RATIO
89467-35110	GGN50,60	07/2011 - 12/2999	2
89467B - SENSOR, AIR FUEL RATIO
89467-35110	GGN50,60	07/2011 - 12/2999	2
89615 - SENSOR, KNOCK CONTROL
89615-20090	GGN50..CO,LA;GGN50..IDSUV..GCC	07/2011 - 10/2015	2
89615 - SENSOR, KNOCK CONTROL
89615-20090	GGN50..CO,LA;GGN50..IDSUV..GCC	07/2011 - 10/2015	2
Common parts
82715-0K430
82715-71070
90119-08C62
90119-T0126
90430-18008
90929-01366
91551-80830
91651-40825
Linked diagrams
3304
3505

ILLUST NO. 3 OF 8(1107- )

Click highlighted areas on diagram

ENGINE ROOM RELAY BLOCK

Part #	Description	Period	Qty
28300 - RELAY ASSY, STARTER
28300-0L010	1GRFE,2TRFE..GGN50,60,TGN51,61	07/2011 - 04/2016	1
82600E - ENGINE ROOM FUSE
90982-09021	GGN50,60,KUN5#,6#,LAN50,TGN51,61 10A,MINI FUSE,RED	07/2011 - 12/2999	1
90982-09013	GGN50,60,KUN5#,6#,LAN50,TGN51,61 30A,MINI FUSE,GRN	07/2011 - 12/2999	1
90982-09023	GGN50,60,KUN5#,6#,LAN50,TGN51,61 20A,MINI FUSE,YELLOW	07/2011 - 12/2999	1
90982-09024	GGN50,60,KUN5#,6#,LAN50,TGN51,61 25A,MINI FUSE	07/2011 - 12/2999	1
90982-09022	GGN50,60,KUN5#,6#,LAN50,TGN51,61 15A,MINI FUSE,BLUE	07/2011 - 12/2999	1
90982-09020	GGN50,60,KUN5#,6#,LAN50,TGN51,61 7.5A,MINI FUSE,BROWN	07/2011 - 12/2999	1
82616 - PULLER, FUSE
82616-58010	GGN50..GCC HEADLAMP-HALOGEN	08/2013 - 03/2014	2
82616-58010	GGN50,60,KUN5#,6#,LAN50,TGN51,61	07/2011 - 12/2999	1
82620A - BLOCK ASSY, FUSIBLE LINK
82620-71012	GGN50,60,KUN5#,6#,LAN50,TGN51,61	07/2011 - 12/2999	1
82630 - HOLDER ASSY, FUSE
82631-0K010	GGN50,60,KUN5#,6#,LAN50,TGN51,61	07/2011 - 12/2999	1
82641 - RELAY, INTEGRATION NO.1
82641-71010	GGN50..GCC HEADLAMP-HALOGEN	08/2013 - 03/2014	1
82641-71010	GGN50,60..GCC,GEN,SA;TGN51,61..IDSUV..GCC;TGN61..SUVW..(GCC,IDN,LA,PHL,TH);TGN51..SUVW..(GCC,GEN,IDN,KZS,MA)	07/2011 - 12/2999	1
82660C - BLOCK ASSY, RELAY
82660-26270	GGN50..GCC	07/2011 - 10/2015	1
82661 - COVER, RELAY BLOCK, NO.1
82661-0K010	GGN50..GCC HEADLAMP-HALOGEN,MADE IN THAILAND	07/2011 - 10/2015	1
82661-0K040	TGN51..EPT;GGN50,TGN51,61..IDSUV..GCC	07/2011 - 10/2015	1
82661-0K010	GGN50..GCC HEADLAMP-PROJECTOR(SMOKED),MADE IN THAILAND	08/2014 - 10/2015	1
82661-0K040	GGN50..IDSUV..GCC HEADLAMP-HALOGEN,MADE IN INDONESIA	07/2011 - 10/2015	1
82661-0K040	GGN50..GCC HEADLAMP-PROJECTOR(SMOKED),MADE IN INDONESIA	08/2014 - 10/2015	1
82662A - COVER, RELAY BLOCK, UPPER, NO.1
82662-0K290	GGN50..GCC HEADLAMP-HALOGEN,MARK 82662-0K290	07/2011 - 08/2013	1
82662-0K310	GGN50..GCC	07/2011 - 08/2013	1
82662-0K291	GGN50..GCC HEADLAMP-PROJECTOR(SMOKED),MARK 82662-0K291	08/2014 - 10/2015	1
82662-0K311	GGN50..GCC	08/2013 - 10/2015	1
82662-0K291	GGN50..GCC HEADLAMP-HALOGEN,MARK 82662-0K291	08/2013 - 10/2015	1
82662B - COVER, RELAY BLOCK, UPPER, NO.2
82662-71010	GGN50..GCC	07/2011 - 10/2015	1
82663 - COVER, RELAY BLOCK, LOWER
82663-0K010	GGN50,60,KUN5#,6#,LAN50,TGN51,61	07/2011 - 12/2999	1
82663A - COVER, RELAY BLOCK, LOWER, NO.2
82663-12070	GGN50..GCC	07/2011 - 10/2015	1
82741 - BLOCK, ENGINE ROOM RELAY
82741-0K010	GGN50,60,KUN5#,6#,LAN50,TGN51,61	07/2011 - 12/2999	1
82741B - BLOCK, ENGINE ROOM RELAY
82741-12080	GGN50..GCC	07/2011 - 10/2015	1
82742 - BLOCK, ENGINE ROOM RELAY, NO.2
82660-0C040	GGN50..GCC HEADLAMP-HALOGEN	08/2013 - 03/2014	1
82660-0C040	GGN50,60..GCC,GEN,SA;TGN51,61..IDSUV..GCC;TGN61..SUVW..(GCC,IDN,LA,PHL,TH);TGN51..SUVW..(GCC,GEN,IDN,KZS,MA)	07/2011 - 12/2999	1
82742A - BLOCK, ENGINE ROOM RELAY, NO.5
82742-0K010	GGN50..GCC HEADLAMP-HALOGEN	08/2013 - 03/2014	1
82742-0K010	KUN51..4FC..TH;KUN51..5FC..CO;KUN51..THSUV..5F;KUN51..IDSUV..5FC;KUN60,TGN51..GCC,IND;TGN61..4FC..HTWC..LA;KUN51,LAN50..RHD..SUVW..5F;KUN60,TGN61..(4FC,5F)..(GCC,TH);GGN50,60,KUN61..GCC,GEN,IND,SA,TH;KUN51..(SUVW,THSUV)..(4FC,5FC)..(GEN,IND,PHL,SA)	07/2011 - 12/2999	1
85916P - RELAY, HEADLAMP
90987-T2002	LAN50..LHD;KUN6#..(5F,5FC)..SR..(SA,TH);GGN50,60,KUN51..ANCOM,CO,GCC,GEN,LA,PHL,SA,TH;KUN61,TGN61..4FC..(DCR,HTWC)..(GEN,IND,LA,SA,TH)	07/2011 - 12/2999	1
85926 - RELAY, HEADLAMP DIMMER
90987-T2003	LAN50..LHD;KUN6#..(5F,5FC)..SR..(SA,TH);GGN50,60,KUN51..ANCOM,CO,GCC,GEN,LA,PHL,SA,TH;KUN61,TGN61..4FC..(DCR,HTWC)..(GEN,IND,LA,SA,TH)	07/2011 - 12/2999	1
85934A - RELAY CONDENSER FAN
90987-T2002	GGN50,TGN51,61..EPT,GCC	07/2011 - 12/2016	1
85934A - RELAY CONDENSER FAN
90987-T2002	GGN50,TGN51,61..EPT,GCC	07/2011 - 12/2016	1
Common parts
82715-0K800
82715-0KC40
90105-T0066
90119-05021
90119-06651
90119-06915
90119-06923
90119-T0185
Linked diagrams
8404

GGN50L-EKASKV (2011)

ILLUST NO. 8 OF 8(1107- )

ILLUST NO. 7 OF 8(1107- )

ILLUST NO. 6 OF 8(1107- )

ILLUST NO. 4 OF 8(1107- )LHD

ILLUST NO. 2 OF 8(1107- )

ILLUST NO. 5 OF 8(1107- )LHD

ILLUST NO. 1 OF 8(1107- )GGN50,60

ILLUST NO. 3 OF 8(1107- )

Part Price Details
