GGN50L-EKASKV (2011)
Toyota Fortuner
ILLUST NO. 4 OF 4(1107- )
REAR NO.2 SEAT(LH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 90467-05147A0 |
KUN5#,61..IDN,IND,MA;KUN60,TGN51,61..IND,MA,VN;GGN50,KUN51,60,TGN51,61..IDSUV IVORY |
4 | ||
| 71486A - COVER, REAR SEAT HINGE, NO.2 LH | ||||
| 71486-0K020E1 |
KUN60,TGN61;GGN50,60,KUN5#,61,LAN50,TGN51..SR..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,SA,TH,VN) SAND BEIGE,TRIM4# |
1 | ||
| 71617A - CLOTH, REAR SEAT CUSHION UNDER | ||||
| 71617-0K020 |
KUN51..SR;GGN50,60,KUN50,6#,LAN50,TGN51,61 |
2 | ||
| 71693 - COVER, REAR SEAT CUSHION HINGE, LOWER RH | ||||
| 71693-0K010E1 |
KUN60,TGN61;GGN50,60,KUN5#,61,LAN50,TGN51..SR..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,SA,TH,VN) SAND BEIGE,TRIM4# |
1 | ||
| 71779 - COVER, REAR SEAT SIDE HINGE MALE, LH | ||||
| 71779-0K020 |
KUN51..SR;GGN50,60,KUN50,6#,LAN50,TGN51,61 |
10 | ||
| 71779 - COVER, REAR SEAT SIDE HINGE MALE, LH | ||||
| 71779-0K020 |
KUN51..SR;GGN50,60,KUN50,6#,LAN50,TGN51,61 |
10 | ||
| 71779 - COVER, REAR SEAT SIDE HINGE MALE, LH | ||||
| 71779-0K020 |
KUN51..SR;GGN50,60,KUN50,6#,LAN50,TGN51,61 |
10 | ||
| 71779 - COVER, REAR SEAT SIDE HINGE MALE, LH | ||||
| 71779-0K020 |
KUN51..SR;GGN50,60,KUN50,6#,LAN50,TGN51,61 |
10 | ||
| 71779 - COVER, REAR SEAT SIDE HINGE MALE, LH | ||||
| 71779-0K020 |
KUN51..SR;GGN50,60,KUN50,6#,LAN50,TGN51,61 |
10 | ||
| 71844A - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71844-0K010E1 |
KUN60,TGN61;GGN50,60,KUN5#,61,LAN50,TGN51..SR..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,SA,TH,VN) SAND BEIGE,TRIM4# |
1 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-02050E2 |
GGN50,KUN51..IDSUV..LA;GGN50,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(GCC,GEN,IDN,PHL,PKN,TH,VN) W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-02030E2 |
KUN51..(IDSUV,SUVW,THSUV)..SR..(CO,GEN,IND,LA,PHL,TH);GGN50,60,KUN50,6#,TGN51,61..ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,TH,VN W/O(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-02050E2 |
GGN50,KUN51..IDSUV..LA;GGN50,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(GCC,GEN,IDN,PHL,PKN,TH,VN) W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-02030E2 |
KUN51..(IDSUV,SUVW,THSUV)..SR..(CO,GEN,IND,LA,PHL,TH);GGN50,60,KUN50,6#,TGN51,61..ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,TH,VN W/O(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71940D - HEADREST ASSY, REAR NO.2 SEAT, RH | ||||
| 71940-0KB00E2 |
GGN50,KUN5#,60..IDSUV;TGN61..IDSUV..(IDN,PHL) MD.BROWN,TRIM4# |
2 | ||
| 71940-0KB00C1 |
TGN61..IDN,PHL;GGN50,KUN5#,60..IDSUV BLACK,TRIM2# |
2 | ||
| 71940-0KA81E1 |
KUN60..RHD..IDSUV;KUN51..IDSUV..(GEN,PHL);TGN61..IDSUV..(IDN,PHL);GGN50,KUN50..IDSUV..(4FC,5F);GGN50,KUN60..IDSUV..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
2 | ||
| 71940-0KA81C0 |
GGN50..IDSUV..5F;KUN60..RHD..IDSUV;KUN50,TGN61..IDN,PHL;KUN51..IDSUV..(GEN,PHL);GGN50,KUN60..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
2 | ||
| 72507E - HANDLE SUB-ASSY, RECLINING RELEASE, NO.1 | ||||
| 72507-0K010 |
KUN51..SR;GGN50,60,KUN50,6#,LAN50,TGN51,61 |
1 | ||
| 72526D - HANDLE, RECLINING ADJUSTER RELEASE, NO.3 LH | ||||
| 72526-0K010E1 |
KUN60,TGN61;GGN50,60,KUN5#,61,LAN50,TGN51..SR..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,SA,TH,VN) SAND BEIGE,TRIM4# |
1 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-0K020 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);KUN51..SR..(CO,GEN,LA,PHL,SA,TH);GGN50,60,KUN50,60,LAN50,TGN51,61..ANCOM,CO,EPT,GCC,GEN,IDN,KZS,LA,MA,PHL,PKN,SA,TH,VN |
4 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-0K020 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);KUN51..SR..(CO,GEN,LA,PHL,SA,TH);GGN50,60,KUN50,60,LAN50,TGN51,61..ANCOM,CO,EPT,GCC,GEN,IDN,KZS,LA,MA,PHL,PKN,SA,TH,VN |
4 | ||
| 72615A - COVER, REAR SEAT BACK LOCK STRIKER, RH | ||||
| 72615-0K030E1 |
KUN51..SR..(CO,GEN,LA,PHL,SA,TH);GGN50,60,KUN50,6#,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH SAND BEIGE,TRIM4# |
4 | ||
| 72615A - COVER, REAR SEAT BACK LOCK STRIKER, RH | ||||
| 72615-0K030E1 |
KUN51..SR..(CO,GEN,LA,PHL,SA,TH);GGN50,60,KUN50,6#,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH SAND BEIGE,TRIM4# |
4 | ||
| 72656 - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-0K030E1 |
LAN50..LHD;KUN60,TGN61;TGN51..4FC..SA;GGN50,60,KUN5#,61..SR;TGN51..CO,EPT,GCC,GEN,IDN,PKN,VN SAND BEIGE,TRIM4# |
2 | ||
| 72661-0K030 |
KUN60,TGN61..TH;KUN51,61..5FC..TH;GGN50,KUN51,60..IDSUV;TGN51,61..IDSUV..(IDN,PHL) |
2 | ||
| 72656B - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-0K040 |
KUN60,TGN61..TH;KUN51,61..5FC..TH;GGN50,KUN51,60..IDSUV;TGN51,61..IDSUV..(IDN,PHL) |
2 | ||
| 72661-0K040E1 |
LAN50..LHD;KUN60,TGN61;TGN51..4FC..SA;GGN50,60,KUN5#,61..SR;TGN51..CO,EPT,GCC,GEN,IDN,PKN,VN SAND BEIGE,TRIM4# |
2 | ||
| 72749A - SPACER, REAR SEAT RECLINING | ||||
| 72749-0K010 |
KUN51..SR;GGN50,60,KUN50,6#,LAN50,TGN51,61 |
1 | ||
| 72997 - COVER, REAR SEAT BACK, LH | ||||
| 72997-0K020E0 |
KUN60,TGN61;GGN50,60,KUN5#,61,LAN50,TGN51..SR..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,SA,TH,VN) SAND BEIGE,TRIM4# |
1 | ||
| 78960B - BAND ASSY, FOLD SEAT STOPPER, NO.4 | ||||
| 78960-0K020E0 |
KUN60,TGN51,61..IND,VN;GGN50,KUN51,60,TGN51,61..IDSUV;GGN50,60,KUN5#,61..ANCOM,IDN,IND SAND BEIGE,TRIM4# |
1 | ||
| 79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79022-0K450E1 |
GGN50,KUN5#,60..IDSUV;TGN61..IDSUV..(IDN,PHL) SAND BEIGE,TRIM4# |
1 | ||
| 79022-0K421E0 |
KUN60..RHD..IDSUV;KUN51..IDSUV..(GEN,PHL);TGN61..IDSUV..(IDN,PHL);GGN50,KUN50..IDSUV..(4FC,5F);GGN50,KUN60..IDSUV..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 79022-0K421C0 |
GGN50..IDSUV..5F;KUN60..RHD..IDSUV;KUN50,TGN61..IDN,PHL;KUN51..IDSUV..(GEN,PHL);GGN50,KUN60..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 79022-0K450C1 |
TGN61..IDN,PHL;GGN50,KUN5#,60..IDSUV BLACK,TRIM2# |
1 | ||
| 79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79024-0K380E1 |
GGN50,KUN5#,60..IDSUV;TGN61..IDSUV..(IDN,PHL) SAND BEIGE,TRIM4# |
1 | ||
| 79024-0K361E0 |
KUN60..RHD..IDSUV;KUN51..IDSUV..(GEN,PHL);TGN61..IDSUV..(IDN,PHL);GGN50,KUN50..IDSUV..(4FC,5F);GGN50,KUN60..IDSUV..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 79024-0K380C1 |
TGN61..IDN,PHL;GGN50,KUN5#,60..IDSUV BLACK,TRIM2# |
1 | ||
| 79024-0K361C0 |
GGN50..IDSUV..5F;KUN60..RHD..IDSUV;KUN50,TGN61..IDN,PHL;KUN51..IDSUV..(GEN,PHL);GGN50,KUN60..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 79036 - LEG SUB ASSY, NO.3 SEAT OUTER REAR, LH | ||||
| 79036-0K010 |
KUN5#,61..IDN,IND,MA;KUN60,TGN51,61..IND,MA,VN;GGN50,KUN51,60,TGN51,61..IDSUV |
1 | ||
| 79096A - LEG SUB ASSY, NO.3 SEAT OUTER FRONT, LH | ||||
| 79096-0K030 |
KUN50;KUN60,TGN51,61..MA,VN;GGN50,KUN51,60,TGN51,61..IDSUV |
1 | ||
| 79117C - COVER, NO.1 SEAT CUSHION, LH | ||||
| 79117-0K010 |
KUN51..SR;GGN50,60,KUN50,6#,LAN50,TGN51,61 |
1 | ||
| 79202 - FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79202-0K020 |
KUN51..SR;GGN50,60,KUN50,6#,LAN50,TGN51,61 |
1 | ||
| 79204A - FRAME SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79204-0K010 |
KUN51..SR;GGN50,60,KUN50,6#,LAN50,TGN51,61 |
1 | ||
| 79206B - LEG SUB-ASSY, NO.2 SEAT, LH | ||||
| 79040-0K010 |
KUN51..SR;GGN50,60,KUN50,6#,LAN50,TGN51,61 |
1 | ||
| 79216A - PLATE, NO.2 SEAT CUSHION | ||||
| 79216-0K010 |
KUN51..SR;GGN50,60,KUN50,6#,LAN50,TGN51,61 |
2 | ||
| 79225B - CARPET, REAR NO.2 SEAT CUSHION, LH | ||||
| 79225-0K010E0 |
KUN60,TGN61;GGN50,60,KUN5#,61,LAN50,TGN51..SR..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,SA,TH,VN) SAND BEIGE,TRIM4# |
1 | ||
| 79245C - PAD, NO.2 SEAT CUSHION, LH | ||||
| 79245-0K020 |
KUN51..SR;GGN50,60,KUN50,6#,LAN50,TGN51,61 |
1 | ||
| 79246E - COVER, NO.2 SEAT LEG, REAR LH (FOR LH SEAT) | ||||
| 79246-0K050E0 |
KUN60,TGN61;GGN50,60,KUN5#,61,LAN50,TGN51..SR..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,SA,TH,VN) SAND BEIGE,TRIM4# |
1 | ||
| 79285 - PAD, NO.2 SEAT BACK, LH | ||||
| 79285-0K020 |
KUN60,TGN61..CO,GCC,GEN,IDN,IND,LA,PHL,SA,TH;GGN50,60,KUN5#,61,LAN50,TGN51..SR..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,KZS,LA,PHL,PKN,SA,TH) |
1 | ||
| 79391 - SPRING, REAR SEAT CUSHION | ||||
| 79391-0K010 |
KUN51..SR;GGN50,60,KUN50,6#,LAN50,TGN51,61 |
2 | ||
| 79956D - COVER, REAR SEAT FRONT BRACKET, LH | ||||
| 79956-0K010E1 |
KUN5#,61..IDN,IND,MA;KUN60,TGN51,61..IND,MA,VN;GGN50,KUN51,60,TGN51,61..IDSUV SAND BEIGE,TRIM4# |
1 | ||
| 79958A - COVER, REAR SEAT REAR BRACKET, LH | ||||
| 79958-0K010E1 |
KUN5#,61..IDN,IND,MA;KUN60,TGN51,61..IND,MA,VN;GGN50,KUN51,60,TGN51,61..IDSUV SAND BEIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 72189-0K010 | ||||
| 72702-0K070 | ||||
| 90109-08095 | ||||
| 90109-T0035 | ||||
| 90119-T0204 | ||||
| 90159-60280 | ||||
| 90167-40044 | ||||
| 90167-T0019 | ||||
| 91515-81020 | ||||
| 91551-80825 | ||||
| 93560-54016 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 1 OF 4(1107- )LHD
DRIVER SEAT W(MANUAL SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71011-0K030 |
KUN51,6#..IND;GGN50,KUN5#,60,TGN51,61..IDSUV |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0KD60E1 |
TGN61..IDSUV..PHL;GGN50,KUN51,60..LHD..IDSUV SAND BEIGE,TRIM4# |
1 | ||
| 71072-0KD01E0 |
GGN50..IDSUV..5F;GGN50,KUN51..LHD..IDSUV..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71072-0KD01C0 |
GGN50..IDSUV..5F;GGN50,KUN51..LHD..IDSUV..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 71072-0KD60C1 |
TGN61..PHL;GGN50,KUN51,60..LHD..IDSUV BLACK,TRIM2# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-0KE40E1 |
GGN50,KUN5#,60..IDSUV;TGN61..IDSUV..(IDN,PHL) SAND BEIGE,TRIM4# |
1 | ||
| 71073-0KD91E0 |
GGN50..IDSUV..5F;GGN50,KUN51..LHD..IDSUV..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71073-0KE40C1 |
TGN61..IDN,PHL;GGN50,KUN5#,60..IDSUV BLACK,TRIM2# |
1 | ||
| 71073-0KD91C0 |
GGN50..IDSUV..5F;GGN50,KUN51..LHD..IDSUV..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-0K060 |
KUN60..VN;GGN50,KUN51,60,TGN51,61..LHD..IDSUV |
1 | ||
| 71512-0K050 |
TGN51..4FC..KZS;GGN50..5F..(GEN,LA);GGN50,KUN51..GCC,PHL;KUN51..LHD..IDSUV..GEN SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-0K020 |
GGN50,KUN60..GCC,TH;GGN50..5F..(GEN,LA);KUN51..RHD..4FC..GEN;KUN51..LHD..IDSUV..GEN;KUN51,TGN51..4FC..(KZS,PHL) SEAT COVER MATERIAL-LEATHER |
2 | ||
| 71537-0K020 |
KUN51..DLX;KUN51..5F..TH;GGN50..5F..CO;KUN51..LHD..SA;GGN50..GCC,GEN,LA;TGN61..CO,GCC,IDN,LA,PHL;TGN51..CO,EPT,GCC,KZS,SA;KUN51..DCR..(CO,GEN,LA,PHL);KUN50,60,LAN50..GEN,IDN,MA,PHL,SA,TH,VN |
4 | ||
| 71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH | ||||
| 71537-71010 |
KUN51..DLX;GGN50..5F..CO;GGN50,60,KUN50,6#,LAN50..GCC,GEN,IDN,IND,LA,MA,PHL,SA,TH,VN;KUN51,TGN51,61..(DCR,HTWC,HTWCF)..(CO,EPT,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-0K140 |
TGN51..4FC..KZS;GGN50..5F..(GEN,LA);GGN50,KUN51..GCC,PHL;KUN51..LHD..IDSUV..GEN SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71551-0K030 |
GGN50,KUN51..IDSUV..LA;TGN51,61..EPT,GCC,GEN,IDN,KZS,MA,PHL,PKN,SA,TH;GGN50,60,KUN5#,6#,LAN50..GCC,GEN,IDN,IND,PHL,SA,TH,VN |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-0K040 |
KUN51..DLX;GGN50..5F..CO;GGN50,60,KUN50,6#,LAN50..GCC,GEN,IDN,IND,LA,MA,PHL,SA,TH,VN;KUN51,TGN51,61..(DCR,HTWC,HTWCF)..(CO,EPT,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| 71640-0K090 |
TGN51..4FC..KZS;GGN50..5F..(GEN,LA);GGN50,KUN51..GCC,PHL;KUN51..LHD..IDSUV..GEN SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-0K060E0 |
GGN50..5F..(GEN,LA);GGN50,KUN51..GCC,PHL;KUN51..LHD..IDSUV..GEN SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71812-0K040E1 |
KUN51..DLX;GGN50..5F..CO;GGN50,KUN60,LAN50..LHD..(GCC,GEN,LA,PHL,SA,VN);KUN51,TGN51,61..LHD..(DCR,HTWC,HTWCF)..(CO,EPT,GCC,GEN,LA,PHL,SA) SAND BEIGE,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-0K040E1 |
KUN51..DLX;GGN50..5F..CO;GGN50,KUN60,LAN50..LHD..(GCC,GEN,LA,PHL,SA,VN);KUN51,TGN51,61..LHD..(DCR,HTWC,HTWCF)..(CO,EPT,GCC,GEN,LA,PHL,SA) SAND BEIGE,TRIM4# |
1 | ||
| 71862-0K060E0 |
GGN50..5F..(GEN,LA);GGN50,KUN51..GCC,PHL;KUN51..LHD..IDSUV..GEN SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0K821E2 |
GGN50..IDSUV..5F;GGN50..IDSUV..5FC..GCC SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
2 | ||
| 71910-0K890E2 |
GGN50,KUN51..IDSUV..(GCC,LA) MD. BROWN,TRIM4# |
2 | ||
| 71910-0K821C0 |
GGN50..5FC..GCC;GGN50..IDSUV..5F SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
2 | ||
| 71910-0K890C1 |
GGN50,KUN51..IDSUV..(GCC,LA) BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02050E2 |
GGN50,KUN51..IDSUV..LA;GGN50,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(GCC,GEN,IDN,PHL,PKN,TH,VN) W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-02030E2 |
GGN50,60,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,TH,VN) W/O(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02050E2 |
GGN50,KUN51..IDSUV..LA;GGN50,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(GCC,GEN,IDN,PHL,PKN,TH,VN) W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-02030E2 |
GGN50,60,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,TH,VN) W/O(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 72120 - TRACK ASSY, FRONT SEAT, OUTER LH | ||||
| 72120-0K020 |
GGN50,KUN51,60,TGN51,61..LHD..IDSUV |
1 | ||
| 72120-0K080 |
GGN50,KUN51,60,TGN51,61..LHD..IDSUV |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-0K010E0 |
KUN51..DLX;GGN50..5F..CO;GGN50,60,KUN50,6#,LAN50..GCC,GEN,IDN,IND,LA,MA,PHL,SA,TH,VN;KUN51,TGN51,61..(DCR,HTWC,HTWCF)..(CO,EPT,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,SA,TH) SAND BEIGE,TRIM4# |
1 | ||
| 72138-0K020E0 |
GGN50..5F..CO;GGN50..GCC,GEN,LA;KUN51..LHD..SASUV..4FC;KUN51..LHD..SUVW..5FC..DCR;TGN51,61..4FC..HTWC..(KZS,LA);KUN51..LHD..(IDSUV,THSUV)..GEN;KUN51,TGN61..(4FC,5F)..(DCR,HTWCF)..(CO,LA,PHL) SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-0K020 |
GGN50,KUN51,60,TGN51,61..LHD..IDSUV |
1 | ||
| 72140-0K081 |
GGN50,KUN51,60,TGN51,61..LHD..IDSUV |
1 | ||
| 72140-0K080 |
GGN50,KUN51,60,TGN51,61..LHD..IDSUV |
1 | ||
| 72140A - TRACK ASSY, FRONT SEAT,INNER LH | ||||
| 72140-0K020 |
GGN50,KUN51,60,TGN51,61..LHD..IDSUV |
1 | ||
| 72140-0K081 |
GGN50,KUN51,60,TGN51,61..LHD..IDSUV |
1 | ||
| 72140-0K080 |
GGN50,KUN51,60,TGN51,61..LHD..IDSUV |
1 | ||
| 72158B - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-0K010E0 |
KUN51..DLX;GGN50..5F..CO;GGN50,60,KUN50,6#,LAN50..GCC,GEN,IDN,IND,LA,MA,PHL,SA,TH,VN;KUN51,TGN51,61..(DCR,HTWC,HTWCF)..(CO,EPT,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,SA,TH) SAND BEIGE,TRIM4# |
1 | ||
| 72158-0K040E0 |
GGN50..5F..CO;GGN50..GCC,GEN,LA;KUN51..LHD..SASUV..4FC;KUN51..LHD..SUVW..5FC..DCR;TGN51,61..4FC..HTWC..(KZS,LA);KUN51..LHD..(IDSUV,THSUV)..GEN;KUN51,TGN61..(4FC,5F)..(DCR,HTWCF)..(CO,LA,PHL) SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 72201B - HANDLE SUB-ASSY, SEAT TRACK LH | ||||
| 72211-0K010 |
KUN60,TGN61..LHD..IDSUV;GGN50,KUN51,TGN51..IDSUV |
1 | ||
| 72211-0K140 |
GGN50,KUN5#,TGN51..IDSUV;KUN60,TGN61..IDSUV..(GCC,GEN,PHL) |
1 | ||
| 72409 - SHAFT SUB-ASSY, VERTICAL ADJUSTING | ||||
| 72409-0K020 |
KUN51..DLX;GGN50..5F..CO;GGN50,KUN60,LAN50..LHD..(GCC,GEN,LA,PHL,SA,VN);KUN51,TGN51,61..LHD..(DCR,HTWC,HTWCF)..(CO,EPT,GCC,GEN,KZS,LA,PHL,SA) |
1 | ||
| 72422A - ROD, FRONT SEAT ADJUSTER | ||||
| 72422-0K020 |
KUN51..DLX;KUN51..5F..TH;GGN50..5F..CO;KUN51..LHD..SA;GGN50..GCC,GEN,LA;TGN61..CO,GCC,IDN,LA,PHL;TGN51..CO,EPT,GCC,KZS,SA;KUN51..DCR..(CO,GEN,LA,PHL);KUN50,60,LAN50..GEN,IDN,PHL,SA,TH,VN |
1 | ||
| 72448A - PIN, FR SEAT ADJUSTER, NO.2 LH | ||||
| 72448-0K010 |
KUN51..DLX;GGN50..5F..CO;GGN50,KUN60,LAN50..LHD..(GCC,GEN,LA,PHL,SA,VN);KUN51,TGN51,61..LHD..(DCR,HTWC,HTWCF)..(CO,EPT,GCC,GEN,KZS,LA,PHL,SA) |
1 | ||
| 72457D - KNOB, VERTICAL SEAT ADJUSTER, LH | ||||
| 72457-0K020E1 |
GGN50,KUN51..IDSUV..LA;TGN51,61..EPT,GCC,PHL,SA;GGN50,KUN51,60,LAN50..LHD..(GCC,GEN,PHL,SA,VN) SAND BEIGE,TRIM4# |
1 | ||
| 72503A - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER RH | ||||
| 72503-0K020 |
KUN51..DLX;GGN50..5F..CO;GGN50,KUN60,LAN50..LHD..(GCC,GEN,LA,PHL,SA,VN);KUN51,TGN51,61..LHD..(DCR,HTWC,HTWCF)..(CO,EPT,GCC,GEN,KZS,LA,PHL,SA) |
1 | ||
| 72504A - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER LH | ||||
| 72504-0K020 |
KUN51..DLX;GGN50..5F..CO;GGN50,KUN60,LAN50..LHD..(GCC,GEN,LA,PHL,SA,VN);KUN51,TGN51,61..LHD..(DCR,HTWC,HTWCF)..(CO,EPT,GCC,GEN,KZS,LA,PHL,SA) |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-0K040E1 |
KUN51..DLX;GGN50..5F..CO;GGN50,60,KUN50,6#,LAN50..GCC,GEN,IDN,IND,LA,PHL,SA,TH,VN;KUN51,TGN51,61..(DCR,HTWC,HTWCF)..(CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,SA,TH) SAND BEIGE,TRIM4# |
1 | ||
| 72637G - SPRING, SEAT BACK, LH | ||||
| 72637-0K010 |
KUN51..DLX;GGN50..5F..CO;GGN50,60,KUN50,6#,LAN50..GCC,GEN,IDN,IND,LA,MA,PHL,SA,TH,VN;KUN51,TGN51,61..(DCR,HTWC,HTWCF)..(CO,EPT,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| 72992 - COVER, FRONT SEAT CUSHION, LH | ||||
| 72991-0K061 |
KUN60,TGN61..LHD..IDSUV;GGN50,KUN51,TGN51..IDSUV |
1 | ||
| 72991-0K020 |
GGN50,KUN5#,TGN51..IDSUV;KUN60,TGN61..IDSUV..(GCC,GEN,PHL) |
1 | ||
| 72991-0K061 |
GGN50..IDSUV..5F;GGN50,KUN51..LHD..IDSUV..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER |
1 | ||
| Common parts | ||||
| 44344-0K010 | ||||
| 72702-0K100 | ||||
| 79169-0K080 | ||||
| 90119-T0001 | ||||
| 90167-40044 | ||||
| 90520-01006 | ||||
| 91621-B0816 | ||||
| 91622-B1018 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 1 OF 4(1107- )LHD
DRIVER SEAT W(POWER SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0KD60E1 |
TGN61..IDSUV..PHL;GGN50,KUN51,60..LHD..IDSUV SAND BEIGE,TRIM4# |
1 | ||
| 71072-0KD01E0 |
GGN50..IDSUV..5F;GGN50,KUN51..LHD..IDSUV..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71072-0KD01C0 |
GGN50..IDSUV..5F;GGN50,KUN51..LHD..IDSUV..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 71072-0KD60C1 |
TGN61..PHL;GGN50,KUN51,60..LHD..IDSUV BLACK,TRIM2# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-0KE40E1 |
GGN50,KUN5#,60..IDSUV;TGN61..IDSUV..(IDN,PHL) SAND BEIGE,TRIM4# |
1 | ||
| 71073-0KD91E0 |
GGN50..IDSUV..5F;GGN50,KUN51..LHD..IDSUV..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71073-0KE40C1 |
TGN61..IDN,PHL;GGN50,KUN5#,60..IDSUV BLACK,TRIM2# |
1 | ||
| 71073-0KD91C0 |
GGN50..IDSUV..5F;GGN50,KUN51..LHD..IDSUV..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-0K060 |
KUN60..VN;GGN50,KUN51,60,TGN51,61..LHD..IDSUV |
1 | ||
| 71512-0K050 |
TGN51..4FC..KZS;GGN50..5F..(GEN,LA);GGN50,KUN51..GCC,PHL;KUN51..LHD..IDSUV..GEN SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-0K140 |
TGN51..4FC..KZS;GGN50..5F..(GEN,LA);GGN50,KUN51..GCC,PHL;KUN51..LHD..IDSUV..GEN SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71551-0K030 |
GGN50,KUN51..IDSUV..LA;TGN51,61..EPT,GCC,GEN,IDN,KZS,MA,PHL,PKN,SA,TH;GGN50,60,KUN5#,6#,LAN50..GCC,GEN,IDN,IND,PHL,SA,TH,VN |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-0K020 |
TGN51..4FC..KZS;GGN50..5F..(GEN,LA);GGN50,KUN51..GCC,PHL;KUN51..LHD..IDSUV..GEN SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-0K040 |
KUN51..DLX;GGN50..5F..CO;GGN50,60,KUN50,6#,LAN50..GCC,GEN,IDN,IND,LA,MA,PHL,SA,TH,VN;KUN51,TGN51,61..(DCR,HTWC,HTWCF)..(CO,EPT,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,SA,TH) |
1 | ||
| 71640-0K090 |
TGN51..4FC..KZS;GGN50..5F..(GEN,LA);GGN50,KUN51..GCC,PHL;KUN51..LHD..IDSUV..GEN SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-0K060E0 |
GGN50..5F..(GEN,LA);GGN50,KUN51..GCC,PHL;KUN51..LHD..IDSUV..GEN SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71812-0K040E1 |
KUN51..DLX;GGN50..5F..CO;GGN50,KUN60,LAN50..LHD..(GCC,GEN,LA,PHL,SA,VN);KUN51,TGN51,61..LHD..(DCR,HTWC,HTWCF)..(CO,EPT,GCC,GEN,LA,PHL,SA) SAND BEIGE,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-0K040E1 |
KUN51..DLX;GGN50..5F..CO;GGN50,KUN60,LAN50..LHD..(GCC,GEN,LA,PHL,SA,VN);KUN51,TGN51,61..LHD..(DCR,HTWC,HTWCF)..(CO,EPT,GCC,GEN,LA,PHL,SA) SAND BEIGE,TRIM4# |
1 | ||
| 71862-0K060E0 |
GGN50..5F..(GEN,LA);GGN50,KUN51..GCC,PHL;KUN51..LHD..IDSUV..GEN SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-0K020E0 |
GGN50..5F..(GEN,LA);GGN50,KUN51..GCC,PHL;KUN51..LHD..IDSUV..GEN SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-06250 |
GGN50,KUN60..GCC,TH;GGN50..5F..(GEN,LA);KUN51..LHD..IDSUV..GEN;KUN51,TGN51..4FC..(KZS,PHL);KUN51..RHD..(IDSUV,SUVW)..4FC..GEN SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-06260 |
GGN50,KUN60..GCC,TH;GGN50..5F..(GEN,LA);KUN51..LHD..IDSUV..GEN;KUN51,TGN51..4FC..(KZS,PHL);KUN51..RHD..(IDSUV,SUVW)..4FC..GEN SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-06100E1 |
KUN51..PHL;GGN50..5F..(GEN,LA);GGN50,KUN60..GCC,TH;KUN51..RHD..4FC..GEN;KUN51..LHD..IDSUV..GEN SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-06370 |
TGN51..4FC..KZS;GGN50..5F..(GEN,LA);GGN50,KUN51..GCC,PHL;KUN51..LHD..IDSUV..GEN SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-06330E1 |
KUN51..PHL;GGN50..5F..(GEN,LA);GGN50,KUN60..GCC,TH;KUN51..RHD..4FC..GEN;KUN51..LHD..IDSUV..GEN SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-06080 |
TGN51..4FC..KZS;GGN50..5F..(GEN,LA);GGN50,KUN51..GCC,PHL;KUN51..LHD..IDSUV..GEN SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0K821E2 |
GGN50..IDSUV..5F;GGN50..IDSUV..5FC..GCC SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
2 | ||
| 71910-0K890E2 |
GGN50,KUN51..IDSUV..(GCC,LA) MD. BROWN,TRIM4# |
2 | ||
| 71910-0K821C0 |
GGN50..5FC..GCC;GGN50..IDSUV..5F SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
2 | ||
| 71910-0K890C1 |
GGN50,KUN51..IDSUV..(GCC,LA) BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02050E2 |
GGN50,KUN51..IDSUV..LA;GGN50,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(GCC,GEN,IDN,PHL,PKN,TH,VN) W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-02030E2 |
GGN50,60,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,TH,VN) W/O(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02050E2 |
GGN50,KUN51..IDSUV..LA;GGN50,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(GCC,GEN,IDN,PHL,PKN,TH,VN) W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-02030E2 |
GGN50,60,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,TH,VN) W/O(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-0K010E0 |
KUN51..DLX;GGN50..5F..CO;GGN50,60,KUN50,6#,LAN50..GCC,GEN,IDN,IND,LA,MA,PHL,SA,TH,VN;KUN51,TGN51,61..(DCR,HTWC,HTWCF)..(CO,EPT,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,SA,TH) SAND BEIGE,TRIM4# |
1 | ||
| 72138-0K020E0 |
GGN50..5F..CO;GGN50..GCC,GEN,LA;KUN51..LHD..SASUV..4FC;KUN51..LHD..SUVW..5FC..DCR;TGN51,61..4FC..HTWC..(KZS,LA);KUN51..LHD..(IDSUV,THSUV)..GEN;KUN51,TGN61..(4FC,5F)..(DCR,HTWCF)..(CO,LA,PHL) SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 72158B - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-0K010E0 |
KUN51..DLX;GGN50..5F..CO;GGN50,60,KUN50,6#,LAN50..GCC,GEN,IDN,IND,LA,MA,PHL,SA,TH,VN;KUN51,TGN51,61..(DCR,HTWC,HTWCF)..(CO,EPT,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,SA,TH) SAND BEIGE,TRIM4# |
1 | ||
| 72158-0K040E0 |
GGN50..5F..CO;GGN50..GCC,GEN,LA;KUN51..LHD..SASUV..4FC;KUN51..LHD..SUVW..5FC..DCR;TGN51,61..4FC..HTWC..(KZS,LA);KUN51..LHD..(IDSUV,THSUV)..GEN;KUN51,TGN61..(4FC,5F)..(DCR,HTWCF)..(CO,LA,PHL) SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 72992 - COVER, FRONT SEAT CUSHION, LH | ||||
| 72991-0K061 |
KUN60,TGN61..LHD..IDSUV;GGN50,KUN51,TGN51..IDSUV |
1 | ||
| 72991-0K020 |
GGN50,KUN5#,TGN51..IDSUV;KUN60,TGN61..IDSUV..(GCC,GEN,PHL) |
1 | ||
| 72991-0K061 |
GGN50..IDSUV..5F;GGN50,KUN51..LHD..IDSUV..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER |
1 | ||
| 85822 - MOTOR ASSY, POWER SEAT SLIDE, LH | ||||
| 85801-06020 |
TGN51..4FC..KZS;GGN50..5F..(GEN,LA);GGN50,KUN51..GCC,PHL;KUN51..LHD..IDSUV..GEN SEAT COVER MATERIAL-LEATHER |
1 | ||
| 85822A - MOTOR ASSY, POWER SEAT RECLINING, LH | ||||
| 85801-06040 |
TGN51..4FC..KZS;GGN50..5F..(GEN,LA);GGN50,KUN51..GCC,PHL;KUN51..LHD..IDSUV..GEN SEAT COVER MATERIAL-LEATHER |
1 | ||
| 85822C - MOTOR ASSY, POWER SEAT LIFTER, LH | ||||
| 85801-06080 |
TGN51..4FC..KZS;GGN50..5F..(GEN,LA);GGN50,KUN51..GCC,PHL;KUN51..LHD..IDSUV..GEN SEAT COVER MATERIAL-LEATHER |
1 | ||
| Common parts | ||||
| 79169-0K100 | ||||
| 90119-T0001 | ||||
| 90167-40044 | ||||
| 90167-40048 | ||||
| 90168-50078 | ||||
| 91622-B1018 | ||||
| 93530-54010 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||
ILLUST NO. 1 OF 4(1107- )LHD
*DRS W(POWER & SRS SIDE AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-0KD60E1 |
TGN61..IDSUV..PHL;GGN50,KUN51,60..LHD..IDSUV SAND BEIGE,TRIM4# |
1 | ||
| 71072-0KD01E0 |
GGN50..IDSUV..5F;GGN50,KUN51..LHD..IDSUV..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71072-0KD01C0 |
GGN50..IDSUV..5F;GGN50,KUN51..LHD..IDSUV..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 71072-0KD60C1 |
TGN61..PHL;GGN50,KUN51,60..LHD..IDSUV BLACK,TRIM2# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-0KE40E1 |
GGN50,KUN5#,60..IDSUV;TGN61..IDSUV..(IDN,PHL) SAND BEIGE,TRIM4# |
1 | ||
| 71073-0KD91E0 |
GGN50..IDSUV..5F;GGN50,KUN51..LHD..IDSUV..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71073-0KE40C1 |
TGN61..IDN,PHL;GGN50,KUN5#,60..IDSUV BLACK,TRIM2# |
1 | ||
| 71073-0KD91C0 |
GGN50..IDSUV..5F;GGN50,KUN51..LHD..IDSUV..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-0K060 |
KUN60..VN;GGN50,KUN51,60,TGN51,61..LHD..IDSUV |
1 | ||
| 71512-0K050 |
TGN51..4FC..KZS;GGN50..5F..(GEN,LA);GGN50,KUN51..GCC,PHL;KUN51..LHD..IDSUV..GEN SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-0K140 |
TGN51..4FC..KZS;GGN50..5F..(GEN,LA);GGN50,KUN51..GCC,PHL;KUN51..LHD..IDSUV..GEN SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71551-0K030 |
GGN50,KUN51..IDSUV..LA;TGN51,61..EPT,GCC,GEN,IDN,KZS,MA,PHL,PKN,SA,TH;GGN50,60,KUN5#,6#,LAN50..GCC,GEN,IDN,IND,PHL,SA,TH,VN |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-0K020 |
TGN51..4FC..KZS;GGN50..5F..(GEN,LA);GGN50,KUN51..GCC,PHL;KUN51..LHD..IDSUV..GEN SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-0K060E0 |
GGN50..5F..(GEN,LA);GGN50,KUN51..GCC,PHL;KUN51..LHD..IDSUV..GEN SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71812-0K040E1 |
KUN51..DLX;GGN50..5F..CO;GGN50,KUN60,LAN50..LHD..(GCC,GEN,LA,PHL,SA,VN);KUN51,TGN51,61..LHD..(DCR,HTWC,HTWCF)..(CO,EPT,GCC,GEN,LA,PHL,SA) SAND BEIGE,TRIM4# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-0K040E1 |
KUN51..DLX;GGN50..5F..CO;GGN50,KUN60,LAN50..LHD..(GCC,GEN,LA,PHL,SA,VN);KUN51,TGN51,61..LHD..(DCR,HTWC,HTWCF)..(CO,EPT,GCC,GEN,LA,PHL,SA) SAND BEIGE,TRIM4# |
1 | ||
| 71862-0K060E0 |
GGN50..5F..(GEN,LA);GGN50,KUN51..GCC,PHL;KUN51..LHD..IDSUV..GEN SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-0K020E0 |
GGN50..5F..(GEN,LA);GGN50,KUN51..GCC,PHL;KUN51..LHD..IDSUV..GEN SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-06250 |
GGN50,KUN60..GCC,TH;GGN50..5F..(GEN,LA);KUN51..LHD..IDSUV..GEN;KUN51,TGN51..4FC..(KZS,PHL);KUN51..RHD..(IDSUV,SUVW)..4FC..GEN SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-06260 |
GGN50,KUN60..GCC,TH;GGN50..5F..(GEN,LA);KUN51..LHD..IDSUV..GEN;KUN51,TGN51..4FC..(KZS,PHL);KUN51..RHD..(IDSUV,SUVW)..4FC..GEN SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-06100E1 |
KUN51..PHL;GGN50..5F..(GEN,LA);GGN50,KUN60..GCC,TH;KUN51..RHD..4FC..GEN;KUN51..LHD..IDSUV..GEN SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-06370 |
TGN51..4FC..KZS;GGN50..5F..(GEN,LA);GGN50,KUN51..GCC,PHL;KUN51..LHD..IDSUV..GEN SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-06330E1 |
KUN51..PHL;GGN50..5F..(GEN,LA);GGN50,KUN60..GCC,TH;KUN51..RHD..4FC..GEN;KUN51..LHD..IDSUV..GEN SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-06080 |
TGN51..4FC..KZS;GGN50..5F..(GEN,LA);GGN50,KUN51..GCC,PHL;KUN51..LHD..IDSUV..GEN SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0K821E2 |
GGN50..IDSUV..5F;GGN50..IDSUV..5FC..GCC SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
2 | ||
| 71910-0K890E2 |
GGN50,KUN51..IDSUV..(GCC,LA) MD. BROWN,TRIM4# |
2 | ||
| 71910-0K821C0 |
GGN50..5FC..GCC;GGN50..IDSUV..5F SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
2 | ||
| 71910-0K890C1 |
GGN50,KUN51..IDSUV..(GCC,LA) BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02050E2 |
GGN50,KUN51..IDSUV..LA;GGN50,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(GCC,GEN,IDN,PHL,PKN,TH,VN) W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-02030E2 |
GGN50,60,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,TH,VN) W/O(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02050E2 |
GGN50,KUN51..IDSUV..LA;GGN50,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(GCC,GEN,IDN,PHL,PKN,TH,VN) W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-02030E2 |
GGN50,60,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,TH,VN) W/O(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72137-0K010E0 |
KUN51..DLX;GGN50..5F..CO;GGN50,60,KUN50,6#,LAN50..GCC,GEN,IDN,IND,LA,MA,PHL,SA,TH,VN;KUN51,TGN51,61..(DCR,HTWC,HTWCF)..(CO,EPT,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,SA,TH) SAND BEIGE,TRIM4# |
1 | ||
| 72138-0K020E0 |
GGN50..5F..CO;GGN50..GCC,GEN,LA;KUN51..LHD..SASUV..4FC;KUN51..LHD..SUVW..5FC..DCR;TGN51,61..4FC..HTWC..(KZS,LA);KUN51..LHD..(IDSUV,THSUV)..GEN;KUN51,TGN61..(4FC,5F)..(DCR,HTWCF)..(CO,LA,PHL) SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 72158B - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-0K010E0 |
KUN51..DLX;GGN50..5F..CO;GGN50,60,KUN50,6#,LAN50..GCC,GEN,IDN,IND,LA,MA,PHL,SA,TH,VN;KUN51,TGN51,61..(DCR,HTWC,HTWCF)..(CO,EPT,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,SA,TH) SAND BEIGE,TRIM4# |
1 | ||
| 72158-0K040E0 |
GGN50..5F..CO;GGN50..GCC,GEN,LA;KUN51..LHD..SASUV..4FC;KUN51..LHD..SUVW..5FC..DCR;TGN51,61..4FC..HTWC..(KZS,LA);KUN51..LHD..(IDSUV,THSUV)..GEN;KUN51,TGN61..(4FC,5F)..(DCR,HTWCF)..(CO,LA,PHL) SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 72992 - COVER, FRONT SEAT CUSHION, LH | ||||
| 72991-0K061 |
KUN60,TGN61..LHD..IDSUV;GGN50,KUN51,TGN51..IDSUV |
1 | ||
| 72991-0K020 |
GGN50,KUN5#,TGN51..IDSUV;KUN60,TGN61..IDSUV..(GCC,GEN,PHL) |
1 | ||
| 72991-0K061 |
GGN50..IDSUV..5F;GGN50,KUN51..LHD..IDSUV..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER |
1 | ||
| 85822 - MOTOR ASSY, POWER SEAT SLIDE, LH | ||||
| 85801-06020 |
TGN51..4FC..KZS;GGN50..5F..(GEN,LA);GGN50,KUN51..GCC,PHL;KUN51..LHD..IDSUV..GEN SEAT COVER MATERIAL-LEATHER |
1 | ||
| 85822C - MOTOR ASSY, POWER SEAT LIFTER, LH | ||||
| 85801-06080 |
TGN51..4FC..KZS;GGN50..5F..(GEN,LA);GGN50,KUN51..GCC,PHL;KUN51..LHD..IDSUV..GEN SEAT COVER MATERIAL-LEATHER |
1 | ||
| Common parts | ||||
| 79169-0K100 | ||||
| 90119-T0001 | ||||
| 90167-40044 | ||||
| 90167-40048 | ||||
| 90168-50078 | ||||
| 91622-B1018 | ||||
| 93530-54010 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 4(1107- )LHD
PASSENGER SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-0K030 |
TGN51..IDSUV..GCC;GGN50,KUN5#,60..IDSUV;TGN61..IDSUV..(GCC,IDN,PHL) |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0KE51E0 |
GGN50..IDSUV..5F;GGN50,KUN51..LHD..IDSUV..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71071-0KF10E1 |
TGN61..IDSUV..PHL;GGN50,KUN51,60..LHD..IDSUV SAND BEIGE,TRIM4# |
1 | ||
| 71071-0KF10C1 |
TGN61..PHL;GGN50,KUN51,60..LHD..IDSUV BLACK,TRIM2# |
1 | ||
| 71071-0KE51C0 |
GGN50..IDSUV..5F;GGN50,KUN51..LHD..IDSUV..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-0KD81E0 |
GGN50..IDSUV..5F;GGN50,KUN51..LHD..IDSUV..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71073-0KE40C1 |
TGN61..IDN,PHL;GGN50,KUN5#,60..IDSUV BLACK,TRIM2# |
1 | ||
| 71073-0KE40E1 |
GGN50,KUN5#,60..IDSUV;TGN61..IDSUV..(IDN,PHL) SAND BEIGE,TRIM4# |
1 | ||
| 71073-0KD81C0 |
GGN50..IDSUV..5F;GGN50,KUN51..LHD..IDSUV..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71051-0K030 |
GGN50,60,KUN60,TGN51,61..ANCOM,VN;GGN50,KUN51,60,TGN51,61..LHD..IDSUV |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-0K020 |
GGN50,KUN60..GCC,TH;GGN50..5F..(GEN,LA);KUN51..RHD..4FC..GEN;KUN51..LHD..IDSUV..GEN;KUN51,TGN51..4FC..(KZS,PHL) SEAT COVER MATERIAL-LEATHER |
2 | ||
| 71537-0K020 |
KUN51..DLX;KUN51..5F..TH;GGN50..5F..CO;KUN51..LHD..SA;GGN50..GCC,GEN,LA;TGN61..CO,GCC,IDN,LA,PHL;TGN51..CO,EPT,GCC,KZS,SA;KUN51..DCR..(CO,GEN,LA,PHL);KUN50,60,LAN50..GEN,IDN,MA,PHL,SA,TH,VN |
4 | ||
| 71537C - PROTECTOR, FRONT SEAT CUSHION EDGE, RH | ||||
| 71537-71010 |
TGN51..LHD;KUN51..5F..TH;KUN51..LHD..SA;TGN61..CO,GCC,IDN,LA,PHL,VN;KUN60,LAN50..GEN,IDN,PHL,SA,TH,VN;GGN50,60,KUN5#..ANCOM,CO,EPT,GCC,GEN,IDN,LA,MA,PHL |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-0K030 |
KUN51..5F..TH;KUN51..LHD..SA;KUN51..GEN,PHL;GGN50,KUN51..IDSUV..LA;KUN60,LAN50..GEN,IDN,PHL,SA,TH,VN;GGN60,KUN50,TGN61..ANCOM,GCC,IDN,PHL,VN;GGN50,TGN51..LHD..(ANCOM,EPT,GCC,GEN,KZS,SA,VN) |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-0K040 |
TGN51..LHD;KUN51..DLX;KUN51..5F..TH;GGN50..5F..CO;KUN51..LHD..SA;KUN51..DCR..(CO,GEN,LA,PHL);GGN50..ANCOM,EPT,GCC,GEN,LA;KUN60,LAN50..GEN,IDN,PHL,SA,TH,VN;GGN60,KUN50,TGN61..ANCOM,CO,GCC,IDN,LA,MA,PHL,VN |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-0K020E1 |
GGN50,60,KUN51,60,LAN50,TGN51,61..LHD..(ANCOM,CO,EPT,GCC,GEN,LA,PHL,SA,VN) SAND BEIGE,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-0K020E1 |
GGN50,60,KUN51,60,LAN50,TGN51,61..LHD..(ANCOM,CO,EPT,GCC,GEN,LA,PHL,SA,VN) SAND BEIGE,TRIM4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0K821E2 |
GGN50..IDSUV..5F;GGN50..IDSUV..5FC..GCC SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
2 | ||
| 71910-0K890E2 |
GGN50,KUN51..IDSUV..(GCC,LA) MD. BROWN,TRIM4# |
2 | ||
| 71910-0K821C0 |
GGN50..5FC..GCC;GGN50..IDSUV..5F SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
2 | ||
| 71910-0K890C1 |
GGN50,KUN51..IDSUV..(GCC,LA) BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02050E2 |
GGN50,KUN51..IDSUV..LA;GGN50,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(GCC,GEN,IDN,PHL,PKN,TH,VN) W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-02030E2 |
GGN50,60,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,TH,VN) W/O(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02050E2 |
GGN50,KUN51..IDSUV..LA;GGN50,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(GCC,GEN,IDN,PHL,PKN,TH,VN) W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-02030E2 |
GGN50,60,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,TH,VN) W/O(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-0K010 |
GGN50,KUN51,60,TGN51,61..LHD..IDSUV |
1 | ||
| 72110-0K070 |
GGN50,KUN51,60,TGN51,61..LHD..IDSUV |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-0K010 |
GGN50,KUN51,60,TGN51,61..LHD..IDSUV |
1 | ||
| 72130-0K070 |
GGN50,KUN51,60,TGN51,61..LHD..IDSUV |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-0K010E0 |
KUN51..5F..TH;KUN51..LHD..SA;TGN51..CO,EPT,GCC,SA,VN;TGN61..CO,GCC,IDN,LA,PHL,VN;KUN60,LAN50..GEN,IDN,PHL,SA,TH,VN;GGN50,60,KUN5#..ANCOM,CO,EPT,GCC,GEN,IDN,LA,MA,PHL SAND BEIGE,TRIM4# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-0K010E0 |
KUN51..5F..TH;KUN51..LHD..SA;TGN51..CO,EPT,GCC,SA,VN;TGN61..CO,GCC,IDN,LA,PHL,VN;KUN60,LAN50..GEN,IDN,PHL,SA,TH,VN;GGN50,60,KUN5#..ANCOM,CO,EPT,GCC,GEN,IDN,LA,MA,PHL SAND BEIGE,TRIM4# |
1 | ||
| 72201A - HANDLE SUB-ASSY, SEAT TRACK RH | ||||
| 72211-0K140 |
GGN50,KUN5#..IDSUV;TGN51,61..LHD..IDSUV;KUN60..IDSUV..(GEN,PHL) |
1 | ||
| 72211-0K010 |
GGN50,KUN51,60,TGN51,61..LHD..IDSUV |
1 | ||
| 72503 - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER RH | ||||
| 72503-0K030 |
KUN51,60,LAN50,TGN51,61..LHD;GGN50,60,KUN50..ANCOM,CO,EPT,GCC,GEN,LA,MA |
1 | ||
| 72504 - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER LH | ||||
| 72504-0K040 |
GGN50..IDSUV;KUN51,60,TGN51,61..LHD..(IDSUV,SUVW)..(GCC,GEN,PHL) |
1 | ||
| 72504-0K041 |
GGN50,KUN51,60,TGN51,61..GCC,PHL |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-0K040E1 |
KUN51..5F..TH;KUN51..LHD..SA;TGN51..CO,EPT,GCC,SA,VN;TGN61..CO,GCC,IDN,LA,PHL,VN;KUN60,LAN50..GEN,IDN,PHL,SA,TH,VN;GGN50,60,KUN5#..ANCOM,CO,EPT,GCC,GEN,IDN,LA,PHL SAND BEIGE,TRIM4# |
1 | ||
| 72637F - SPRING, SEAT BACK, RH | ||||
| 72637-0K010 |
TGN51..LHD;KUN51..5F..TH;KUN51..LHD..SA;TGN61..CO,GCC,IDN,LA,PHL,VN;KUN60,LAN50..GEN,IDN,PHL,SA,TH,VN;GGN50,60,KUN5#..ANCOM,CO,EPT,GCC,GEN,IDN,LA,MA,PHL |
1 | ||
| 72991 - COVER, FRONT SEAT CUSHION, RH | ||||
| 72991-0K051 |
GGN50,KUN51,60,TGN51,61..LHD..IDSUV |
1 | ||
| 72991-0K010 |
GGN50,KUN5#..IDSUV;TGN51,61..LHD..IDSUV;KUN60..IDSUV..(GEN,PHL) |
1 | ||
| Common parts | ||||
| 79169-0K080 | ||||
| 90119-T0001 | ||||
| 90167-40044 | ||||
| 91621-B0816 | ||||
| 91622-B1018 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 2 OF 4(1107- )LHD
PASSENGER SEAT W(SRS SIDE AIR BAG)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71011-0K030 |
TGN51..IDSUV..GCC;GGN50,KUN5#,60..IDSUV;TGN61..IDSUV..(GCC,IDN,PHL) |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-0KE51E0 |
GGN50..IDSUV..5F;GGN50,KUN51..LHD..IDSUV..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71071-0KF10E1 |
TGN61..IDSUV..PHL;GGN50,KUN51,60..LHD..IDSUV SAND BEIGE,TRIM4# |
1 | ||
| 71071-0KF10C1 |
TGN61..PHL;GGN50,KUN51,60..LHD..IDSUV BLACK,TRIM2# |
1 | ||
| 71071-0KE51C0 |
GGN50..IDSUV..5F;GGN50,KUN51..LHD..IDSUV..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-0KD81E0 |
GGN50..IDSUV..5F;GGN50,KUN51..LHD..IDSUV..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71073-0KE40C1 |
TGN61..IDN,PHL;GGN50,KUN5#,60..IDSUV BLACK,TRIM2# |
1 | ||
| 71073-0KE40E1 |
GGN50,KUN5#,60..IDSUV;TGN61..IDSUV..(IDN,PHL) SAND BEIGE,TRIM4# |
1 | ||
| 71073-0KD81C0 |
GGN50..IDSUV..5F;GGN50,KUN51..LHD..IDSUV..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71051-0K030 |
GGN50,60,KUN60,TGN51,61..ANCOM,VN;GGN50,KUN51,60,TGN51,61..LHD..IDSUV |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-0K020 |
GGN50,KUN60..GCC,TH;GGN50..5F..(GEN,LA);KUN51..RHD..4FC..GEN;KUN51..LHD..IDSUV..GEN;KUN51,TGN51..4FC..(KZS,PHL) SEAT COVER MATERIAL-LEATHER |
2 | ||
| 71537-0K020 |
KUN51..DLX;KUN51..5F..TH;GGN50..5F..CO;KUN51..LHD..SA;GGN50..GCC,GEN,LA;TGN61..CO,GCC,IDN,LA,PHL;TGN51..CO,EPT,GCC,KZS,SA;KUN51..DCR..(CO,GEN,LA,PHL);KUN50,60,LAN50..GEN,IDN,MA,PHL,SA,TH,VN |
4 | ||
| 71537C - PROTECTOR, FRONT SEAT CUSHION EDGE, RH | ||||
| 71537-71010 |
TGN51..LHD;KUN51..5F..TH;KUN51..LHD..SA;TGN61..CO,GCC,IDN,LA,PHL,VN;KUN60,LAN50..GEN,IDN,PHL,SA,TH,VN;GGN50,60,KUN5#..ANCOM,CO,EPT,GCC,GEN,IDN,LA,MA,PHL |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-0K030 |
KUN51..5F..TH;KUN51..LHD..SA;KUN51..GEN,PHL;GGN50,KUN51..IDSUV..LA;KUN60,LAN50..GEN,IDN,PHL,SA,TH,VN;GGN60,KUN50,TGN61..ANCOM,GCC,IDN,PHL,VN;GGN50,TGN51..LHD..(ANCOM,EPT,GCC,GEN,KZS,SA,VN) |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-0K020E1 |
GGN50,60,KUN51,60,LAN50,TGN51,61..LHD..(ANCOM,CO,EPT,GCC,GEN,LA,PHL,SA,VN) SAND BEIGE,TRIM4# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-0K020E1 |
GGN50,60,KUN51,60,LAN50,TGN51,61..LHD..(ANCOM,CO,EPT,GCC,GEN,LA,PHL,SA,VN) SAND BEIGE,TRIM4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-0K821E2 |
GGN50..IDSUV..5F;GGN50..IDSUV..5FC..GCC SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
2 | ||
| 71910-0K890E2 |
GGN50,KUN51..IDSUV..(GCC,LA) MD. BROWN,TRIM4# |
2 | ||
| 71910-0K821C0 |
GGN50..5FC..GCC;GGN50..IDSUV..5F SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
2 | ||
| 71910-0K890C1 |
GGN50,KUN51..IDSUV..(GCC,LA) BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02050E2 |
GGN50,KUN51..IDSUV..LA;GGN50,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(GCC,GEN,IDN,PHL,PKN,TH,VN) W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-02030E2 |
GGN50,60,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,TH,VN) W/O(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-02050E2 |
GGN50,KUN51..IDSUV..LA;GGN50,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(GCC,GEN,IDN,PHL,PKN,TH,VN) W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-02030E2 |
GGN50,60,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,TH,VN) W/O(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 72110A - TRACK ASSY, FRONT SEAT, OUTER RH | ||||
| 72110-0K010 |
GGN50,KUN51,60,TGN51,61..LHD..IDSUV |
1 | ||
| 72110-0K070 |
GGN50,KUN51,60,TGN51,61..LHD..IDSUV |
1 | ||
| 72130A - TRACK ASSY, FRONT SEAT, INNER RH | ||||
| 72130-0K010 |
GGN50,KUN51,60,TGN51,61..LHD..IDSUV |
1 | ||
| 72130-0K070 |
GGN50,KUN51,60,TGN51,61..LHD..IDSUV |
1 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-0K010E0 |
KUN51..5F..TH;KUN51..LHD..SA;TGN51..CO,EPT,GCC,SA,VN;TGN61..CO,GCC,IDN,LA,PHL,VN;KUN60,LAN50..GEN,IDN,PHL,SA,TH,VN;GGN50,60,KUN5#..ANCOM,CO,EPT,GCC,GEN,IDN,LA,MA,PHL SAND BEIGE,TRIM4# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-0K010E0 |
KUN51..5F..TH;KUN51..LHD..SA;TGN51..CO,EPT,GCC,SA,VN;TGN61..CO,GCC,IDN,LA,PHL,VN;KUN60,LAN50..GEN,IDN,PHL,SA,TH,VN;GGN50,60,KUN5#..ANCOM,CO,EPT,GCC,GEN,IDN,LA,MA,PHL SAND BEIGE,TRIM4# |
1 | ||
| 72201A - HANDLE SUB-ASSY, SEAT TRACK RH | ||||
| 72211-0K140 |
GGN50,KUN5#..IDSUV;TGN51,61..LHD..IDSUV;KUN60..IDSUV..(GEN,PHL) |
1 | ||
| 72211-0K010 |
GGN50,KUN51,60,TGN51,61..LHD..IDSUV |
1 | ||
| 72503 - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER RH | ||||
| 72503-0K030 |
KUN51,60,LAN50,TGN51,61..LHD;GGN50,60,KUN50..ANCOM,CO,EPT,GCC,GEN,LA,MA |
1 | ||
| 72504 - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER LH | ||||
| 72504-0K040 |
GGN50..IDSUV;KUN51,60,TGN51,61..LHD..(IDSUV,SUVW)..(GCC,GEN,PHL) |
1 | ||
| 72504-0K041 |
GGN50,KUN51,60,TGN51,61..GCC,PHL |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-0K040E1 |
KUN51..5F..TH;KUN51..LHD..SA;TGN51..CO,EPT,GCC,SA,VN;TGN61..CO,GCC,IDN,LA,PHL,VN;KUN60,LAN50..GEN,IDN,PHL,SA,TH,VN;GGN50,60,KUN5#..ANCOM,CO,EPT,GCC,GEN,IDN,LA,PHL SAND BEIGE,TRIM4# |
1 | ||
| 72637F - SPRING, SEAT BACK, RH | ||||
| 72637-0K010 |
TGN51..LHD;KUN51..5F..TH;KUN51..LHD..SA;TGN61..CO,GCC,IDN,LA,PHL,VN;KUN60,LAN50..GEN,IDN,PHL,SA,TH,VN;GGN50,60,KUN5#..ANCOM,CO,EPT,GCC,GEN,IDN,LA,MA,PHL |
1 | ||
| 72991 - COVER, FRONT SEAT CUSHION, RH | ||||
| 72991-0K051 |
GGN50,KUN51,60,TGN51,61..LHD..IDSUV |
1 | ||
| 72991-0K010 |
GGN50,KUN5#..IDSUV;TGN51,61..LHD..IDSUV;KUN60..IDSUV..(GEN,PHL) |
1 | ||
| Common parts | ||||
| 79169-0K080 | ||||
| 90119-T0001 | ||||
| 90167-40044 | ||||
| 91621-B0816 | ||||
| 91622-B1018 | ||||
| Linked diagrams | ||||
| 7152 | ||||

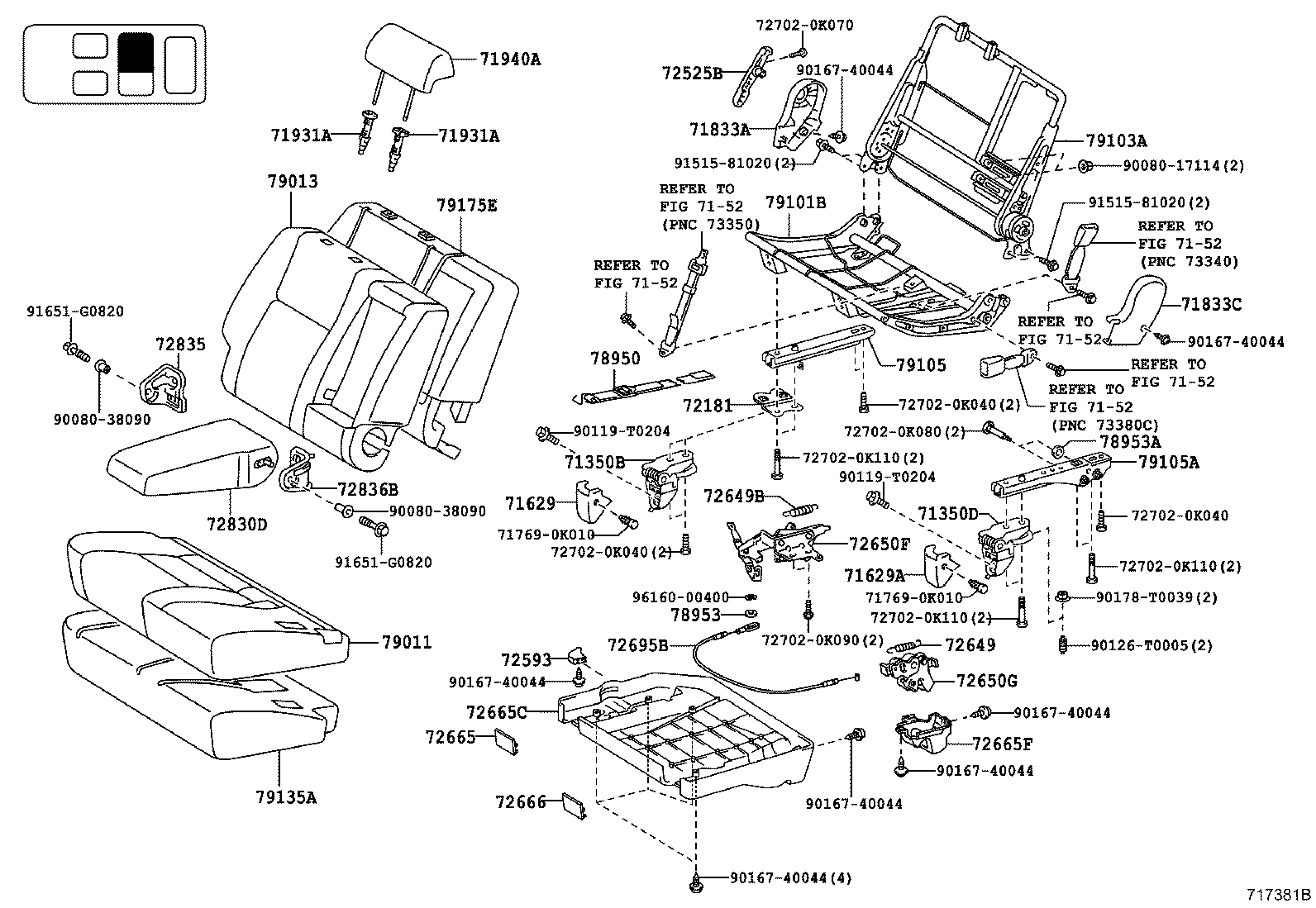

ILLUST NO. 3 OF 4(1107- )
REAR NO.1 SEAT(RH) W(SLIDE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71350B - HINGE ASSY, REAR SEAT, RH | ||||
| 71350-0K010 |
KUN51..SR;GGN50,60,KUN50,6#,LAN50,TGN51,61 |
1 | ||
| 71350D - HINGE ASSY, REAR SEAT, NO.2 RH | ||||
| 71350-0K020 |
KUN51..SR;GGN50,60,KUN50,6#,LAN50,TGN51,61 |
1 | ||
| 71629 - COVER, REAR SEAT CUSHION HINGE | ||||
| 71629-0K120E0 |
GGN50,KUN51..IDSUV..LA;GGN50,60,KUN5#,6#,LAN50,TGN51,61..EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,SA,TH,VN SAND BEIGE,TRIM4# |
1 | ||
| 71629A - COVER, REAR SEAT CUSHION HINGE, RH | ||||
| 71629-0K130E0 |
GGN50,KUN51..IDSUV..LA;GGN50,60,KUN5#,6#,LAN50,TGN51,61..EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,SA,TH,VN SAND BEIGE,TRIM4# |
1 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-0K070E0 |
KUN60,TGN61;GGN50,60,KUN5#,61,LAN50,TGN51..SR..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,SA,TH,VN) SAND BEIGE,TRIM4# |
1 | ||
| 71833C - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71833-0K080E0 |
KUN60,TGN61;GGN50,60,KUN5#,61,LAN50,TGN51..SR..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,SA,TH,VN) SAND BEIGE,TRIM4# |
1 | ||
| 71881 - BOARD, REAR SEAT BACK, RH | ||||
| 71881-0K040 |
GGN50,KUN5#,60,TGN51,61..IDSUV |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02050E2 |
GGN50,KUN51..IDSUV..LA;GGN50,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(GCC,GEN,IDN,PHL,PKN,TH,VN) W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-02030E2 |
GGN50,60,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,TH,VN) W/O(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02050E2 |
GGN50,KUN51..IDSUV..LA;GGN50,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(GCC,GEN,IDN,PHL,PKN,TH,VN) W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-02030E2 |
GGN50,60,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,TH,VN) W/O(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-0KA90E2 |
GGN50,KUN5#,60..IDSUV;TGN61..IDSUV..(IDN,PHL) MD.BROWN,TRIM4# |
2 | ||
| 71940-0KA41C0 |
GGN50..IDSUV..5F;KUN60..RHD..IDSUV;KUN50,TGN61..IDN,PHL;KUN51..IDSUV..(GEN,PHL);GGN50,KUN60..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
2 | ||
| 71940-0KA41E1 |
KUN60..RHD..IDSUV;KUN51..IDSUV..(GEN,PHL);TGN61..IDSUV..(IDN,PHL);GGN50,KUN50..IDSUV..(4FC,5F);GGN50,KUN60..IDSUV..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
2 | ||
| 71940-0KA90C1 |
TGN61..IDN,PHL;GGN50,KUN5#,60..IDSUV BLACK,TRIM2# |
2 | ||
| 72160 - TRACK ASSY, REAR SEAT, OUTER RH | ||||
| 72160-0K060 |
GGN50,KUN51,60,TGN51,61..IDSUV |
1 | ||
| 72160-0K040 |
GGN50,KUN5#,60,TGN51,61..IDSUV |
1 | ||
| 72160B - TRACK ASSY, REAR NO.1 SEAT, RH | ||||
| 72160-0K070 |
GGN50,KUN51,60,TGN51,61..IDSUV |
1 | ||
| 72160-0K050 |
GGN50,KUN5#,60,TGN51,61..IDSUV |
1 | ||
| 72181 - BRACKET, REAR OUTER SEAT TRACK, LOWER FRONT RH | ||||
| 72187-0K010 |
KUN51..SR;GGN50,60,KUN50,6#,LAN50,TGN51,61 |
1 | ||
| 72211B - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-0K050 |
KUN51..SR;GGN50,60,KUN50,6#,LAN50,TGN51,61 |
1 | ||
| 72507A - HANDLE SUB-ASSY, RECLINING RELEASE | ||||
| 72507-0K020 |
GGN50,KUN51,60..IDSUV;TGN51,61..IDSUV..(IDN,PHL) |
1 | ||
| 72507-0K020A0 |
LAN50..LHD;KUN60,TGN61;TGN51..4FC..SA;GGN50,60,KUN5#,61..SR;TGN51..CO,EPT,GCC,GEN,IDN,PKN,VN IVORY,TRIM4# |
1 | ||
| 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-0K020E1 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61..ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,SA,TH,VN SAND BEIGE,TRIM4# |
1 | ||
| 72593 - KNOB, RECLINING REMOTE CONTROL LEVER | ||||
| 72593-0K010E0 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61..ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,SA,TH,VN SAND BEIGE,TRIM4# |
1 | ||
| 72649 - SPRING, REAR SEAT CUSHION SUPPORT | ||||
| 72649-0K070 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61 |
2 | ||
| 72649B - SPRING, REAR SEAT CUSHION SUPPORT | ||||
| 72649-0K100 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61 |
2 | ||
| 72650F - LOCK ASSY, REAR SEAT, RH | ||||
| 72650-0K010 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61 |
1 | ||
| 72650G - LOCK ASSY, REAR NO.2 SEAT, RH | ||||
| 72650-0K050 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61 |
1 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-0K030 |
KUN60,TGN61..TH;KUN51,61..5FC..TH;GGN50,KUN51,60..IDSUV;TGN51,61..IDSUV..(IDN,PHL) NO.1:REFER ILLUST. |
2 | ||
| 72661-0K040E1 |
LAN50..LHD;KUN60,TGN61;TGN51..4FC..SA;GGN50,60,KUN5#,61..SR;TGN51..CO,EPT,GCC,GEN,IDN,PKN,VN SAND BEIGE,TRIM4#,NO.2:REFER ILLUST. |
2 | ||
| 72661-0K040 |
KUN60,TGN61..TH;KUN51,61..5FC..TH;GGN50,KUN51,60..IDSUV;TGN51,61..IDSUV..(IDN,PHL) NO.2:REFER ILLUST. |
2 | ||
| 72661-0K030E1 |
LAN50..LHD;KUN60,TGN61;TGN51..4FC..SA;GGN50,60,KUN5#,61..SR;TGN51..CO,EPT,GCC,GEN,IDN,PKN,VN SAND BEIGE,TRIM4#,NO.1:REFER ILLUST. |
2 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-0K030 |
KUN60,TGN61..TH;KUN51,61..5FC..TH;GGN50,KUN51,60..IDSUV;TGN51,61..IDSUV..(IDN,PHL) NO.1:REFER ILLUST. |
2 | ||
| 72661-0K040E1 |
LAN50..LHD;KUN60,TGN61;TGN51..4FC..SA;GGN50,60,KUN5#,61..SR;TGN51..CO,EPT,GCC,GEN,IDN,PKN,VN SAND BEIGE,TRIM4#,NO.2:REFER ILLUST. |
2 | ||
| 72661-0K040 |
KUN60,TGN61..TH;KUN51,61..5FC..TH;GGN50,KUN51,60..IDSUV;TGN51,61..IDSUV..(IDN,PHL) NO.2:REFER ILLUST. |
2 | ||
| 72661-0K030E1 |
LAN50..LHD;KUN60,TGN61;TGN51..4FC..SA;GGN50,60,KUN5#,61..SR;TGN51..CO,EPT,GCC,GEN,IDN,PKN,VN SAND BEIGE,TRIM4#,NO.1:REFER ILLUST. |
2 | ||
| 72665C - COVER, REAR SEAT LOCK, RH | ||||
| 72665-0K060E0 |
KUN60,TGN61;GGN50,60,KUN5#,61,LAN50,TGN51..SR..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,SA,TH,VN) SAND BEIGE,TRIM4# |
1 | ||
| 72665F - COVER, REAR SEAT LOCK, RH(FOR RH SEAT) | ||||
| 72665-0K080E0 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61..ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,SA,TH,VN SAND BEIGE,TRIM4# |
1 | ||
| 72695B - CABLE, REAR SEAT LOCK CONTROL, RH | ||||
| 72695-0K010 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61 |
1 | ||
| 72830D - ARMREST ASSY, REAR SEAT, RH | ||||
| 72830-0K410E0 |
KUN60..RHD..IDSUV;KUN51..IDSUV..(GEN,PHL);TGN61..IDSUV..(IDN,PHL);GGN50,KUN50..IDSUV..(4FC,5F);GGN50,KUN60..IDSUV..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 72830-0K410C0 |
GGN50..IDSUV..5F;KUN60..RHD..IDSUV;KUN50,TGN61..IDN,PHL;KUN51..IDSUV..(GEN,PHL);GGN50,KUN60..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 72830-0K440C1 |
TGN61..IDN,PHL;GGN50,KUN5#,60..IDSUV BLACK,TRIM2# |
1 | ||
| 72830-0K440E1 |
GGN50,KUN5#,60..IDSUV;TGN61..IDSUV..(IDN,PHL) SAND BEIGE,TRIM4# |
1 | ||
| 72835 - ARM, RR SEAT ARMREST, RH | ||||
| 72835-0K020 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61 |
1 | ||
| 72836B - ARM, REAR SEAT ARMREST, LH | ||||
| 72836-0K020 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61 |
1 | ||
| 72907B - COVER SUB-ASSY, REAR SEAT CUSHION UNDER, RH | ||||
| 72907-0K010E0 |
KUN60,TGN61;GGN50,60,KUN5#,61,LAN50,TGN51..SR..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,SA,TH,VN) SAND BEIGE,TRIM4# |
1 | ||
| 78950 - BAND ASSY, FOLD SEAT STOPPER, NO.1 | ||||
| 78950-0K040A0 |
KUN51..DLX;GGN50,KUN5#,60,TGN51,61..IDSUV IVORY,TRIM4# |
1 | ||
| 78953 - PLATE, REAR SEAT UNDER | ||||
| 78953-0K010 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61 |
2 | ||
| 78953A - PLATE, REAR SEAT UNDER, NO.1 | ||||
| 78953-0K030 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61 |
2 | ||
| 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79011-0K780C1 |
TGN61..IDN,PHL;GGN50,KUN5#,60..IDSUV BLACK,TRIM2# |
1 | ||
| 79011-0K751E0 |
KUN60..RHD..IDSUV;KUN51..IDSUV..(GEN,PHL);TGN61..IDSUV..(IDN,PHL);GGN50,KUN50..IDSUV..(4FC,5F);GGN50,KUN60..IDSUV..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 79011-0K780E1 |
GGN50,KUN5#,60..IDSUV;TGN61..IDSUV..(IDN,PHL) SAND BEIGE,TRIM4# |
1 | ||
| 79011-0K751C0 |
GGN50..IDSUV..5F;KUN60..RHD..IDSUV;KUN50,TGN61..IDN,PHL;KUN51..IDSUV..(GEN,PHL);GGN50,KUN60..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-0K811E0 |
KUN60..RHD..IDSUV;KUN51..IDSUV..(GEN,PHL);TGN61..IDSUV..(IDN,PHL);GGN50,KUN50..IDSUV..(4FC,5F);GGN50,KUN60..IDSUV..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 79013-0K840E1 |
GGN50,KUN5#,60..IDSUV;TGN61..IDSUV..(IDN,PHL) SAND BEIGE,TRIM4# |
1 | ||
| 79013-0K840C1 |
TGN61..IDN,PHL;GGN50,KUN5#,60..IDSUV BLACK,TRIM2# |
1 | ||
| 79013-0K811C0 |
GGN50..IDSUV..5F;KUN60..RHD..IDSUV;KUN50,TGN61..IDN,PHL;KUN51..IDSUV..(GEN,PHL);GGN50,KUN60..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 79101B - FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79101-0K140 |
KUN51..SR..(CO,GEN,LA,PHL,SA,TH);GGN50,60,KUN50,6#,LAN50,TGN51,61..ANCOM,CO,EPT,GCC,GEN,IDN,KZS,LA,PHL,PKN,SA,TH,VN |
1 | ||
| 79103A - FRAME SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79103-0K110 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61 |
1 | ||
| 79135A - PAD, NO.1 SEAT CUSHION, RH | ||||
| 79135-0K120 |
KUN60,TGN61;GGN50,60,KUN5#,61,LAN50,TGN51..SR..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,KZS,LA,PHL,PKN,SA,TH,VN) |
1 | ||
| 79175E - PAD, NO.1 SEAT BACK, RH | ||||
| 79175-0K070 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61..CO,EPT,GCC,GEN,IDN,IND,KZS,LA,PHL,PKN,SA,TH,VN |
1 | ||
| Common parts | ||||
| 71769-0K010 | ||||
| 72702-0K040 | ||||
| 72702-0K070 | ||||
| 72702-0K080 | ||||
| 72702-0K090 | ||||
| 79169-0K050 | ||||
| 90080-17114 | ||||
| 90080-38090 | ||||
| 90119-T0204 | ||||
| 90126-T0005 | ||||
| 90167-40044 | ||||
| 90178-T0039 | ||||
| 91515-81020 | ||||
| 91651-G0820 | ||||
| 96160-00400 | ||||
| Linked diagrams | ||||
| 7152 | ||||

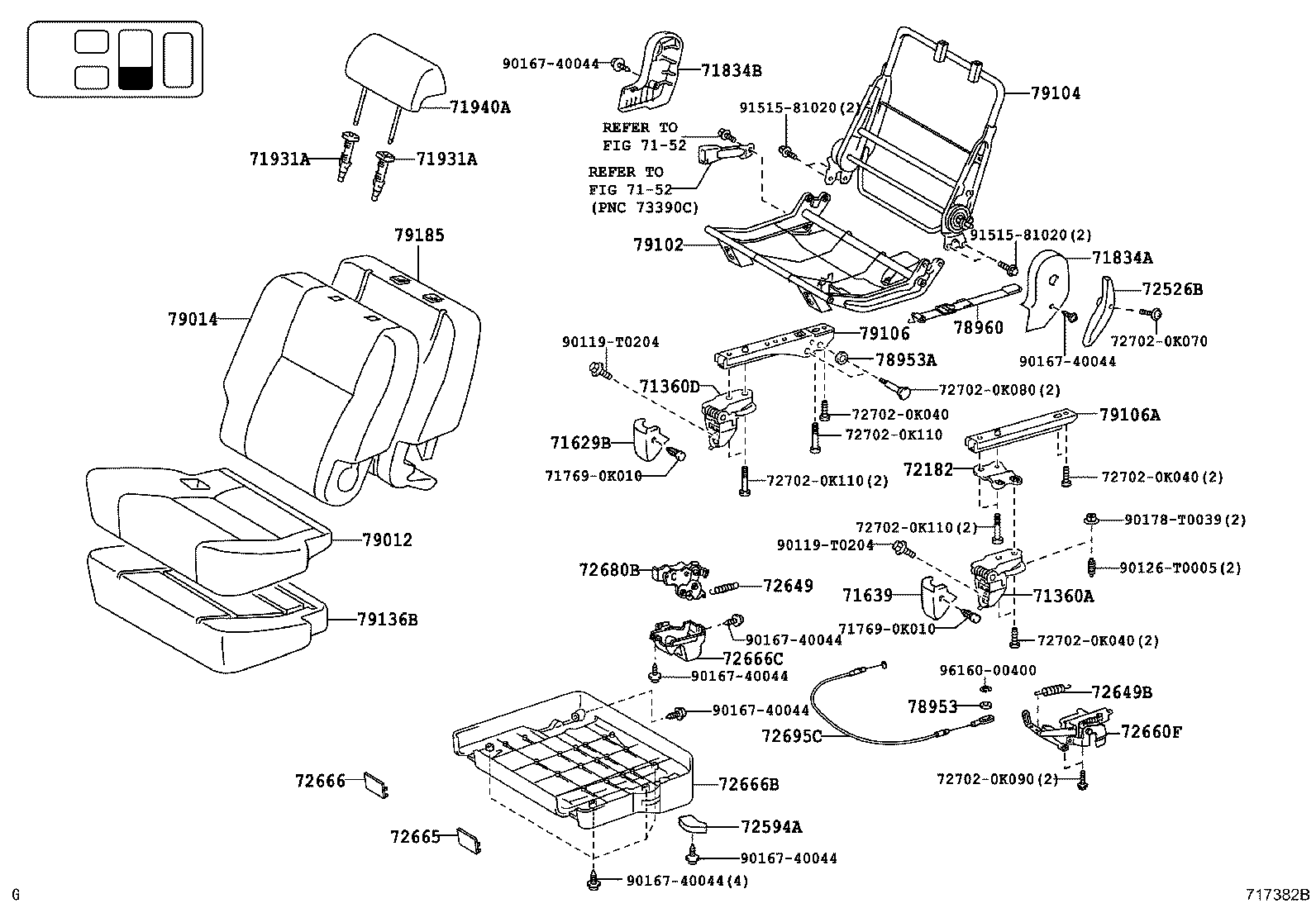

ILLUST NO. 3 OF 4(1107- )
REAR NO.1 SEAT(LH) W(SLIDE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71360A - HINGE ASSY, REAR SEAT, LH | ||||
| 71360-0K010 |
KUN51..SR;GGN50,60,KUN50,6#,LAN50,TGN51,61 |
1 | ||
| 71360D - HINGE ASSY, REAR SEAT, NO.2 LH | ||||
| 71360-0K020 |
KUN51..SR;GGN50,60,KUN50,6#,LAN50,TGN51,61 |
1 | ||
| 71629B - PAD, REAR SEAT CUSHION COVER SIDE, LH | ||||
| 71629-0K140E0 |
GGN50,KUN51..IDSUV..LA;GGN50,60,KUN5#,6#,LAN50,TGN51,61..EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,SA,TH,VN SAND BEIGE,TRIM4# |
1 | ||
| 71639 - COVER, REAR SEAT CUSHION HINGE, LH | ||||
| 71629-0K150E0 |
GGN50,KUN51..IDSUV..LA;GGN50,60,KUN5#,6#,LAN50,TGN51,61..EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,SA,TH,VN SAND BEIGE,TRIM4# |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71834-0K070E0 |
KUN60,TGN61;GGN50,60,KUN5#,61,LAN50,TGN51..SR..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,SA,TH,VN) SAND BEIGE,TRIM4# |
1 | ||
| 71834B - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71834-0K080E0 |
KUN60,TGN61;GGN50,60,KUN5#,61,LAN50,TGN51..SR..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,SA,TH,VN) SAND BEIGE,TRIM4# |
1 | ||
| 71882A - BOARD, REAR SEAT BACK, LH | ||||
| 71882-0K040 |
GGN50,KUN5#,60,TGN51,61..IDSUV |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02050E2 |
GGN50,KUN51..IDSUV..LA;GGN50,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(GCC,GEN,IDN,PHL,PKN,TH,VN) W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-02030E2 |
GGN50,60,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,TH,VN) W/O(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02050E2 |
GGN50,KUN51..IDSUV..LA;GGN50,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(GCC,GEN,IDN,PHL,PKN,TH,VN) W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-02030E2 |
GGN50,60,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,TH,VN) W/O(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-0KA90E2 |
GGN50,KUN5#,60..IDSUV;TGN61..IDSUV..(IDN,PHL) MD.BROWN,TRIM4# |
2 | ||
| 71940-0KA41C0 |
GGN50..IDSUV..5F;KUN60..RHD..IDSUV;KUN50,TGN61..IDN,PHL;KUN51..IDSUV..(GEN,PHL);GGN50,KUN60..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
2 | ||
| 71940-0KA41E1 |
KUN60..RHD..IDSUV;KUN51..IDSUV..(GEN,PHL);TGN61..IDSUV..(IDN,PHL);GGN50,KUN50..IDSUV..(4FC,5F);GGN50,KUN60..IDSUV..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
2 | ||
| 71940-0KA90C1 |
TGN61..IDN,PHL;GGN50,KUN5#,60..IDSUV BLACK,TRIM2# |
2 | ||
| 72170B - TRACK ASSY, REAR NO.1 SEAT, LH | ||||
| 72170-0K040 |
GGN50,KUN5#,60,TGN51,61..IDSUV |
1 | ||
| 72170-0K060 |
GGN50,KUN51,60,TGN51,61..IDSUV |
1 | ||
| 72170D - TRACK ASSY, REAR SEAT, OUTER LH | ||||
| 72170-0K070 |
GGN50,KUN51,60,TGN51,61..IDSUV |
1 | ||
| 72170-0K050 |
GGN50,KUN5#,60,TGN51,61..IDSUV |
1 | ||
| 72182 - BRACKET, REAR OUTER SEAT TRACK, LOWER FRONT LH | ||||
| 72188-0K010 |
KUN51..SR;GGN50,60,KUN50,6#,LAN50,TGN51,61 |
1 | ||
| 72211E - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-0K050 |
KUN51..SR;GGN50,60,KUN50,6#,LAN50,TGN51,61 |
1 | ||
| 72507C - HANDLE SUB-ASSY, RECLINING RELEASE, LH | ||||
| 72507-0K020 |
GGN50,KUN51,60..IDSUV;TGN51,61..IDSUV..(IDN,PHL) |
1 | ||
| 72507-0K020A0 |
LAN50..LHD;KUN60,TGN61;TGN51..4FC..SA;GGN50,60,KUN5#,61..SR;TGN51..CO,EPT,GCC,GEN,IDN,PKN,VN IVORY,TRIM4# |
1 | ||
| 72526B - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH | ||||
| 72526-0K020E1 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61..ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,SA,TH,VN SAND BEIGE,TRIM4# |
1 | ||
| 72594A - KNOB, RECLINING REMOTE CONTROL LEVER, LH | ||||
| 72594-0K010E0 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61..ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,SA,TH,VN SAND BEIGE,TRIM4# |
1 | ||
| 72649 - SPRING, REAR SEAT CUSHION SUPPORT | ||||
| 72649-0K070 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61 |
2 | ||
| 72649B - SPRING, REAR SEAT CUSHION SUPPORT | ||||
| 72649-0K100 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61 |
2 | ||
| 72660F - LOCK ASSY, REAR SEAT, LH | ||||
| 72660-0K010 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61 |
1 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-0K030 |
KUN60,TGN61..TH;KUN51,61..5FC..TH;GGN50,KUN51,60..IDSUV;TGN51,61..IDSUV..(IDN,PHL) NO.1:REFER ILLUST. |
2 | ||
| 72661-0K040E1 |
LAN50..LHD;KUN60,TGN61;TGN51..4FC..SA;GGN50,60,KUN5#,61..SR;TGN51..CO,EPT,GCC,GEN,IDN,PKN,VN SAND BEIGE,TRIM4#,NO.2:REFER ILLUST. |
2 | ||
| 72661-0K040 |
KUN60,TGN61..TH;KUN51,61..5FC..TH;GGN50,KUN51,60..IDSUV;TGN51,61..IDSUV..(IDN,PHL) NO.2:REFER ILLUST. |
2 | ||
| 72661-0K030E1 |
LAN50..LHD;KUN60,TGN61;TGN51..4FC..SA;GGN50,60,KUN5#,61..SR;TGN51..CO,EPT,GCC,GEN,IDN,PKN,VN SAND BEIGE,TRIM4#,NO.1:REFER ILLUST. |
2 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-0K030 |
KUN60,TGN61..TH;KUN51,61..5FC..TH;GGN50,KUN51,60..IDSUV;TGN51,61..IDSUV..(IDN,PHL) NO.1:REFER ILLUST. |
2 | ||
| 72661-0K040E1 |
LAN50..LHD;KUN60,TGN61;TGN51..4FC..SA;GGN50,60,KUN5#,61..SR;TGN51..CO,EPT,GCC,GEN,IDN,PKN,VN SAND BEIGE,TRIM4#,NO.2:REFER ILLUST. |
2 | ||
| 72661-0K040 |
KUN60,TGN61..TH;KUN51,61..5FC..TH;GGN50,KUN51,60..IDSUV;TGN51,61..IDSUV..(IDN,PHL) NO.2:REFER ILLUST. |
2 | ||
| 72661-0K030E1 |
LAN50..LHD;KUN60,TGN61;TGN51..4FC..SA;GGN50,60,KUN5#,61..SR;TGN51..CO,EPT,GCC,GEN,IDN,PKN,VN SAND BEIGE,TRIM4#,NO.1:REFER ILLUST. |
2 | ||
| 72666B - COVER, REAR SEAT LOCK, LH | ||||
| 72666-0K060E0 |
KUN60,TGN61;GGN50,60,KUN5#,61,LAN50,TGN51..SR..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,SA,TH,VN) SAND BEIGE,TRIM4# |
1 | ||
| 72666C - COVER, REAR SEAT LOCK, NO.2 LH | ||||
| 72666-0K080E0 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61..ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,SA,TH,VN SAND BEIGE,TRIM4# |
1 | ||
| 72680B - LOCK ASSY, REAR SEAT CUSHION, LH | ||||
| 72660-0K050 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61 |
1 | ||
| 72695C - CABLE, REAR SEAT LOCK CONTROL, LH | ||||
| 72695-0K010 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61 |
1 | ||
| 72908B - COVER SUB-ASSY, REAR SEAT CUSH UNDER, LH | ||||
| 72908-0K010E0 |
KUN60,TGN61;GGN50,60,KUN5#,61,LAN50,TGN51..SR..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,SA,TH,VN) SAND BEIGE,TRIM4# |
1 | ||
| 78953 - PLATE, REAR SEAT UNDER | ||||
| 78953-0K010 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61 |
2 | ||
| 78953A - PLATE, REAR SEAT UNDER, NO.1 | ||||
| 78953-0K030 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61 |
2 | ||
| 78960 - BAND ASSY, FOLD SEAT STOPPER, NO.2 | ||||
| 78950-0K040A0 |
KUN51..DLX;GGN50,KUN5#,60,TGN51,61..IDSUV IVORY,TRIM4# |
1 | ||
| 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79012-0K580E1 |
GGN50,KUN5#,60..IDSUV;TGN61..IDSUV..(IDN,PHL) SAND BEIGE,TRIM4# |
1 | ||
| 79012-0K580C1 |
TGN61..IDN,PHL;GGN50,KUN5#,60..IDSUV BLACK,TRIM2# |
1 | ||
| 79012-0K551E0 |
KUN60..RHD..IDSUV;KUN51..IDSUV..(GEN,PHL);TGN61..IDSUV..(IDN,PHL);GGN50,KUN50..IDSUV..(4FC,5F);GGN50,KUN60..IDSUV..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 79012-0K551C0 |
GGN50..IDSUV..5F;KUN60..RHD..IDSUV;KUN50,TGN61..IDN,PHL;KUN51..IDSUV..(GEN,PHL);GGN50,KUN60..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79014-0K490E1 |
GGN50,KUN5#,60..IDSUV;TGN61..IDSUV..(IDN,PHL) SAND BEIGE,TRIM4# |
1 | ||
| 79014-0K461E0 |
KUN60..RHD..IDSUV;KUN51..IDSUV..(GEN,PHL);TGN61..IDSUV..(IDN,PHL);GGN50,KUN50..IDSUV..(4FC,5F);GGN50,KUN60..IDSUV..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 79014-0K490C1 |
TGN61..IDN,PHL;GGN50,KUN5#,60..IDSUV BLACK,TRIM2# |
1 | ||
| 79014-0K461C0 |
GGN50..IDSUV..5F;KUN60..RHD..IDSUV;KUN50,TGN61..IDN,PHL;KUN51..IDSUV..(GEN,PHL);GGN50,KUN60..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 79102 - FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79102-0K070 |
KUN60,TGN61;GGN50,60,KUN5#,61,LAN50,TGN51..SR..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,KZS,LA,PHL,PKN,SA,TH,VN) |
1 | ||
| 79104 - FRAME SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79104-0K050 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61 |
1 | ||
| 79136B - PAD, NO.1 SEAT CUSHION, LH | ||||
| 79136-0K120 |
GGN50,KUN51..IDSUV..LA;GGN50,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(EPT,GCC,GEN,IDN,KZS,PHL,PKN,TH,VN) |
1 | ||
| 79185 - PAD, NO.1 SEAT BACK, LH | ||||
| 79185-0K060 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61..CO,EPT,GCC,GEN,IDN,IND,KZS,LA,PHL,PKN,SA,TH,VN |
1 | ||
| Common parts | ||||
| 71769-0K010 | ||||
| 72702-0K040 | ||||
| 72702-0K070 | ||||
| 72702-0K080 | ||||
| 72702-0K090 | ||||
| 79169-0K050 | ||||
| 90119-T0204 | ||||
| 90126-T0005 | ||||
| 90167-40044 | ||||
| 90178-T0039 | ||||
| 91515-81020 | ||||
| 96160-00400 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 4 OF 4(1107- )
REAR NO.2 SEAT(RH)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 90467-05147A0 |
KUN5#,61..IDN,IND,MA;KUN60,TGN51,61..IND,MA,VN;GGN50,KUN51,60,TGN51,61..IDSUV IVORY |
4 | ||
| 71485 - COVER, REAR SEAT HINGE | ||||
| 71485-0K020E1 |
KUN60,TGN61;GGN50,60,KUN5#,61,LAN50,TGN51..SR..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,SA,TH,VN) SAND BEIGE,TRIM4# |
1 | ||
| 71617A - CLOTH, REAR SEAT CUSHION UNDER | ||||
| 71617-0K020 |
KUN51..SR;GGN50,60,KUN50,6#,LAN50,TGN51,61 |
2 | ||
| 71694D - COVER, REAR SEAT CUSHION HINGE, OUTER LH | ||||
| 71694-0K010E1 |
KUN60,TGN61;GGN50,60,KUN5#,61,LAN50,TGN51..SR..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,SA,TH,VN) SAND BEIGE,TRIM4# |
1 | ||
| 71779 - COVER, REAR SEAT SIDE HINGE MALE, LH | ||||
| 71779-0K020 |
KUN51..SR;GGN50,60,KUN50,6#,LAN50,TGN51,61 |
10 | ||
| 71779 - COVER, REAR SEAT SIDE HINGE MALE, LH | ||||
| 71779-0K020 |
KUN51..SR;GGN50,60,KUN50,6#,LAN50,TGN51,61 |
10 | ||
| 71779 - COVER, REAR SEAT SIDE HINGE MALE, LH | ||||
| 71779-0K020 |
KUN51..SR;GGN50,60,KUN50,6#,LAN50,TGN51,61 |
10 | ||
| 71779 - COVER, REAR SEAT SIDE HINGE MALE, LH | ||||
| 71779-0K020 |
KUN51..SR;GGN50,60,KUN50,6#,LAN50,TGN51,61 |
10 | ||
| 71779 - COVER, REAR SEAT SIDE HINGE MALE, LH | ||||
| 71779-0K020 |
KUN51..SR;GGN50,60,KUN50,6#,LAN50,TGN51,61 |
10 | ||
| 71843A - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-0K010E1 |
KUN60,TGN61;GGN50,60,KUN5#,61,LAN50,TGN51..SR..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,SA,TH,VN) SAND BEIGE,TRIM4# |
1 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-02050E2 |
GGN50,KUN51..IDSUV..LA;GGN50,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(GCC,GEN,IDN,PHL,PKN,TH,VN) W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-02030E2 |
KUN51..(IDSUV,SUVW,THSUV)..SR..(CO,GEN,IND,LA,PHL,TH);GGN50,60,KUN50,6#,TGN51,61..ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,TH,VN W/O(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST | ||||
| 71930-02050E2 |
GGN50,KUN51..IDSUV..LA;GGN50,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(GCC,GEN,IDN,PHL,PKN,TH,VN) W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-02030E2 |
KUN51..(IDSUV,SUVW,THSUV)..SR..(CO,GEN,IND,LA,PHL,TH);GGN50,60,KUN50,6#,TGN51,61..ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,TH,VN W/O(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71940D - HEADREST ASSY, REAR NO.2 SEAT, RH | ||||
| 71940-0KB00E2 |
GGN50,KUN5#,60..IDSUV;TGN61..IDSUV..(IDN,PHL) MD.BROWN,TRIM4# |
2 | ||
| 71940-0KB00C1 |
TGN61..IDN,PHL;GGN50,KUN5#,60..IDSUV BLACK,TRIM2# |
2 | ||
| 71940-0KA81E1 |
KUN60..RHD..IDSUV;KUN51..IDSUV..(GEN,PHL);TGN61..IDSUV..(IDN,PHL);GGN50,KUN50..IDSUV..(4FC,5F);GGN50,KUN60..IDSUV..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
2 | ||
| 71940-0KA81C0 |
GGN50..IDSUV..5F;KUN60..RHD..IDSUV;KUN50,TGN61..IDN,PHL;KUN51..IDSUV..(GEN,PHL);GGN50,KUN60..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
2 | ||
| 72507D - HANDLE SUB-ASSY, NO.2 SEAT RECLINING RELEASE | ||||
| 72507-0K010 |
KUN51..SR;GGN50,60,KUN50,6#,LAN50,TGN51,61 |
1 | ||
| 72525C - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH | ||||
| 72525-0K010C0 |
KUN51..5FC..CO;TGN51,61..GEN,IDN,PHL;GGN50,KUN5#,60..IDSUV BLACK,TRIM2# |
1 | ||
| 72525-0K010E1 |
KUN51..IDSUV;KUN51..SUVW..SR..LA;KUN51..(5F,5FC)..CO;GGN50,TGN51,61..CO,LA;GGN50,KUN50,60,TGN51,61..IDSUV..(GCC,GEN,IDN,PHL) SAND BEIGE,TRIM4# |
1 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-0K020 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);KUN51..SR..(CO,GEN,LA,PHL,SA,TH);GGN50,60,KUN50,60,LAN50,TGN51,61..ANCOM,CO,EPT,GCC,GEN,IDN,KZS,LA,MA,PHL,PKN,SA,TH,VN |
4 | ||
| 72613B - STRIKER, REAR SEAT LOCK | ||||
| 72613-0K020 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);KUN51..SR..(CO,GEN,LA,PHL,SA,TH);GGN50,60,KUN50,60,LAN50,TGN51,61..ANCOM,CO,EPT,GCC,GEN,IDN,KZS,LA,MA,PHL,PKN,SA,TH,VN |
4 | ||
| 72615A - COVER, REAR SEAT BACK LOCK STRIKER, RH | ||||
| 72615-0K030E1 |
KUN51..SR..(CO,GEN,LA,PHL,SA,TH);GGN50,60,KUN50,6#,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH SAND BEIGE,TRIM4# |
4 | ||
| 72615A - COVER, REAR SEAT BACK LOCK STRIKER, RH | ||||
| 72615-0K030E1 |
KUN51..SR..(CO,GEN,LA,PHL,SA,TH);GGN50,60,KUN50,6#,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH SAND BEIGE,TRIM4# |
4 | ||
| 72656 - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-0K030E1 |
LAN50..LHD;KUN60,TGN61;TGN51..4FC..SA;GGN50,60,KUN5#,61..SR;TGN51..CO,EPT,GCC,GEN,IDN,PKN,VN SAND BEIGE,TRIM4# |
2 | ||
| 72661-0K030 |
KUN60,TGN61..TH;KUN51,61..5FC..TH;GGN50,KUN51,60..IDSUV;TGN51,61..IDSUV..(IDN,PHL) |
2 | ||
| 72656B - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-0K040 |
KUN60,TGN61..TH;KUN51,61..5FC..TH;GGN50,KUN51,60..IDSUV;TGN51,61..IDSUV..(IDN,PHL) |
2 | ||
| 72661-0K040E1 |
LAN50..LHD;KUN60,TGN61;TGN51..4FC..SA;GGN50,60,KUN5#,61..SR;TGN51..CO,EPT,GCC,GEN,IDN,PKN,VN SAND BEIGE,TRIM4# |
2 | ||
| 72749 - SPACER, REAR SEAT RECLINING | ||||
| 72749-0K010 |
KUN51..SR;GGN50,60,KUN50,6#,LAN50,TGN51,61 |
1 | ||
| 72966B - PLATE, REAR SEAT TURN LOCK, NO.1 RH | ||||
| 72996-0K020E0 |
KUN60,TGN61;GGN50,60,KUN5#,61,LAN50,TGN51..SR..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,SA,TH,VN) SAND BEIGE,TRIM4# |
1 | ||
| 78960A - BAND ASSY, NO.2 FOLD SEAT STOPPER, NO.2 | ||||
| 78960-0K060E0 |
KUN60;TGN61..CO,GCC,GEN,IDN,LA,PHL,VN;GGN50,60,KUN5#,61,LAN50,TGN51..SR..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,SA,TH,VN) SAND BEIGE,TRIM4# |
1 | ||
| 79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79021-0K421E0 |
KUN60..RHD..IDSUV;KUN51..IDSUV..(GEN,PHL);TGN61..IDSUV..(IDN,PHL);GGN50,KUN50..IDSUV..(4FC,5F);GGN50,KUN60..IDSUV..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 79021-0K450E1 |
GGN50,KUN5#,60..IDSUV;TGN61..IDSUV..(IDN,PHL) SAND BEIGE,TRIM4# |
1 | ||
| 79021-0K450C1 |
TGN61..IDN,PHL;GGN50,KUN5#,60..IDSUV BLACK,TRIM2# |
1 | ||
| 79021-0K421C0 |
GGN50..IDSUV..5F;KUN60..RHD..IDSUV;KUN50,TGN61..IDN,PHL;KUN51..IDSUV..(GEN,PHL);GGN50,KUN60..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79023-0K361E0 |
KUN60..RHD..IDSUV;KUN51..IDSUV..(GEN,PHL);TGN61..IDSUV..(IDN,PHL);GGN50,KUN50..IDSUV..(4FC,5F);GGN50,KUN60..IDSUV..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 79023-0K380E1 |
GGN50,KUN5#,60..IDSUV;TGN61..IDSUV..(IDN,PHL) SAND BEIGE,TRIM4# |
1 | ||
| 79023-0K380C1 |
TGN61..IDN,PHL;GGN50,KUN5#,60..IDSUV BLACK,TRIM2# |
1 | ||
| 79023-0K361C0 |
GGN50..IDSUV..5F;KUN60..RHD..IDSUV;KUN50,TGN61..IDN,PHL;KUN51..IDSUV..(GEN,PHL);GGN50,KUN60..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 79035 - LEG SUB ASSY, NO.3 SEAT OUTER REAR, RH | ||||
| 79035-0K010 |
KUN5#,61..IDN,IND,MA;KUN60,TGN51,61..IND,MA,VN;GGN50,KUN51,60,TGN51,61..IDSUV |
1 | ||
| 79095 - LEG SUB ASSY, NO.3 SEAT OUTER FRONT, RH | ||||
| 79095-0K030 |
KUN50;KUN60,TGN51,61..MA,VN;GGN50,KUN51,60,TGN51,61..IDSUV |
1 | ||
| 79117B - COVER, NO.1 SEAT CUSHION, RH | ||||
| 79117-0K010 |
KUN51..SR;GGN50,60,KUN50,6#,LAN50,TGN51,61 |
1 | ||
| 79201B - FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79201-0K020 |
KUN51..SR;GGN50,60,KUN50,6#,LAN50,TGN51,61 |
1 | ||
| 79203A - FRAME SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79203-0K010 |
KUN51..SR;GGN50,60,KUN50,6#,LAN50,TGN51,61 |
1 | ||
| 79205B - LEG SUB-ASSY, NO.2 SEAT, RH | ||||
| 79030-0K010 |
KUN51..SR;GGN50,60,KUN50,6#,LAN50,TGN51,61 |
1 | ||
| 79216A - PLATE, NO.2 SEAT CUSHION | ||||
| 79216-0K010 |
KUN51..SR;GGN50,60,KUN50,6#,LAN50,TGN51,61 |
2 | ||
| 79235D - PAD, NO.2 SEAT CUSHION, RH | ||||
| 79235-0K020 |
KUN51..SR;GGN50,60,KUN50,6#,LAN50,TGN51,61 |
1 | ||
| 79236D - COVER, REAR SEAT LEG, RH (FOR RH SEAT) | ||||
| 79236-0K050E0 |
KUN60,TGN61;GGN50,60,KUN5#,61,LAN50,TGN51..SR..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,SA,TH,VN) SAND BEIGE,TRIM4# |
1 | ||
| 79275C - PAD, NO.2 SEAT BACK, RH | ||||
| 79275-0K030 |
KUN60,TGN61..CO,GCC,GEN,IDN,IND,LA,PHL,SA,TH;GGN50,60,KUN5#,61,LAN50,TGN51..SR..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,KZS,LA,PHL,PKN,SA,TH) |
1 | ||
| 79391 - SPRING, REAR SEAT CUSHION | ||||
| 79391-0K010 |
KUN51..SR;GGN50,60,KUN50,6#,LAN50,TGN51,61 |
2 | ||
| 79952 - COVER, NO.2 SEAT CUSHION | ||||
| 79952-0K010E0 |
KUN60,TGN61;GGN50,60,KUN5#,61,LAN50,TGN51..SR..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,SA,TH,VN) SAND BEIGE,TRIM4# |
1 | ||
| 79955A - COVER, REAR SEAT FRONT BRACKET, RH | ||||
| 79955-0K010E1 |
KUN5#,61..IDN,IND,MA;KUN60,TGN51,61..IND,MA,VN;GGN50,KUN51,60,TGN51,61..IDSUV SAND BEIGE,TRIM4# |
1 | ||
| 79957A - COVER, REAR SEAT REAR BRACKET, RH | ||||
| 79957-0K010E1 |
KUN5#,61..IDN,IND,MA;KUN60,TGN51,61..IND,MA,VN;GGN50,KUN51,60,TGN51,61..IDSUV SAND BEIGE,TRIM4# |
1 | ||
| Common parts | ||||
| 72189-0K010 | ||||
| 72702-0K070 | ||||
| 90109-08095 | ||||
| 90109-T0035 | ||||
| 90119-T0204 | ||||
| 90159-60280 | ||||
| 90167-40044 | ||||
| 90167-T0019 | ||||
| 91515-81020 | ||||
| 91551-80825 | ||||
| 93560-54016 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 3 OF 4(1110- )
REAR NO.1 SEAT(RH) W/O(SLIDE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71350B - HINGE ASSY, REAR SEAT, RH | ||||
| 71350-0K010 |
KUN51..SR;GGN50,60,KUN50,6#,LAN50,TGN51,61 |
1 | ||
| 71350D - HINGE ASSY, REAR SEAT, NO.2 RH | ||||
| 71350-0K020 |
KUN51..SR;GGN50,60,KUN50,6#,LAN50,TGN51,61 |
1 | ||
| 71629 - COVER, REAR SEAT CUSHION HINGE | ||||
| 71629-0K120E0 |
GGN50,KUN51..IDSUV..LA;GGN50,60,KUN5#,6#,LAN50,TGN51,61..EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,SA,TH,VN SAND BEIGE,TRIM4# |
1 | ||
| 71629A - COVER, REAR SEAT CUSHION HINGE, RH | ||||
| 71629-0K130E0 |
GGN50,KUN51..IDSUV..LA;GGN50,60,KUN5#,6#,LAN50,TGN51,61..EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,SA,TH,VN SAND BEIGE,TRIM4# |
1 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-0K070E0 |
KUN60,TGN61;GGN50,60,KUN5#,61,LAN50,TGN51..SR..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,SA,TH,VN) SAND BEIGE,TRIM4# |
1 | ||
| 71833C - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71833-0K080E0 |
KUN60,TGN61;GGN50,60,KUN5#,61,LAN50,TGN51..SR..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,SA,TH,VN) SAND BEIGE,TRIM4# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02050E2 |
GGN50,KUN51..IDSUV..LA;GGN50,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(GCC,GEN,IDN,PHL,PKN,TH,VN) W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-02030E2 |
GGN50,60,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,TH,VN) W/O(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02050E2 |
GGN50,KUN51..IDSUV..LA;GGN50,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(GCC,GEN,IDN,PHL,PKN,TH,VN) W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-02030E2 |
GGN50,60,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,TH,VN) W/O(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-0KA90E2 |
GGN50,KUN5#,60..IDSUV;TGN61..IDSUV..(IDN,PHL) MD.BROWN,TRIM4# |
2 | ||
| 71940-0KA41C0 |
GGN50..IDSUV..5F;KUN60..RHD..IDSUV;KUN50,TGN61..IDN,PHL;KUN51..IDSUV..(GEN,PHL);GGN50,KUN60..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
2 | ||
| 71940-0KA41E1 |
KUN60..RHD..IDSUV;KUN51..IDSUV..(GEN,PHL);TGN61..IDSUV..(IDN,PHL);GGN50,KUN50..IDSUV..(4FC,5F);GGN50,KUN60..IDSUV..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
2 | ||
| 71940-0KA90C1 |
TGN61..IDN,PHL;GGN50,KUN5#,60..IDSUV BLACK,TRIM2# |
2 | ||
| 72181 - BRACKET, REAR OUTER SEAT TRACK, LOWER FRONT RH | ||||
| 72187-0K010 |
KUN51..SR;GGN50,60,KUN50,6#,LAN50,TGN51,61 |
1 | ||
| 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-0K020E1 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61..ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,SA,TH,VN SAND BEIGE,TRIM4# |
1 | ||
| 72593 - KNOB, RECLINING REMOTE CONTROL LEVER | ||||
| 72593-0K010E0 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61..ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,SA,TH,VN SAND BEIGE,TRIM4# |
1 | ||
| 72649 - SPRING, REAR SEAT CUSHION SUPPORT | ||||
| 72649-0K070 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61 |
2 | ||
| 72649B - SPRING, REAR SEAT CUSHION SUPPORT | ||||
| 72649-0K100 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61 |
2 | ||
| 72650F - LOCK ASSY, REAR SEAT, RH | ||||
| 72650-0K010 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61 |
1 | ||
| 72650G - LOCK ASSY, REAR NO.2 SEAT, RH | ||||
| 72650-0K050 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61 |
1 | ||
| 72665C - COVER, REAR SEAT LOCK, RH | ||||
| 72665-0K060E0 |
KUN60,TGN61;GGN50,60,KUN5#,61,LAN50,TGN51..SR..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,SA,TH,VN) SAND BEIGE,TRIM4# |
1 | ||
| 72665F - COVER, REAR SEAT LOCK, RH(FOR RH SEAT) | ||||
| 72665-0K080E0 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61..ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,SA,TH,VN SAND BEIGE,TRIM4# |
1 | ||
| 72695B - CABLE, REAR SEAT LOCK CONTROL, RH | ||||
| 72695-0K010 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61 |
1 | ||
| 72830D - ARMREST ASSY, REAR SEAT, RH | ||||
| 72830-0K410E0 |
KUN60..RHD..IDSUV;KUN51..IDSUV..(GEN,PHL);TGN61..IDSUV..(IDN,PHL);GGN50,KUN50..IDSUV..(4FC,5F);GGN50,KUN60..IDSUV..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 72830-0K410C0 |
GGN50..IDSUV..5F;KUN60..RHD..IDSUV;KUN50,TGN61..IDN,PHL;KUN51..IDSUV..(GEN,PHL);GGN50,KUN60..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 72830-0K440C1 |
TGN61..IDN,PHL;GGN50,KUN5#,60..IDSUV BLACK,TRIM2# |
1 | ||
| 72830-0K440E1 |
GGN50,KUN5#,60..IDSUV;TGN61..IDSUV..(IDN,PHL) SAND BEIGE,TRIM4# |
1 | ||
| 72835 - ARM, RR SEAT ARMREST, RH | ||||
| 72835-0K020 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61 |
1 | ||
| 72836B - ARM, REAR SEAT ARMREST, LH | ||||
| 72836-0K020 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61 |
1 | ||
| 78950 - BAND ASSY, FOLD SEAT STOPPER, NO.1 | ||||
| 78950-0K040A0 |
KUN51..DLX;GGN50,KUN5#,60,TGN51,61..IDSUV IVORY,TRIM4# |
1 | ||
| 78953 - PLATE, REAR SEAT UNDER | ||||
| 78953-0K010 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61 |
2 | ||
| 78953A - PLATE, REAR SEAT UNDER, NO.1 | ||||
| 78953-0K030 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61 |
2 | ||
| 79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79011-0K780C1 |
TGN61..IDN,PHL;GGN50,KUN5#,60..IDSUV BLACK,TRIM2# |
1 | ||
| 79011-0K751E0 |
KUN60..RHD..IDSUV;KUN51..IDSUV..(GEN,PHL);TGN61..IDSUV..(IDN,PHL);GGN50,KUN50..IDSUV..(4FC,5F);GGN50,KUN60..IDSUV..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 79011-0K780E1 |
GGN50,KUN5#,60..IDSUV;TGN61..IDSUV..(IDN,PHL) SAND BEIGE,TRIM4# |
1 | ||
| 79011-0K751C0 |
GGN50..IDSUV..5F;KUN60..RHD..IDSUV;KUN50,TGN61..IDN,PHL;KUN51..IDSUV..(GEN,PHL);GGN50,KUN60..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79013-0K811E0 |
KUN60..RHD..IDSUV;KUN51..IDSUV..(GEN,PHL);TGN61..IDSUV..(IDN,PHL);GGN50,KUN50..IDSUV..(4FC,5F);GGN50,KUN60..IDSUV..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 79013-0K840E1 |
GGN50,KUN5#,60..IDSUV;TGN61..IDSUV..(IDN,PHL) SAND BEIGE,TRIM4# |
1 | ||
| 79013-0K840C1 |
TGN61..IDN,PHL;GGN50,KUN5#,60..IDSUV BLACK,TRIM2# |
1 | ||
| 79013-0K811C0 |
GGN50..IDSUV..5F;KUN60..RHD..IDSUV;KUN50,TGN61..IDN,PHL;KUN51..IDSUV..(GEN,PHL);GGN50,KUN60..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 79101B - FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 79101-0K140 |
KUN51..SR..(CO,GEN,LA,PHL,SA,TH);GGN50,60,KUN50,6#,LAN50,TGN51,61..ANCOM,CO,EPT,GCC,GEN,IDN,KZS,LA,PHL,PKN,SA,TH,VN |
1 | ||
| 79103A - FRAME SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79103-0K110 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61 |
1 | ||
| 79135A - PAD, NO.1 SEAT CUSHION, RH | ||||
| 79135-0K120 |
KUN60,TGN61;GGN50,60,KUN5#,61,LAN50,TGN51..SR..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,KZS,LA,PHL,PKN,SA,TH,VN) |
1 | ||
| 79175E - PAD, NO.1 SEAT BACK, RH | ||||
| 79175-0K070 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61..CO,EPT,GCC,GEN,IDN,IND,KZS,LA,PHL,PKN,SA,TH,VN |
1 | ||
| Common parts | ||||
| 71769-0K010 | ||||
| 72702-0K040 | ||||
| 72702-0K070 | ||||
| 72702-0K080 | ||||
| 72702-0K090 | ||||
| 72702-0K110 | ||||
| 90080-17114 | ||||
| 90080-38090 | ||||
| 90119-T0204 | ||||
| 90126-T0005 | ||||
| 90167-40044 | ||||
| 90178-T0039 | ||||
| 91515-81020 | ||||
| 91651-G0820 | ||||
| 96160-00400 | ||||
| Linked diagrams | ||||
| 7152 | ||||
ILLUST NO. 3 OF 4(1110- )
REAR NO.1 SEAT(LH) W/O(SLIDE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71360A - HINGE ASSY, REAR SEAT, LH | ||||
| 71360-0K010 |
KUN51..SR;GGN50,60,KUN50,6#,LAN50,TGN51,61 |
1 | ||
| 71360D - HINGE ASSY, REAR SEAT, NO.2 LH | ||||
| 71360-0K020 |
KUN51..SR;GGN50,60,KUN50,6#,LAN50,TGN51,61 |
1 | ||
| 71629B - PAD, REAR SEAT CUSHION COVER SIDE, LH | ||||
| 71629-0K140E0 |
GGN50,KUN51..IDSUV..LA;GGN50,60,KUN5#,6#,LAN50,TGN51,61..EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,SA,TH,VN SAND BEIGE,TRIM4# |
1 | ||
| 71639 - COVER, REAR SEAT CUSHION HINGE, LH | ||||
| 71629-0K150E0 |
GGN50,KUN51..IDSUV..LA;GGN50,60,KUN5#,6#,LAN50,TGN51,61..EPT,GCC,GEN,IDN,IND,KZS,MA,PHL,PKN,SA,TH,VN SAND BEIGE,TRIM4# |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71834-0K070E0 |
KUN60,TGN61;GGN50,60,KUN5#,61,LAN50,TGN51..SR..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,SA,TH,VN) SAND BEIGE,TRIM4# |
1 | ||
| 71834B - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71834-0K080E0 |
KUN60,TGN61;GGN50,60,KUN5#,61,LAN50,TGN51..SR..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,SA,TH,VN) SAND BEIGE,TRIM4# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02050E2 |
GGN50,KUN51..IDSUV..LA;GGN50,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(GCC,GEN,IDN,PHL,PKN,TH,VN) W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-02030E2 |
GGN50,60,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,TH,VN) W/O(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-02050E2 |
GGN50,KUN51..IDSUV..LA;GGN50,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(GCC,GEN,IDN,PHL,PKN,TH,VN) W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-02030E2 |
GGN50,60,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,TH,VN) W/O(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-0KA90E2 |
GGN50,KUN5#,60..IDSUV;TGN61..IDSUV..(IDN,PHL) MD.BROWN,TRIM4# |
2 | ||
| 71940-0KA41C0 |
GGN50..IDSUV..5F;KUN60..RHD..IDSUV;KUN50,TGN61..IDN,PHL;KUN51..IDSUV..(GEN,PHL);GGN50,KUN60..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
2 | ||
| 71940-0KA41E1 |
KUN60..RHD..IDSUV;KUN51..IDSUV..(GEN,PHL);TGN61..IDSUV..(IDN,PHL);GGN50,KUN50..IDSUV..(4FC,5F);GGN50,KUN60..IDSUV..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
2 | ||
| 71940-0KA90C1 |
TGN61..IDN,PHL;GGN50,KUN5#,60..IDSUV BLACK,TRIM2# |
2 | ||
| 72182 - BRACKET, REAR OUTER SEAT TRACK, LOWER FRONT LH | ||||
| 72188-0K010 |
KUN51..SR;GGN50,60,KUN50,6#,LAN50,TGN51,61 |
1 | ||
| 72526B - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH | ||||
| 72526-0K020E1 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61..ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,SA,TH,VN SAND BEIGE,TRIM4# |
1 | ||
| 72594A - KNOB, RECLINING REMOTE CONTROL LEVER, LH | ||||
| 72594-0K010E0 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61..ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,SA,TH,VN SAND BEIGE,TRIM4# |
1 | ||
| 72649 - SPRING, REAR SEAT CUSHION SUPPORT | ||||
| 72649-0K070 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61 |
2 | ||
| 72649B - SPRING, REAR SEAT CUSHION SUPPORT | ||||
| 72649-0K100 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61 |
2 | ||
| 72660F - LOCK ASSY, REAR SEAT, LH | ||||
| 72660-0K010 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61 |
1 | ||
| 72666B - COVER, REAR SEAT LOCK, LH | ||||
| 72666-0K060E0 |
KUN60,TGN61;GGN50,60,KUN5#,61,LAN50,TGN51..SR..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,SA,TH,VN) SAND BEIGE,TRIM4# |
1 | ||
| 72666C - COVER, REAR SEAT LOCK, NO.2 LH | ||||
| 72666-0K080E0 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61..ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,PKN,SA,TH,VN SAND BEIGE,TRIM4# |
1 | ||
| 72680B - LOCK ASSY, REAR SEAT CUSHION, LH | ||||
| 72660-0K050 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61 |
1 | ||
| 72695C - CABLE, REAR SEAT LOCK CONTROL, LH | ||||
| 72695-0K010 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61 |
1 | ||
| 78953 - PLATE, REAR SEAT UNDER | ||||
| 78953-0K010 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61 |
2 | ||
| 78953A - PLATE, REAR SEAT UNDER, NO.1 | ||||
| 78953-0K030 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61 |
2 | ||
| 78960 - BAND ASSY, FOLD SEAT STOPPER, NO.2 | ||||
| 78950-0K040A0 |
KUN51..DLX;GGN50,KUN5#,60,TGN51,61..IDSUV IVORY,TRIM4# |
1 | ||
| 79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79012-0K580E1 |
GGN50,KUN5#,60..IDSUV;TGN61..IDSUV..(IDN,PHL) SAND BEIGE,TRIM4# |
1 | ||
| 79012-0K580C1 |
TGN61..IDN,PHL;GGN50,KUN5#,60..IDSUV BLACK,TRIM2# |
1 | ||
| 79012-0K551E0 |
KUN60..RHD..IDSUV;KUN51..IDSUV..(GEN,PHL);TGN61..IDSUV..(IDN,PHL);GGN50,KUN50..IDSUV..(4FC,5F);GGN50,KUN60..IDSUV..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 79012-0K551C0 |
GGN50..IDSUV..5F;KUN60..RHD..IDSUV;KUN50,TGN61..IDN,PHL;KUN51..IDSUV..(GEN,PHL);GGN50,KUN60..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79014-0K490E1 |
GGN50,KUN5#,60..IDSUV;TGN61..IDSUV..(IDN,PHL) SAND BEIGE,TRIM4# |
1 | ||
| 79014-0K461E0 |
KUN60..RHD..IDSUV;KUN51..IDSUV..(GEN,PHL);TGN61..IDSUV..(IDN,PHL);GGN50,KUN50..IDSUV..(4FC,5F);GGN50,KUN60..IDSUV..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 79014-0K490C1 |
TGN61..IDN,PHL;GGN50,KUN5#,60..IDSUV BLACK,TRIM2# |
1 | ||
| 79014-0K461C0 |
GGN50..IDSUV..5F;KUN60..RHD..IDSUV;KUN50,TGN61..IDN,PHL;KUN51..IDSUV..(GEN,PHL);GGN50,KUN60..(4FC,5FC)..(GCC,GEN,PHL) SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 79102 - FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 79102-0K070 |
KUN60,TGN61;GGN50,60,KUN5#,61,LAN50,TGN51..SR..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,KZS,LA,PHL,PKN,SA,TH,VN) |
1 | ||
| 79104 - FRAME SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79104-0K050 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61 |
1 | ||
| 79136B - PAD, NO.1 SEAT CUSHION, LH | ||||
| 79136-0K120 |
GGN50,KUN51..IDSUV..LA;GGN50,KUN5#,6#,TGN51,61..(IDSUV,SUVW,THSUV)..(EPT,GCC,GEN,IDN,KZS,PHL,PKN,TH,VN) |
1 | ||
| 79185 - PAD, NO.1 SEAT BACK, LH | ||||
| 79185-0K060 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61..CO,EPT,GCC,GEN,IDN,IND,KZS,LA,PHL,PKN,SA,TH,VN |
1 | ||
| Common parts | ||||
| 71769-0K010 | ||||
| 72702-0K040 | ||||
| 72702-0K070 | ||||
| 72702-0K080 | ||||
| 72702-0K090 | ||||
| 72702-0K110 | ||||
| 90119-T0204 | ||||
| 90126-T0005 | ||||
| 90167-40044 | ||||
| 90178-T0039 | ||||
| 91515-81020 | ||||
| 96160-00400 | ||||
| Linked diagrams | ||||
| 7152 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
