GGN50L-EKASKV (2011)

Toyota Fortuner

Production Jul 2011 - Oct 2015
Engine 1GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )GGN50..5F..CO,LA ; (1107- )GGN50..IDSUV..5FC..LA ; (1107- )GGN50,6

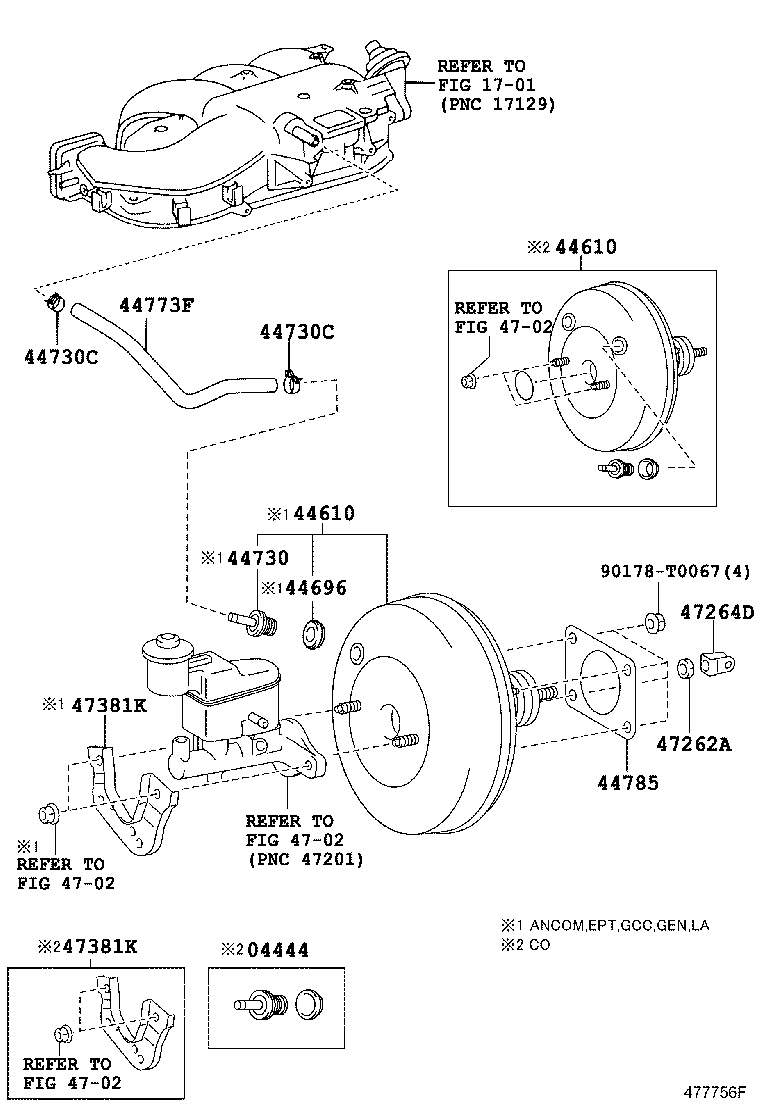

Click highlighted areas on diagram

diagram 04444 1701 44610 44610 44696 44730 44730C 44730C 44773F 44785 4702 4702 4702 4702 47262A 47264D 47381K 47381K 90178T0067
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-0K210

GGN50..IDSUV..LA;GGN50,60,TGN51,61..LHD..(ANCOM,GCC,GEN)

 1
44610 - BOOSTER ASSY, BRAKE
44610-0K210

GGN50..IDSUV..LA;GGN50,60,TGN51,61..LHD..(ANCOM,GCC,GEN)

 1
44696 - GROMMET, CHECK VALVE
90080-48050

KUN51..5F..TH;GGN50..5FC..CO;KUN61..4FC..IND;KUN51..IDSUV..LA;KUN51..LHD..4FC..SA;GGN50..ANCOM,GCC,GEN,LA,SA;KUN60,TGN51..GCC,GEN,IDN,MA,PHL,TH;KUN51..(IDSUV,SUVW,THSUV)..(GEN,PHL);GGN60,KUN50,TGN61..ANCOM,GCC,GEN,IDN,MA,PHL,SA,TH

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-22150

KUN61..4FC;KUN51..IDSUV..LA;KUN51,60..4FC..SA;GGN50,KUN61..5FC..(CO,TH);GGN60,KUN50,TGN61..ANCOM,GCC,GEN,IDN,MA,PHL,SA,TH;GGN50,KUN51..SR..(HTWC,IART)..(ANCOM,GCC,GEN,LA,SA);KUN51,60,TGN51..(IDSUV,SUVW,THSUV)..(GCC,GEN,IDN,MA,PHL,TH)

 1
44730C - CLIP(FOR VACUUM HOSE)
90466-T0019

GGN50,60,TGN51,61..LHD..(ANCOM,CO,GCC,GEN,LA,PHL,SA)

 2
44730C - CLIP(FOR VACUUM HOSE)
90466-T0019

GGN50,60,TGN51,61..LHD..(ANCOM,CO,GCC,GEN,LA,PHL,SA)

 2
44773F - HOSE, UNION TO CHECK VALVE
44773-0K040

GGN50..IDSUV..LA;GGN50,60..ANCOM,GCC,GEN

 1
44785 - GASKET, BRAKE BOOSTER
44785-17010

KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,PHL,SA,TH

 1
47262A - NUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK
94120-41000

KUN51..5F..TH;TGN61..GCC,PHL;KUN61..4FC..IND;KUN51..LHD..4FC..SA;GGN50,KUN51..IDSUV..LA;KUN51..(IDSUV,SUVW,THSUV)..(GEN,PHL);GGN50,60,KUN50,60,TGN51..ANCOM,GCC,GEN,IDN,MA,PHL,TH

(J)

 1
90016-AC101

KUN51..5F..TH;TGN61..GCC,PHL;KUN61..4FC..IND;KUN51..LHD..4FC..SA;GGN50,KUN51..IDSUV..LA;KUN51..(IDSUV,SUVW,THSUV)..(GEN,PHL);GGN50,60,KUN50,60,TGN51..ANCOM,GCC,GEN,IDN,MA,PHL,TH

(L)

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-0K010

KUN51..5F..TH;KUN61..4FC..IND;KUN51..LHD..4FC..SA;GGN50,KUN51..IDSUV..LA;KUN51..(IDSUV,SUVW,THSUV)..(GEN,PHL);GGN50,60,KUN50,60,TGN51,61..ANCOM,GCC,GEN,IDN,MA,PHL,TH

 1
47381K - BRACKET, BRAKE BOOSTER TUBE CLAMP
47381-0K010

KUN51..5F..TH;KUN61..4FC..IND;KUN51..LHD..4FC..SA;GGN50,KUN51..IDSUV..LA;KUN51..(IDSUV,SUVW,THSUV)..(GEN,PHL);GGN50,60,KUN50,60,TGN51,61..ANCOM,GCC,GEN,IDN,MA,PHL,TH

 1
47381K - BRACKET, BRAKE BOOSTER TUBE CLAMP
47381-0K010

KUN51..5F..TH;KUN61..4FC..IND;KUN51..LHD..4FC..SA;GGN50,KUN51..IDSUV..LA;KUN51..(IDSUV,SUVW,THSUV)..(GEN,PHL);GGN50,60,KUN50,60,TGN51,61..ANCOM,GCC,GEN,IDN,MA,PHL,TH

 1
Common parts
90178-T0067
Linked diagrams
1701
4702
