GGN50L-EKASKV (2011)
Toyota Fortuner
ILLUST NO. 2 OF 2(1107- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-0K131 |
GGN50,KUN51,60,TGN51,61..LHD..IDSUV |
1 | ||
| 04445-0K211 |
GGN50,KUN51,60,TGN51,61..LHD..IDSUV PNC 45535B=TYPE B |
1 | ||
| 04445-0K131 |
GGN50,KUN51,60,TGN51,61..LHD..IDSUV PNC 45535B=TYPE A |
1 | ||
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-0K131 |
GGN50,KUN51,60,TGN51,61..LHD..IDSUV |
1 | ||
| 04445-0K211 |
GGN50,KUN51,60,TGN51,61..LHD..IDSUV PNC 45535B=TYPE B |
1 | ||
| 04445-0K131 |
GGN50,KUN51,60,TGN51,61..LHD..IDSUV PNC 45535B=TYPE A |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-0K060 |
KUN61..4FC;GGN50,KUN51..IDSUV..LA;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,GCC,GEN,IDN,MA,PHL,SA,TH |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-0K060 |
KUN61..4FC;GGN50,KUN51..IDSUV..LA;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,GCC,GEN,IDN,MA,PHL,SA,TH |
1 | ||

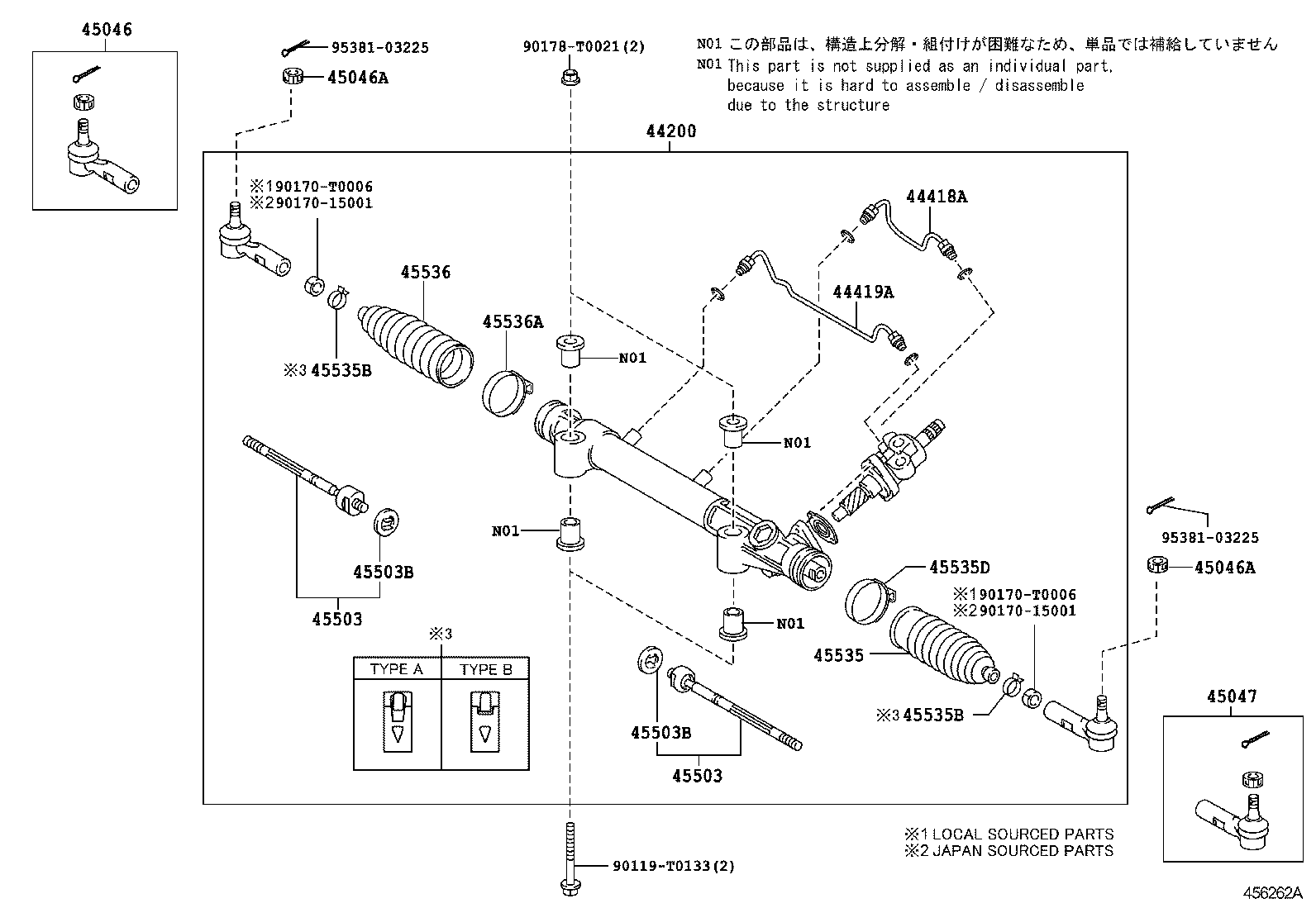

ILLUST NO. 1 OF 2(1107- )IDSUV..LA ; (1107- )LHD..ANCOM,EPT,GCC,GEN,KZS,PHL,SA,VN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44200 - LINK ASSY, POWER STEERING | ||||
| 44200-0K320 |
GGN50,KUN51,60,LAN50,TGN51,61..LHD..(GCC,GEN,PHL,SA) |
1 | ||
| 44200-0K480 |
GGN50,KUN51,60,TGN51,61..LHD..IDSUV |
1 | ||
| 44200-0K480 |
GGN50,KUN51,60,TGN51,61..LHD..IDSUV |
1 | ||
| 44200-0KA00 |
GGN50,KUN51,60,TGN51,61..LHD..IDSUV |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-0K150 |
GGN50,KUN51,60,TGN51,61..LHD..IDSUV |
1 | ||
| 44418-0K150 |
GGN50,KUN51,60,TGN51,61..LHD..IDSUV PNC 45535B=TYPE A |
1 | ||
| 44418-0K180 |
GGN50,KUN51,60,TGN51,61..LHD..IDSUV PNC 45535B=TYPE B |
1 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-0K180 |
GGN50,KUN51,60,TGN51,61..LHD..IDSUV PNC 45535B=TYPE B |
1 | ||
| 44419-0K150 |
GGN50,KUN51,60,TGN51,61..LHD..IDSUV PNC 45535B=TYPE A |
1 | ||
| 44419-0K150 |
GGN50,KUN51,60,TGN51,61..LHD..IDSUV |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-09281 |
KUN61..4FC;GGN50,KUN51..IDSUV..LA;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,GCC,GEN,IDN,MA,PHL,SA,TH |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-T0002 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-T0002 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-09281 |
KUN61..4FC;GGN50,KUN51..IDSUV..LA;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,GCC,GEN,IDN,MA,PHL,SA,TH |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-09321 |
GGN50,KUN51,60,TGN51,61..IDSUV |
2 | ||
| 45503-09321 |
GGN50,KUN5#,60,TGN51,61..IDSUV PNC 45535B=TYPE A |
2 | ||
| 45503-09331 |
GGN50,KUN5#,60,TGN51,61..IDSUV PNC 45535B=TYPE B |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-09321 |
GGN50,KUN51,60,TGN51,61..IDSUV |
2 | ||
| 45503-09321 |
GGN50,KUN5#,60,TGN51,61..IDSUV PNC 45535B=TYPE A |
2 | ||
| 45503-09331 |
GGN50,KUN5#,60,TGN51,61..IDSUV PNC 45535B=TYPE B |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-T0001 |
GGN50,KUN51,60,TGN51,61..IDSUV OD=43 |
2 | ||
| 90214-T0001 |
GGN50,KUN5#,60,TGN51,61..IDSUV OD=43,PNC 45535B=TYPE A |
2 | ||
| 90214-T0002 |
GGN50,KUN5#,60,TGN51,61..IDSUV OD=43,PNC 45535B=TYPE B |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-T0001 |
GGN50,KUN51,60,TGN51,61..IDSUV OD=43 |
2 | ||
| 90214-T0001 |
GGN50,KUN5#,60,TGN51,61..IDSUV OD=43,PNC 45535B=TYPE A |
2 | ||
| 90214-T0002 |
GGN50,KUN5#,60,TGN51,61..IDSUV OD=43,PNC 45535B=TYPE B |
2 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-0K010 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90466-T0004 |
GGN50,KUN5#,60,TGN51,61..IDSUV TYPE A:REFER ILLUST. |
2 | ||
| 90466-T0004 |
GGN50,KUN51,60,TGN51,61..IDSUV |
2 | ||
| 90466-T0005 |
GGN50,KUN5#,60,TGN51,61..IDSUV TYPE B:REFER ILLUST. |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90466-T0004 |
GGN50,KUN5#,60,TGN51,61..IDSUV TYPE A:REFER ILLUST. |
2 | ||
| 90466-T0004 |
GGN50,KUN51,60,TGN51,61..IDSUV |
2 | ||
| 90466-T0005 |
GGN50,KUN5#,60,TGN51,61..IDSUV TYPE B:REFER ILLUST. |
2 | ||
| 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) | ||||
| 90460-T0001 |
KUN61..4FC;GGN50,KUN51..IDSUV..LA;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,GCC,GEN,IDN,MA,PHL,SA,TH |
1 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45536-0K010 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 90460-T0001 |
KUN61..4FC;GGN50,KUN51..IDSUV..LA;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,GCC,GEN,IDN,MA,PHL,SA,TH |
1 | ||
| Common parts | ||||
| 90119-T0133 | ||||
| 90170-15001 | ||||
| 90170-T0006 | ||||
| 90178-T0021 | ||||
| 95381-03225 | ||||
