GGN50L-EKASKV (2011)

Toyota Fortuner

Production Jul 2011 - Oct 2015
Engine 1GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )GGN50,60..LHD

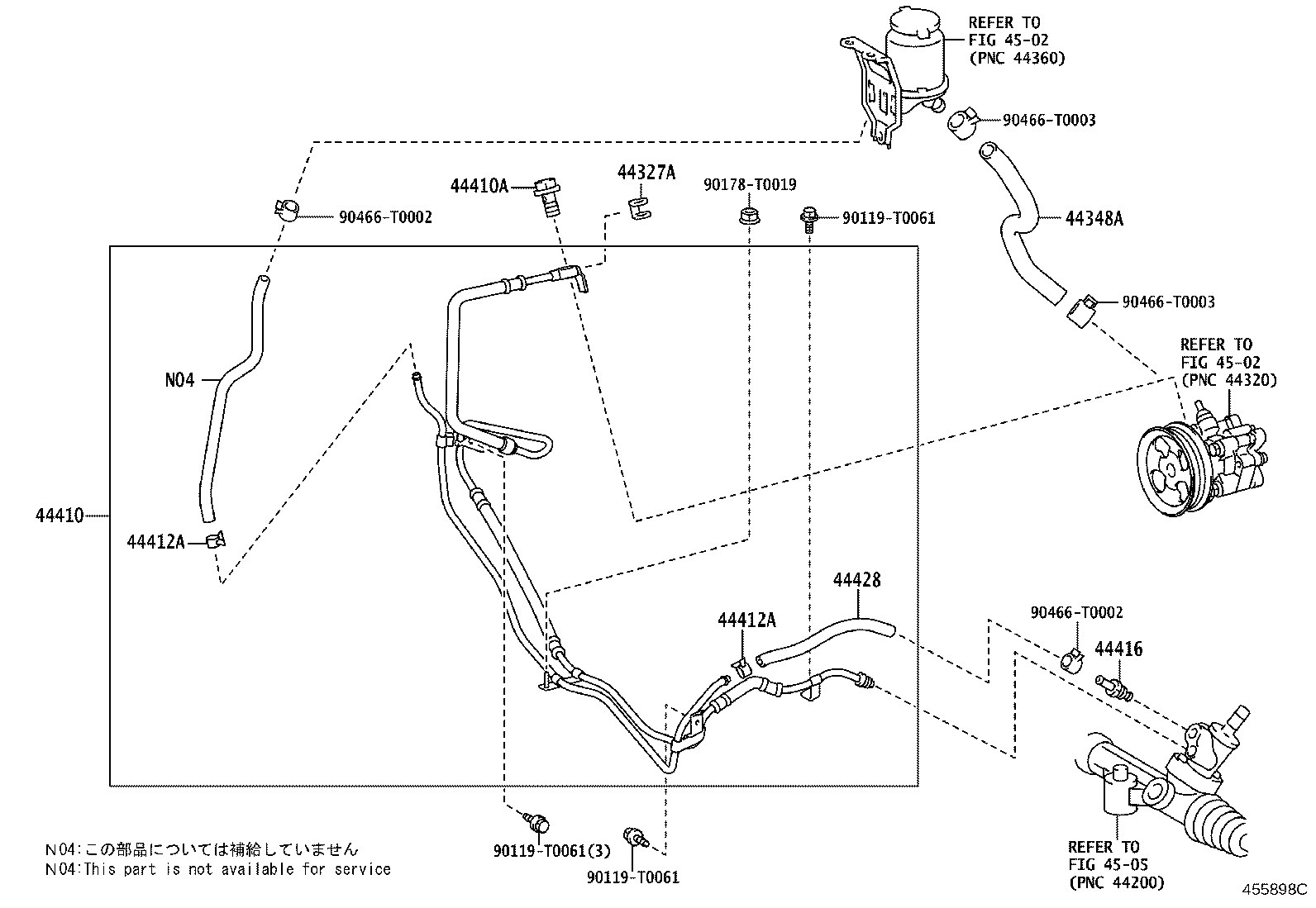

Click highlighted areas on diagram

diagram 44327A 44348A 44410 44410A 44412A 44412A 44416 44428 4502 4502 4505 90119T0061 90119T0061 90119T0061 90178T0019 90466T0002 90466T0002 90466T0003 90466T0003
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-30030

GGN50,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-0K040

GGN50,60..ANCOM,CO,GCC,GEN,LA,SA

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-0K150

GGN50..IDSUV..GCC;GGN50..SUVW..(CO,EPT,GCC,LA)

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
96341-41603

GGN50,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH

 1
44412A - CLAMP, RUBBER HOSE COMPLETE (FOR RETURN HOSE)
90466-T0002

TGN51,61..RHD;GGN50..IDSUV..GCC;GGN50..SUVW..(CO,EPT,GCC,LA,SA);GGN60,KUN5#,6#,LAN50..CO,GEN,IDN,IND,LA,MA,PHL,SA,TH,VN

 2
44412A - CLAMP, RUBBER HOSE COMPLETE (FOR RETURN HOSE)
90466-T0002

TGN51,61..RHD;GGN50..IDSUV..GCC;GGN50..SUVW..(CO,EPT,GCC,LA,SA);GGN60,KUN5#,6#,LAN50..CO,GEN,IDN,IND,LA,MA,PHL,SA,TH,VN

 2
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-0K010

KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH

 1
44428 - HOSE, RETURN, NO.2
44428-0K130

GGN50..IDSUV..GCC;GGN50..SUVW..(CO,EPT,GCC,LA)

 1
Common parts
90119-T0061
90178-T0019
90466-T0002
90466-T0003
Linked diagrams
4502
4505
