GGN50L-EKASKV (2011)
Toyota Fortuner

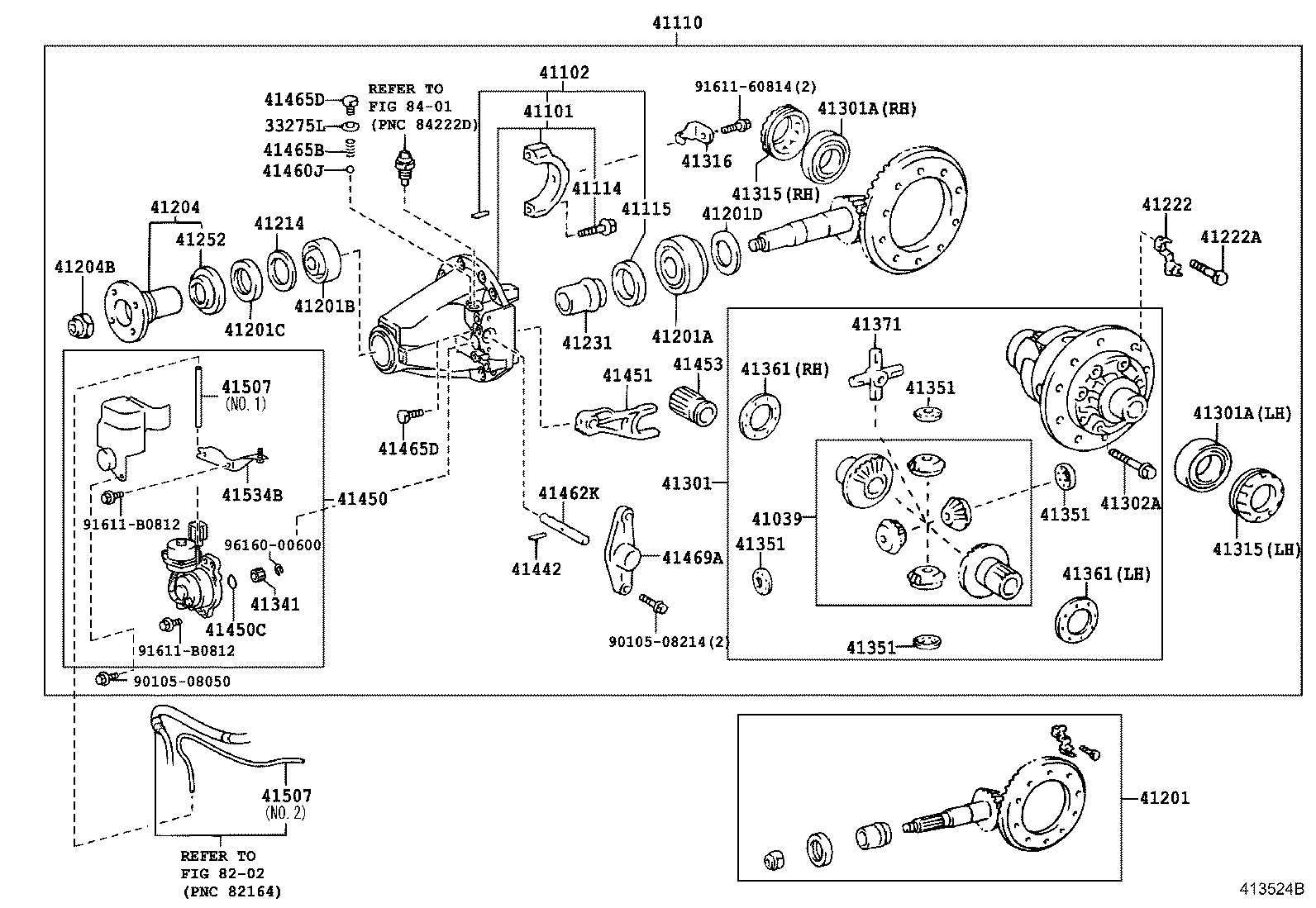

ILLUST NO. 1 OF 2(1107- )GGN50,KUN50,61,TGN51..EPT,GCC,GEN,IDN,IND,MA,PKN,TH ; (1208- )KUN51..
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-35150 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC |
1 | ||
| 41101-35150 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC |
1 | ||
| 41101-35150 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC |
1 | ||
| 41101-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41101-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41101-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41101-0K011 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41101-0K011 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41101-0K011 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-0K011 |
GGN50..GCC *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41110-0K011 |
GGN50..GCC *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41110-0K011 |
GGN50..GCC *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41110-0K012 |
GGN50..GCC *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41110-0K012 |
GGN50..GCC *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41110-0K012 |
GGN50..GCC *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41110-71270 |
GGN50..GCC *FGR=43:12=3.583 |
1 | ||
| 41110-71270 |
GGN50..GCC *FGR=43:12=3.583 |
1 | ||
| 41110-71270 |
GGN50..GCC *FGR=43:12=3.583 |
1 | ||
| 41110-0KC40 |
GGN50..GCC *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41110-0KC40 |
GGN50..GCC *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41110-0KC40 |
GGN50..GCC *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-12053 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
4 | ||
| 90105-12053 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
4 | ||
| 90105-12053 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
4 | ||
| 90105-T0081 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
4 | ||
| 90105-T0081 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
4 | ||
| 90105-T0081 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
4 | ||
| 41115 - RING, DIFFERENTIAL OIL STORAGE | ||||
| 41115-35010 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
1 | ||
| 41115-35010 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
1 | ||
| 41115-35010 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
1 | ||
| 41115-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41115-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41115-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-09D90 |
GGN50..GCC *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41201-09D90 |
GGN50..GCC *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41201-09D90 |
GGN50..GCC *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41201-09B50 |
GGN50..GCC,GEN;KUN51..(SUVW,THSUV)..5F..(GEN,TH) *FGR=43:12=3.583 |
1 | ||
| 41201-09B50 |
GGN50..GCC,GEN;KUN51..(SUVW,THSUV)..5F..(GEN,TH) *FGR=43:12=3.583 |
1 | ||
| 41201-09B50 |
GGN50..GCC,GEN;KUN51..(SUVW,THSUV)..5F..(GEN,TH) *FGR=43:12=3.583 |
1 | ||
| 41201-09D40 |
GGN50..GCC *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41201-09D40 |
GGN50..GCC *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41201-09D40 |
GGN50..GCC *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-T0016 |
GGN50..IDSUV..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90366-T0016 |
GGN50..IDSUV..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90366-T0016 |
GGN50..IDSUV..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90366-T0080 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90366-T0080 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90366-T0080 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90366-35087 |
GGN50..GCC;LAN50..RHD;TGN61..HTWCF;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN;TGN61..4FC..HTWC..LA |
1 | ||
| 90366-35087 |
GGN50..GCC;LAN50..RHD;TGN61..HTWCF;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN;TGN61..4FC..HTWC..LA |
1 | ||
| 90366-35087 |
GGN50..GCC;LAN50..RHD;TGN61..HTWCF;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN;TGN61..4FC..HTWC..LA |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30067 |
TGN51..SA,VN;TGN61..HTWCF;KUN60,LAN50..RHD..SA;GGN50,KUN51..(IDSUV,SUVW)..(GCC,GEN) |
1 | ||
| 90366-30067 |
TGN51..SA,VN;TGN61..HTWCF;KUN60,LAN50..RHD..SA;GGN50,KUN51..(IDSUV,SUVW)..(GCC,GEN) |
1 | ||
| 90366-30067 |
TGN51..SA,VN;TGN61..HTWCF;KUN60,LAN50..RHD..SA;GGN50,KUN51..(IDSUV,SUVW)..(GCC,GEN) |
1 | ||
| 90366-T0057 |
GGN50..IDSUV..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90366-T0057 |
GGN50..IDSUV..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90366-T0057 |
GGN50..IDSUV..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90366-T0013 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90366-T0013 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90366-T0013 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90366-T0083 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90366-T0083 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90366-T0083 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90366-30105 |
GGN50..GCC;LAN50..RHD;TGN61..HTWCF;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN;TGN61..4FC..HTWC..LA |
1 | ||
| 90366-30105 |
GGN50..GCC;LAN50..RHD;TGN61..HTWCF;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN;TGN61..4FC..HTWC..LA |
1 | ||
| 90366-30105 |
GGN50..GCC;LAN50..RHD;TGN61..HTWCF;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN;TGN61..4FC..HTWC..LA |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-T0034 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90311-T0034 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90311-T0034 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90311-T0068 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90311-T0068 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90311-T0068 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90311-41014 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
1 | ||
| 90311-41014 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
1 | ||
| 90311-41014 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
1 | ||
| 41201E - SHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST) | ||||
| 90564-35115 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.88,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35115 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.88,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35115 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.88,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35117 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.94,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35117 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.94,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35117 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.94,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35110 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.73,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35110 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.73,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35110 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.73,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35120 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.03,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35120 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.03,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35120 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.03,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35118 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.97,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35118 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.97,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35118 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.97,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35114 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.85,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35114 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.85,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35114 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.85,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35111 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.76,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35111 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.76,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35111 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.76,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35113 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.82,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35113 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.82,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35113 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.82,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35109 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.70,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35109 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.70,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35109 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.70,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35125 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.15,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35125 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.15,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35125 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.15,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35119 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.00,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35119 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.00,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35119 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.00,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35116 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.91,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35116 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.91,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35116 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.91,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35121 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.06,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35121 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.06,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35121 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.06,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35126 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.18,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35126 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.18,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35126 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.18,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35127 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.21,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35127 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.21,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35127 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.21,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35112 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.79,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35112 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.79,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35112 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.79,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35124 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.12,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35124 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.12,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35124 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.12,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35128 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.24,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35128 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.24,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35128 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.24,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35130 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.30,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35130 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.30,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35130 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.30,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35129 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.27,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35129 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.27,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35129 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.27,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35123 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.09,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35123 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.09,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35123 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.09,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35131 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.33,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35131 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.33,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35131 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.33,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-71020 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT,(J) |
1 | ||
| 41204-71020 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT,(J) |
1 | ||
| 41204-71020 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT,(J) |
1 | ||
| 41204-0K100 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41204-0K100 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41204-0K100 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41204-0K060 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT,(L) |
1 | ||
| 41204-0K060 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT,(L) |
1 | ||
| 41204-0K060 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT,(L) |
1 | ||
| 41204-71020 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN |
1 | ||
| 41204-71020 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN |
1 | ||
| 41204-71020 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN |
1 | ||
| 41204-0K060 |
GGN50..GCC;KUN51..RHD..(IDSUV,SUVW)..4FC..GEN DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41204-0K060 |
GGN50..GCC;KUN51..RHD..(IDSUV,SUVW)..4FC..GEN DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41204-0K060 |
GGN50..GCC;KUN51..RHD..(IDSUV,SUVW)..4FC..GEN DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90177-22003 |
TGN61..HTWCF;TGN61..4FC..HTWC..LA;GGN50,KUN5#,60,TGN51,61..IDSUV OD=39.5 |
1 | ||
| 90177-22003 |
TGN61..HTWCF;TGN61..4FC..HTWC..LA;GGN50,KUN5#,60,TGN51,61..IDSUV OD=39.5 |
1 | ||
| 90177-22003 |
TGN61..HTWCF;TGN61..4FC..HTWC..LA;GGN50,KUN5#,60,TGN51,61..IDSUV OD=39.5 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26011 |
TGN61..HTWCF;TGN61..4FC..HTWC..LA;GGN50,KUN5#,60,TGN51,61..IDSUV |
1 | ||
| 41214-26011 |
TGN61..HTWCF;TGN61..4FC..HTWC..LA;GGN50,KUN5#,60,TGN51,61..IDSUV |
1 | ||
| 41214-26011 |
TGN61..HTWCF;TGN61..4FC..HTWC..LA;GGN50,KUN5#,60,TGN51,61..IDSUV |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
5 | ||
| 41222-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
5 | ||
| 41222-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
5 | ||
| 41222-60010 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC |
5 | ||
| 41222-60010 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC |
5 | ||
| 41222-60010 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC |
5 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-T0006 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,(L) |
10 | ||
| 90101-T0006 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,(L) |
10 | ||
| 90101-T0006 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,(L) |
10 | ||
| 90101-11353 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,(J),PNC 41301=TYPE A |
10 | ||
| 90101-11353 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,(J),PNC 41301=TYPE A |
10 | ||
| 90101-11353 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,(J),PNC 41301=TYPE A |
10 | ||
| 90101-11353 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,(J) |
10 | ||
| 90101-11353 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,(J) |
10 | ||
| 90101-11353 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,(J) |
10 | ||
| 90105-11063 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT,PNC 41301=TYPE B |
10 | ||
| 90105-11063 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT,PNC 41301=TYPE B |
10 | ||
| 90105-11063 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT,PNC 41301=TYPE B |
10 | ||
| 90101-T0006 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,(L),PNC 41301=TYPE A |
10 | ||
| 90101-T0006 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,(L),PNC 41301=TYPE A |
10 | ||
| 90101-T0006 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,(L),PNC 41301=TYPE A |
10 | ||
| 90101-11353 |
LAN50..RHD;GGN50..GCC,GEN;TGN61..5F..HTWCF;KUN60..SUVW..(GEN,IDN,PHL);KUN51,61..RHD..4FC..(GEN,IND,TH);KUN51..LHD..(SUVW,THSUV)..(GEN,PHL);KUN51,TGN61..SUVW..5F..(GCC,GEN,TH);TGN51..SUVW..(GCC,GEN,IDN,KZS,SA,VN);TGN61..SUVW..4FC..(GCC,GEN,IDN,LA,PHL) |
10 | ||
| 90101-11353 |
LAN50..RHD;GGN50..GCC,GEN;TGN61..5F..HTWCF;KUN60..SUVW..(GEN,IDN,PHL);KUN51,61..RHD..4FC..(GEN,IND,TH);KUN51..LHD..(SUVW,THSUV)..(GEN,PHL);KUN51,TGN61..SUVW..5F..(GCC,GEN,TH);TGN51..SUVW..(GCC,GEN,IDN,KZS,SA,VN);TGN61..SUVW..4FC..(GCC,GEN,IDN,LA,PHL) |
10 | ||
| 90101-11353 |
LAN50..RHD;GGN50..GCC,GEN;TGN61..5F..HTWCF;KUN60..SUVW..(GEN,IDN,PHL);KUN51,61..RHD..4FC..(GEN,IND,TH);KUN51..LHD..(SUVW,THSUV)..(GEN,PHL);KUN51,TGN61..SUVW..5F..(GCC,GEN,TH);TGN51..SUVW..(GCC,GEN,IDN,KZS,SA,VN);TGN61..SUVW..4FC..(GCC,GEN,IDN,LA,PHL) |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-24010 |
TGN61..HTWCF;TGN61..4FC..HTWC..LA;GGN50,KUN5#,60,TGN51,61..IDSUV |
1 | ||
| 41231-24010 |
TGN61..HTWCF;TGN61..4FC..HTWC..LA;GGN50,KUN5#,60,TGN51,61..IDSUV |
1 | ||
| 41231-24010 |
TGN61..HTWCF;TGN61..4FC..HTWC..LA;GGN50,KUN5#,60,TGN51,61..IDSUV |
1 | ||
| 41301 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-0K011 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41301-0K011 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41301-0K011 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41301-0K110 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT,PNC 41301=TYPE B |
1 | ||
| 41301-0K110 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT,PNC 41301=TYPE B |
1 | ||
| 41301-0K110 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT,PNC 41301=TYPE B |
1 | ||
| 41301-0K011 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,PNC 41301=TYPE A |
1 | ||
| 41301-0K011 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,PNC 41301=TYPE A |
1 | ||
| 41301-0K011 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,PNC 41301=TYPE A |
1 | ||
| 41301-60060 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN |
1 | ||
| 41301-60060 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN |
1 | ||
| 41301-60060 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-T0010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 90366-T0010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 90366-T0010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 90366-50007 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN RH |
1 | ||
| 90366-50007 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN RH |
1 | ||
| 90366-50007 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN RH |
1 | ||
| 90366-75001 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN LH |
1 | ||
| 90366-75001 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN LH |
1 | ||
| 90366-75001 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN LH |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-T0010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 90366-T0010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 90366-T0010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 90366-50007 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN RH |
1 | ||
| 90366-50007 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN RH |
1 | ||
| 90366-50007 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN RH |
1 | ||
| 90366-75001 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN LH |
1 | ||
| 90366-75001 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN LH |
1 | ||
| 90366-75001 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN LH |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35020 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC RH |
1 | ||
| 41315-35020 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC RH |
1 | ||
| 41315-35020 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC RH |
1 | ||
| 41315-60010 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC LH |
1 | ||
| 41315-60010 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC LH |
1 | ||
| 41315-60010 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC LH |
1 | ||
| 41315-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41315-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41315-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35020 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC RH |
1 | ||
| 41315-35020 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC RH |
1 | ||
| 41315-35020 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC RH |
1 | ||
| 41315-60010 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC LH |
1 | ||
| 41315-60010 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC LH |
1 | ||
| 41315-60010 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC LH |
1 | ||
| 41315-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41315-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41315-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-35010 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
2 | ||
| 41316-35010 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
2 | ||
| 41316-35010 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
2 | ||
| 41316-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41316-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41316-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-0K050 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41342-0K050 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41342-0K050 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41342-53020 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,*300 |
1 | ||
| 41342-53020 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,*300 |
1 | ||
| 41342-53020 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,*300 |
1 | ||
| 41342-0K050 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,*299 |
1 | ||
| 41342-0K050 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,*299 |
1 | ||
| 41342-0K050 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,*299 |
1 | ||
| 41342-0K060 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT,PNC 41301=TYPE B |
1 | ||
| 41342-0K060 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT,PNC 41301=TYPE B |
1 | ||
| 41342-0K060 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT,PNC 41301=TYPE B |
1 | ||
| 41342-53020 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,*300,PNC 41301=T/P A |
1 | ||
| 41342-53020 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,*300,PNC 41301=T/P A |
1 | ||
| 41342-53020 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,*300,PNC 41301=T/P A |
1 | ||
| 41342-0K050 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,*299,PNC 41301=T/P A |
1 | ||
| 41342-0K050 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,*299,PNC 41301=T/P A |
1 | ||
| 41342-0K050 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,*299,PNC 41301=T/P A |
1 | ||
| 41342B - PIN, STRAIGHT (FOR REAR DIFFERENTIAL PINION SHAFT) | ||||
| 90250-T0006 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90250-T0006 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90250-T0006 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
4 | ||
| 41351-30060 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
4 | ||
| 41351-30060 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
4 | ||
| 41351-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41351-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41351-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
4 | ||
| 41351-30060 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
4 | ||
| 41351-30060 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
4 | ||
| 41351-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41351-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41351-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-0K020 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.55,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K020 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.55,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K020 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.55,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K060 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.75,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K060 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.75,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K060 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.75,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K050 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.70,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K050 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.70,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K050 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.70,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K030 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.60,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K030 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.60,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K030 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.60,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-35320 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.0,RH,ID=46 |
1 | ||
| 41361-35320 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.0,RH,ID=46 |
1 | ||
| 41361-35320 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.0,RH,ID=46 |
1 | ||
| 41361-0K080 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.85,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K080 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.85,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K080 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.85,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K070 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.80,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K070 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.80,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K070 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.80,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-35310 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=0.9,RH,ID=46 |
1 | ||
| 41361-35310 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=0.9,RH,ID=46 |
1 | ||
| 41361-35310 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=0.9,RH,ID=46 |
1 | ||
| 41361-0K040 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.65,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K040 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.65,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K040 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.65,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-60300 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.00,RH & LH,ID=54 |
2 | ||
| 41361-60300 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.00,RH & LH,ID=54 |
2 | ||
| 41361-60300 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.00,RH & LH,ID=54 |
2 | ||
| 41361-0K090 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.90,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K090 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.90,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K090 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.90,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-60290 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=0.90,RH & LH,ID=54 |
1 | ||
| 41361-60290 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=0.90,RH & LH,ID=54 |
1 | ||
| 41361-60290 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=0.90,RH & LH,ID=54 |
1 | ||
| 41361-35330 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.1,RH,ID=46 |
1 | ||
| 41361-35330 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.1,RH,ID=46 |
1 | ||
| 41361-35330 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.1,RH,ID=46 |
1 | ||
| 41361-60310 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.10,RH & LH,ID=54 |
2 | ||
| 41361-60310 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.10,RH & LH,ID=54 |
2 | ||
| 41361-60310 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.10,RH & LH,ID=54 |
2 | ||
| 41361-35350 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.3,RH,ID=46 |
1 | ||
| 41361-35350 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.3,RH,ID=46 |
1 | ||
| 41361-35350 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.3,RH,ID=46 |
1 | ||
| 41361-35340 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.2,RH,ID=46 |
1 | ||
| 41361-35340 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.2,RH,ID=46 |
1 | ||
| 41361-35340 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.2,RH,ID=46 |
1 | ||
| 41361-60320 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.20,RH & LH,ID=54 |
2 | ||
| 41361-60320 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.20,RH & LH,ID=54 |
2 | ||
| 41361-60320 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.20,RH & LH,ID=54 |
2 | ||
| 41361-34010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.50,DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41361-34010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.50,DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41361-34010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.50,DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41361-60330 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.30,RH & LH,ID=54 |
2 | ||
| 41361-60330 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.30,RH & LH,ID=54 |
2 | ||
| 41361-60330 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.30,RH & LH,ID=54 |
2 | ||
| 41361-34040 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.65,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34040 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.65,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34040 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.65,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34030 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.60,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34030 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.60,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34030 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.60,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34020 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.55,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34020 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.55,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34020 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.55,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34050 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.70,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34050 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.70,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34050 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.70,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34080 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.85,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34080 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.85,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34080 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.85,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34060 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.75,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34060 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.75,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34060 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.75,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34070 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.80,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34070 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.80,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34070 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.80,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34090 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.90,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34090 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.90,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34090 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.90,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-0K020 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.55,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K020 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.55,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K020 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.55,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K060 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.75,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K060 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.75,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K060 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.75,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K050 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.70,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K050 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.70,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K050 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.70,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K030 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.60,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K030 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.60,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K030 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.60,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-35320 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.0,RH,ID=46 |
1 | ||
| 41361-35320 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.0,RH,ID=46 |
1 | ||
| 41361-35320 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.0,RH,ID=46 |
1 | ||
| 41361-0K080 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.85,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K080 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.85,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K080 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.85,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K070 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.80,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K070 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.80,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K070 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.80,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-35310 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=0.9,RH,ID=46 |
1 | ||
| 41361-35310 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=0.9,RH,ID=46 |
1 | ||
| 41361-35310 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=0.9,RH,ID=46 |
1 | ||
| 41361-0K040 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.65,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K040 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.65,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K040 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.65,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-60300 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.00,RH & LH,ID=54 |
2 | ||
| 41361-60300 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.00,RH & LH,ID=54 |
2 | ||
| 41361-60300 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.00,RH & LH,ID=54 |
2 | ||
| 41361-0K090 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.90,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K090 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.90,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K090 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.90,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-60290 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=0.90,RH & LH,ID=54 |
1 | ||
| 41361-60290 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=0.90,RH & LH,ID=54 |
1 | ||
| 41361-60290 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=0.90,RH & LH,ID=54 |
1 | ||
| 41361-35330 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.1,RH,ID=46 |
1 | ||
| 41361-35330 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.1,RH,ID=46 |
1 | ||
| 41361-35330 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.1,RH,ID=46 |
1 | ||
| 41361-60310 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.10,RH & LH,ID=54 |
2 | ||
| 41361-60310 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.10,RH & LH,ID=54 |
2 | ||
| 41361-60310 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.10,RH & LH,ID=54 |
2 | ||
| 41361-35350 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.3,RH,ID=46 |
1 | ||
| 41361-35350 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.3,RH,ID=46 |
1 | ||
| 41361-35350 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.3,RH,ID=46 |
1 | ||
| 41361-35340 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.2,RH,ID=46 |
1 | ||
| 41361-35340 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.2,RH,ID=46 |
1 | ||
| 41361-35340 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.2,RH,ID=46 |
1 | ||
| 41361-60320 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.20,RH & LH,ID=54 |
2 | ||
| 41361-60320 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.20,RH & LH,ID=54 |
2 | ||
| 41361-60320 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.20,RH & LH,ID=54 |
2 | ||
| 41361-34010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.50,DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41361-34010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.50,DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41361-34010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.50,DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41361-60330 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.30,RH & LH,ID=54 |
2 | ||
| 41361-60330 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.30,RH & LH,ID=54 |
2 | ||
| 41361-60330 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.30,RH & LH,ID=54 |
2 | ||
| 41361-34040 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.65,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34040 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.65,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34040 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.65,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34030 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.60,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34030 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.60,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34030 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.60,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34020 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.55,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34020 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.55,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34020 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.55,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34050 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.70,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34050 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.70,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34050 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.70,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34080 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.85,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34080 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.85,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34080 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.85,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34060 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.75,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34060 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.75,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34060 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.75,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34070 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.80,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34070 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.80,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34070 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.80,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34090 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.90,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34090 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.90,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34090 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.90,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| Common parts | ||||
| 90119-T0071 | ||||
ILLUST NO. 1 OF 2(1107- )KUN51..LHD..SUVW..GEN ; (1107- )KUN51..SUVW..IND,PHL,TH ; (1107- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-35150 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC |
1 | ||
| 41101-35150 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC |
1 | ||
| 41101-35150 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC |
1 | ||
| 41101-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41101-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41101-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41101-0K011 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41101-0K011 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41101-0K011 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-0K011 |
GGN50..GCC *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41110-0K011 |
GGN50..GCC *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41110-0K011 |
GGN50..GCC *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41110-0K012 |
GGN50..GCC *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41110-0K012 |
GGN50..GCC *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41110-0K012 |
GGN50..GCC *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41110-71270 |
GGN50..GCC *FGR=43:12=3.583 |
1 | ||
| 41110-71270 |
GGN50..GCC *FGR=43:12=3.583 |
1 | ||
| 41110-71270 |
GGN50..GCC *FGR=43:12=3.583 |
1 | ||
| 41110-0KC40 |
GGN50..GCC *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41110-0KC40 |
GGN50..GCC *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41110-0KC40 |
GGN50..GCC *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-12053 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
4 | ||
| 90105-12053 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
4 | ||
| 90105-12053 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
4 | ||
| 90105-T0081 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
4 | ||
| 90105-T0081 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
4 | ||
| 90105-T0081 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
4 | ||
| 41115 - RING, DIFFERENTIAL OIL STORAGE | ||||
| 41115-35010 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
1 | ||
| 41115-35010 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
1 | ||
| 41115-35010 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
1 | ||
| 41115-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41115-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41115-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-09D90 |
GGN50..GCC *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41201-09D90 |
GGN50..GCC *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41201-09D90 |
GGN50..GCC *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41201-09B50 |
GGN50..GCC,GEN;KUN51..(SUVW,THSUV)..5F..(GEN,TH) *FGR=43:12=3.583 |
1 | ||
| 41201-09B50 |
GGN50..GCC,GEN;KUN51..(SUVW,THSUV)..5F..(GEN,TH) *FGR=43:12=3.583 |
1 | ||
| 41201-09B50 |
GGN50..GCC,GEN;KUN51..(SUVW,THSUV)..5F..(GEN,TH) *FGR=43:12=3.583 |
1 | ||
| 41201-09D40 |
GGN50..GCC *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41201-09D40 |
GGN50..GCC *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41201-09D40 |
GGN50..GCC *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-T0016 |
GGN50..IDSUV..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90366-T0016 |
GGN50..IDSUV..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90366-T0016 |
GGN50..IDSUV..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90366-T0080 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90366-T0080 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90366-T0080 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90366-35087 |
GGN50..GCC;LAN50..RHD;TGN61..HTWCF;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN;TGN61..4FC..HTWC..LA |
1 | ||
| 90366-35087 |
GGN50..GCC;LAN50..RHD;TGN61..HTWCF;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN;TGN61..4FC..HTWC..LA |
1 | ||
| 90366-35087 |
GGN50..GCC;LAN50..RHD;TGN61..HTWCF;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN;TGN61..4FC..HTWC..LA |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30067 |
TGN51..SA,VN;TGN61..HTWCF;KUN60,LAN50..RHD..SA;GGN50,KUN51..(IDSUV,SUVW)..(GCC,GEN) |
1 | ||
| 90366-30067 |
TGN51..SA,VN;TGN61..HTWCF;KUN60,LAN50..RHD..SA;GGN50,KUN51..(IDSUV,SUVW)..(GCC,GEN) |
1 | ||
| 90366-30067 |
TGN51..SA,VN;TGN61..HTWCF;KUN60,LAN50..RHD..SA;GGN50,KUN51..(IDSUV,SUVW)..(GCC,GEN) |
1 | ||
| 90366-T0057 |
GGN50..IDSUV..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90366-T0057 |
GGN50..IDSUV..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90366-T0057 |
GGN50..IDSUV..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90366-T0013 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90366-T0013 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90366-T0013 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90366-T0083 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90366-T0083 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90366-T0083 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90366-30105 |
GGN50..GCC;LAN50..RHD;TGN61..HTWCF;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN;TGN61..4FC..HTWC..LA |
1 | ||
| 90366-30105 |
GGN50..GCC;LAN50..RHD;TGN61..HTWCF;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN;TGN61..4FC..HTWC..LA |
1 | ||
| 90366-30105 |
GGN50..GCC;LAN50..RHD;TGN61..HTWCF;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN;TGN61..4FC..HTWC..LA |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-T0034 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90311-T0034 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90311-T0034 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90311-T0068 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90311-T0068 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90311-T0068 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90311-41014 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
1 | ||
| 90311-41014 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
1 | ||
| 90311-41014 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
1 | ||
| 41201E - SHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST) | ||||
| 90564-35115 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.88,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35115 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.88,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35115 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.88,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35117 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.94,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35117 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.94,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35117 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.94,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35110 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.73,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35110 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.73,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35110 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.73,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35120 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.03,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35120 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.03,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35120 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.03,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35118 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.97,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35118 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.97,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35118 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.97,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35114 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.85,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35114 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.85,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35114 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.85,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35111 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.76,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35111 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.76,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35111 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.76,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35113 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.82,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35113 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.82,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35113 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.82,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35109 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.70,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35109 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.70,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35109 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.70,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35125 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.15,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35125 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.15,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35125 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.15,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35119 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.00,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35119 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.00,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35119 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.00,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35116 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.91,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35116 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.91,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35116 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.91,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35121 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.06,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35121 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.06,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35121 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.06,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35126 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.18,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35126 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.18,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35126 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.18,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35127 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.21,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35127 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.21,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35127 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.21,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35112 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.79,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35112 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.79,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35112 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=1.79,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35124 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.12,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35124 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.12,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35124 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.12,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35128 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.24,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35128 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.24,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35128 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.24,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35130 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.30,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35130 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.30,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35130 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.30,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35129 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.27,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35129 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.27,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35129 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.27,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35123 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.09,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35123 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.09,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35123 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.09,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35131 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.33,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35131 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.33,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90564-35131 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC OD=52,T=2.33,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-71020 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT,(J) |
1 | ||
| 41204-71020 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT,(J) |
1 | ||
| 41204-71020 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT,(J) |
1 | ||
| 41204-0K100 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41204-0K100 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41204-0K100 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41204-0K060 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT,(L) |
1 | ||
| 41204-0K060 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT,(L) |
1 | ||
| 41204-0K060 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT,(L) |
1 | ||
| 41204-71020 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN |
1 | ||
| 41204-71020 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN |
1 | ||
| 41204-71020 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN |
1 | ||
| 41204-0K060 |
GGN50..GCC;KUN51..RHD..(IDSUV,SUVW)..4FC..GEN DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41204-0K060 |
GGN50..GCC;KUN51..RHD..(IDSUV,SUVW)..4FC..GEN DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41204-0K060 |
GGN50..GCC;KUN51..RHD..(IDSUV,SUVW)..4FC..GEN DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90177-22003 |
TGN61..HTWCF;TGN61..4FC..HTWC..LA;GGN50,KUN5#,60,TGN51,61..IDSUV OD=39.5 |
1 | ||
| 90177-22003 |
TGN61..HTWCF;TGN61..4FC..HTWC..LA;GGN50,KUN5#,60,TGN51,61..IDSUV OD=39.5 |
1 | ||
| 90177-22003 |
TGN61..HTWCF;TGN61..4FC..HTWC..LA;GGN50,KUN5#,60,TGN51,61..IDSUV OD=39.5 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26011 |
TGN61..HTWCF;TGN61..4FC..HTWC..LA;GGN50,KUN5#,60,TGN51,61..IDSUV |
1 | ||
| 41214-26011 |
TGN61..HTWCF;TGN61..4FC..HTWC..LA;GGN50,KUN5#,60,TGN51,61..IDSUV |
1 | ||
| 41214-26011 |
TGN61..HTWCF;TGN61..4FC..HTWC..LA;GGN50,KUN5#,60,TGN51,61..IDSUV |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
5 | ||
| 41222-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
5 | ||
| 41222-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
5 | ||
| 41222-60010 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC |
5 | ||
| 41222-60010 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC |
5 | ||
| 41222-60010 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC |
5 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-T0006 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,(L) |
10 | ||
| 90101-T0006 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,(L) |
10 | ||
| 90101-T0006 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,(L) |
10 | ||
| 90101-11353 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,(J),PNC 41301=TYPE A |
10 | ||
| 90101-11353 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,(J),PNC 41301=TYPE A |
10 | ||
| 90101-11353 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,(J),PNC 41301=TYPE A |
10 | ||
| 90101-11353 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,(J) |
10 | ||
| 90101-11353 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,(J) |
10 | ||
| 90101-11353 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,(J) |
10 | ||
| 90105-11063 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT,PNC 41301=TYPE B |
10 | ||
| 90105-11063 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT,PNC 41301=TYPE B |
10 | ||
| 90105-11063 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT,PNC 41301=TYPE B |
10 | ||
| 90101-T0006 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,(L),PNC 41301=TYPE A |
10 | ||
| 90101-T0006 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,(L),PNC 41301=TYPE A |
10 | ||
| 90101-T0006 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,(L),PNC 41301=TYPE A |
10 | ||
| 90101-11353 |
LAN50..RHD;GGN50..GCC,GEN;TGN61..5F..HTWCF;KUN60..SUVW..(GEN,IDN,PHL);KUN51,61..RHD..4FC..(GEN,IND,TH);KUN51..LHD..(SUVW,THSUV)..(GEN,PHL);KUN51,TGN61..SUVW..5F..(GCC,GEN,TH);TGN51..SUVW..(GCC,GEN,IDN,KZS,SA,VN);TGN61..SUVW..4FC..(GCC,GEN,IDN,LA,PHL) |
10 | ||
| 90101-11353 |
LAN50..RHD;GGN50..GCC,GEN;TGN61..5F..HTWCF;KUN60..SUVW..(GEN,IDN,PHL);KUN51,61..RHD..4FC..(GEN,IND,TH);KUN51..LHD..(SUVW,THSUV)..(GEN,PHL);KUN51,TGN61..SUVW..5F..(GCC,GEN,TH);TGN51..SUVW..(GCC,GEN,IDN,KZS,SA,VN);TGN61..SUVW..4FC..(GCC,GEN,IDN,LA,PHL) |
10 | ||
| 90101-11353 |
LAN50..RHD;GGN50..GCC,GEN;TGN61..5F..HTWCF;KUN60..SUVW..(GEN,IDN,PHL);KUN51,61..RHD..4FC..(GEN,IND,TH);KUN51..LHD..(SUVW,THSUV)..(GEN,PHL);KUN51,TGN61..SUVW..5F..(GCC,GEN,TH);TGN51..SUVW..(GCC,GEN,IDN,KZS,SA,VN);TGN61..SUVW..4FC..(GCC,GEN,IDN,LA,PHL) |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-24010 |
TGN61..HTWCF;TGN61..4FC..HTWC..LA;GGN50,KUN5#,60,TGN51,61..IDSUV |
1 | ||
| 41231-24010 |
TGN61..HTWCF;TGN61..4FC..HTWC..LA;GGN50,KUN5#,60,TGN51,61..IDSUV |
1 | ||
| 41231-24010 |
TGN61..HTWCF;TGN61..4FC..HTWC..LA;GGN50,KUN5#,60,TGN51,61..IDSUV |
1 | ||
| 41301 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-0K011 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41301-0K011 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41301-0K011 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41301-0K110 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT,PNC 41301=TYPE B |
1 | ||
| 41301-0K110 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT,PNC 41301=TYPE B |
1 | ||
| 41301-0K110 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT,PNC 41301=TYPE B |
1 | ||
| 41301-0K011 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,PNC 41301=TYPE A |
1 | ||
| 41301-0K011 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,PNC 41301=TYPE A |
1 | ||
| 41301-0K011 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,PNC 41301=TYPE A |
1 | ||
| 41301-60060 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN |
1 | ||
| 41301-60060 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN |
1 | ||
| 41301-60060 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-T0010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 90366-T0010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 90366-T0010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 90366-50007 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN RH |
1 | ||
| 90366-50007 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN RH |
1 | ||
| 90366-50007 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN RH |
1 | ||
| 90366-75001 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN LH |
1 | ||
| 90366-75001 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN LH |
1 | ||
| 90366-75001 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN LH |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-T0010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 90366-T0010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 90366-T0010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 90366-50007 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN RH |
1 | ||
| 90366-50007 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN RH |
1 | ||
| 90366-50007 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN RH |
1 | ||
| 90366-75001 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN LH |
1 | ||
| 90366-75001 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN LH |
1 | ||
| 90366-75001 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN LH |
1 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35020 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC RH |
1 | ||
| 41315-35020 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC RH |
1 | ||
| 41315-35020 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC RH |
1 | ||
| 41315-60010 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC LH |
1 | ||
| 41315-60010 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC LH |
1 | ||
| 41315-60010 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC LH |
1 | ||
| 41315-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41315-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41315-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35020 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC RH |
1 | ||
| 41315-35020 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC RH |
1 | ||
| 41315-35020 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC RH |
1 | ||
| 41315-60010 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC LH |
1 | ||
| 41315-60010 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC LH |
1 | ||
| 41315-60010 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC LH |
1 | ||
| 41315-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41315-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41315-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-35010 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
2 | ||
| 41316-35010 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
2 | ||
| 41316-35010 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
2 | ||
| 41316-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41316-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41316-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-0K050 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41342-0K050 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41342-0K050 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41342-53020 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,*300 |
1 | ||
| 41342-53020 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,*300 |
1 | ||
| 41342-53020 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,*300 |
1 | ||
| 41342-0K050 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,*299 |
1 | ||
| 41342-0K050 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,*299 |
1 | ||
| 41342-0K050 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,*299 |
1 | ||
| 41342-0K060 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT,PNC 41301=TYPE B |
1 | ||
| 41342-0K060 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT,PNC 41301=TYPE B |
1 | ||
| 41342-0K060 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT,PNC 41301=TYPE B |
1 | ||
| 41342-53020 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,*300,PNC 41301=T/P A |
1 | ||
| 41342-53020 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,*300,PNC 41301=T/P A |
1 | ||
| 41342-53020 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,*300,PNC 41301=T/P A |
1 | ||
| 41342-0K050 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,*299,PNC 41301=T/P A |
1 | ||
| 41342-0K050 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,*299,PNC 41301=T/P A |
1 | ||
| 41342-0K050 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,*299,PNC 41301=T/P A |
1 | ||
| 41342B - PIN, STRAIGHT (FOR REAR DIFFERENTIAL PINION SHAFT) | ||||
| 90250-T0006 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90250-T0006 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90250-T0006 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
4 | ||
| 41351-30060 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
4 | ||
| 41351-30060 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
4 | ||
| 41351-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41351-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41351-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
4 | ||
| 41351-30060 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
4 | ||
| 41351-30060 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
4 | ||
| 41351-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41351-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41351-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-0K020 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.55,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K020 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.55,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K020 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.55,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K060 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.75,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K060 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.75,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K060 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.75,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K050 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.70,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K050 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.70,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K050 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.70,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K030 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.60,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K030 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.60,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K030 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.60,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-35320 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.0,RH,ID=46 |
1 | ||
| 41361-35320 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.0,RH,ID=46 |
1 | ||
| 41361-35320 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.0,RH,ID=46 |
1 | ||
| 41361-0K080 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.85,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K080 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.85,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K080 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.85,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K070 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.80,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K070 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.80,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K070 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.80,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-35310 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=0.9,RH,ID=46 |
1 | ||
| 41361-35310 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=0.9,RH,ID=46 |
1 | ||
| 41361-35310 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=0.9,RH,ID=46 |
1 | ||
| 41361-0K040 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.65,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K040 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.65,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K040 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.65,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-60300 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.00,RH & LH,ID=54 |
2 | ||
| 41361-60300 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.00,RH & LH,ID=54 |
2 | ||
| 41361-60300 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.00,RH & LH,ID=54 |
2 | ||
| 41361-0K090 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.90,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K090 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.90,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K090 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.90,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-60290 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=0.90,RH & LH,ID=54 |
1 | ||
| 41361-60290 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=0.90,RH & LH,ID=54 |
1 | ||
| 41361-60290 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=0.90,RH & LH,ID=54 |
1 | ||
| 41361-35330 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.1,RH,ID=46 |
1 | ||
| 41361-35330 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.1,RH,ID=46 |
1 | ||
| 41361-35330 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.1,RH,ID=46 |
1 | ||
| 41361-60310 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.10,RH & LH,ID=54 |
2 | ||
| 41361-60310 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.10,RH & LH,ID=54 |
2 | ||
| 41361-60310 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.10,RH & LH,ID=54 |
2 | ||
| 41361-35350 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.3,RH,ID=46 |
1 | ||
| 41361-35350 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.3,RH,ID=46 |
1 | ||
| 41361-35350 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.3,RH,ID=46 |
1 | ||
| 41361-35340 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.2,RH,ID=46 |
1 | ||
| 41361-35340 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.2,RH,ID=46 |
1 | ||
| 41361-35340 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.2,RH,ID=46 |
1 | ||
| 41361-60320 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.20,RH & LH,ID=54 |
2 | ||
| 41361-60320 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.20,RH & LH,ID=54 |
2 | ||
| 41361-60320 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.20,RH & LH,ID=54 |
2 | ||
| 41361-34010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.50,DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41361-34010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.50,DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41361-34010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.50,DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41361-60330 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.30,RH & LH,ID=54 |
2 | ||
| 41361-60330 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.30,RH & LH,ID=54 |
2 | ||
| 41361-60330 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.30,RH & LH,ID=54 |
2 | ||
| 41361-34040 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.65,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34040 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.65,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34040 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.65,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34030 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.60,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34030 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.60,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34030 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.60,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34020 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.55,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34020 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.55,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34020 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.55,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34050 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.70,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34050 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.70,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34050 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.70,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34080 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.85,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34080 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.85,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34080 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.85,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34060 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.75,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34060 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.75,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34060 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.75,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34070 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.80,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34070 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.80,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34070 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.80,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34090 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.90,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34090 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.90,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34090 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.90,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-0K020 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.55,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K020 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.55,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K020 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.55,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K060 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.75,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K060 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.75,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K060 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.75,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K050 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.70,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K050 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.70,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K050 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.70,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K030 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.60,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K030 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.60,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K030 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.60,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-35320 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.0,RH,ID=46 |
1 | ||
| 41361-35320 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.0,RH,ID=46 |
1 | ||
| 41361-35320 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.0,RH,ID=46 |
1 | ||
| 41361-0K080 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.85,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K080 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.85,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K080 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.85,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K070 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.80,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K070 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.80,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K070 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.80,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-35310 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=0.9,RH,ID=46 |
1 | ||
| 41361-35310 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=0.9,RH,ID=46 |
1 | ||
| 41361-35310 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=0.9,RH,ID=46 |
1 | ||
| 41361-0K040 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.65,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K040 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.65,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K040 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.65,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-60300 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.00,RH & LH,ID=54 |
2 | ||
| 41361-60300 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.00,RH & LH,ID=54 |
2 | ||
| 41361-60300 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.00,RH & LH,ID=54 |
2 | ||
| 41361-0K090 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.90,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K090 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.90,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K090 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.90,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-60290 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=0.90,RH & LH,ID=54 |
1 | ||
| 41361-60290 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=0.90,RH & LH,ID=54 |
1 | ||
| 41361-60290 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=0.90,RH & LH,ID=54 |
1 | ||
| 41361-35330 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.1,RH,ID=46 |
1 | ||
| 41361-35330 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.1,RH,ID=46 |
1 | ||
| 41361-35330 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.1,RH,ID=46 |
1 | ||
| 41361-60310 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.10,RH & LH,ID=54 |
2 | ||
| 41361-60310 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.10,RH & LH,ID=54 |
2 | ||
| 41361-60310 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.10,RH & LH,ID=54 |
2 | ||
| 41361-35350 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.3,RH,ID=46 |
1 | ||
| 41361-35350 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.3,RH,ID=46 |
1 | ||
| 41361-35350 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.3,RH,ID=46 |
1 | ||
| 41361-35340 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.2,RH,ID=46 |
1 | ||
| 41361-35340 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.2,RH,ID=46 |
1 | ||
| 41361-35340 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.2,RH,ID=46 |
1 | ||
| 41361-60320 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.20,RH & LH,ID=54 |
2 | ||
| 41361-60320 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.20,RH & LH,ID=54 |
2 | ||
| 41361-60320 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.20,RH & LH,ID=54 |
2 | ||
| 41361-34010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.50,DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41361-34010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.50,DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41361-34010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.50,DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41361-60330 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.30,RH & LH,ID=54 |
2 | ||
| 41361-60330 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.30,RH & LH,ID=54 |
2 | ||
| 41361-60330 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.30,RH & LH,ID=54 |
2 | ||
| 41361-34040 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.65,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34040 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.65,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34040 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.65,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34030 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.60,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34030 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.60,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34030 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.60,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34020 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.55,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34020 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.55,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34020 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.55,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34050 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.70,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34050 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.70,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34050 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.70,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34080 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.85,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34080 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.85,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34080 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.85,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34060 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.75,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34060 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.75,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34060 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.75,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34070 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.80,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34070 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.80,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34070 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.80,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34090 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.90,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34090 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.90,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34090 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.90,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| Common parts | ||||
| 90119-T0071 | ||||
ILLUST NO. 1 OF 2(1107- )TGN51..CO ; (1107- )LHD..SASUV ; (1107- )TGN61..5F..HTWC..LA ; (11
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-35150 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC |
1 | ||
| 41101-35150 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC |
1 | ||
| 41101-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41101-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41101-0K011 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41101-0K011 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-0K011 |
GGN50..GCC *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41110-0K011 |
GGN50..GCC *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41110-0K012 |
GGN50..GCC *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41110-0K012 |
GGN50..GCC *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41110-71270 |
GGN50..GCC *FGR=43:12=3.583 |
1 | ||
| 41110-71270 |
GGN50..GCC *FGR=43:12=3.583 |
1 | ||
| 41110-0KC40 |
GGN50..GCC *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41110-0KC40 |
GGN50..GCC *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-12053 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
4 | ||
| 90105-12053 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
4 | ||
| 90105-T0081 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
4 | ||
| 90105-T0081 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
4 | ||
| 41115 - RING, DIFFERENTIAL OIL STORAGE | ||||
| 41115-35010 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
1 | ||
| 41115-35010 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
1 | ||
| 41115-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41115-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-09D90 |
GGN50..GCC *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41201-09D90 |
GGN50..GCC *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41201-09B50 |
GGN50..GCC,GEN;KUN51..(SUVW,THSUV)..5F..(GEN,TH) *FGR=43:12=3.583 |
1 | ||
| 41201-09B50 |
GGN50..GCC,GEN;KUN51..(SUVW,THSUV)..5F..(GEN,TH) *FGR=43:12=3.583 |
1 | ||
| 41201-09D40 |
GGN50..GCC *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41201-09D40 |
GGN50..GCC *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-T0016 |
GGN50..IDSUV..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90366-T0016 |
GGN50..IDSUV..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90366-T0080 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90366-T0080 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90366-35087 |
GGN50..GCC;LAN50..RHD;TGN61..HTWCF;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN;TGN61..4FC..HTWC..LA |
1 | ||
| 90366-35087 |
GGN50..GCC;LAN50..RHD;TGN61..HTWCF;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN;TGN61..4FC..HTWC..LA |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30067 |
TGN51..SA,VN;TGN61..HTWCF;KUN60,LAN50..RHD..SA;GGN50,KUN51..(IDSUV,SUVW)..(GCC,GEN) |
1 | ||
| 90366-30067 |
TGN51..SA,VN;TGN61..HTWCF;KUN60,LAN50..RHD..SA;GGN50,KUN51..(IDSUV,SUVW)..(GCC,GEN) |
1 | ||
| 90366-T0057 |
GGN50..IDSUV..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90366-T0057 |
GGN50..IDSUV..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90366-T0013 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90366-T0013 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90366-T0083 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90366-T0083 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90366-30105 |
GGN50..GCC;LAN50..RHD;TGN61..HTWCF;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN;TGN61..4FC..HTWC..LA |
1 | ||
| 90366-30105 |
GGN50..GCC;LAN50..RHD;TGN61..HTWCF;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN;TGN61..4FC..HTWC..LA |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-T0034 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90311-T0034 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90311-T0068 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90311-T0068 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90311-41014 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
1 | ||
| 90311-41014 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35499 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=1.76 |
1 | ||
| 90201-35499 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=1.76 |
1 | ||
| 90201-35497 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=1.70 |
1 | ||
| 90201-35497 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=1.70 |
1 | ||
| 90201-35498 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=1.73 |
1 | ||
| 90201-35498 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=1.73 |
1 | ||
| 90201-35500 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=1.79 |
1 | ||
| 90201-35500 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=1.79 |
1 | ||
| 90201-35505 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=1.94 |
1 | ||
| 90201-35505 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=1.94 |
1 | ||
| 90201-35503 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=1.88 |
1 | ||
| 90201-35503 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=1.88 |
1 | ||
| 90201-35501 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=1.82 |
1 | ||
| 90201-35501 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=1.82 |
1 | ||
| 90201-35504 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=1.91 |
1 | ||
| 90201-35504 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=1.91 |
1 | ||
| 90201-35502 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=1.85 |
1 | ||
| 90201-35502 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=1.85 |
1 | ||
| 90201-35509 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=2.06 |
1 | ||
| 90201-35509 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=2.06 |
1 | ||
| 90201-35506 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=1.97 |
1 | ||
| 90201-35506 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=1.97 |
1 | ||
| 90201-35508 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=2.03 |
1 | ||
| 90201-35508 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=2.03 |
1 | ||
| 90201-35511 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=2.12 |
1 | ||
| 90201-35511 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=2.12 |
1 | ||
| 90201-35510 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=2.09 |
1 | ||
| 90201-35510 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=2.09 |
1 | ||
| 90201-35512 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=2.15 |
1 | ||
| 90201-35512 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=2.15 |
1 | ||
| 90201-35514 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=2.21 |
1 | ||
| 90201-35514 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=2.21 |
1 | ||
| 90201-35507 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=2.00 |
1 | ||
| 90201-35507 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=2.00 |
1 | ||
| 90201-35515 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=2.24,MARK 01 |
1 | ||
| 90201-35515 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=2.24,MARK 01 |
1 | ||
| 90201-35517 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=2.30,MARK 03 |
1 | ||
| 90201-35517 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=2.30,MARK 03 |
1 | ||
| 90201-35518 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=2.33,MARK 04 |
1 | ||
| 90201-35518 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=2.33,MARK 04 |
1 | ||
| 90201-35516 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=2.27,MARK 02 |
1 | ||
| 90201-35516 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=2.27,MARK 02 |
1 | ||
| 90201-35513 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=2.18 |
1 | ||
| 90201-35513 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=2.18 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-71020 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT,(J) |
1 | ||
| 41204-71020 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT,(J) |
1 | ||
| 41204-0K100 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41204-0K100 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41204-0K060 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT,(L) |
1 | ||
| 41204-0K060 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT,(L) |
1 | ||
| 41204-71020 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN |
1 | ||
| 41204-71020 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN |
1 | ||
| 41204-0K060 |
GGN50..GCC;KUN51..RHD..(IDSUV,SUVW)..4FC..GEN DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41204-0K060 |
GGN50..GCC;KUN51..RHD..(IDSUV,SUVW)..4FC..GEN DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90177-22003 |
TGN61..HTWCF;TGN61..4FC..HTWC..LA;GGN50,KUN5#,60,TGN51,61..IDSUV OD=39.5 |
1 | ||
| 90177-22003 |
TGN61..HTWCF;TGN61..4FC..HTWC..LA;GGN50,KUN5#,60,TGN51,61..IDSUV OD=39.5 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26011 |
TGN61..HTWCF;TGN61..4FC..HTWC..LA;GGN50,KUN5#,60,TGN51,61..IDSUV |
1 | ||
| 41214-26011 |
TGN61..HTWCF;TGN61..4FC..HTWC..LA;GGN50,KUN5#,60,TGN51,61..IDSUV |
1 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-T0006 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,(L) |
10 | ||
| 90101-T0006 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,(L) |
10 | ||
| 90101-11353 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,(J),PNC 41301=TYPE A |
10 | ||
| 90101-11353 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,(J),PNC 41301=TYPE A |
10 | ||
| 90101-11353 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,(J) |
10 | ||
| 90101-11353 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,(J) |
10 | ||
| 90105-11063 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT,PNC 41301=TYPE B |
10 | ||
| 90105-11063 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT,PNC 41301=TYPE B |
10 | ||
| 90101-T0006 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,(L),PNC 41301=TYPE A |
10 | ||
| 90101-T0006 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,(L),PNC 41301=TYPE A |
10 | ||
| 90101-11353 |
LAN50..RHD;GGN50..GCC,GEN;TGN61..5F..HTWCF;KUN60..SUVW..(GEN,IDN,PHL);KUN51,61..RHD..4FC..(GEN,IND,TH);KUN51..LHD..(SUVW,THSUV)..(GEN,PHL);KUN51,TGN61..SUVW..5F..(GCC,GEN,TH);TGN51..SUVW..(GCC,GEN,IDN,KZS,SA,VN);TGN61..SUVW..4FC..(GCC,GEN,IDN,LA,PHL) |
10 | ||
| 90101-11353 |
LAN50..RHD;GGN50..GCC,GEN;TGN61..5F..HTWCF;KUN60..SUVW..(GEN,IDN,PHL);KUN51,61..RHD..4FC..(GEN,IND,TH);KUN51..LHD..(SUVW,THSUV)..(GEN,PHL);KUN51,TGN61..SUVW..5F..(GCC,GEN,TH);TGN51..SUVW..(GCC,GEN,IDN,KZS,SA,VN);TGN61..SUVW..4FC..(GCC,GEN,IDN,LA,PHL) |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-24010 |
TGN61..HTWCF;TGN61..4FC..HTWC..LA;GGN50,KUN5#,60,TGN51,61..IDSUV |
1 | ||
| 41231-24010 |
TGN61..HTWCF;TGN61..4FC..HTWC..LA;GGN50,KUN5#,60,TGN51,61..IDSUV |
1 | ||
| 41301 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-0K011 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41301-0K011 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41301-0K110 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT,PNC 41301=TYPE B |
1 | ||
| 41301-0K110 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT,PNC 41301=TYPE B |
1 | ||
| 41301-0K011 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,PNC 41301=TYPE A |
1 | ||
| 41301-0K011 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,PNC 41301=TYPE A |
1 | ||
| 41301-60060 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN |
1 | ||
| 41301-60060 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-T0010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 90366-T0010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 90366-50007 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN RH |
1 | ||
| 90366-50007 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN RH |
1 | ||
| 90366-75001 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN LH |
1 | ||
| 90366-75001 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN LH |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-T0010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 90366-T0010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 90366-50007 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN RH |
1 | ||
| 90366-50007 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN RH |
1 | ||
| 90366-75001 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN LH |
1 | ||
| 90366-75001 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN LH |
1 | ||
ILLUST NO. 1 OF 2(1107- )GGN50,60,KUN6#,LAN50..GCC,SA ; (1107-)KUN51,TGN51..LHD..GCC,KZS,SA,V
W(DIFFERENTIAL LOCK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33275L - SEAT, REAR DIFFERENTIAL LOCK SHIFT DETENT BALL SPRING | ||||
| 33275-16010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC |
1 | ||
| 33275-16010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC |
1 | ||
| 33275-16010 |
GGN50..IDSUV..GCC;KUN51..RHD..(IDSUV,SASUV)..4FC |
1 | ||
| 33275-16010 |
GGN50..IDSUV..GCC;KUN51..RHD..(IDSUV,SASUV)..4FC |
1 | ||
| 41039 - GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41039-34060 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC |
1 | ||
| 41039-34060 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC |
1 | ||
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-35150 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC |
1 | ||
| 41101-35150 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC |
1 | ||
| 41101-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41101-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41101-0K011 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41101-0K011 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41102 - CARRIER SUB-ASSY, DIFFERENTIAL W/PIN, REAR | ||||
| 41102-35010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC |
1 | ||
| 41102-35010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC |
1 | ||
| 41102-35010 |
GGN50..IDSUV..GCC;KUN51..RHD..(IDSUV,SASUV)..4FC |
1 | ||
| 41102-35010 |
GGN50..IDSUV..GCC;KUN51..RHD..(IDSUV,SASUV)..4FC |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-0K011 |
GGN50..GCC *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41110-0K011 |
GGN50..GCC *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41110-0K012 |
GGN50..GCC *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41110-0K012 |
GGN50..GCC *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41110-71270 |
GGN50..GCC *FGR=43:12=3.583 |
1 | ||
| 41110-71270 |
GGN50..GCC *FGR=43:12=3.583 |
1 | ||
| 41110-0KC40 |
GGN50..GCC *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41110-0KC40 |
GGN50..GCC *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-12053 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
4 | ||
| 90105-12053 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
4 | ||
| 90105-T0081 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
4 | ||
| 90105-T0081 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
4 | ||
| 41115 - RING, DIFFERENTIAL OIL STORAGE | ||||
| 41115-35010 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
1 | ||
| 41115-35010 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
1 | ||
| 41115-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41115-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-09D90 |
GGN50..GCC *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41201-09D90 |
GGN50..GCC *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41201-09B50 |
GGN50..GCC,GEN;KUN51..(SUVW,THSUV)..5F..(GEN,TH) *FGR=43:12=3.583 |
1 | ||
| 41201-09B50 |
GGN50..GCC,GEN;KUN51..(SUVW,THSUV)..5F..(GEN,TH) *FGR=43:12=3.583 |
1 | ||
| 41201-09D40 |
GGN50..GCC *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41201-09D40 |
GGN50..GCC *FGR=43:12=3.583,DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-T0016 |
GGN50..IDSUV..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90366-T0016 |
GGN50..IDSUV..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90366-T0080 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90366-T0080 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90366-35087 |
GGN50..GCC;LAN50..RHD;TGN61..HTWCF;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN;TGN61..4FC..HTWC..LA |
1 | ||
| 90366-35087 |
GGN50..GCC;LAN50..RHD;TGN61..HTWCF;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN;TGN61..4FC..HTWC..LA |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-30067 |
TGN51..SA,VN;TGN61..HTWCF;KUN60,LAN50..RHD..SA;GGN50,KUN51..(IDSUV,SUVW)..(GCC,GEN) |
1 | ||
| 90366-30067 |
TGN51..SA,VN;TGN61..HTWCF;KUN60,LAN50..RHD..SA;GGN50,KUN51..(IDSUV,SUVW)..(GCC,GEN) |
1 | ||
| 90366-T0057 |
GGN50..IDSUV..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90366-T0057 |
GGN50..IDSUV..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90366-T0013 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90366-T0013 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90366-T0083 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90366-T0083 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90366-30105 |
GGN50..GCC;LAN50..RHD;TGN61..HTWCF;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN;TGN61..4FC..HTWC..LA |
1 | ||
| 90366-30105 |
GGN50..GCC;LAN50..RHD;TGN61..HTWCF;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN;TGN61..4FC..HTWC..LA |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-T0034 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90311-T0034 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90311-T0068 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90311-T0068 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 90311-41014 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
1 | ||
| 90311-41014 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35499 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=1.76 |
1 | ||
| 90201-35499 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=1.76 |
1 | ||
| 90201-35497 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=1.70 |
1 | ||
| 90201-35497 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=1.70 |
1 | ||
| 90201-35498 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=1.73 |
1 | ||
| 90201-35498 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=1.73 |
1 | ||
| 90201-35500 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=1.79 |
1 | ||
| 90201-35500 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=1.79 |
1 | ||
| 90201-35505 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=1.94 |
1 | ||
| 90201-35505 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=1.94 |
1 | ||
| 90201-35503 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=1.88 |
1 | ||
| 90201-35503 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=1.88 |
1 | ||
| 90201-35501 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=1.82 |
1 | ||
| 90201-35501 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=1.82 |
1 | ||
| 90201-35504 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=1.91 |
1 | ||
| 90201-35504 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=1.91 |
1 | ||
| 90201-35502 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=1.85 |
1 | ||
| 90201-35502 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=1.85 |
1 | ||
| 90201-35509 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=2.06 |
1 | ||
| 90201-35509 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=2.06 |
1 | ||
| 90201-35506 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=1.97 |
1 | ||
| 90201-35506 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=1.97 |
1 | ||
| 90201-35508 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=2.03 |
1 | ||
| 90201-35508 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=2.03 |
1 | ||
| 90201-35511 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=2.12 |
1 | ||
| 90201-35511 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=2.12 |
1 | ||
| 90201-35510 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=2.09 |
1 | ||
| 90201-35510 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=2.09 |
1 | ||
| 90201-35512 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=2.15 |
1 | ||
| 90201-35512 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=2.15 |
1 | ||
| 90201-35514 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=2.21 |
1 | ||
| 90201-35514 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=2.21 |
1 | ||
| 90201-35507 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=2.00 |
1 | ||
| 90201-35507 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=2.00 |
1 | ||
| 90201-35515 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=2.24,MARK 01 |
1 | ||
| 90201-35515 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=2.24,MARK 01 |
1 | ||
| 90201-35517 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=2.30,MARK 03 |
1 | ||
| 90201-35517 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=2.30,MARK 03 |
1 | ||
| 90201-35518 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=2.33,MARK 04 |
1 | ||
| 90201-35518 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=2.33,MARK 04 |
1 | ||
| 90201-35516 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=2.27,MARK 02 |
1 | ||
| 90201-35516 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=2.27,MARK 02 |
1 | ||
| 90201-35513 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=2.18 |
1 | ||
| 90201-35513 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC OD=47,T=2.18 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-71020 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT,(J) |
1 | ||
| 41204-71020 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT,(J) |
1 | ||
| 41204-0K100 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41204-0K100 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41204-0K060 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT,(L) |
1 | ||
| 41204-0K060 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT,(L) |
1 | ||
| 41204-71020 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN |
1 | ||
| 41204-71020 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN |
1 | ||
| 41204-0K060 |
GGN50..GCC;KUN51..RHD..(IDSUV,SUVW)..4FC..GEN DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41204-0K060 |
GGN50..GCC;KUN51..RHD..(IDSUV,SUVW)..4FC..GEN DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90177-22003 |
TGN61..HTWCF;TGN61..4FC..HTWC..LA;GGN50,KUN5#,60,TGN51,61..IDSUV OD=39.5 |
1 | ||
| 90177-22003 |
TGN61..HTWCF;TGN61..4FC..HTWC..LA;GGN50,KUN5#,60,TGN51,61..IDSUV OD=39.5 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-26011 |
TGN61..HTWCF;TGN61..4FC..HTWC..LA;GGN50,KUN5#,60,TGN51,61..IDSUV |
1 | ||
| 41214-26011 |
TGN61..HTWCF;TGN61..4FC..HTWC..LA;GGN50,KUN5#,60,TGN51,61..IDSUV |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
5 | ||
| 41222-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
5 | ||
| 41222-60010 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC |
5 | ||
| 41222-60010 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC |
5 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-T0006 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,(L) |
10 | ||
| 90101-T0006 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,(L) |
10 | ||
| 90101-11353 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,(J),PNC 41301=TYPE A |
10 | ||
| 90101-11353 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,(J),PNC 41301=TYPE A |
10 | ||
| 90101-11353 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,(J) |
10 | ||
| 90101-11353 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,(J) |
10 | ||
| 90105-11063 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT,PNC 41301=TYPE B |
10 | ||
| 90105-11063 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT,PNC 41301=TYPE B |
10 | ||
| 90101-T0006 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,(L),PNC 41301=TYPE A |
10 | ||
| 90101-T0006 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,(L),PNC 41301=TYPE A |
10 | ||
| 90101-11353 |
LAN50..RHD;GGN50..GCC,GEN;TGN61..5F..HTWCF;KUN60..SUVW..(GEN,IDN,PHL);KUN51,61..RHD..4FC..(GEN,IND,TH);KUN51..LHD..(SUVW,THSUV)..(GEN,PHL);KUN51,TGN61..SUVW..5F..(GCC,GEN,TH);TGN51..SUVW..(GCC,GEN,IDN,KZS,SA,VN);TGN61..SUVW..4FC..(GCC,GEN,IDN,LA,PHL) |
10 | ||
| 90101-11353 |
LAN50..RHD;GGN50..GCC,GEN;TGN61..5F..HTWCF;KUN60..SUVW..(GEN,IDN,PHL);KUN51,61..RHD..4FC..(GEN,IND,TH);KUN51..LHD..(SUVW,THSUV)..(GEN,PHL);KUN51,TGN61..SUVW..5F..(GCC,GEN,TH);TGN51..SUVW..(GCC,GEN,IDN,KZS,SA,VN);TGN61..SUVW..4FC..(GCC,GEN,IDN,LA,PHL) |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-24010 |
TGN61..HTWCF;TGN61..4FC..HTWC..LA;GGN50,KUN5#,60,TGN51,61..IDSUV |
1 | ||
| 41231-24010 |
TGN61..HTWCF;TGN61..4FC..HTWC..LA;GGN50,KUN5#,60,TGN51,61..IDSUV |
1 | ||
| 41301 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-0K011 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41301-0K011 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 41301-0K110 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT,PNC 41301=TYPE B |
1 | ||
| 41301-0K110 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT,PNC 41301=TYPE B |
1 | ||
| 41301-0K011 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,PNC 41301=TYPE A |
1 | ||
| 41301-0K011 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT,PNC 41301=TYPE A |
1 | ||
| 41301-60060 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN |
1 | ||
| 41301-60060 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-T0010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 90366-T0010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 90366-50007 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN RH |
1 | ||
| 90366-50007 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN RH |
1 | ||
| 90366-75001 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN LH |
1 | ||
| 90366-75001 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN LH |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-T0010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 90366-T0010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 90366-50007 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN RH |
1 | ||
| 90366-50007 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN RH |
1 | ||
| 90366-75001 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN LH |
1 | ||
| 90366-75001 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN LH |
1 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90105-10569 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC |
8 | ||
| 90105-10569 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC |
8 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35020 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC RH |
1 | ||
| 41315-35020 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC RH |
1 | ||
| 41315-60010 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC LH |
1 | ||
| 41315-60010 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC LH |
1 | ||
| 41315-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41315-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41315 - NUT, REAR DIFFERENTIAL BEARING ADJUSTING | ||||
| 41315-35020 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC RH |
1 | ||
| 41315-35020 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC RH |
1 | ||
| 41315-60010 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC LH |
1 | ||
| 41315-60010 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC LH |
1 | ||
| 41315-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41315-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41316 - LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT | ||||
| 41316-35010 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
2 | ||
| 41316-35010 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
2 | ||
| 41316-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41316-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-35070 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC |
1 | ||
| 41341-35070 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
4 | ||
| 41351-30060 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
4 | ||
| 41351-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41351-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
4 | ||
| 41351-30060 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
4 | ||
| 41351-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41351-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
4 | ||
| 41351-30060 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
4 | ||
| 41351-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41351-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
4 | ||
| 41351-30060 |
TGN61..HTWCF;GGN50..IDSUV..GCC;TGN61..4FC..HTWC..LA;KUN51..RHD..IDSUV..4FC |
4 | ||
| 41351-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41351-0K010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-0K020 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.55,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K020 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.55,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K060 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.75,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K060 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.75,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K050 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.70,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K050 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.70,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K030 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.60,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K030 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.60,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-35320 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.0,RH,ID=46 |
1 | ||
| 41361-35320 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.0,RH,ID=46 |
1 | ||
| 41361-0K080 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.85,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K080 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.85,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K070 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.80,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K070 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.80,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-35310 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=0.9,RH,ID=46 |
1 | ||
| 41361-35310 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=0.9,RH,ID=46 |
1 | ||
| 41361-0K040 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.65,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K040 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.65,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-60300 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.00,RH & LH,ID=54 |
2 | ||
| 41361-60300 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.00,RH & LH,ID=54 |
2 | ||
| 41361-0K090 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.90,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K090 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.90,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-60290 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=0.90,RH & LH,ID=54 |
1 | ||
| 41361-60290 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=0.90,RH & LH,ID=54 |
1 | ||
| 41361-35330 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.1,RH,ID=46 |
1 | ||
| 41361-35330 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.1,RH,ID=46 |
1 | ||
| 41361-60310 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.10,RH & LH,ID=54 |
2 | ||
| 41361-60310 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.10,RH & LH,ID=54 |
2 | ||
| 41361-35350 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.3,RH,ID=46 |
1 | ||
| 41361-35350 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.3,RH,ID=46 |
1 | ||
| 41361-35340 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.2,RH,ID=46 |
1 | ||
| 41361-35340 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.2,RH,ID=46 |
1 | ||
| 41361-60320 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.20,RH & LH,ID=54 |
2 | ||
| 41361-60320 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.20,RH & LH,ID=54 |
2 | ||
| 41361-34010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.50,DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41361-34010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.50,DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41361-60330 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.30,RH & LH,ID=54 |
2 | ||
| 41361-60330 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.30,RH & LH,ID=54 |
2 | ||
| 41361-34040 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.65,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34040 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.65,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34030 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.60,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34030 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.60,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34020 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.55,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34020 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.55,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34050 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.70,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34050 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.70,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34080 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.85,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34080 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.85,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34060 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.75,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34060 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.75,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34070 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.80,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34070 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.80,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34090 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.90,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34090 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.90,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-0K020 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.55,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K020 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.55,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K060 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.75,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K060 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.75,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K050 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.70,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K050 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.70,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K030 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.60,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K030 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.60,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-35320 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.0,RH,ID=46 |
1 | ||
| 41361-35320 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.0,RH,ID=46 |
1 | ||
| 41361-0K080 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.85,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K080 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.85,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K070 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.80,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K070 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.80,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-35310 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=0.9,RH,ID=46 |
1 | ||
| 41361-35310 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=0.9,RH,ID=46 |
1 | ||
| 41361-0K040 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.65,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K040 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.65,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-60300 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.00,RH & LH,ID=54 |
2 | ||
| 41361-60300 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.00,RH & LH,ID=54 |
2 | ||
| 41361-0K090 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.90,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-0K090 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.90,DIFFERENTIAL LOCK-WITHOUT,(L) |
2 | ||
| 41361-60290 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=0.90,RH & LH,ID=54 |
1 | ||
| 41361-60290 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=0.90,RH & LH,ID=54 |
1 | ||
| 41361-35330 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.1,RH,ID=46 |
1 | ||
| 41361-35330 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.1,RH,ID=46 |
1 | ||
| 41361-60310 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.10,RH & LH,ID=54 |
2 | ||
| 41361-60310 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.10,RH & LH,ID=54 |
2 | ||
| 41361-35350 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.3,RH,ID=46 |
1 | ||
| 41361-35350 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.3,RH,ID=46 |
1 | ||
| 41361-35340 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.2,RH,ID=46 |
1 | ||
| 41361-35340 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.2,RH,ID=46 |
1 | ||
| 41361-60320 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.20,RH & LH,ID=54 |
2 | ||
| 41361-60320 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.20,RH & LH,ID=54 |
2 | ||
| 41361-34010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.50,DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41361-34010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.50,DIFFERENTIAL LOCK-WITHOUT |
2 | ||
| 41361-60330 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.30,RH & LH,ID=54 |
2 | ||
| 41361-60330 |
GGN50..IDSUV..GCC;KUN51..RHD..IDSUV..4FC T=1.30,RH & LH,ID=54 |
2 | ||
| 41361-34040 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.65,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34040 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.65,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34030 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.60,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34030 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.60,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34020 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.55,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34020 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.55,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34050 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.70,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34050 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.70,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34080 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.85,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34080 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.85,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34060 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.75,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34060 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.75,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34070 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.80,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34070 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.80,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34090 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.90,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41361-34090 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC T=1.90,DIFFERENTIAL LOCK-WITHOUT,(J) |
2 | ||
| 41371 - SPIDER, REAR DIFFERENTIAL | ||||
| 41371-35020 |
GGN50..IDSUV..GCC;KUN51..RHD..(IDSUV,SASUV)..4FC |
1 | ||
| 41371-35020 |
GGN50..IDSUV..GCC;KUN51..RHD..(IDSUV,SASUV)..4FC |
1 | ||
| 41371-35020 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC |
1 | ||
| 41371-35020 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC |
1 | ||
| 41442 - BOLT OR PIN, SHIFT FORK LOCK | ||||
| 90254-05016 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC |
1 | ||
| 90254-05016 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC |
1 | ||
| 90254-05016 |
GGN50..IDSUV..GCC;KUN51..RHD..(IDSUV,SASUV)..4FC |
1 | ||
| 90254-05016 |
GGN50..IDSUV..GCC;KUN51..RHD..(IDSUV,SASUV)..4FC |
1 | ||
| 41450 - ACTUATOR, DIFFERENTIAL LOCK SHIFT | ||||
| 41450-35031 |
KUN51..RHD..4FC;GGN50,KUN61..(5F,5FC)..(GCC,SA) |
1 | ||
| 41450-35031 |
KUN51..RHD..4FC;GGN50,KUN61..(5F,5FC)..(GCC,SA) |
1 | ||
| 41450-35030 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN |
1 | ||
| 41450-35030 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN |
1 | ||
| 41450-35031 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC |
1 | ||
| 41450-35031 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC |
1 | ||
| 41450C - RING, O (FOR REAR DIFFERENTIAL LOCK SHIFT ACTUATOR) | ||||
| 90301-20005 |
GGN50..IDSUV..GCC;KUN51..RHD..(IDSUV,SASUV)..4FC |
1 | ||
| 90301-20005 |
GGN50..IDSUV..GCC;KUN51..RHD..(IDSUV,SASUV)..4FC |
1 | ||
| 90301-20005 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC |
1 | ||
| 90301-20005 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC |
1 | ||
| 41451 - FORK, REAR DIFFERENTIAL LOCK SHIFT | ||||
| 41451-60020 |
GGN50..IDSUV..GCC;KUN51..RHD..(IDSUV,SASUV)..4FC |
1 | ||
| 41451-60020 |
GGN50..IDSUV..GCC;KUN51..RHD..(IDSUV,SASUV)..4FC |
1 | ||
| 41451-60020 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC |
1 | ||
| 41451-60020 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC |
1 | ||
| 41453 - SLEEVE, REAR DIFFERENTIAL LOCK | ||||
| 41453-60020 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC |
1 | ||
| 41453-60020 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC |
1 | ||
| 41453-60020 |
GGN50..IDSUV..GCC;KUN51..RHD..(IDSUV,SASUV)..4FC |
1 | ||
| 41453-60020 |
GGN50..IDSUV..GCC;KUN51..RHD..(IDSUV,SASUV)..4FC |
1 | ||
| 41460J - BALL (FOR REAR DIFFERENTIAL LOCK CYLINDER) | ||||
| 90360-08009 |
GGN50..IDSUV..GCC;KUN51..RHD..(IDSUV,SASUV)..4FC |
1 | ||
| 90360-08009 |
GGN50..IDSUV..GCC;KUN51..RHD..(IDSUV,SASUV)..4FC |
1 | ||
| 90360-08009 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC |
1 | ||
| 90360-08009 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC |
1 | ||
| 41462K - SHAFT, REAR DIFFERENTIAL LOCK SHIFT FORK | ||||
| 41462-60020 |
GGN50..IDSUV..GCC;KUN51..RHD..(IDSUV,SASUV)..4FC |
1 | ||
| 41462-60020 |
GGN50..IDSUV..GCC;KUN51..RHD..(IDSUV,SASUV)..4FC |
1 | ||
| 41462-60020 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC |
1 | ||
| 41462-60020 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC |
1 | ||
| 41465B - SPRING, COMPRESSION (FOR REAR DIFFERENTIAL LOCK RETAINE | ||||
| 90501-12110 |
GGN50..IDSUV..GCC;KUN51..RHD..(IDSUV,SASUV)..4FC |
1 | ||
| 90501-12110 |
GGN50..IDSUV..GCC;KUN51..RHD..(IDSUV,SASUV)..4FC |
1 | ||
| 90501-12110 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC |
1 | ||
| 90501-12110 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC |
1 | ||
| 41465D - PLUG (FOR REAR DIFFERENTIAL LOCK CYLINDER) | ||||
| 90341-10065 |
GGN50..IDSUV..GCC;KUN51..RHD..(IDSUV,SASUV)..4FC |
2 | ||
| 90341-10065 |
GGN50..IDSUV..GCC;KUN51..RHD..(IDSUV,SASUV)..4FC |
2 | ||
| 90341-10065 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC |
2 | ||
| 90341-10065 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC |
2 | ||
| 41465D - PLUG (FOR REAR DIFFERENTIAL LOCK CYLINDER) | ||||
| 90341-10065 |
GGN50..IDSUV..GCC;KUN51..RHD..(IDSUV,SASUV)..4FC |
2 | ||
| 90341-10065 |
GGN50..IDSUV..GCC;KUN51..RHD..(IDSUV,SASUV)..4FC |
2 | ||
| 90341-10065 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC |
2 | ||
| 90341-10065 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC |
2 | ||
| 41469A - RETAINER, REAR DIFFERENTIAL LOCK SHAFT | ||||
| 41469-60010 |
GGN50..IDSUV..GCC;KUN51..RHD..(IDSUV,SASUV)..4FC |
1 | ||
| 41469-60010 |
GGN50..IDSUV..GCC;KUN51..RHD..(IDSUV,SASUV)..4FC |
1 | ||
| 41469-60010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC |
1 | ||
| 41469-60010 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC |
1 | ||
| 41507 - TUBE, REAR DIFFERENTIAL LOCK ACTUATOR BREATHER | ||||
| 41507-35130 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN NO.1 |
1 | ||
| 41507-35130 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN NO.1 |
1 | ||
| 41507-0K010 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA;KUN51..RHD..4FC..GEN NO.2 |
1 | ||
| 41507-0K010 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA;KUN51..RHD..4FC..GEN NO.2 |
1 | ||
| 41507 - TUBE, REAR DIFFERENTIAL LOCK ACTUATOR BREATHER | ||||
| 41507-35130 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN NO.1 |
1 | ||
| 41507-35130 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN NO.1 |
1 | ||
| 41507-0K010 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA;KUN51..RHD..4FC..GEN NO.2 |
1 | ||
| 41507-0K010 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA;KUN51..RHD..4FC..GEN NO.2 |
1 | ||
| 41534B - BRACKET, DIFFERENTIAL BREATHER | ||||
| 41534-35030 |
GGN50..IDSUV..GCC;KUN51..RHD..(IDSUV,SASUV)..4FC |
1 | ||
| 41534-35030 |
GGN50..IDSUV..GCC;KUN51..RHD..(IDSUV,SASUV)..4FC |
1 | ||
| 41534-35030 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC |
1 | ||
| 41534-35030 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC |
1 | ||
| Common parts | ||||
| 90105-08050 | ||||
| 90105-08214 | ||||
| 91611-60814 | ||||
| 91611-B0812 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(1107- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER | ||||
| 04412-0K520 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 04412-0K520 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT&ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT |
1 | ||
| 04412-0K470 |
GGN50..GCC;LAN50..RHD;TGN51..SA,VN;KUN51..RHD..4FC..GEN |
1 | ||
| 41101G - WASHER, SPRING(FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90201-08002 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT&ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT |
10 | ||
| 90201-08002 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN |
11 | ||
| 90201-08002 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
10 | ||
| 41101H - NUT, HEXAGON(FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90170-08042 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
10 | ||
| 90170-08042 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT&ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT |
10 | ||
| 90170-08042 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN |
11 | ||
| 90170-08042 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT&ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT,(J) |
10 | ||
| 90170-T0009 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT&ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT,(L) |
10 | ||
| 90170-T0009 |
KUN51..RHD..4FC;TGN51..KZS,SA,VN;GGN50,KUN61..(5F,5FC)..(GCC,SA) (L) |
11 | ||
| 90170-08042 |
KUN51..RHD..4FC;TGN51..KZS,SA,VN;GGN50,KUN61..(5F,5FC)..(GCC,SA) (J) |
11 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-08329 |
GGN50..GCC S=17 & 12,L=37,DIFFERENTIAL LOCK-WITHOUT&ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT |
8 | ||
| 90116-08330 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN S=17 & 12,L=111 |
2 | ||
| 90116-08329 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC S=17 & 12,L=37,DIFFERENTIAL LOCK-WITHOUT |
8 | ||
| 90116-08233 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,SA,TH,VN S=14 & 14,L=42 |
2 | ||
| 90116-08329 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN S=17 & 12,L=37 |
7 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-0K460 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT&ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT |
1 | ||
| 42110-0K470 |
GGN50..GCC ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT |
1 | ||
| 42110-0K490 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 42110-0K480 |
GGN50..GCC;LAN50..RHD;TGN51..SA,VN;KUN51..RHD..4FC..GEN |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18006 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,SA,TH,VN |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,SA,TH,VN |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03031 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,SA,TH,VN |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,SA,TH,VN |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
GGN50,60,KUN5#,6#,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,SA,TH,VN |
1 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-0K030 |
GGN50..GCC;KUN51..RHD..IDSUV..4FC DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 42181-0K030 |
GGN50..GCC DIFFERENTIAL LOCK-WITHOUT&ABS (ANTI-LOCK BRAKE SYSTEM)-WITHOUT |
1 | ||
| 42181-0K020 |
GGN50..GCC;LAN50..RHD;TGN51..KZS,SA,VN;KUN51..RHD..4FC..GEN |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
