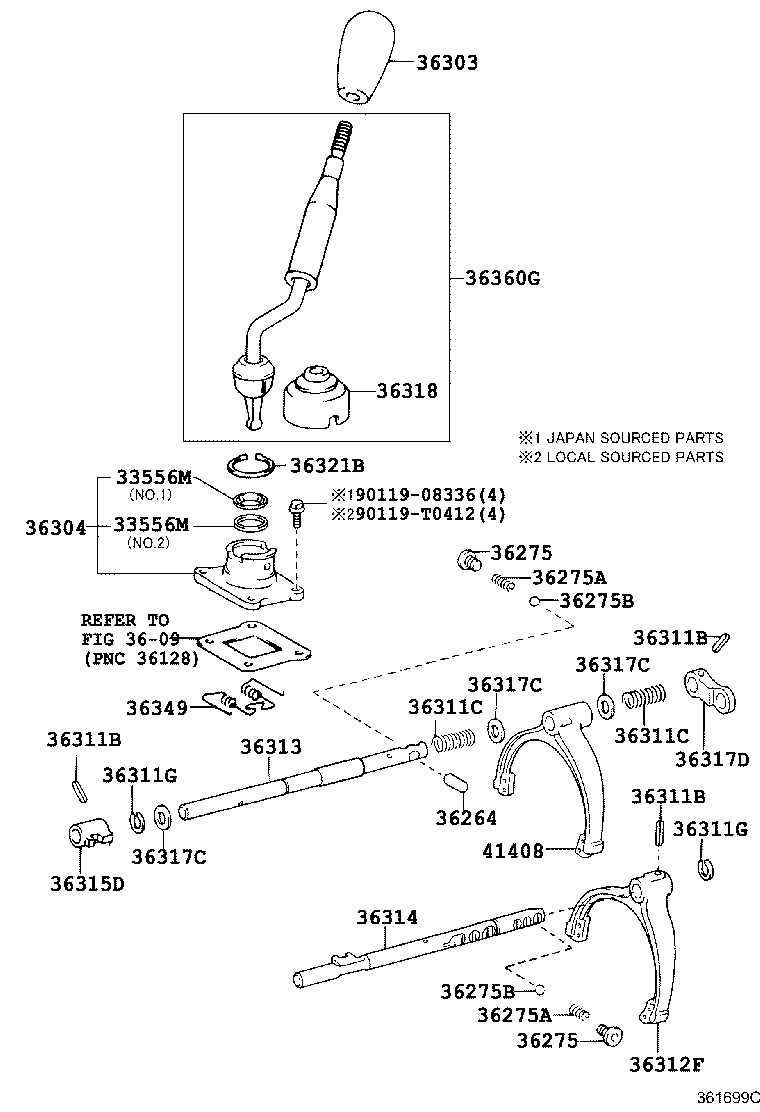

GGN50L-EKASKV (2011)
Toyota Fortuner
(1107- )KUN51 ; (1107- )GGN50,KUN50,TGN51..4FC,5FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33556M - SEAT, TRANSFER SHIFT LEVER BALL | ||||
| 33556-14010 |
KUN5#..CO,GEN,IDN,LA,MA,PHL,SA,TH;GGN50,TGN51..(4FC,5FC)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,SA) NO.1 |
1 | ||
| 33556-14010 |
GGN50,LAN50,TGN51..5F T/P B:SEE 36-08,NO.1,T/P A:SEE 36-08,NO.1 |
1 | ||
| 33556-14020 |
KUN5#..CO,GEN,IDN,LA,MA,PHL,SA,TH;GGN50,TGN51..(4FC,5FC)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,SA) NO.2 |
1 | ||
| 33556-14020 |
GGN50,LAN50,TGN51..5F T/P B:SEE 36-08,NO.2,T/P A:SEE 36-08,NO.2 |
1 | ||
| 33556M - SEAT, TRANSFER SHIFT LEVER BALL | ||||
| 33556-14010 |
KUN5#..CO,GEN,IDN,LA,MA,PHL,SA,TH;GGN50,TGN51..(4FC,5FC)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,SA) NO.1 |
1 | ||
| 33556-14010 |
GGN50,LAN50,TGN51..5F T/P B:SEE 36-08,NO.1,T/P A:SEE 36-08,NO.1 |
1 | ||
| 33556-14020 |
KUN5#..CO,GEN,IDN,LA,MA,PHL,SA,TH;GGN50,TGN51..(4FC,5FC)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,SA) NO.2 |
1 | ||
| 33556-14020 |
GGN50,LAN50,TGN51..5F T/P B:SEE 36-08,NO.2,T/P A:SEE 36-08,NO.2 |
1 | ||
| 36264 - PIN OR ROLLER, SHIFT INTER-LOCK | ||||
| 90250-10020 |
GGN50,KUN5#,LAN50,TGN51 L=25.7,OD=9.53,TYPE B:REFER 36-08 |
1 | ||
| 90250-T0025 |
GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH L=25.7,OD=9.53,TYPE B:REFER 36-08 |
1 | ||
| 90250-10020 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA L=25.7,OD=9.53,TYPE A:REFER 36-08 |
1 | ||
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90341-12014 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA TYPE A:REFER 36-08 |
2 | ||
| 90341-12014 |
LAN50..LHD;KUN51..5F..CO;TGN51..4FC..SA;KUN51..SUVW..5FC;KUN51..IDSUV,SASUV;TGN51..CO,EPT,KZS,MA,PKN,VN;GGN50,TGN51..IDSUV..(GCC,GEN,IDN);KUN51..SUVW..(4FC,5F)..(IND,LA,SA);GGN50,KUN50..ANCOM,CO,EPT,IDN,LA,MA,SA TYPE B:REFER 36-08 |
2 | ||
| 90341-T0014 |
GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH TYPE B:REFER 36-08 |
2 | ||
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90341-12014 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA TYPE A:REFER 36-08 |
2 | ||
| 90341-12014 |
LAN50..LHD;KUN51..5F..CO;TGN51..4FC..SA;KUN51..SUVW..5FC;KUN51..IDSUV,SASUV;TGN51..CO,EPT,KZS,MA,PKN,VN;GGN50,TGN51..IDSUV..(GCC,GEN,IDN);KUN51..SUVW..(4FC,5F)..(IND,LA,SA);GGN50,KUN50..ANCOM,CO,EPT,IDN,LA,MA,SA TYPE B:REFER 36-08 |
2 | ||
| 90341-T0014 |
GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH TYPE B:REFER 36-08 |
2 | ||
| 36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-16116 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA L=23,TYPE A:REFER 36-08 |
2 | ||
| 90501-16116 |
GGN50,KUN5#,LAN50,TGN51 L=23,TYPE B:REFER 36-08 |
2 | ||
| 90501-T0035 |
GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH L=23,TYPE B:REFER 36-08 |
2 | ||
| 36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-16116 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA L=23,TYPE A:REFER 36-08 |
2 | ||
| 90501-16116 |
GGN50,KUN5#,LAN50,TGN51 L=23,TYPE B:REFER 36-08 |
2 | ||
| 90501-T0035 |
GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH L=23,TYPE B:REFER 36-08 |
2 | ||
| 36275B - BALL, SHIFT DETENT | ||||
| 90360-10003 |
GGN50,KUN5#,LAN50,TGN51 OD=9.52,STEEL,TYPE B:REFER 36-08 |
2 | ||
| 90360-10003 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA OD=9.52,STEEL,TYPE A:REFER 36-08 |
2 | ||
| 90360-T0008 |
GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH OD=9.53,STEEL,TYPE B:REFER 36-08 |
2 | ||
| 36275B - BALL, SHIFT DETENT | ||||
| 90360-10003 |
GGN50,KUN5#,LAN50,TGN51 OD=9.52,STEEL,TYPE B:REFER 36-08 |
2 | ||
| 90360-10003 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA OD=9.52,STEEL,TYPE A:REFER 36-08 |
2 | ||
| 90360-T0008 |
GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH OD=9.53,STEEL,TYPE B:REFER 36-08 |
2 | ||
| 36303 - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 36303-60290E1 |
KUN51..IND,PHL;KUN51..RHD..5F..SA;KUN51..RHD..(4FC,5FC);KUN51..LHD..SUVW..GEN;GGN50..ANCOM,CO,EPT,GCC,SA;KUN51,TGN51..(HTWC,IART)..(GEN,IDN,LA,MA,PKN,VN) ASH BROWN,TRIM4# |
1 | ||
| 36304 - RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER | ||||
| 36304-60100 |
GGN50,LAN50,TGN51..5F TYPE B:REFER 36-08,TYPE A:REFER 36-08 |
1 | ||
| 36304-60040 |
GGN50,KUN5#,TGN51..(4FC,5FC)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) |
1 | ||
| 36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) | ||||
| 90254-05001 |
KUN51;GGN50,KUN50,TGN51..4FC,5FC L=22,TYPE B:REFER 36-08 |
4 | ||
| 90254-05001 |
GGN50,LAN50,TGN51..5F L=22,TYPE B:REFER 36-08 |
3 | ||
| 90254-T0003 |
KUN5#..CO,GEN,IDN,LA,MA,PHL,SA,TH;GGN50,TGN51..(4FC,5FC)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,SA) L=22,TYPE B:REFER 36-08 |
4 | ||
| 90254-05001 |
GGN50,LAN50,TGN51..5F L=22,TYPE A:REFER 36-08 |
3 | ||
| 90254-05001 |
KUN51..5FC..TH;KUN51..CO,GEN,LA,PHL,SA;GGN50,KUN50,TGN51..(4FC,5FC)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,SA) L=22,TYPE A:REFER 36-08 |
4 | ||
| 36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) | ||||
| 90254-05001 |
KUN51;GGN50,KUN50,TGN51..4FC,5FC L=22,TYPE B:REFER 36-08 |
4 | ||
| 90254-05001 |
GGN50,LAN50,TGN51..5F L=22,TYPE B:REFER 36-08 |
3 | ||
| 90254-T0003 |
KUN5#..CO,GEN,IDN,LA,MA,PHL,SA,TH;GGN50,TGN51..(4FC,5FC)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,SA) L=22,TYPE B:REFER 36-08 |
4 | ||
| 90254-05001 |
GGN50,LAN50,TGN51..5F L=22,TYPE A:REFER 36-08 |
3 | ||
| 90254-05001 |
KUN51..5FC..TH;KUN51..CO,GEN,LA,PHL,SA;GGN50,KUN50,TGN51..(4FC,5FC)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,SA) L=22,TYPE A:REFER 36-08 |
4 | ||
| 36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) | ||||
| 90254-05001 |
KUN51;GGN50,KUN50,TGN51..4FC,5FC L=22,TYPE B:REFER 36-08 |
4 | ||
| 90254-05001 |
GGN50,LAN50,TGN51..5F L=22,TYPE B:REFER 36-08 |
3 | ||
| 90254-T0003 |
KUN5#..CO,GEN,IDN,LA,MA,PHL,SA,TH;GGN50,TGN51..(4FC,5FC)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,SA) L=22,TYPE B:REFER 36-08 |
4 | ||
| 90254-05001 |
GGN50,LAN50,TGN51..5F L=22,TYPE A:REFER 36-08 |
3 | ||
| 90254-05001 |
KUN51..5FC..TH;KUN51..CO,GEN,LA,PHL,SA;GGN50,KUN50,TGN51..(4FC,5FC)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,SA) L=22,TYPE A:REFER 36-08 |
4 | ||
| 36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) | ||||
| 90254-05001 |
KUN51;GGN50,KUN50,TGN51..4FC,5FC L=22,TYPE B:REFER 36-08 |
4 | ||
| 90254-05001 |
GGN50,LAN50,TGN51..5F L=22,TYPE B:REFER 36-08 |
3 | ||
| 90254-T0003 |
KUN5#..CO,GEN,IDN,LA,MA,PHL,SA,TH;GGN50,TGN51..(4FC,5FC)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,SA) L=22,TYPE B:REFER 36-08 |
4 | ||
| 90254-05001 |
GGN50,LAN50,TGN51..5F L=22,TYPE A:REFER 36-08 |
3 | ||
| 90254-05001 |
KUN51..5FC..TH;KUN51..CO,GEN,LA,PHL,SA;GGN50,KUN50,TGN51..(4FC,5FC)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,SA) L=22,TYPE A:REFER 36-08 |
4 | ||
| 36311C - SPRING, COMPRESION (FOR SHIFT FORK) | ||||
| 90501-18128 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA TYPE A:REFER 36-08 |
2 | ||
| 90501-18128 |
GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH TYPE B:REFER 36-08 |
2 | ||
| 36311C - SPRING, COMPRESION (FOR SHIFT FORK) | ||||
| 90501-18128 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA TYPE A:REFER 36-08 |
2 | ||
| 90501-18128 |
GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH TYPE B:REFER 36-08 |
2 | ||
| 36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) | ||||
| 90520-13002 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA TYPE A:REFER 36-08 |
2 | ||
| 90520-T0237 |
GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH TYPE B:REFER 36-08 |
2 | ||
| 90520-13002 |
LAN50..LHD;KUN51..5F..CO;TGN51..4FC..SA;KUN51..SUVW..5FC;KUN51..IDSUV,SASUV;TGN51..CO,EPT,KZS,MA,PKN,VN;GGN50,TGN51..IDSUV..(GCC,GEN,IDN);KUN51..SUVW..(4FC,5F)..(IND,LA,SA);GGN50,KUN50..ANCOM,CO,EPT,IDN,LA,MA,SA TYPE B:REFER 36-08 |
2 | ||
| 36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) | ||||
| 90520-13002 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA TYPE A:REFER 36-08 |
2 | ||
| 90520-T0237 |
GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH TYPE B:REFER 36-08 |
2 | ||
| 90520-13002 |
LAN50..LHD;KUN51..5F..CO;TGN51..4FC..SA;KUN51..SUVW..5FC;KUN51..IDSUV,SASUV;TGN51..CO,EPT,KZS,MA,PKN,VN;GGN50,TGN51..IDSUV..(GCC,GEN,IDN);KUN51..SUVW..(4FC,5F)..(IND,LA,SA);GGN50,KUN50..ANCOM,CO,EPT,IDN,LA,MA,SA TYPE B:REFER 36-08 |
2 | ||
| 36312F - FORK, TRANSFER GEAR SHIFT, NO.2 | ||||
| 36302-60190 |
GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH TYPE B:REFER 36-08 |
1 | ||
| 36302-60190 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA TYPE A:REFER 36-08 |
1 | ||
| 36313 - SHAFT, TRANSFER FRONT DRIVE SHIFT | ||||
| 36313-60140 |
GGN50,LAN50,TGN51..5F TYPE B:REFER 36-08,TYPE A:REFER 36-08 |
1 | ||
| 36313-71020 |
GGN50,KUN51..5FC..(ANCOM,CO,GCC,GEN,LA,SA,TH) TYPE B:REFER 36-08,TYPE A:REFER 36-08 |
1 | ||
| 36314 - SHAFT, TRANSFER HIGH AND LOW SHIFT FORK | ||||
| 36314-60120 |
GGN50,LAN50,TGN51..5F TYPE B:REFER 36-08,TYPE A:REFER 36-08 |
1 | ||
| 36314-71020 |
GGN50,KUN51..5FC..(ANCOM,CO,GCC,GEN,LA,SA,TH) TYPE B:REFER 36-08,TYPE A:REFER 36-08 |
1 | ||
| 36315D - HEAD, TRANSFER GEAR SHIFT, NO.1 | ||||
| 36315-60030 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA TYPE A:REFER 36-08 |
1 | ||
| 36315-60030 |
GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH TYPE B:REFER 36-08 |
1 | ||
| 36316 - HEAD, TRANSFER GEAR SHIFT, NO.2 | ||||
| 36316-60010 |
KUN51..5FC..TH;KUN51..CO,GEN,LA,PHL,SA;GGN50,KUN50,TGN51..(4FC,5FC)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,SA) TYPE A:REFER 36-08 |
1 | ||
| 36316-60010 |
KUN5#..CO,GEN,IDN,LA,MA,PHL,SA,TH;GGN50,TGN51..(4FC,5FC)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,SA) TYPE B:REFER 36-08 |
1 | ||
| 36317C - STOPPER, TRANSFER SHIFT SHAFT | ||||
| 36317-35020 |
GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH TYPE B:REFER 36-08 |
3 | ||
| 36317-35020 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA TYPE A:REFER 36-08 |
3 | ||
| 36317C - STOPPER, TRANSFER SHIFT SHAFT | ||||
| 36317-35020 |
GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH TYPE B:REFER 36-08 |
3 | ||
| 36317-35020 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA TYPE A:REFER 36-08 |
3 | ||
| 36317C - STOPPER, TRANSFER SHIFT SHAFT | ||||
| 36317-35020 |
GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH TYPE B:REFER 36-08 |
3 | ||
| 36317-35020 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA TYPE A:REFER 36-08 |
3 | ||
| 36317D - STOPPER, NO.2, TRANSFER SHIFT SHAFT | ||||
| 36317-60020 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA TYPE A:REFER 36-08 |
1 | ||
| 36317-60020 |
GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH TYPE B:REFER 36-08 |
1 | ||
| 36318 - BOOT, TRANSFER FRONT DRIVE SHIFT | ||||
| 33555-35190 |
GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 36321B - RING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER) | ||||
| 90521-49003 |
GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 36345 - GASKET, TRANSFER CONTROL SHIFT LEVER RETAINER | ||||
| 36345-35040 |
KUN5#..CO,GEN,IDN,LA,MA,PHL,SA,TH;GGN50,TGN51..(4FC,5FC)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,SA) |
1 | ||
| 36349 - SPRING, TRANSFER SELECT RETURN | ||||
| 36349-60020 |
KUN5#..CO,GEN,IDN,LA,MA,PHL,SA,TH;GGN50,TGN51..(4FC,5FC)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,SA) |
1 | ||
| 36349-60010 |
GGN50,LAN50,TGN51..5F TYPE B:REFER 36-08,TYPE A:REFER 36-08 |
1 | ||
| 36360G - LEVER ASSY, TRANSFER HIGH & LOW SHIFT | ||||
| 36360-71220 |
GGN50,LAN50..LHD..5F |
1 | ||
| 36360-71210 |
GGN50..5FC..(ANCOM,CO,GCC,GEN,LA) |
1 | ||
| 41408 - FORK SUB-ASSY, CENTER DIFFERENTIAL LOCK | ||||
| 41408-60030 |
GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH TYPE B:REFER 36-08 |
1 | ||
| 41408-60030 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA TYPE A:REFER 36-08 |
1 | ||
| Common parts | ||||
| 90119-08336 | ||||
| 90119-T0412 | ||||
(1107- )GGN50,LAN50,TGN51..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33556M - SEAT, TRANSFER SHIFT LEVER BALL | ||||
| 33556-14010 |
KUN5#..CO,GEN,IDN,LA,MA,PHL,SA,TH;GGN50,TGN51..(4FC,5FC)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,SA) NO.1 |
1 | ||
| 33556-14010 |
GGN50,LAN50,TGN51..5F T/P B:SEE 36-08,NO.1,T/P A:SEE 36-08,NO.1 |
1 | ||
| 33556-14020 |
KUN5#..CO,GEN,IDN,LA,MA,PHL,SA,TH;GGN50,TGN51..(4FC,5FC)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,SA) NO.2 |
1 | ||
| 33556-14020 |
GGN50,LAN50,TGN51..5F T/P B:SEE 36-08,NO.2,T/P A:SEE 36-08,NO.2 |
1 | ||
| 33556M - SEAT, TRANSFER SHIFT LEVER BALL | ||||
| 33556-14010 |
KUN5#..CO,GEN,IDN,LA,MA,PHL,SA,TH;GGN50,TGN51..(4FC,5FC)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,SA) NO.1 |
1 | ||
| 33556-14010 |
GGN50,LAN50,TGN51..5F T/P B:SEE 36-08,NO.1,T/P A:SEE 36-08,NO.1 |
1 | ||
| 33556-14020 |
KUN5#..CO,GEN,IDN,LA,MA,PHL,SA,TH;GGN50,TGN51..(4FC,5FC)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,SA) NO.2 |
1 | ||
| 33556-14020 |
GGN50,LAN50,TGN51..5F T/P B:SEE 36-08,NO.2,T/P A:SEE 36-08,NO.2 |
1 | ||
| 36264 - PIN OR ROLLER, SHIFT INTER-LOCK | ||||
| 90250-10020 |
GGN50,KUN5#,LAN50,TGN51 L=25.7,OD=9.53,TYPE B:REFER 36-08 |
1 | ||
| 90250-T0025 |
GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH L=25.7,OD=9.53,TYPE B:REFER 36-08 |
1 | ||
| 90250-10020 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA L=25.7,OD=9.53,TYPE A:REFER 36-08 |
1 | ||
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90341-12014 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA TYPE A:REFER 36-08 |
2 | ||
| 90341-12014 |
LAN50..LHD;KUN51..5F..CO;TGN51..4FC..SA;KUN51..SUVW..5FC;KUN51..IDSUV,SASUV;TGN51..CO,EPT,KZS,MA,PKN,VN;GGN50,TGN51..IDSUV..(GCC,GEN,IDN);KUN51..SUVW..(4FC,5F)..(IND,LA,SA);GGN50,KUN50..ANCOM,CO,EPT,IDN,LA,MA,SA TYPE B:REFER 36-08 |
2 | ||
| 90341-T0014 |
GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH TYPE B:REFER 36-08 |
2 | ||
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90341-12014 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA TYPE A:REFER 36-08 |
2 | ||
| 90341-12014 |
LAN50..LHD;KUN51..5F..CO;TGN51..4FC..SA;KUN51..SUVW..5FC;KUN51..IDSUV,SASUV;TGN51..CO,EPT,KZS,MA,PKN,VN;GGN50,TGN51..IDSUV..(GCC,GEN,IDN);KUN51..SUVW..(4FC,5F)..(IND,LA,SA);GGN50,KUN50..ANCOM,CO,EPT,IDN,LA,MA,SA TYPE B:REFER 36-08 |
2 | ||
| 90341-T0014 |
GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH TYPE B:REFER 36-08 |
2 | ||
| 36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-16116 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA L=23,TYPE A:REFER 36-08 |
2 | ||
| 90501-16116 |
GGN50,KUN5#,LAN50,TGN51 L=23,TYPE B:REFER 36-08 |
2 | ||
| 90501-T0035 |
GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH L=23,TYPE B:REFER 36-08 |
2 | ||
| 36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-16116 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA L=23,TYPE A:REFER 36-08 |
2 | ||
| 90501-16116 |
GGN50,KUN5#,LAN50,TGN51 L=23,TYPE B:REFER 36-08 |
2 | ||
| 90501-T0035 |
GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH L=23,TYPE B:REFER 36-08 |
2 | ||
| 36275B - BALL, SHIFT DETENT | ||||
| 90360-10003 |
GGN50,KUN5#,LAN50,TGN51 OD=9.52,STEEL,TYPE B:REFER 36-08 |
2 | ||
| 90360-10003 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA OD=9.52,STEEL,TYPE A:REFER 36-08 |
2 | ||
| 90360-T0008 |
GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH OD=9.53,STEEL,TYPE B:REFER 36-08 |
2 | ||
| 36275B - BALL, SHIFT DETENT | ||||
| 90360-10003 |
GGN50,KUN5#,LAN50,TGN51 OD=9.52,STEEL,TYPE B:REFER 36-08 |
2 | ||
| 90360-10003 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA OD=9.52,STEEL,TYPE A:REFER 36-08 |
2 | ||
| 90360-T0008 |
GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH OD=9.53,STEEL,TYPE B:REFER 36-08 |
2 | ||
| 36303 - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 36303-60290E1 |
KUN51..IND,PHL;KUN51..RHD..5F..SA;KUN51..RHD..(4FC,5FC);KUN51..LHD..SUVW..GEN;GGN50..ANCOM,CO,EPT,GCC,SA;KUN51,TGN51..(HTWC,IART)..(GEN,IDN,LA,MA,PKN,VN) ASH BROWN,TRIM4# |
1 | ||
| 36304 - RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER | ||||
| 36304-60100 |
GGN50,LAN50,TGN51..5F TYPE B:REFER 36-08,TYPE A:REFER 36-08 |
1 | ||
| 36304-60040 |
GGN50,KUN5#,TGN51..(4FC,5FC)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH) |
1 | ||
| 36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) | ||||
| 90254-05001 |
KUN51;GGN50,KUN50,TGN51..4FC,5FC L=22,TYPE B:REFER 36-08 |
4 | ||
| 90254-05001 |
GGN50,LAN50,TGN51..5F L=22,TYPE B:REFER 36-08 |
3 | ||
| 90254-T0003 |
KUN5#..CO,GEN,IDN,LA,MA,PHL,SA,TH;GGN50,TGN51..(4FC,5FC)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,SA) L=22,TYPE B:REFER 36-08 |
4 | ||
| 90254-05001 |
GGN50,LAN50,TGN51..5F L=22,TYPE A:REFER 36-08 |
3 | ||
| 90254-05001 |
KUN51..5FC..TH;KUN51..CO,GEN,LA,PHL,SA;GGN50,KUN50,TGN51..(4FC,5FC)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,SA) L=22,TYPE A:REFER 36-08 |
4 | ||
| 36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) | ||||
| 90254-05001 |
KUN51;GGN50,KUN50,TGN51..4FC,5FC L=22,TYPE B:REFER 36-08 |
4 | ||
| 90254-05001 |
GGN50,LAN50,TGN51..5F L=22,TYPE B:REFER 36-08 |
3 | ||
| 90254-T0003 |
KUN5#..CO,GEN,IDN,LA,MA,PHL,SA,TH;GGN50,TGN51..(4FC,5FC)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,SA) L=22,TYPE B:REFER 36-08 |
4 | ||
| 90254-05001 |
GGN50,LAN50,TGN51..5F L=22,TYPE A:REFER 36-08 |
3 | ||
| 90254-05001 |
KUN51..5FC..TH;KUN51..CO,GEN,LA,PHL,SA;GGN50,KUN50,TGN51..(4FC,5FC)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,SA) L=22,TYPE A:REFER 36-08 |
4 | ||
| 36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) | ||||
| 90254-05001 |
KUN51;GGN50,KUN50,TGN51..4FC,5FC L=22,TYPE B:REFER 36-08 |
4 | ||
| 90254-05001 |
GGN50,LAN50,TGN51..5F L=22,TYPE B:REFER 36-08 |
3 | ||
| 90254-T0003 |
KUN5#..CO,GEN,IDN,LA,MA,PHL,SA,TH;GGN50,TGN51..(4FC,5FC)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,SA) L=22,TYPE B:REFER 36-08 |
4 | ||
| 90254-05001 |
GGN50,LAN50,TGN51..5F L=22,TYPE A:REFER 36-08 |
3 | ||
| 90254-05001 |
KUN51..5FC..TH;KUN51..CO,GEN,LA,PHL,SA;GGN50,KUN50,TGN51..(4FC,5FC)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,SA) L=22,TYPE A:REFER 36-08 |
4 | ||
| 36311C - SPRING, COMPRESION (FOR SHIFT FORK) | ||||
| 90501-18128 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA TYPE A:REFER 36-08 |
2 | ||
| 90501-18128 |
GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH TYPE B:REFER 36-08 |
2 | ||
| 36311C - SPRING, COMPRESION (FOR SHIFT FORK) | ||||
| 90501-18128 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA TYPE A:REFER 36-08 |
2 | ||
| 90501-18128 |
GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH TYPE B:REFER 36-08 |
2 | ||
| 36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) | ||||
| 90520-13002 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA TYPE A:REFER 36-08 |
2 | ||
| 90520-T0237 |
GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH TYPE B:REFER 36-08 |
2 | ||
| 90520-13002 |
LAN50..LHD;KUN51..5F..CO;TGN51..4FC..SA;KUN51..SUVW..5FC;KUN51..IDSUV,SASUV;TGN51..CO,EPT,KZS,MA,PKN,VN;GGN50,TGN51..IDSUV..(GCC,GEN,IDN);KUN51..SUVW..(4FC,5F)..(IND,LA,SA);GGN50,KUN50..ANCOM,CO,EPT,IDN,LA,MA,SA TYPE B:REFER 36-08 |
2 | ||
| 36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) | ||||
| 90520-13002 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA TYPE A:REFER 36-08 |
2 | ||
| 90520-T0237 |
GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH TYPE B:REFER 36-08 |
2 | ||
| 90520-13002 |
LAN50..LHD;KUN51..5F..CO;TGN51..4FC..SA;KUN51..SUVW..5FC;KUN51..IDSUV,SASUV;TGN51..CO,EPT,KZS,MA,PKN,VN;GGN50,TGN51..IDSUV..(GCC,GEN,IDN);KUN51..SUVW..(4FC,5F)..(IND,LA,SA);GGN50,KUN50..ANCOM,CO,EPT,IDN,LA,MA,SA TYPE B:REFER 36-08 |
2 | ||
| 36312F - FORK, TRANSFER GEAR SHIFT, NO.2 | ||||
| 36302-60190 |
GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH TYPE B:REFER 36-08 |
1 | ||
| 36302-60190 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA TYPE A:REFER 36-08 |
1 | ||
| 36313 - SHAFT, TRANSFER FRONT DRIVE SHIFT | ||||
| 36313-60140 |
GGN50,LAN50,TGN51..5F TYPE B:REFER 36-08,TYPE A:REFER 36-08 |
1 | ||
| 36313-71020 |
GGN50,KUN51..5FC..(ANCOM,CO,GCC,GEN,LA,SA,TH) TYPE B:REFER 36-08,TYPE A:REFER 36-08 |
1 | ||
| 36314 - SHAFT, TRANSFER HIGH AND LOW SHIFT FORK | ||||
| 36314-60120 |
GGN50,LAN50,TGN51..5F TYPE B:REFER 36-08,TYPE A:REFER 36-08 |
1 | ||
| 36314-71020 |
GGN50,KUN51..5FC..(ANCOM,CO,GCC,GEN,LA,SA,TH) TYPE B:REFER 36-08,TYPE A:REFER 36-08 |
1 | ||
| 36315D - HEAD, TRANSFER GEAR SHIFT, NO.1 | ||||
| 36315-60030 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA TYPE A:REFER 36-08 |
1 | ||
| 36315-60030 |
GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH TYPE B:REFER 36-08 |
1 | ||
| 36317C - STOPPER, TRANSFER SHIFT SHAFT | ||||
| 36317-35020 |
GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH TYPE B:REFER 36-08 |
3 | ||
| 36317-35020 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA TYPE A:REFER 36-08 |
3 | ||
| 36317C - STOPPER, TRANSFER SHIFT SHAFT | ||||
| 36317-35020 |
GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH TYPE B:REFER 36-08 |
3 | ||
| 36317-35020 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA TYPE A:REFER 36-08 |
3 | ||
| 36317C - STOPPER, TRANSFER SHIFT SHAFT | ||||
| 36317-35020 |
GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH TYPE B:REFER 36-08 |
3 | ||
| 36317-35020 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA TYPE A:REFER 36-08 |
3 | ||
| 36317D - STOPPER, NO.2, TRANSFER SHIFT SHAFT | ||||
| 36317-60020 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA TYPE A:REFER 36-08 |
1 | ||
| 36317-60020 |
GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH TYPE B:REFER 36-08 |
1 | ||
| 36318 - BOOT, TRANSFER FRONT DRIVE SHIFT | ||||
| 33555-35190 |
GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 36321B - RING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER) | ||||
| 90521-49003 |
GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 36349 - SPRING, TRANSFER SELECT RETURN | ||||
| 36349-60020 |
KUN5#..CO,GEN,IDN,LA,MA,PHL,SA,TH;GGN50,TGN51..(4FC,5FC)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,SA) |
1 | ||
| 36349-60010 |
GGN50,LAN50,TGN51..5F TYPE B:REFER 36-08,TYPE A:REFER 36-08 |
1 | ||
| 36360G - LEVER ASSY, TRANSFER HIGH & LOW SHIFT | ||||
| 36360-71220 |
GGN50,LAN50..LHD..5F |
1 | ||
| 36360-71210 |
GGN50..5FC..(ANCOM,CO,GCC,GEN,LA) |
1 | ||
| 41408 - FORK SUB-ASSY, CENTER DIFFERENTIAL LOCK | ||||
| 41408-60030 |
GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH TYPE B:REFER 36-08 |
1 | ||
| 41408-60030 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA TYPE A:REFER 36-08 |
1 | ||
| Common parts | ||||
| 90119-08336 | ||||
| 90119-T0412 | ||||
| Linked diagrams | ||||
| 3609 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
