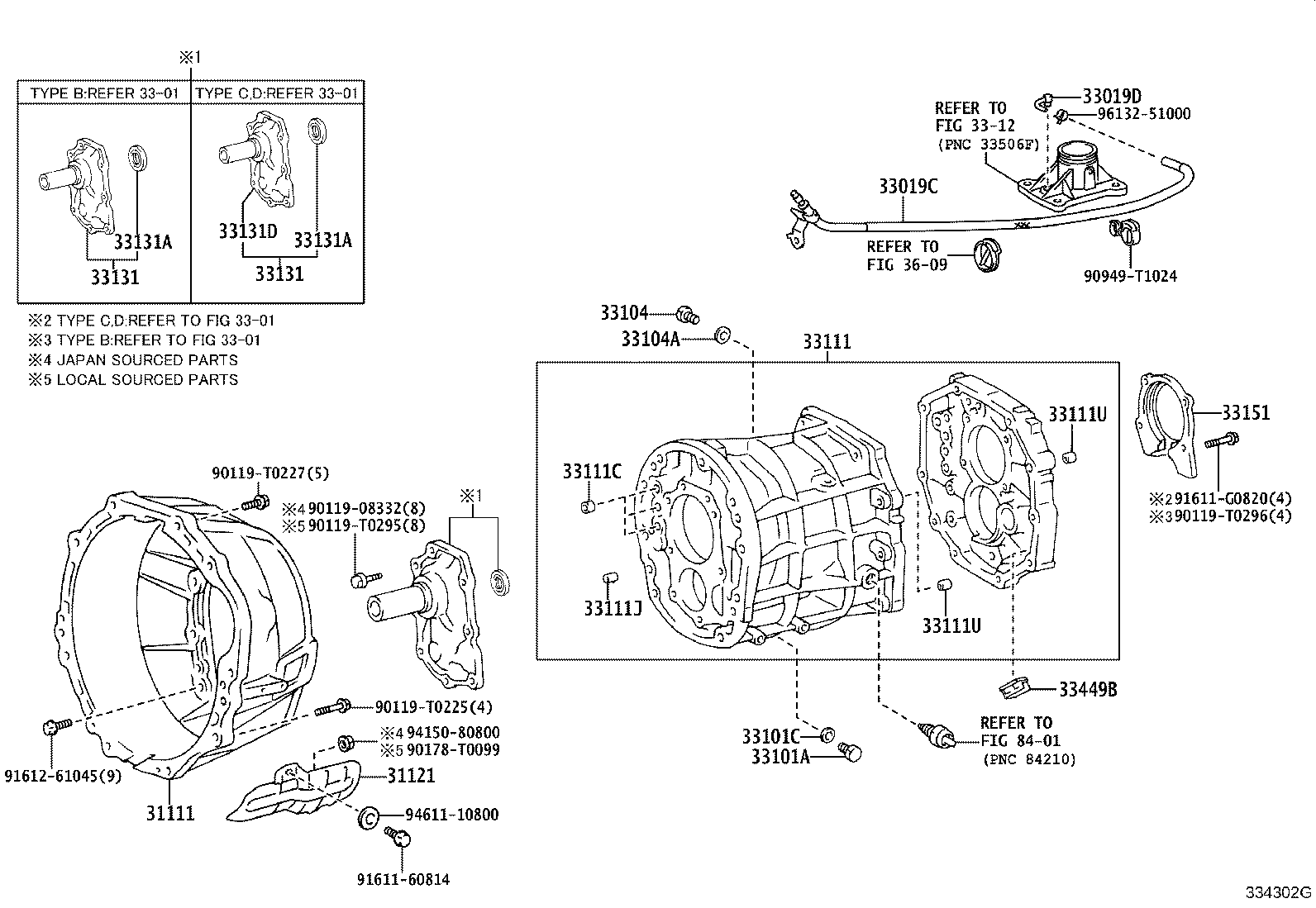

GGN50L-EKASKV (2011)
Toyota Fortuner
(1107- )GGN50..5F
R150,R150F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-0K050 |
GGN50..5F TYPE D:REFER 33-01 |
1 | ||
| 31111-0K050 |
GGN50..5F..(CO,LA);GGN50..IDSUV..5F..GCC TYPE C:REFER 33-01 |
1 | ||
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31101-0K010 |
GGN50..5F |
1 | ||
| 33019C - BREATHER SUB-ASSY, TRANSMISSION | ||||
| 33019-71030 |
GGN50..5F |
1 | ||
| 33019D - 2 WAY(FOR TRANSMISSION BREATHER HOSE) | ||||
| 36149-60070 |
GGN50,TGN51,61..5F..HTWC TYPE D:REFER 33-01 |
1 | ||
| 36149-60070 |
TGN51,61..5F;GGN50..5F..(CO,LA);GGN50..IDSUV..5F..GCC TYPE C:REFER 33-01 |
1 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18006 |
GGN50,KUN51,6#,TGN51,61..5F..(DCR,HDCR,HTWC)..(CO,GCC,GEN,IDN,KZS,LA,PHL,SA,TH) TYPE D:REFER 33-01 |
1 | ||
| 90341-18006 |
GGN50..5F..(CO,LA);GGN50..IDSUV..5F..GCC;KUN51,6#,TGN51,61..5F..(CO,GCC,GEN,IDN,KZS,LA,PHL,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
GGN50,KUN51,6#,TGN51,61..5F..(DCR,HDCR,HTWC) TYPE D:REFER 33-01 |
1 | ||
| 90430-18008 |
GGN50..5F..(CO,LA);KUN51,6#,TGN51,61..5F;GGN50..IDSUV..5F..GCC TYPE C:REFER 33-01 |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18006 |
GGN50..5F..(CO,LA);GGN50..IDSUV..5F..GCC;KUN51,6#,TGN51,61..5F..(CO,GCC,GEN,IDN,KZS,LA,PHL,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 90341-18006 |
GGN50,KUN51,6#,TGN51,61..5F..(DCR,HDCR,HTWC)..(CO,GCC,GEN,IDN,KZS,LA,PHL,SA,TH) TYPE D:REFER 33-01 |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
GGN50..5F..(CO,LA);KUN51,6#,TGN51,61..5F;GGN50..IDSUV..5F..GCC TYPE C:REFER 33-01 |
1 | ||
| 90430-18008 |
GGN50,KUN51,6#,TGN51,61..5F..(DCR,HDCR,HTWC) TYPE D:REFER 33-01 |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-0K010 |
GGN50..5F..(CO,LA);KUN51,6#,TGN51,61..5F;GGN50..IDSUV..5F..GCC TYPE C:REFER 33-01 |
1 | ||
| 33101-0K030 |
GGN50,KUN51,6#,TGN51,61..5F..(DCR,HDCR,HTWC) TYPE D:REFER 33-01 |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 96411-41800 |
GGN50,KUN51,6#,TGN51,61..5F..(DCR,HDCR,HTWC)..(CO,GCC,GEN,IDN,KZS,LA,PHL,SA,TH) OD=18,TYPE D:REFER 33-01 |
3 | ||
| 96411-41800 |
GGN50..5F..(CO,LA);GGN50..IDSUV..5F..GCC;KUN51,6#,TGN51,61..5F..(CO,GCC,GEN,IDN,KZS,LA,PHL,SA,TH) OD=18,TYPE C:REFER 33-01 |
3 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
GGN50..5F..(CO,LA);GGN50..IDSUV..5F..GCC;KUN51,6#,TGN51,61..5F..(CO,GCC,GEN,IDN,KZS,LA,PHL,SA,TH) L=16,OD=12,TYPE C:REFER 33-01 |
2 | ||
| 90250-12002 |
GGN50,KUN51,6#,TGN51,61..5F..(DCR,HDCR,HTWC)..(CO,GCC,GEN,IDN,KZS,LA,PHL,SA,TH) L=16,OD=12,TYPE D:REFER 33-01 |
2 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
GGN50,KUN51,6#,TGN51,61..5F..(DCR,HDCR,HTWC) L=14,OD=15,TYPE D:REFER 33-01 |
4 | ||
| 90253-15001 |
GGN50..5F..(CO,LA);GGN50..IDSUV..5F..GCC;KUN51,6#,TGN51,61..5F..(CO,GCC,GEN,IDN,KZS,LA,PHL,SA,TH) L=14,OD=15,TYPE C:REFER 33-01 |
4 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
GGN50,KUN51,6#,TGN51,61..5F..(DCR,HDCR,HTWC) L=14,OD=15,TYPE D:REFER 33-01 |
4 | ||
| 90253-15001 |
GGN50..5F..(CO,LA);GGN50..IDSUV..5F..GCC;KUN51,6#,TGN51,61..5F..(CO,GCC,GEN,IDN,KZS,LA,PHL,SA,TH) L=14,OD=15,TYPE C:REFER 33-01 |
4 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-0K020 |
GGN50..5F..CO;GGN50..IDSUV..5F TYPE C:REFER 33-01 |
1 | ||
| 33018-0K021 |
GGN50..5F..(CO,LA);GGN50..IDSUV..5F..GCC TYPE C:REFER 33-01 |
1 | ||
| 33018-0K080 |
GGN50..5F TYPE D:REFER 33-01 |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-0K020 |
GGN50..5F..CO;GGN50..IDSUV..5F TYPE C:REFER 33-01 |
1 | ||
| 33018-0K021 |
GGN50..5F..(CO,LA);GGN50..IDSUV..5F..GCC TYPE C:REFER 33-01 |
1 | ||
| 33018-0K080 |
GGN50..5F TYPE D:REFER 33-01 |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-T0017 |
GGN50..5F..CO;GGN50..IDSUV..5F;KUN51,6#,TGN51,61..5F TYPE C:REFER 33-01 |
1 | ||
| 90311-T0017 |
GGN50,KUN51,6#,TGN51,61..5F TYPE D:REFER 33-01 |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-T0017 |
GGN50..5F..CO;GGN50..IDSUV..5F;KUN51,6#,TGN51,61..5F TYPE C:REFER 33-01 |
1 | ||
| 90311-T0017 |
GGN50,KUN51,6#,TGN51,61..5F TYPE D:REFER 33-01 |
1 | ||
| 33131D - RETAINER, BEARING, FRONT | ||||
| 33131-60080 |
GGN50..5F TYPE D:REFER 33-01 |
1 | ||
| 33131-0K020 |
GGN50..5F..(CO,LA);GGN50..IDSUV..5F..GCC TYPE C:REFER 33-01 |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-0K040 |
GGN50,KUN51,6#,TGN51,61..5F..(DCR,HDCR,HTWC)..(CO,GCC,GEN,IDN,KZS,LA,PHL,SA,TH) TYPE D:REFER 33-01 |
1 | ||
| 33151-0K010 |
GGN50..5F..(CO,LA);GGN50..IDSUV..5F..GCC;KUN51,6#,TGN51,61..5F..(CO,GCC,GEN,IDN,KZS,LA,PHL,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-35030 |
GGN50,KUN51,6#,TGN51,61..5F..(DCR,HDCR,HTWC)..(CO,GCC,GEN,IDN,KZS,LA,PHL,SA,TH) TYPE D:REFER 33-01 |
1 | ||
| 33449-35030 |
GGN50..5F..(CO,LA);GGN50..IDSUV..5F..GCC;KUN51,6#,TGN51,61..5F..(CO,GCC,GEN,IDN,KZS,LA,PHL,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 90119-T0225 | ||||
| 90119-T0227 | ||||
| 90119-T0295 | ||||
| 90119-T0296 | ||||
| 90178-T0099 | ||||
| 90949-T1024 | ||||
| 91611-60814 | ||||
| 91611-G0820 | ||||
| 91612-61045 | ||||
| 94150-80800 | ||||
| 94611-10800 | ||||
| 96132-51000 | ||||
| Linked diagrams | ||||
| 3312 | ||||
| 3609 | ||||
| 8401 | ||||
