GGN50L-EKASKV (2011)

Toyota Fortuner

Production Jul 2011 - Oct 2015
Engine 1GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )1GRFE

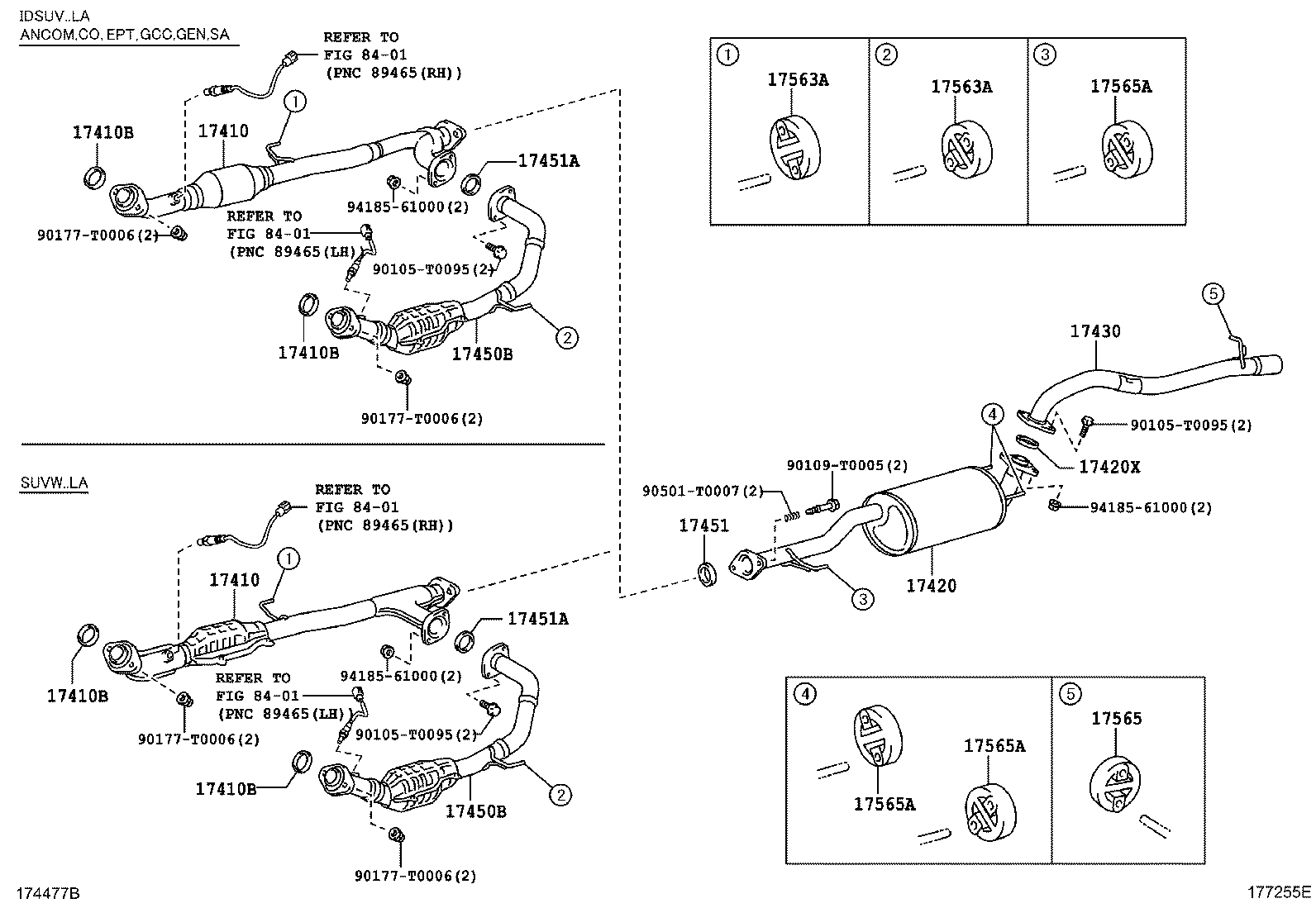

Click highlighted areas on diagram

diagram 17410 17410 17410B 17410B 17410B 17410B 17420 17420X 17430 17450B 17450B 17451 17451A 17451A 17563A 17563A 17565 17565A 17565A 17565A 8401 8401 8401 8401 90105T0095 90105T0095 90105T0095 90109T0005 90177T0006 90177T0006 90177T0006 90177T0006 90501T0007 9418561000 9418561000 9418561000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17401-0P030

1GRFE..GGN50..IDSUV..LA;1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,SA

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17401-0P030

1GRFE..GGN50..IDSUV..LA;1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,SA

 1
17410B - GASKET, EXHAUST PIPE
90917-T6003

1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA

 2
17410B - GASKET, EXHAUST PIPE
90917-T6003

1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA

 2
17410B - GASKET, EXHAUST PIPE
90917-T6003

1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA

 2
17410B - GASKET, EXHAUST PIPE
90917-T6003

1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA

 2
17420 - PIPE ASSY, EXHAUST, CENTER
17403-0P021

1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-T6002

1KDFTV..KUN61..4FC;1KDFTV..KUN61..(5F,5FC)..(SA,TH);1GRFE,1KDFTV..GGN50,KUN51..IDSUV..LA;1GRFE,1KDFTV,2KDFTV,5LE,2TRFE..GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,GCC,GEN,IDN,MA,PHL,SA,TH

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-0L180

1GRFE,2TRFE..GGN50,60,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH

 1
17450B - PIPE ASSY, EXHAUST, FRONT NO.2
17450-0P060

1GRFE..GGN50..IDSUV..LA;1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,SA

 1
17450B - PIPE ASSY, EXHAUST, FRONT NO.2
17450-0P060

1GRFE..GGN50..IDSUV..LA;1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,SA

 1
17451 - GASKET, EXHAUST PIPE
17451-0C010

1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA

 1
17451A - GASKET, EXHAUST PIPE, NO.2
90917-T6002

1GRFE..GGN50..IDSUV..LA;1GRFE..GGN50,60..ANCOM,GCC,GEN,SA

 1
17451A - GASKET, EXHAUST PIPE, NO.2
90917-T6002

1GRFE..GGN50..IDSUV..LA;1GRFE..GGN50,60..ANCOM,GCC,GEN,SA

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-0L020

1GRFE..GGN50..IDSUV

 2
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-0L020

1GRFE..GGN50..IDSUV

 2
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-0L020

1GRFE,1KDFTV,2KDFTV,2TRFE..GGN50,KUN5#,60,TGN51,61..IDSUV

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0L020

1GRFE,1KDFTV,2KDFTV,2TRFE..GGN50,KUN5#,60,TGN51,61..IDSUV

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0L020

1GRFE,1KDFTV,2KDFTV,2TRFE..GGN50,KUN5#,60,TGN51,61..IDSUV

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0L020

1GRFE,1KDFTV,2KDFTV,2TRFE..GGN50,KUN5#,60,TGN51,61..IDSUV

 3
Common parts
90105-T0095
90109-T0005
90177-T0006
90501-T0007
94185-61000
Linked diagrams
8401
