Toyota Fortuner GGN50 MANIFOLD - JDM Part Detective

Part #	Description	Period	Qty
12216C - PLATE, OIL BAFFLE
12216-31010	1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA	07/2011 - 12/2999	1
17104 - MANIFOLD SUB-ASSY, EXHAUST, RH
17140-31210	1GRFE..GGN50..GCC;1GRFE..GGN50..IDSUV..LA	07/2011 - 10/2015	1
17105 - MANIFOLD SUB-ASSY, EXHAUST, LH
17150-31210	1GRFE..GGN50..GCC;1GRFE..GGN50..IDSUV..LA	07/2011 - 10/2015	1
17111 - MANIFOLD, INTAKE
17101-31010	1GRFE..GGN50,60	07/2011 - 10/2011	1
17101-31011	1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA	10/2011 - 12/2999	1
17118 - STAY, MANIFOLD
17118-31020	1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA	07/2011 - 12/2999	1
17119 - STAY, MANIFOLD, NO.2
17119-31030	1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA	07/2011 - 12/2999	1
17125 - STAY, SURGE TANK, NO.1
17125-31010	1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA	07/2011 - 12/2999	1
17126 - STAY, SURGE TANK, NO.2
17126-31010	1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA	07/2011 - 12/2999	1
17129 - TANK, INTAKE AIR SURGE
17109-31012	1GRFE..GGN50,60	07/2011 - 01/2012	1
17109-31015	1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA	10/2012 - 12/2999	1
17109-31014	1GRFE..GGN50,60	02/2012 - 09/2012	1
17141J - BOLT, STUD(FOR EXHAUST MANIFOLD, RH)
90126-08052	1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA	07/2011 - 12/2999	12
17141J - BOLT, STUD(FOR EXHAUST MANIFOLD, RH)
90126-08052	1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA	07/2011 - 12/2999	12
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-31010	1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA	07/2011 - 12/2999	1
17173A - GASKET, EXHAUST MANIFOLD TO HEAD, LH
17173-31010	1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA	07/2011 - 12/2999	1
17176 - GASKET, AIR SURGE TANK TO INTAKE MANIFOLD
17176-31160	1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA	02/2012 - 12/2999	1
17176-31010	1GRFE..GGN50,60	07/2011 - 01/2012	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-31010	1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA	07/2011 - 12/2999	1
17178 - GASKET, INTAKE MANIFOLD TO HEAD, NO.2
17178-31010	1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA	07/2011 - 12/2999	1
22267A - BRACKET, THROTTLE BODY
22267-31010	1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA	07/2011 - 12/2999	1
Common parts
90107-08004
90110-08035
90119-T0127
90119-T0136
90119-T0388
90126-06032
90126-08026
90126-10033
90178-T0090
90179-08040
91671-80614
91671-80818
91672-81025
94151-80841

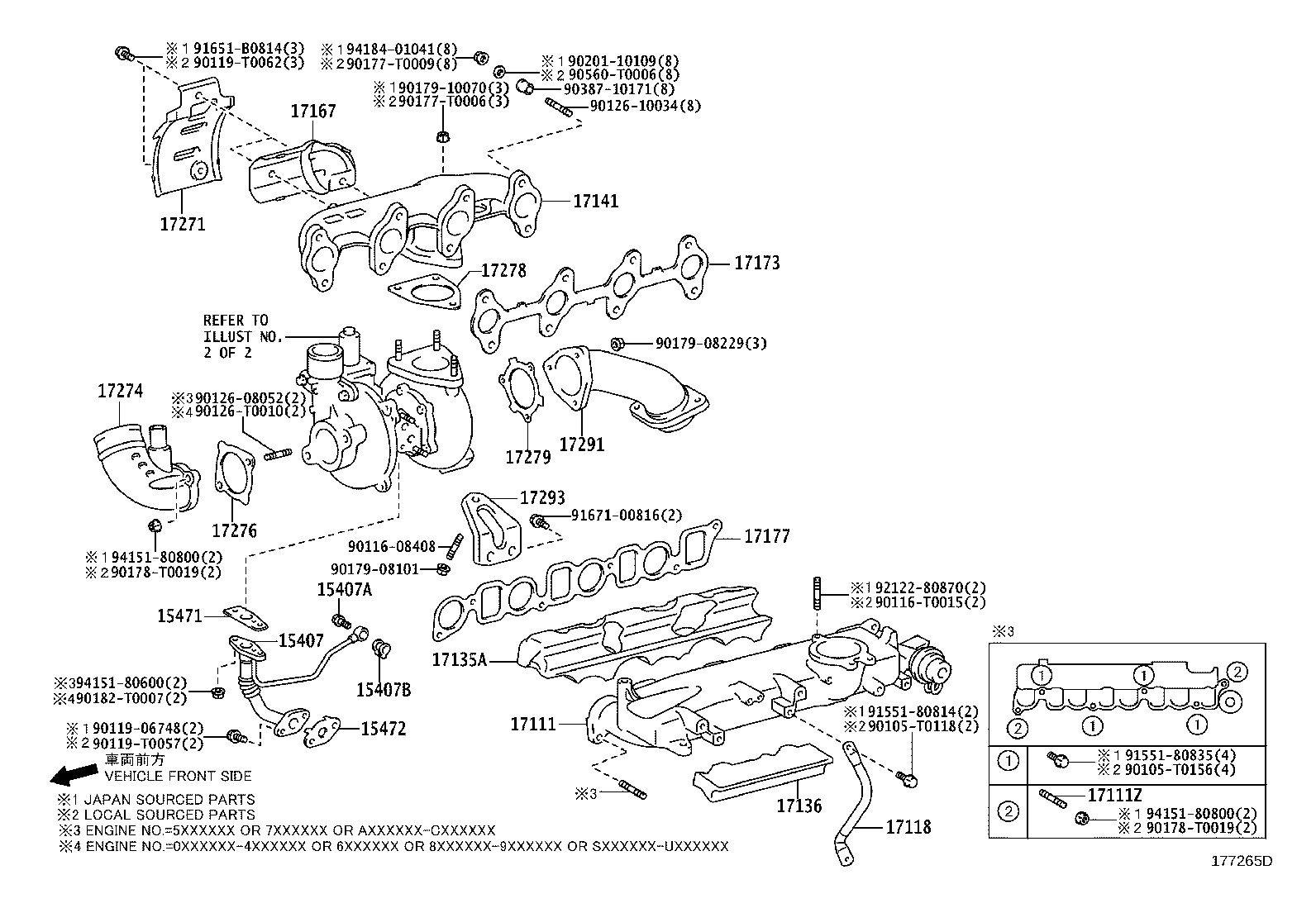

Linked diagrams
2211

Part #	Description	Period	Qty
17111 - MANIFOLD, INTAKE
17101-31010	1GRFE..GGN50,60	07/2011 - 10/2011	1
17101-31011	1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA	10/2011 - 12/2999	1
17118 - STAY, MANIFOLD
17118-31020	1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA	07/2011 - 12/2999	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-31010	1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA	07/2011 - 12/2999	1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-31010	1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA	07/2011 - 12/2999	1
Common parts
90105-T0118
90105-T0156
90116-08408
90116-T0015
90119-06748
90119-T0057
90119-T0062
90126-08052
90126-10034
90126-T0010
90177-T0006
90177-T0009
90178-T0019
90179-08101
90179-08229
90179-10070
90182-T0007
90201-10109
90387-10171
90560-T0006
91551-80814
91551-80835
91651-B0814
91671-00816
92122-80870
94151-80600
94151-80800
94184-01041

GGN50L-EKASKV (2011)

(1107- )1GRFE

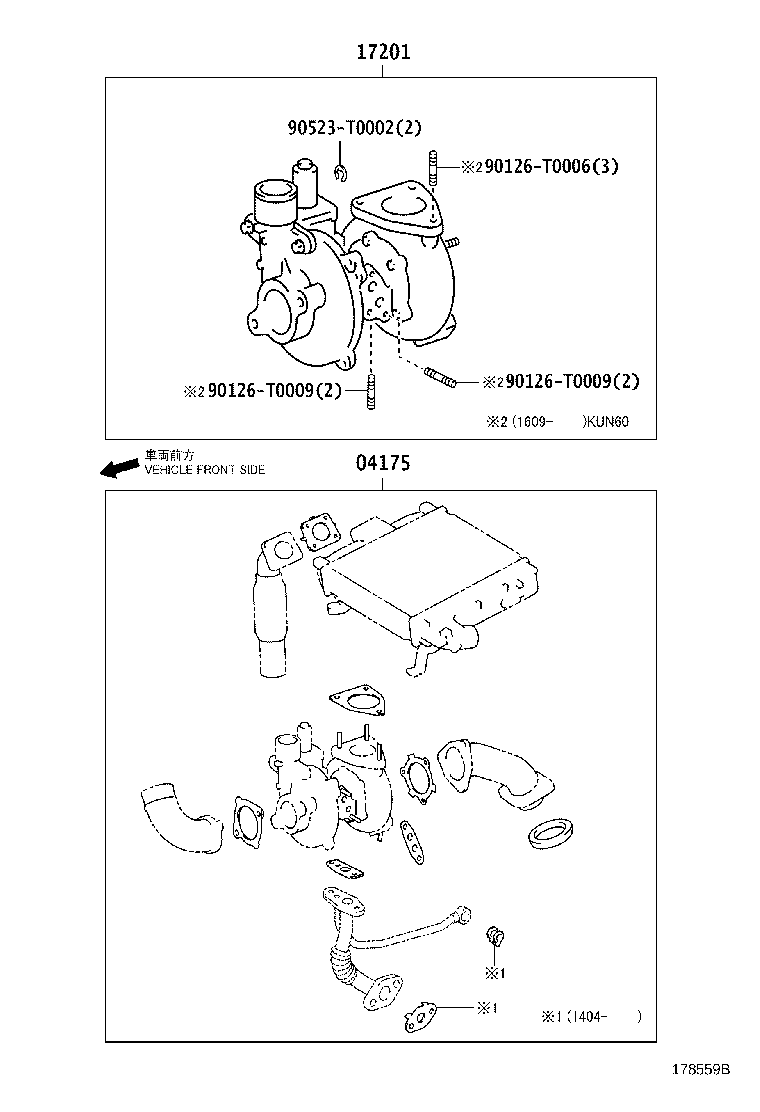

ILLUST NO. 1 OF 2(1107- )1KDFTV..KUN51..SASUV,THSUV ; (1107-)1KDFTV..KUN51..RHD..5F..GEN ; (1

ILLUST NO. 2 OF 2(1107- )2KDFTV..KUN60..5F..TH ; (1107- )2KDFTV..KUN60..5F,5FC..IND,SA,VN ; (1
