GGN50L-EKASKV (2011)
Toyota Fortuner

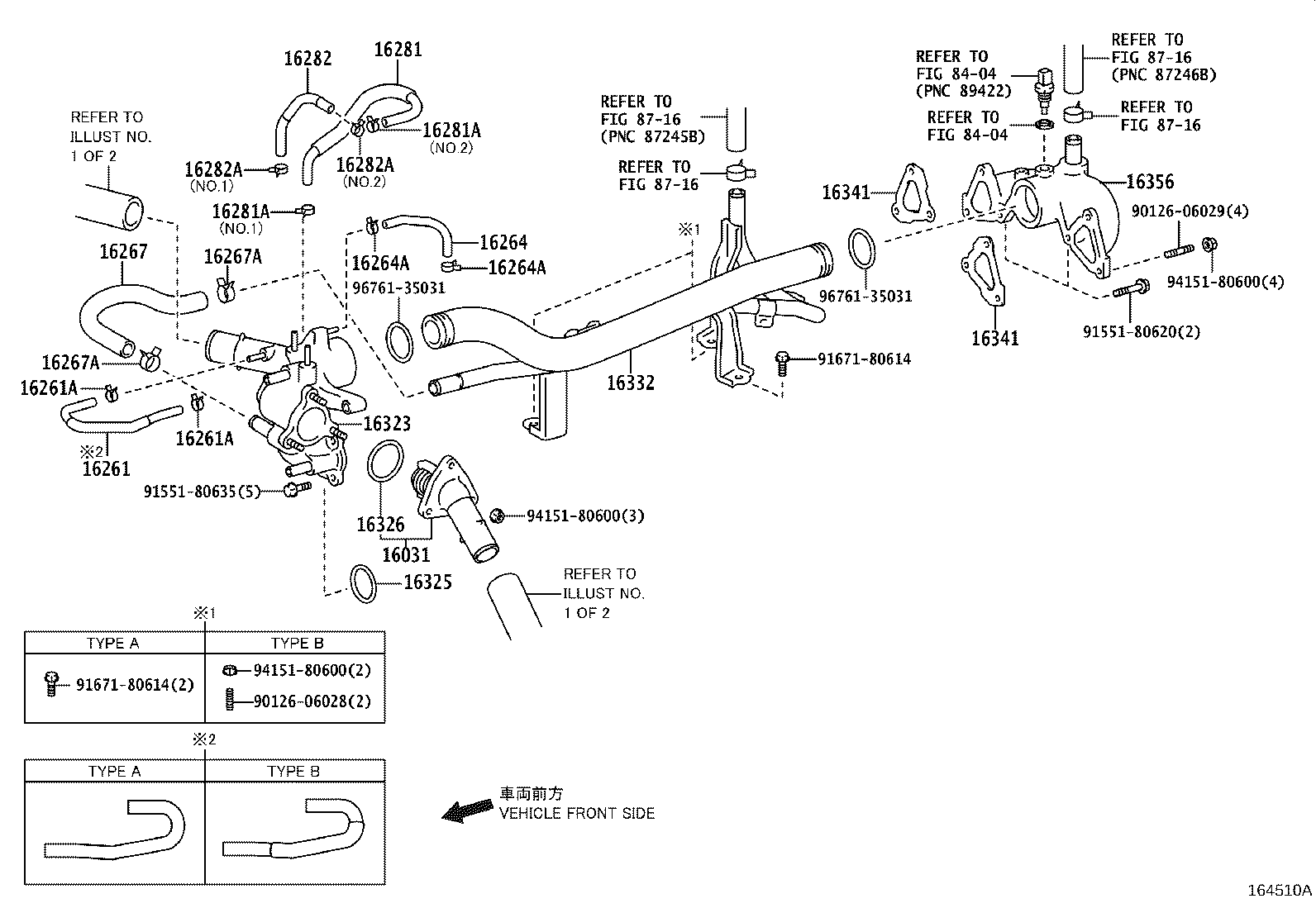

ILLUST NO. 2 OF 2(1107- )1GRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16031 - WATER INLET SUB-ASSY, W/THERMOSTAT | ||||
| 16031-31011 |
1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-31100 |
1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA TYPE B:REFER ILLUST. |
1 | ||
| 16261-31020 |
1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA TYPE A:REFER ILLUST. |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41301 |
1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96137-41301 |
1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-31010 |
1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41301 |
1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96137-41301 |
1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-31010 |
1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42501 |
1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42501 |
1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA |
2 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-31011 |
1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90466-T0014 |
1GRFE..GGN50,60 NO.2,(L) |
1 | ||
| 96136-41501 |
1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA NO.1 |
1 | ||
| 90467-13128 |
1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA NO.2,(J) |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 90466-T0014 |
1GRFE..GGN50,60 NO.2,(L) |
1 | ||
| 96136-41501 |
1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA NO.1 |
1 | ||
| 90467-13128 |
1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA NO.2,(J) |
1 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-31010 |
1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90466-T0014 |
1GRFE..GGN50,60 NO.2,(L) |
1 | ||
| 90467-13128 |
1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA NO.2,(J) |
1 | ||
| 96136-41501 |
1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA NO.1 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 90466-T0014 |
1GRFE..GGN50,60 NO.2,(L) |
1 | ||
| 90467-13128 |
1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA NO.2,(J) |
1 | ||
| 96136-41501 |
1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA NO.1 |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-31021 |
1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-31010 |
1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-31020 |
1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA |
1 | ||
| 16332 - PIPE, WATER OUTLET, NO.1 | ||||
| 16306-31021 |
1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-31010 |
1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA |
2 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-31010 |
1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA |
2 | ||
| 16356 - JOINT, WATER BY-PASS, REAR | ||||
| 16356-31011 |
1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA |
1 | ||
| Common parts | ||||
| 90126-06028 | ||||
| 90126-06029 | ||||
| 91551-80620 | ||||
| 91551-80635 | ||||
| 91671-80614 | ||||
| 94151-80600 | ||||
| 96761-35031 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8716 | ||||

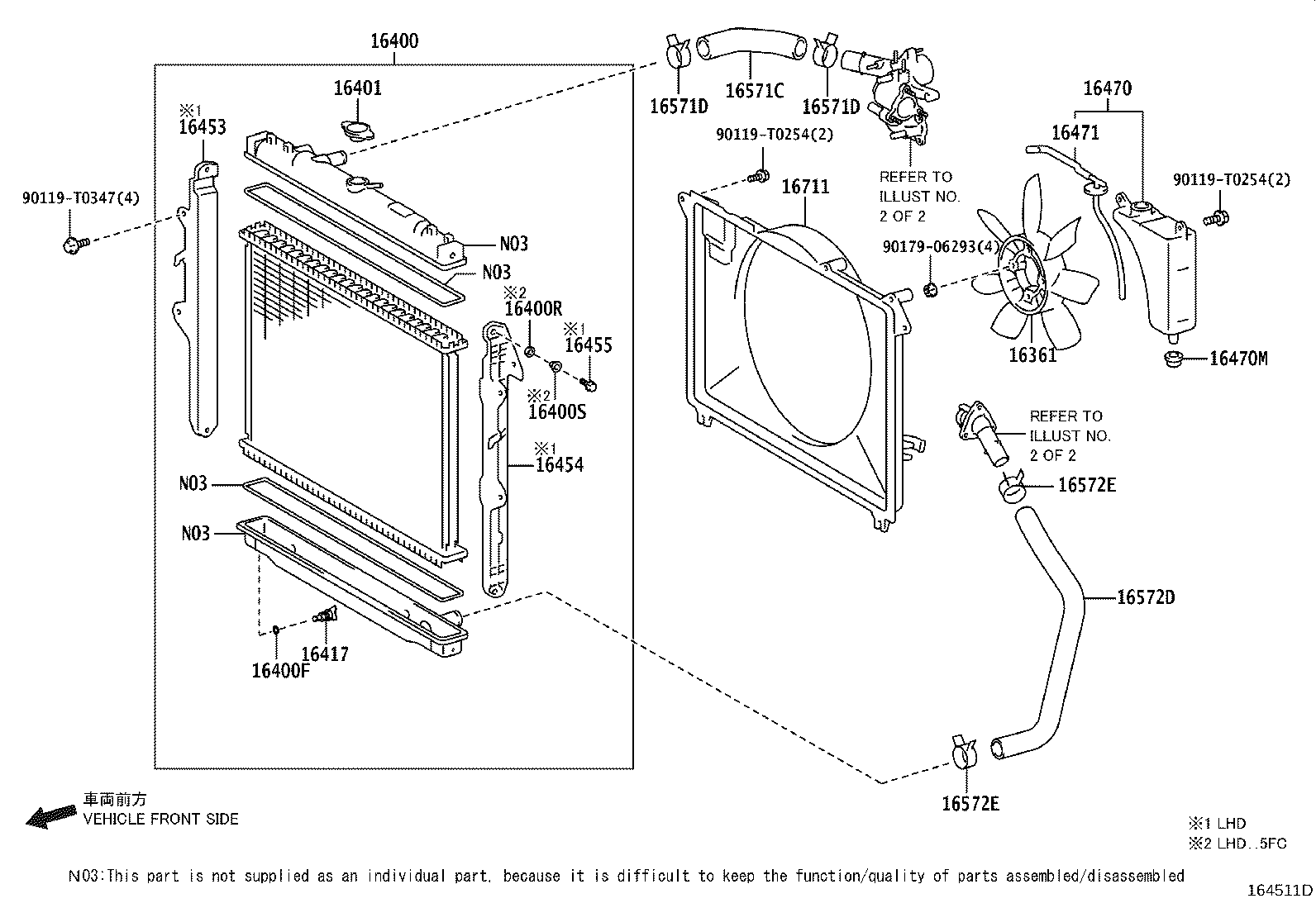

ILLUST NO. 1 OF 2(1107- )1GRFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-31060 |
1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-0P040 |
1GRFE..GGN50..IDSUV..5FC |
1 | ||
| 16400-0P030 |
1GRFE..GGN50..IDSUV..5F |
1 | ||
| 16400-0P480 |
1GRFE..GGN50..IDSUV..5FC |
1 | ||
| 16400-0P470 |
1GRFE..GGN50..IDSUV..5F |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
1GRFE..GGN50,60..LHD |
1 | ||
| 16400R - BUSHING(FOR RADIATOR) | ||||
| 16444-75180 |
1GRFE..GGN50,60..LHD |
2 | ||
| 16400S - COLLAR(FOR RADIATOR) | ||||
| 16445-0C180 |
1GRFE..GGN50,60..LHD |
2 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-0C030 |
1GRFE..GGN50,60..ANCOM,CO,GCC,LA,SA |
1 | ||
| 16401-0K040 |
1GRFE..GGN50,60 |
1 | ||
| 16401-0H060 |
1GRFE..GGN50,60 |
1 | ||
| 16417 - COCK | ||||
| 16417-0C180 |
1GRFE..GGN50,60..LHD |
1 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-0L140 |
1GRFE..GGN50..IDSUV |
1 | ||
| 16453-0L120 |
1GRFE..GGN50..IDSUV |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-0L120 |
1GRFE..GGN50..IDSUV |
1 | ||
| 16454-0L140 |
1GRFE..GGN50..IDSUV |
1 | ||
| 16455 - BOLT, RADIATOR SIDE SUPPORT PLATE | ||||
| 91651-B0820 |
1GRFE..GGN50,60..LHD |
4 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-0C050 |
1GRFE..GGN50..IDSUV |
1 | ||
| 16470M - GROMMET | ||||
| 90480-T0003 |
1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-0C030 |
1GRFE..GGN50..IDSUV |
1 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-0P030 |
1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-T0028 |
1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA |
2 | ||
| 90466-T0011 |
1GRFE..GGN50,60 |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90466-T0028 |
1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA |
2 | ||
| 90466-T0011 |
1GRFE..GGN50,60 |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-0P030 |
1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-T0011 |
1GRFE..GGN50,60 |
2 | ||
| 90466-T0028 |
1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-T0011 |
1GRFE..GGN50,60 |
2 | ||
| 90466-T0028 |
1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0P030 |
1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA |
1 | ||
| Common parts | ||||
| 90119-T0254 | ||||
| 90119-T0347 | ||||
| 90179-06293 | ||||
