GGN50L-EKASKV (2011)

Toyota Fortuner

Production Jul 2011 - Oct 2015
Engine 1GRFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )1GRFE

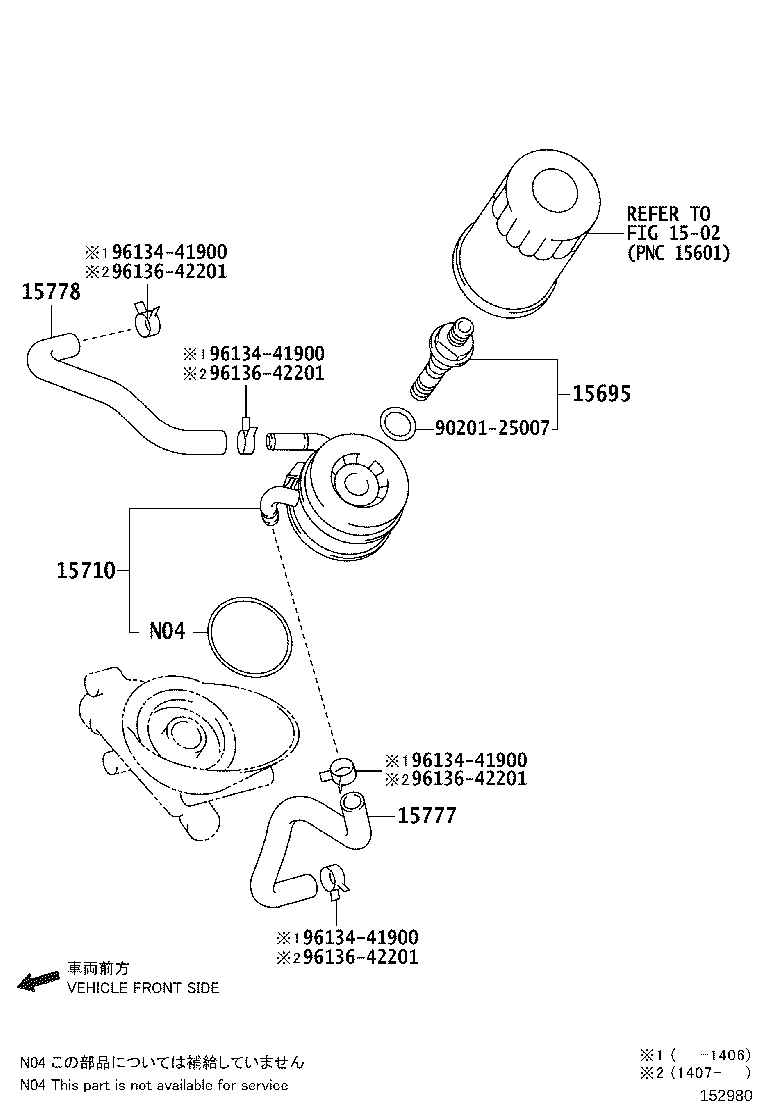

Click highlighted areas on diagram

diagram 1502 15695 15710 15777 15778 9020125007 9613441900 9613441900 9613441900 9613441900 9613642201 9613642201 9613642201 9613642201
Part # Description Qty Price
15695 - BOLT, OIL COOLER UNION
15695-22010

1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA

 1
15710 - COOLER ASSY, OIL
15710-31010

1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA

 1
15777 - HOSE, OIL COOLER
15777-31010

1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA

(J)

 1
15777-0P020

1GRFE..GGN50,60

(L)

 1
15778 - HOSE, OIL COOLER, NO.2
15778-31010

1GRFE..GGN50,60..ANCOM,CO,GCC,GEN,LA,SA

(J)

 1
15778-0P020

1GRFE..GGN50,60

(L)

 1
Common parts
90201-25007
96134-41900
96136-42201
Linked diagrams
1502
