GGN155L-STTSKV (2016)

Toyota Fortuner

Production Jan 2016 - May 2020
Engine 1GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

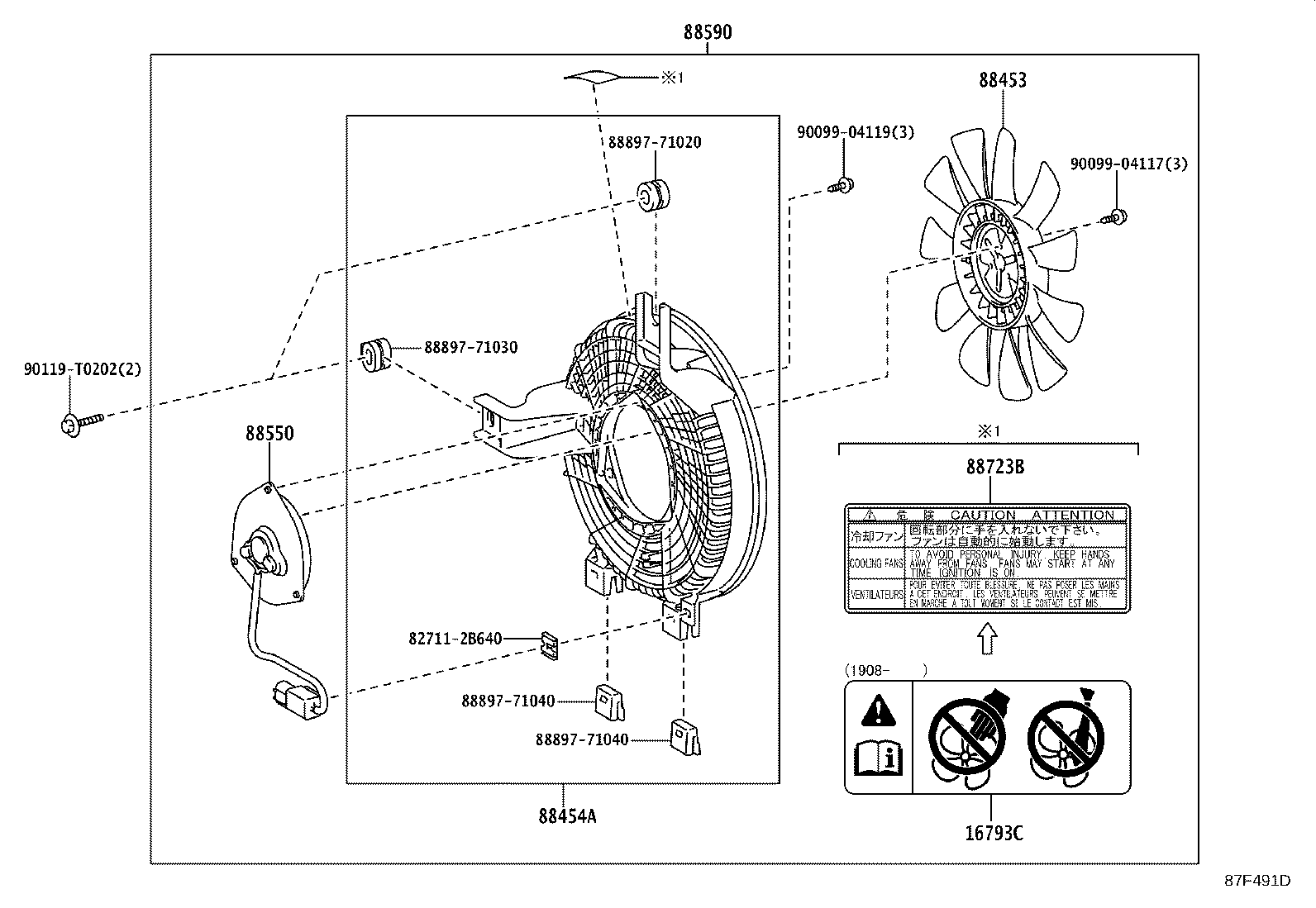

ILLUST NO. 1 OF 3(1601- )GGN155,165,TGN156,166..EPTSU,THSUV..EPT,GCC

Click highlighted areas on diagram

W(CONDENSER FAN)

diagram 16793C 827112B640 88453 88454A 88550 88590 88723B 8889771020 8889771030 8889771040 8889771040 9009904117 9009904119 90119T0202
Part # Description Qty Price
16793C - LABEL, COOLING FAN CAUTION
16793-31070

1GRFE,2TRFE..GGN155,TGN156,166..EPT,GCC

 1
88453 - FAN, COOLING (FOR CONDENSER)
88453-60010

GGN155,165,TGN156,166..EPT,GCC

 1
88454A - SHROUD, FAN
88454-0K050

GGN155,165,TGN156,166..(EPTSU,THSUV)..(EPT,GCC)

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-12160

GGN155,165,TGN156,166..EPT,GCC

 1
88590 - BLOWER ASSY, W/SHROUD
88590-0K061

GGN155,TGN156,166..(EPTSU,THSUV)..(EPT,GCC)

 1
88590-0K060

GGN155,165,TGN156,166..(EPTSU,THSUV)..(EPT,GCC)

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20081

GGN155,165,TGN156,166..EPT,GCC

 1
Common parts
82711-2B640
88897-71020
88897-71030
88897-71040
90099-04117
90099-04119
90119-T0202
