GGN155L-SGTMKF (2018)

Toyota Fortuner

Production Aug 2018 - Oct 2020
Engine 1GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1507- )AGTSU,EPTSU,INDSU,MASUV,PKNSU,SASUV,THSUV,VENSU

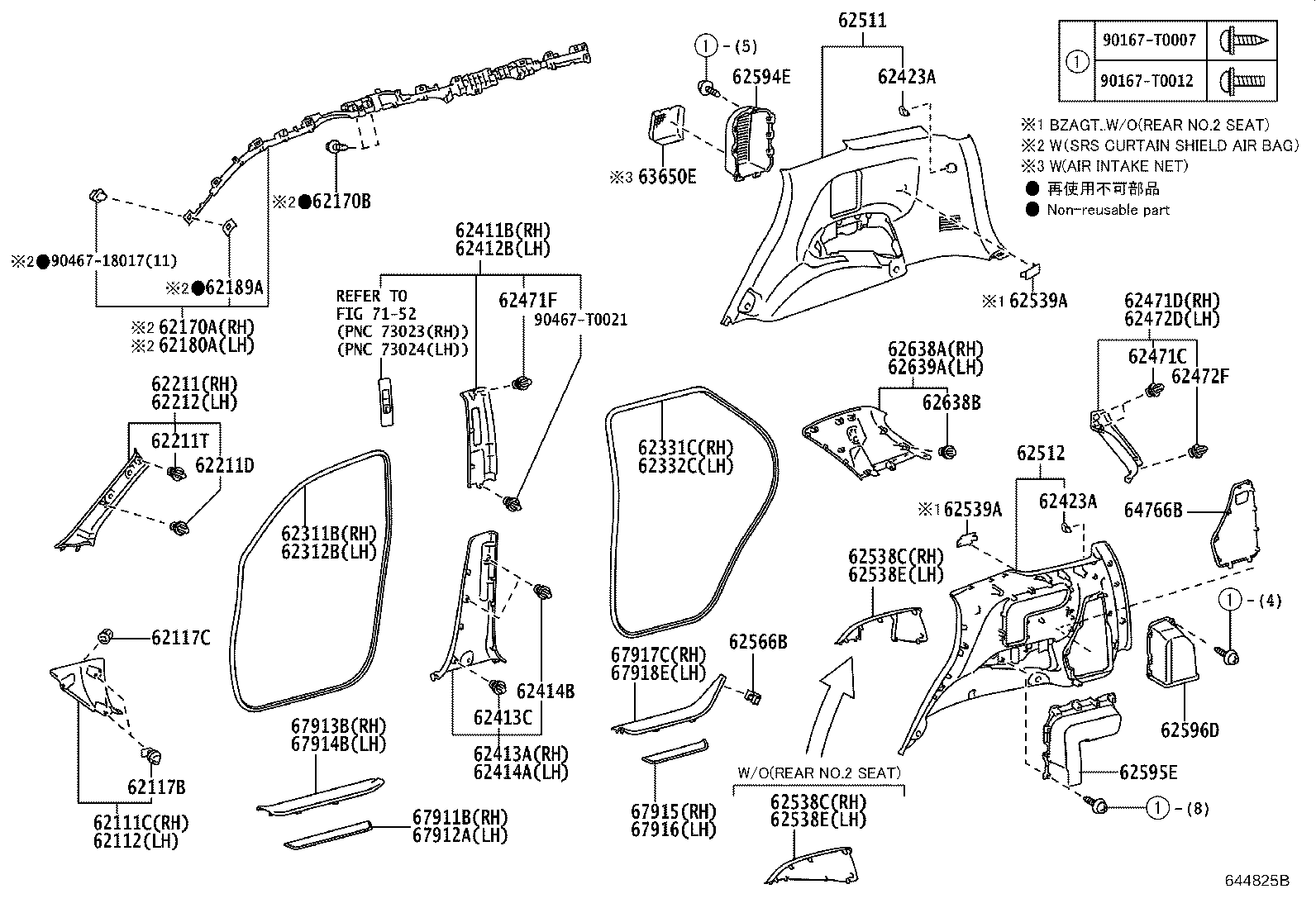

Click highlighted areas on diagram

diagram 62111C 62112 62117B 62117C 62170A 62170B 62180A 62189A 62211 62211D 62211T 62212 62311B 62312B 62331C 62332C 62411B 62412B 62413A 62413C 62414A 62414B 62423A 62423A 62471C 62471D 62471F 62472D 62472F 62511 62512 62538C 62538C 62538E 62538E 62539A 62539A 62566B 62594E 62595E 62596D 62638A 62638B 62639A 63650E 64766B 67911B 67912A 67913B 67914B 67915 67916 67917C 67918E 7152 90167T0007 90167T0012 9046718017 90467T0021
Part # Description Qty Price
62117B - CLIP, NO.1(FOR COWL SIDE TRIM)
90467-11089A0

GUN156..L,M,S;TGN166..L..GCC;GUN156..IDNSU..H..GEN;GUN156..H..(BZAGT,GCC);GUN165..IDNSU,SASUV,THSUV,VNSUV;LAN155,TGN156..S..(BZAGT,GEN,KZS,SA);TGN156..(AGTSU,EPTSU,IDNSU,THSUV)..(H,L,M);TGN166..BZAGT,EPT,GEN,IDN,LA,PH,PKN,SA,TH,VN;GGN155,165,GUN155,166,KUN156,165,TGN168..AGTSU,EPTSU,IDNSU,SASUV,THSUV

IVORY

 4
62117C - CLIP, NO.2(FOR COWL SIDE TRIM)
90467-06147

GUN156..L,M,S;TGN166..L..GCC;GUN156..IDNSU..H..GEN;GUN156..H..(BZAGT,GCC);GUN165..IDNSU,SASUV,THSUV,VNSUV;LAN155,TGN156..S..(BZAGT,GEN,KZS,SA);TGN156..(AGTSU,EPTSU,IDNSU,THSUV)..(H,L,M);TGN166..BZAGT,EPT,GEN,IDN,LA,PH,PKN,SA,TH,VN;GGN155,165,GUN155,166,KUN156,165,TGN168..AGTSU,EPTSU,IDNSU,SASUV,THSUV

 2
62170A - AIR BAG ASSY, CURTAIN SHIELD, RH
62170-0K110

GUN155..M;TGN156..L..GEN;GUN156..H..BZAGT;GUN165..MASUV,VNSUV;TGN166..AGTSU,VNSUV;GUN156..IDNSU..(LA,PH,VN);GGN155,TGN168..BZAGT,GEN,LA;TGN166..LHD..IDNSU..(GEN,LA);GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);KUN156,TGN156..(5FC,6F,6FC)..(BZAGT,KZS,LA,MA,VN)

 1
62170B - BOLT, W/WASHER
91673-80616

GUN155..M;TGN156..L..GEN;GUN156..H..BZAGT;TGN166..AGTSU..L;GUN165..MASUV,VNSUV;GUN156..RHD..(IND,SA);GUN156..IDNSU..(LA,PH,VN);TGN166..LHD..IDNSU..(GEN,LA);GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);GGN155,GUN166,TGN168..BZAGT,GEN,IND,LA,SA;TGN166..(AGTSU,INDSU,SASUV,VNSUV)..(H,M,S);KUN156,TGN156..(5FC,6F,6FC)..(BZAGT,KZS,LA,MA,VN)

 4
62180A - AIR BAG ASSY, CURTAIN SHIELD, LH
62180-0K110

GUN155..M;TGN156..L..GEN;GUN156..H..BZAGT;GUN165..MASUV,VNSUV;TGN166..AGTSU,VNSUV;GUN156..IDNSU..(LA,PH,VN);GGN155,TGN168..BZAGT,GEN,LA;TGN166..LHD..IDNSU..(GEN,LA);GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);KUN156,TGN156..(5FC,6F,6FC)..(BZAGT,KZS,LA,MA,VN)

 1
62189A - SPACER, CURTAIN SHIELD AIR BAG CLIP
62189-42010

GUN155..M;TGN156..L..GEN;GUN156..H..BZAGT;TGN166..AGTSU..L;GUN165..MASUV,VNSUV;GUN156..RHD..(IND,SA);GUN156..IDNSU..(LA,PH,VN);TGN166..LHD..IDNSU..(GEN,LA);GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);GGN155,GUN166,TGN168..BZAGT,GEN,IND,LA,SA;TGN166..(AGTSU,INDSU,SASUV,VNSUV)..(H,M,S);KUN156,TGN156..(5FC,6F,6FC)..(BZAGT,KZS,LA,MA,VN)

 4
62211D - CLIP(FOR FRONT BODY PILLAR GARNISH)
90467-T0021

GUN156..L,M,S;TGN166..L..GCC;GUN156..IDNSU..H..GEN;GUN156..H..(BZAGT,GCC);GUN165..IDNSU,SASUV,THSUV,VNSUV;LAN155,TGN156..S..(BZAGT,GEN,KZS,SA);TGN156..(AGTSU,EPTSU,IDNSU,THSUV)..(H,L,M);TGN166..BZAGT,EPT,GEN,IDN,LA,PH,PKN,SA,TH,VN;GGN155,165,GUN155,166,KUN156,165,TGN168..AGTSU,EPTSU,IDNSU,SASUV,THSUV

 2
62211T - CLIP(FOR FRONT PILLAR GARNISH)
90467-T0021

GUN155..M;TGN156..L..GEN;GUN156..H..BZAGT;TGN166..AGTSU..L;GUN165..MASUV,VNSUV;GUN156..RHD..(IND,SA);GUN156..IDNSU..(LA,PH,VN);TGN166..LHD..IDNSU..(GEN,LA);GUN156..(AGTSU,THSUV,VNSUV)..(L,M,S);GGN155,GUN166,TGN168..BZAGT,GEN,IND,LA,SA;TGN166..(AGTSU,INDSU,SASUV,VNSUV)..(H,M,S);KUN156,TGN156..(5FC,6F,6FC)..(BZAGT,KZS,LA,MA,VN)

 2
62411B - GARNISH, CENTER PILLAR, UPPER RH
62411-0K120B0

GUN156..6F..M;GGN165,GUN165..THSUV;TGN156..S..(BZAGT,KZS);GUN156,TGN166..THSUV..(H,L)..(ARL,GCC);GGN155,GUN155..(AGTSU,EPTSU,THSUV)..(EPT,GCC,LA);TGN166..(AGTSU,EPTSU,PKNSU,THSUV)..(BZAGT,EPT,LA,PKN,TH);GUN156..(AGTSU,PKNSU,THSUV)..(L,M,S)..HDCR..(BZAGT,GEN,LA,PKN);GUN156,KUN156,TGN156,168..(AGTSU,EPTSU,THSUV)..(L,M)..(DCR,HTWC,HTWCF,IART)

LT.GRAY,TRIM4#

 1
62412B - GARNISH, CENTER PILLAR, UPPER LH
62412-0K120B0

GUN156..6F..M;GGN165,GUN165..THSUV;TGN156..S..(BZAGT,KZS);GUN156,TGN166..THSUV..(H,L)..(ARL,GCC);GGN155,GUN155..(AGTSU,EPTSU,THSUV)..(EPT,GCC,LA);TGN166..(AGTSU,EPTSU,PKNSU,THSUV)..(BZAGT,EPT,LA,PKN,TH);GUN156..(AGTSU,PKNSU,THSUV)..(L,M,S)..HDCR..(BZAGT,GEN,LA,PKN);GUN156,KUN156,TGN156,168..(AGTSU,EPTSU,THSUV)..(L,M)..(DCR,HTWC,HTWCF,IART)

LT.GRAY,TRIM4#

 1
62471C - CLIP(FOR REAR PILLAR COVER)
90467-10188

GUN156..L,M,S;TGN166..L..GCC;GUN156..IDNSU..H..GEN;GUN156..H..(BZAGT,GCC);GUN165..IDNSU,SASUV,THSUV,VNSUV;LAN155,TGN156..S..(BZAGT,GEN,KZS,SA);TGN156..(AGTSU,EPTSU,IDNSU,THSUV)..(H,L,M);TGN166..BZAGT,EPT,GEN,IDN,LA,PH,PKN,SA,TH,VN;GGN155,165,GUN155,166,KUN156,165,TGN168..AGTSU,EPTSU,IDNSU,SASUV,THSUV

 4
62471F - CLIP (FOR ROOF SIDE, INNER UPPER GARNISH)
90467-10188

GUN156..L,M,S;TGN166..L..GCC;GUN156..IDNSU..H..GEN;GUN156..H..(BZAGT,GCC);GUN165..IDNSU,SASUV,THSUV,VNSUV;LAN155,TGN156..S..(BZAGT,GEN,KZS,SA);TGN156..(AGTSU,EPTSU,IDNSU,THSUV)..(H,L,M);TGN166..BZAGT,EPT,GEN,IDN,LA,PH,PKN,SA,TH,VN;GGN155,165,GUN155,166,KUN156,165,TGN168..AGTSU,EPTSU,IDNSU,SASUV,THSUV

 2
62472F - CLIP(FOR REAR PILLAR GARNISH)
90467-T0021

GUN156..L,M,S;TGN166..L..GCC;GUN156..IDNSU..H..GEN;GUN156..H..(BZAGT,GCC);GUN165..IDNSU,SASUV,THSUV,VNSUV;LAN155,TGN156..S..(BZAGT,GEN,KZS,SA);TGN156..(AGTSU,EPTSU,IDNSU,THSUV)..(H,L,M);TGN166..BZAGT,EPT,GEN,IDN,LA,PH,PKN,SA,TH,VN;GGN155,165,GUN155,166,KUN156,165,TGN168..AGTSU,EPTSU,IDNSU,SASUV,THSUV

 2
62566B - CLAMP, ROCKER PANEL INNER PROTECTER, NO.1
62566-71010

GUN156..L,M,S;TGN166..L..GCC;GUN156..IDNSU..H..GEN;GUN156..H..(BZAGT,GCC);GUN165..IDNSU,SASUV,THSUV,VNSUV;LAN155,TGN156..S..(BZAGT,GEN,KZS,SA);TGN156..(AGTSU,EPTSU,IDNSU,THSUV)..(H,L,M);TGN166..BZAGT,EPT,GEN,IDN,LA,PH,PKN,SA,TH,VN;GGN155,165,GUN155,166,KUN156,165,TGN168..AGTSU,EPTSU,IDNSU,SASUV,THSUV

 2
62596D - TRAY, QUARTER TRIM POCKET
62596-0K030C0

GUN156..6F..M;GGN165,GUN165..THSUV;TGN156..S..(BZAGT,KZS);GUN156,TGN166..THSUV..(H,L)..(ARL,GCC);GGN155,GUN155..(AGTSU,EPTSU,THSUV)..(EPT,GCC,LA);TGN166..(AGTSU,EPTSU,PKNSU,THSUV)..(BZAGT,EPT,LA,PKN,TH);GUN156..(AGTSU,PKNSU,THSUV)..(L,M,S)..HDCR..(BZAGT,GEN,LA,PKN);GUN156,KUN156,TGN156,168..(AGTSU,EPTSU,THSUV)..(L,M)..(DCR,HTWC,HTWCF,IART)

BLACK,TRIM4#

 1
67915 - PLATE, REAR DOOR SCUFF, OUTSIDE RH
67915-0K100C0

GUN156..6F..M;GGN165,GUN165..THSUV;TGN156..S..(BZAGT,KZS);GUN156,TGN166..THSUV..(H,L)..(ARL,GCC);GGN155,GUN155..(AGTSU,EPTSU,THSUV)..(EPT,GCC,LA);TGN166..(AGTSU,EPTSU,PKNSU,THSUV)..(BZAGT,EPT,LA,PKN,TH);GUN156..(AGTSU,PKNSU,THSUV)..(L,M,S)..HDCR..(BZAGT,GEN,LA,PKN);GUN156,KUN156,TGN156,168..(AGTSU,EPTSU,THSUV)..(L,M)..(DCR,HTWC,HTWCF,IART)

BLACK,TRIM4#

 1
67916 - PLATE, REAR DOOR SCUFF, OUTSIDE LH
67916-0K100C0

GUN156..6F..M;GGN165,GUN165..THSUV;TGN156..S..(BZAGT,KZS);GUN156,TGN166..THSUV..(H,L)..(ARL,GCC);GGN155,GUN155..(AGTSU,EPTSU,THSUV)..(EPT,GCC,LA);TGN166..(AGTSU,EPTSU,PKNSU,THSUV)..(BZAGT,EPT,LA,PKN,TH);GUN156..(AGTSU,PKNSU,THSUV)..(L,M,S)..HDCR..(BZAGT,GEN,LA,PKN);GUN156,KUN156,TGN156,168..(AGTSU,EPTSU,THSUV)..(L,M)..(DCR,HTWC,HTWCF,IART)

BLACK,TRIM4#

 1
Common parts
90167-T0007
90167-T0012
90467-18017
90467-T0021
Linked diagrams
7152

(2005- )AGTSU,EPTSU,INDSU,MASUV,PKNSU,SASUV,THSUV,VNSUV

Click highlighted areas on diagram

diagram 62111C 62112 62117B 62117C 62170A 62170B 62180A 62189A 62211 62211D 62211T 62212 62311B 62312B 62331C 62332C 62411B 62412B 62413A 62413C 62414A 62414B 62423A 62423A 62471C 62471D 62471F 62472D 62472F 62511 62512 62538C 62538C 62538E 62538E 62539A 62539A 62566B 62594E 62595E 62596D 62638A 62638B 62639A 63650E 64766B 67911B 67912A 67913B 67914B 67915 67916 67917C 67918E 7152 90167T0007 90167T0012 9046718017 90467T0021
Part # Description Qty Price
Common parts
90167-T0007
90167-T0012
90467-18017
90467-T0021
Linked diagrams
7152
