GGN155L-SGTMKF (2018)

Toyota Fortuner

Production Aug 2018 - Oct 2020
Engine 1GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1507- )

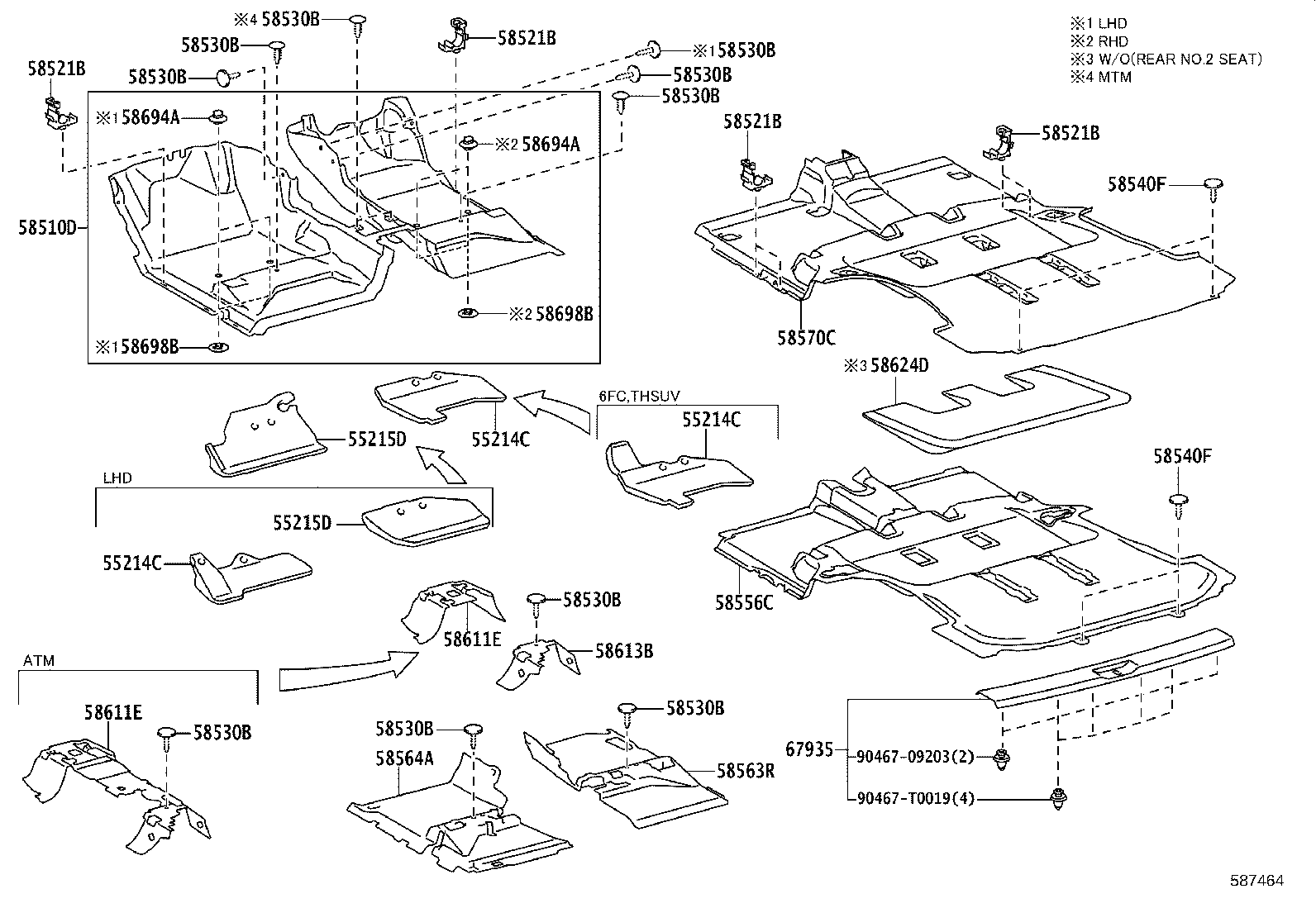

Click highlighted areas on diagram

diagram 55214C 55214C 55214C 55215D 55215D 58510D 58521B 58521B 58521B 58521B 58530B 58530B 58530B 58530B 58530B 58530B 58530B 58530B 58530B 58530B 58540F 58540F 58556C 58563R 58564A 58570C 58611E 58611E 58613B 58624D 58694A 58694A 58698B 58698B 67935 9046709203 90467T0019
Part # Description Qty Price
58510D - CARPET ASSY, FLOOR, FRONT
58500-0KB50C0

GGN155,GUN156,165,TGN156,166..6FC..LA

BLACK,TRIM4#

 1
58540F - CLIP(FOR REAR FLOOR CARPET)
90467-T0031C0

GUN156..6F..M;GUN156..IDNSU..H..GEN;TGN156..S..(BZAGT,GEN,KZS,SA);GUN156,TGN166..(H,L)..(ARL,GCC);GUN165..IDNSU,SASUV,THSUV,VNSUV;TGN166..BZAGT,EPT,GEN,IDN,LA,PH,PKN,SA,TH,VN;GUN156..(L,M,S)..HDCR..(BZAGT,GEN,LA,PH,PKN,SA,VN);GGN155,165,GUN155,166,KUN156,165,LAN155..EPT,GCC,GEN,IDN,LA,SA;GUN156,TGN156,168..(AGTSU,EPTSU,IDNSU,THSUV)..(L,M)..(HTWC,HTWCF,IART)

BLACK,TRIM4#

 4
58540F - CLIP(FOR REAR FLOOR CARPET)
90467-T0031C0

GUN156..6F..M;GUN156..IDNSU..H..GEN;TGN156..S..(BZAGT,GEN,KZS,SA);GUN156,TGN166..(H,L)..(ARL,GCC);GUN165..IDNSU,SASUV,THSUV,VNSUV;TGN166..BZAGT,EPT,GEN,IDN,LA,PH,PKN,SA,TH,VN;GUN156..(L,M,S)..HDCR..(BZAGT,GEN,LA,PH,PKN,SA,VN);GGN155,165,GUN155,166,KUN156,165,LAN155..EPT,GCC,GEN,IDN,LA,SA;GUN156,TGN156,168..(AGTSU,EPTSU,IDNSU,THSUV)..(L,M)..(HTWC,HTWCF,IART)

BLACK,TRIM4#

 4
58694A - PLATE, MAT SET, UPPER
58694-76010

GUN165..IDNSU,SASUV,VNSUV;TGN156,166..IDNSU..L..GCC;TGN156,166..BZAGT,EPT,GEN,IDN,LA,PH,SA,VN;GGN155,165,GUN15#,166,KUN156,165,LAN155,TGN168..AGTSU,EPTSU,IDNSU,SASUV,VNSUV

 2
58694A - PLATE, MAT SET, UPPER
58694-76010

GUN165..IDNSU,SASUV,VNSUV;TGN156,166..IDNSU..L..GCC;TGN156,166..BZAGT,EPT,GEN,IDN,LA,PH,SA,VN;GGN155,165,GUN15#,166,KUN156,165,LAN155,TGN168..AGTSU,EPTSU,IDNSU,SASUV,VNSUV

 2
58698B - PLATE, MAT SET, LOWER
58698-76010

GUN165..IDNSU,SASUV,VNSUV;TGN156,166..IDNSU..L..GCC;TGN156,166..BZAGT,EPT,GEN,IDN,LA,PH,SA,VN;GGN155,165,GUN15#,166,KUN156,165,LAN155,TGN168..AGTSU,EPTSU,IDNSU,SASUV,VNSUV

 2
58698B - PLATE, MAT SET, LOWER
58698-76010

GUN165..IDNSU,SASUV,VNSUV;TGN156,166..IDNSU..L..GCC;TGN156,166..BZAGT,EPT,GEN,IDN,LA,PH,SA,VN;GGN155,165,GUN15#,166,KUN156,165,LAN155,TGN168..AGTSU,EPTSU,IDNSU,SASUV,VNSUV

 2
Common parts
90467-09203
90467-T0019

(2005- )

Click highlighted areas on diagram

diagram 55214C 55214C 55214C 55215D 55215D 58510D 58521B 58521B 58521B 58521B 58530B 58530B 58530B 58530B 58530B 58530B 58530B 58530B 58530B 58530B 58540F 58540F 58556C 58563R 58564A 58570C 58611E 58611E 58613B 58624D 58694A 58694A 58698B 58698B 67935 9046709203 90467T0019
Part # Description Qty Price
Common parts
90467-09203
90467-T0019
