GGN155L-SGTMKF (2018)

Toyota Fortuner

Production Aug 2018 - Oct 2020
Engine 1GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

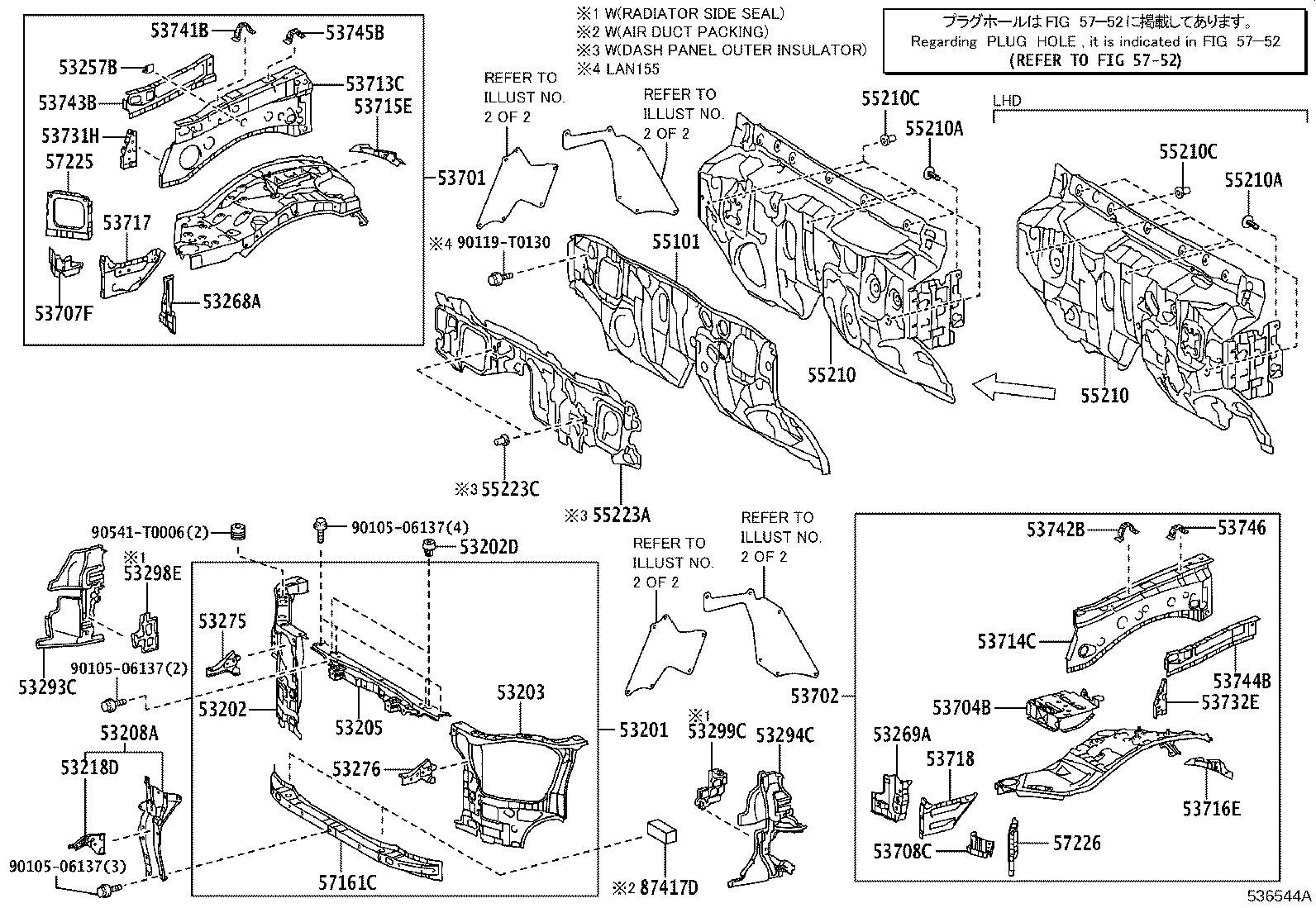

ILLUST NO. 1 OF 2(1507- )

Click highlighted areas on diagram

diagram 53201 53202 53202D 53203 53205 53208A 53218D 53257B 53257B 53268A 53269A 53275 53276 53293C 53294C 53298E 53299C 53701 53702 53704B 53707F 53708C 53713C 53714C 53715E 53716E 53717 53718 53731H 53732E 53741B 53742B 53743B 53744B 53745B 53746 55101 55210 55210 55210A 55210A 55210C 55210C 55223A 55223C 57161C 57225 57226 5752 87417D 9010506137 9010506137 9010506137 9026903037 90541T0006
Part # Description Qty Price
53202 - SUPPORT SUB-ASSY, RADIATOR, RH
53202-KK020

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
53202D - CUSHION, RADIATOR SUPPORT
53384-0K040

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 2
53203 - SUPPORT SUB-ASSY, RADIATOR, LH
53203-KK020

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
53208A - SUPPORT SUB-ASSY, HOOD LOCK
53208-KK020

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
53218D - EXTENSION, HOOD LOCK BRACE
53218-KK010

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
53257B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER
53257-35030

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
53257B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER
53257-35030

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
53268A - REINFORCEMENT, RADIATOR MOUNTING, RH
53268-KK010

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
53269A - REINFORCEMENT, RADIATOR MOUNTING, LH
53269-KK010

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
53275 - BRACKET, HEADLAMP DOOR MOUNTING, NO.1 RH
53275-KK010

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
53276 - BRACKET, HEADLAMP DOOR MOUNTING, NO.1 LH
53276-KK010

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
53293C - DEFLECTOR, RADIATOR SIDE, RH
53293-KK070

TGN166..L..GEN;GUN156..H..BZAGT;KUN156,TGN16#..BZAGT,IND,LA;TGN156..LHD..(BZAGT,GEN,KZS,LA);GUN156..(IDNSU,INDSU)..(IND,LA);GGN155,GUN16#..(H,L,M)..(BZAGT,GEN,IND,LA);GUN156..(AGTSU,THSUV)..(L,M,S)..(ARL,BZAGT,GEN,LA)

 1
53294C - DEFLECTOR, RADIATOR SIDE, LH
53294-KK070

TGN166..L..GEN;GUN156..H..BZAGT;KUN156,TGN16#..BZAGT,IND,LA;TGN156..LHD..(BZAGT,GEN,KZS,LA);GUN156..(IDNSU,INDSU)..(IND,LA);GGN155,GUN16#..(H,L,M)..(BZAGT,GEN,IND,LA);GUN156..(AGTSU,THSUV)..(L,M,S)..(ARL,BZAGT,GEN,LA)

 1
53298E - SEAL, RADIATOR SIDE, RH
53298-KK010

TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV;GGN155,165,KUN156,165,LAN155,TGN156,168..AGTSU,EPTSU,IDNSU,SASUV,THSUV

 1
53299C - SEAL, RADIATOR SIDE, LH
53299-KK010

TGN166..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV;GGN155,165,KUN156,165,LAN155,TGN156,168..AGTSU,EPTSU,IDNSU,SASUV,THSUV

 1
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53701-KK390

GUN156..H..GEN;GUN156..BZAGT,GCC,LA,PH,VN;GUN156..LHD..IDNSU..M..GEN;GGN155,GUN155,165..LHD..(AGTSU,EPTSU,IDNSU,THSUV,VNSUV)

 1
53704B - SUPPORT SUB-ASSY, BATTERY, LH
53704-KK010

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
53707F - GUSSET SUB-ASSY, FRONT FENDER APRON, LOWER RH
53707-KK010

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
53708C - GUSSET SUB-ASSY, FRONT FENDER APRON, LOWER LH
53708-KK010

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
53714C - EXTENSION, FRONT FENDER APRON, FRONT LH
53714-KK020

TGN156..AGTSU,EPTSU,THSUV;GGN155,165,GUN15#,16#,KUN156,TGN16#..AGTSU,EPTSU,PKNSU,THSUV

 1
53715E - EXTENSION, FRONT FENDER APRON, REAR RH
53715-0K030

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
53716E - EXTENSION, FRONT FENDER APRON, REAR LH
53716-0K030

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
53717 - PLATE, FENDER APRON, RH
53717-KK010

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
53718 - PLATE, FENDER APRON, LH
53718-KK010

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
53731H - PATCH, FRONT FENDER APRON, RH
53731-KK010

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
53732E - REINFORCEMENT, FRONT FENDER APRON, LH
53732-KK010

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
53741B - PLATE, FENDER APRON REINFORCE, RH
53741-KK030

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
53742B - PLATE, FENDER APRON REINFORCE, LH
53742-KK030

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
53743B - REINFORCEMENT, FRONT FENDER APRON, FRONT RH
53743-KK010

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
53744B - REINFORCEMENT, FRONT FENDER APRON, FRONT LH
53744-KK010

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
53745B - REINFORCEMENT, FRONT FENDER APRON, REAR RH
53745-KK020

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
53746 - REINFORCEMENT, FRONT FENDER APRON, REAR LH
53746-KK020

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
55210A - CLIP
90467-T0004A0

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

IVORY

 2
55210A - CLIP
90467-T0004A0

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

IVORY

 2
55223C - CLIP
90467-T0032

TGN166..L..(EPT,LA,SA);TGN156..(M,S)..(GCC,GEN);TGN156..BZAGT,EPT,KZS,LA,SA,VN;TGN166..(AGTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..(H,M,S);GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN168..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 2
57161C - MEMBER, FRONT CROSS
57161-KK010

TGN156..AGTSU,EPTSU,IDNSU;GGN155,165,GUN15#,165,KUN156,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,VNSUV

 1
57225 - BRACE, FRONT MOUNTING BRACKET, RH
57225-KK010

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
57226 - BRACE, FRONT MOUNTING BRACKET, LH
57226-KK010

TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
Common parts
90105-06137
90269-03037
90541-T0006
Linked diagrams
5752

ILLUST NO. 2 OF 2(1507- )

Click highlighted areas on diagram

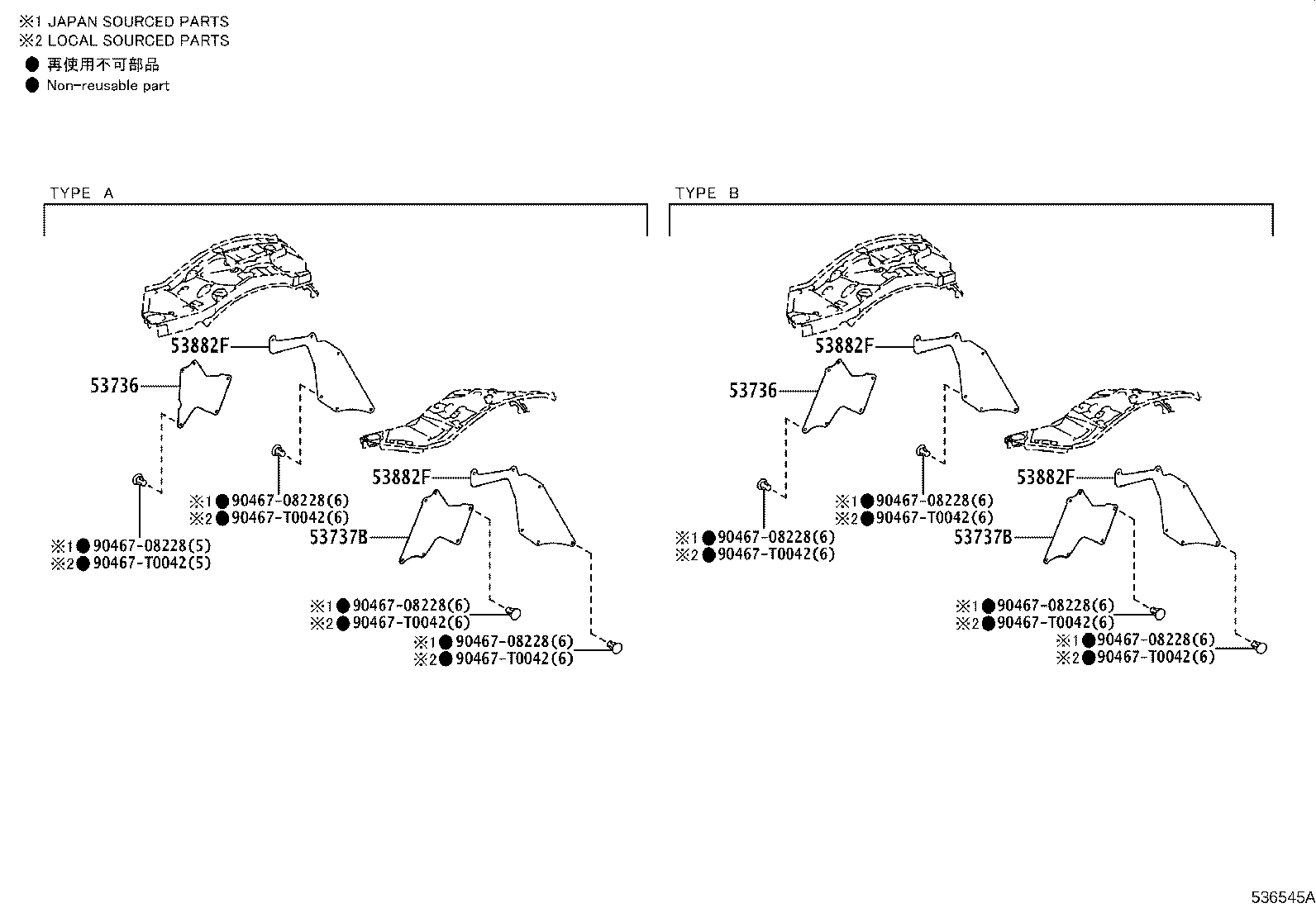

FRONT FENDER APRON SEAL

diagram 53736 53736 53737B 53737B 53882F 53882F 53882F 53882F 9046708228 9046708228 9046708228 9046708228 9046708228 9046708228 9046708228 9046708228 90467T0042 90467T0042 90467T0042 90467T0042 90467T0042 90467T0042 90467T0042 90467T0042
Part # Description Qty Price
53736 - SEAL, FRONT FENDER APRON, RH
53735-KK020

TGN156,166..5F..GCC;TGN156..6FC..(EPT,GEN,SA);TGN166..6FC..(EPT,GEN,PKN,SA);GGN155,165,GUN15#,16#,KUN156,165,LAN155..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

TYPE B:REFER ILLUST.

 1
53736 - SEAL, FRONT FENDER APRON, RH
53735-KK020

TGN156,166..5F..GCC;TGN156..6FC..(EPT,GEN,SA);TGN166..6FC..(EPT,GEN,PKN,SA);GGN155,165,GUN15#,16#,KUN156,165,LAN155..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

TYPE B:REFER ILLUST.

 1
53737B - SEAL, FRONT FENDER APRON, LH
53735-KK020

TGN156,166..5F..GCC;TGN156..6FC..(EPT,GEN,SA);TGN166..6FC..(EPT,GEN,PKN,SA);GGN155,165,GUN15#,16#,KUN156,165,LAN155..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

TYPE B:REFER ILLUST.

 1
53737B - SEAL, FRONT FENDER APRON, LH
53735-KK020

TGN156,166..5F..GCC;TGN156..6FC..(EPT,GEN,SA);TGN166..6FC..(EPT,GEN,PKN,SA);GGN155,165,GUN15#,16#,KUN156,165,LAN155..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

TYPE B:REFER ILLUST.

 1
53882F - SEAL, FRONT FENDER
53885-KK020

TGN156,166..5F..GCC;TGN156..6FC..(EPT,GEN,SA);TGN166..6FC..(EPT,GEN,PKN,SA);GGN155,165,GUN15#,16#,KUN156,165,LAN155..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

TYPE B:REFER ILLUST.

 2
53882F - SEAL, FRONT FENDER
53885-KK020

TGN156,166..5F..GCC;TGN156..6FC..(EPT,GEN,SA);TGN166..6FC..(EPT,GEN,PKN,SA);GGN155,165,GUN15#,16#,KUN156,165,LAN155..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

TYPE B:REFER ILLUST.

 2
53882F - SEAL, FRONT FENDER
53885-KK020

TGN156,166..5F..GCC;TGN156..6FC..(EPT,GEN,SA);TGN166..6FC..(EPT,GEN,PKN,SA);GGN155,165,GUN15#,16#,KUN156,165,LAN155..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

TYPE B:REFER ILLUST.

 2
53882F - SEAL, FRONT FENDER
53885-KK020

TGN156,166..5F..GCC;TGN156..6FC..(EPT,GEN,SA);TGN166..6FC..(EPT,GEN,PKN,SA);GGN155,165,GUN15#,16#,KUN156,165,LAN155..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

TYPE B:REFER ILLUST.

 2
Common parts
90467-08228
90467-T0042

ILLUST NO. 1 OF 2(2005- )

Click highlighted areas on diagram

diagram 53201 53202 53202D 53203 53205 53208A 53218D 53257B 53268A 53269A 53275 53276 53293C 53294C 53298E 53299C 53701 53702 53704B 53707F 53708C 53713C 53714C 53715E 53716E 53717 53718 53731H 53732E 53741B 53742B 53743B 53744B 53745B 53746 55101 55210 55210 55210A 55210A 55210C 55210C 55223A 55223C 57161C 57225 57226 5752 87417D 9010506137 9010506137 9010506137 90119T0130 90541T0006
Part # Description Qty Price
Common parts
90105-06137
90119-T0130
90541-T0006
Linked diagrams
5752

ILLUST NO. 2 OF 2(2005- )

Click highlighted areas on diagram

diagram 53736 53736 53737B 53737B 53882F 53882F 53882F 53882F 9046708228 9046708228 9046708228 9046708228 9046708228 9046708228 9046708228 9046708228 90467T0042 90467T0042 90467T0042 90467T0042 90467T0042 90467T0042 90467T0042 90467T0042
Part # Description Qty Price
Common parts
90467-08228
90467-T0042
