GGN155L-SGTMKF (2018)

Toyota Fortuner

Production Aug 2018 - Oct 2020
Engine 1GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

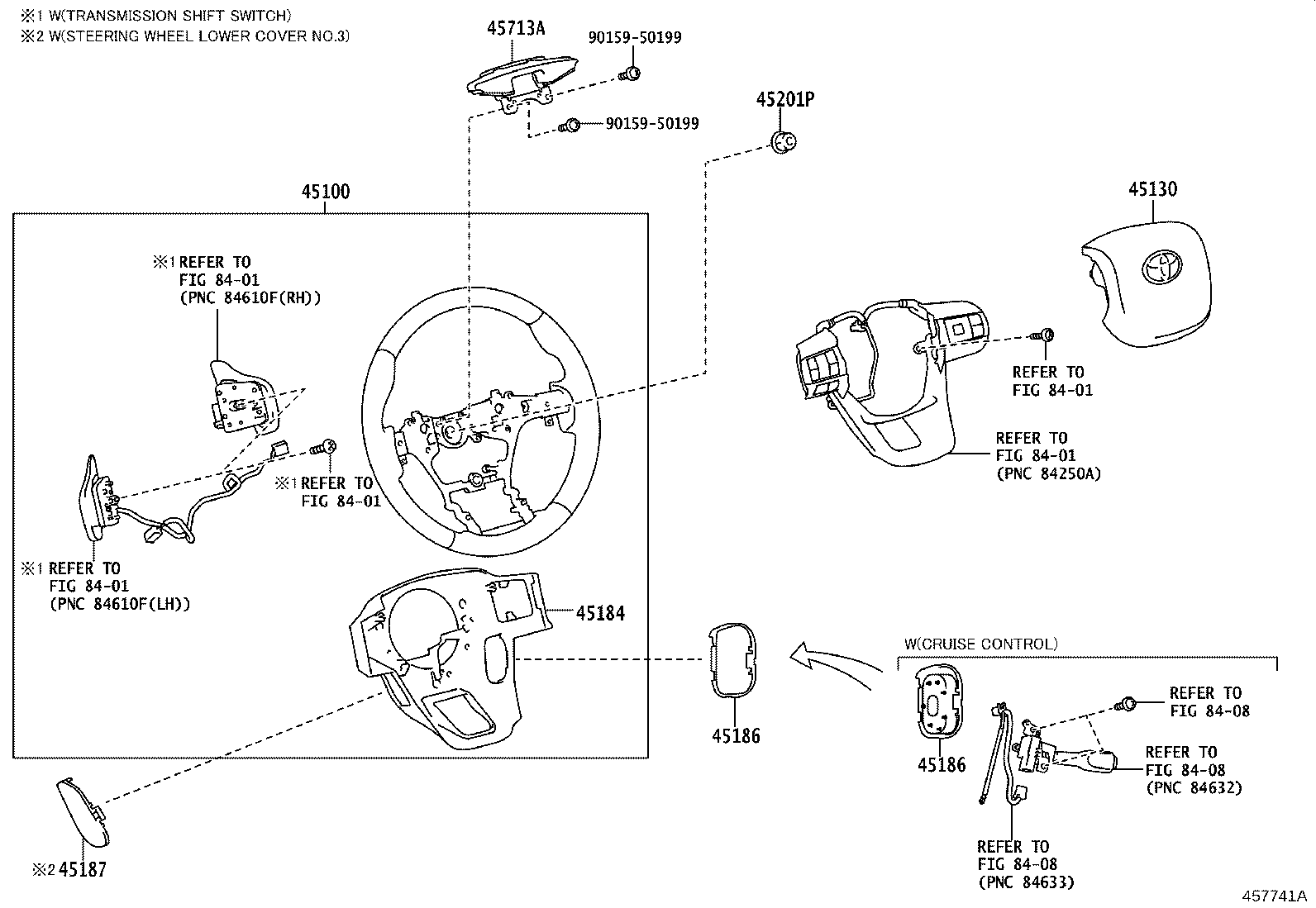

(1507- )

Click highlighted areas on diagram

3-SPOKE

diagram 45100 45130 45184 45186 45186 45187 45201P 45713A 8401 8401 8401 8401 8401 8408 8408 8408 9015950199 9015950199
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-0KR20C0

GUN156..AGTSU..6FC..(H,M);GGN155,TGN156,16#..AGTSU..(M,S)

3-SPOKE,WOOD&LEATHER,BLACK & BROWN,TRIM4#

 1
45100-0KR20C3

GUN156..AGTSU..6FC..(H,M);GGN155,TGN156,16#..AGTSU..(M,S)

3-SPOKE,WOOD&LEATHER,BLACK & BEIGE & BLACK,TRIM0#

 1
45184 - COVER, STEERING WHEEL BOSS, LOWER
45184-0K180C0

GUN156..AGTSU..6FC..(H,M);GGN155,TGN156,16#..AGTSU..(M,S)

BLACK

 1
45201P - NUT, STEERING WHEEL SET
90179-12071

TGN156..IDNSU..L..GCC;TGN156..IDNSU..(GEN,LA,VN);TGN156..AGTSU,EPTSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

 1
Common parts
90159-50199
Linked diagrams
8401
8408

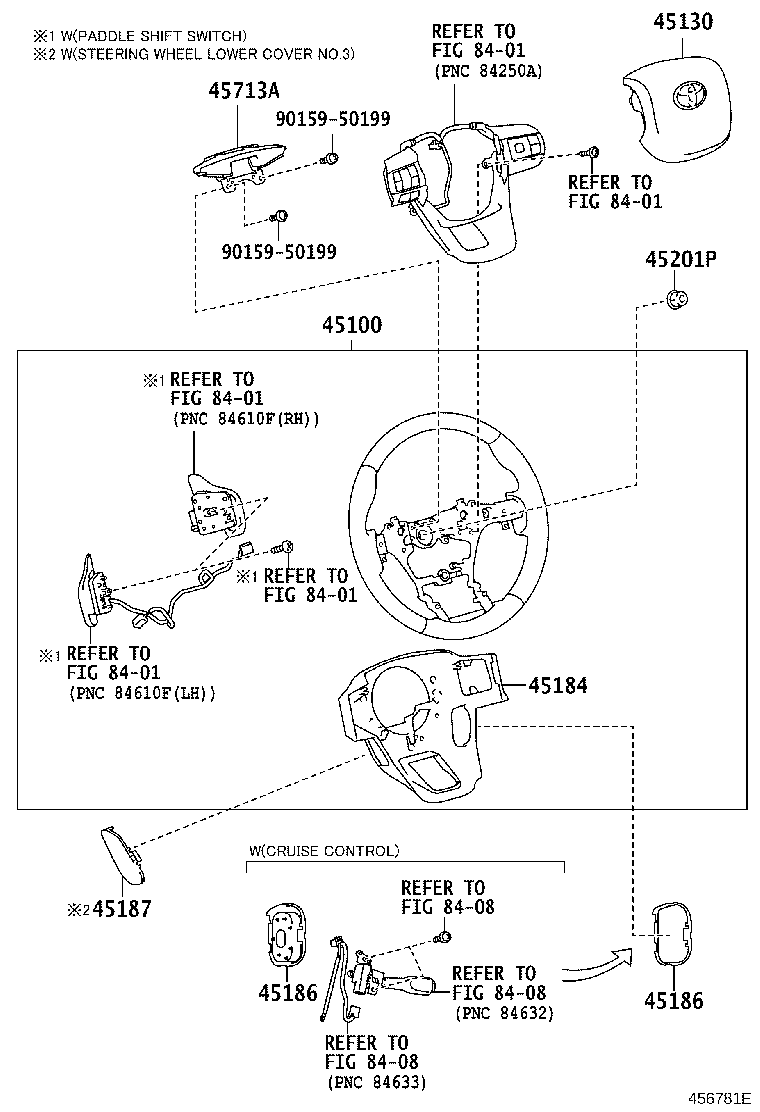

(2005- )

Click highlighted areas on diagram

diagram 45100 45130 45184 45186 45186 45187 45201P 45713A 8401 8401 8401 8401 8401 8408 8408 8408 9015950199 9015950199
Part # Description Qty Price
Common parts
90159-50199
Linked diagrams
8401
8408
