Toyota Fortuner GGN155 REAR AXLE SHAFT & HUB

Manufacturers Home
Toyota
GR
FORTUNER
GGN155L-SGTMKF (2018)
4102 - REAR AXLE SHAFT & HUB

GGN155L-SGTMKF (2018)

Toyota Fortuner

Production Aug 2018 - Oct 2020

Engine 1GRFE

Transmission 6FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(1507- )

Click highlighted areas on diagram

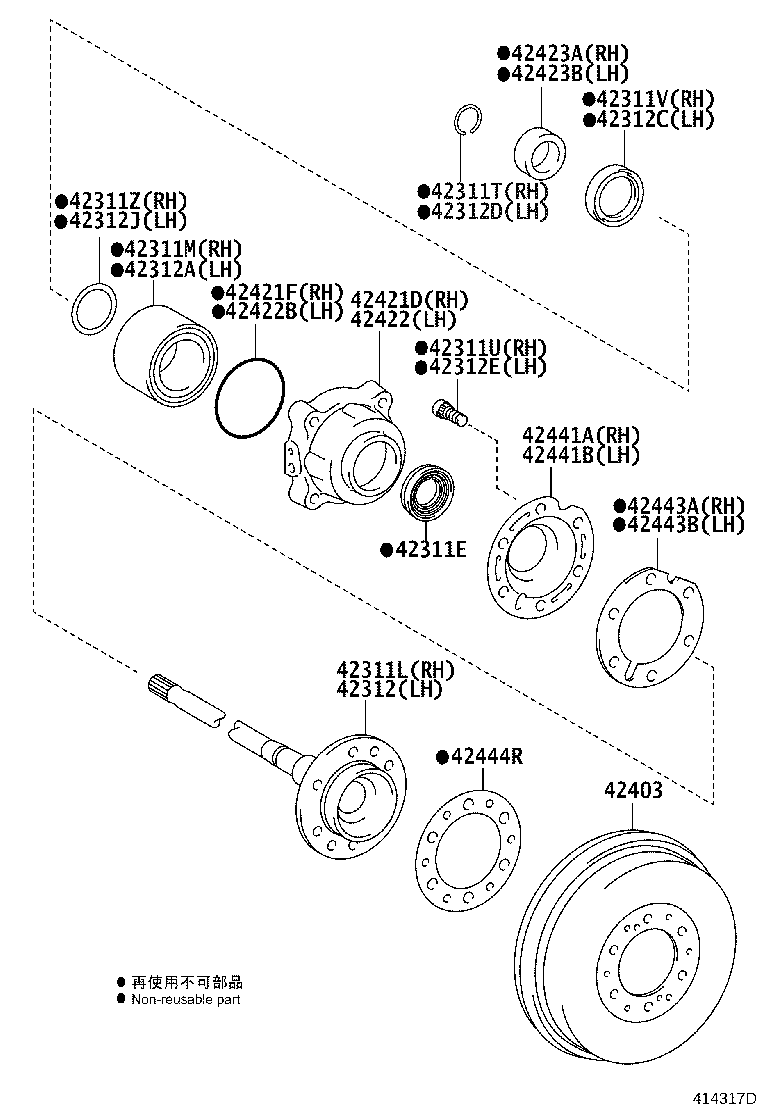

DRUM BRAKE

Part #	Description	Period	Qty
42311E - SEAL, OIL (FOR REAR AXLE SHAFT OUTER)
90313-T0002	TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	2
42311L - SHAFT, REAR AXLE, RH
42311-KK040	TGN166..BZAGT,EPT,GCC,GEN,LA,PKN,SA;TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN168..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	1
42311M - BEARING (FOR REAR AXLE SHAFT RH)
90366-T0060	TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	1
42311T - RING, SNAP (FOR REAR AXLE SHAFT RH)
90520-T0033	TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	1
42311U - BOLT, HUB (FOR REAR AXLE RH)
90942-02081	TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	6
42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH)
90310-T0008	TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	1
42311Z - WASHER(FOR REAR AXLE SHAFT RH)
90208-T0001	TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	1
42312 - SHAFT, REAR AXLE, LH
42311-KK040	TGN166..BZAGT,EPT,GCC,GEN,LA,PKN,SA;TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN168..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	1
42312A - BEARING (FOR REAR AXLE SHAFT LH)
90366-T0060	TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	1
42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH)
90310-T0008	TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	1
42312D - RING, SNAP (FOR REAR AXLE SHAFT LH)
90520-T0033	TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	1
42312E - BOLT, HUB (FOR REAR AXLE LH)
90942-02081	TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	6
42312J - WASHER (FOR REAR AXLE SHAFT LH)
90208-T0001	TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	1
42421D - CASE, REAR AXLE BEARING, RH
42421-KK050	KUN156..LA,SA;TGN156..S..GCC;TGN166..L..GEN;TGN166..AGTSU..L;TGN166..IDNSU..S..GCC;GUN165..(SASUV,VNSUV)..6F;TGN156..LHD..(BZAGT,GEN,KZS,LA,SA);TGN166..(IDNSU,SASUV)..(L,M)..(LA,SA);GUN165..6FC..(L,S)..(GEN,LA,SA,TH,VN);GUN156,166..ARL,BZAGT,GCC,GEN,LA,PKN,SA,VN;GGN155,GUN155,KUN165,LAN155,TGN168..BZAGT,GEN,LA,SA,TH;TGN166..(AGTSU,PKNSU,SASUV,THSUV,VNSUV)..(M,S)..(BZAGT,GCC,LA,PKN,SA,VN)	07/2015 - 12/2999	1
42421F - RING, O (FOR REAR AXLE BEARING CASE RH)
90301-T0043	TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	1
42422 - CASE, REAR AXLE BEARING, LH
42422-KK050	KUN156..LA,SA;TGN156..S..GCC;TGN166..L..GEN;TGN166..AGTSU..L;TGN166..IDNSU..S..GCC;GUN165..(SASUV,VNSUV)..6F;TGN156..LHD..(BZAGT,GEN,KZS,LA,SA);TGN166..(IDNSU,SASUV)..(L,M)..(LA,SA);GUN165..6FC..(L,S)..(GEN,LA,SA,TH,VN);GUN156,166..ARL,BZAGT,GCC,GEN,LA,PKN,SA,VN;GGN155,GUN155,KUN165,LAN155,TGN168..BZAGT,GEN,LA,SA,TH;TGN166..(AGTSU,PKNSU,SASUV,THSUV,VNSUV)..(M,S)..(BZAGT,GCC,LA,PKN,SA,VN)	07/2015 - 12/2999	1
42422B - RING, O (FOR REAR AXLE BEARING CASE LH)
90301-T0043	TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	1
42423A - RETAINER, REAR AXLE BEARING, INNER RH
42423-KK010	TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	1
42423B - RETAINER, REAR AXLE BEARING, INNER LH
42423-KK010	TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	1
42441A - DEFLECTOR, BRAKE DRUM OIL RH
42441-KK010	TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	1
42441B - DEFLECTOR, BRAKE DRUM OIL LH
42441-KK010	TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	1
42443A - GASKET, BRAKE DRUM OIL DEFLECTOR, RH
42443-60010	TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	1
42443B - GASKET, BRAKE DRUM OIL DEFLECTOR, LH
42443-60010	TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	1

(1507- )

Click highlighted areas on diagram

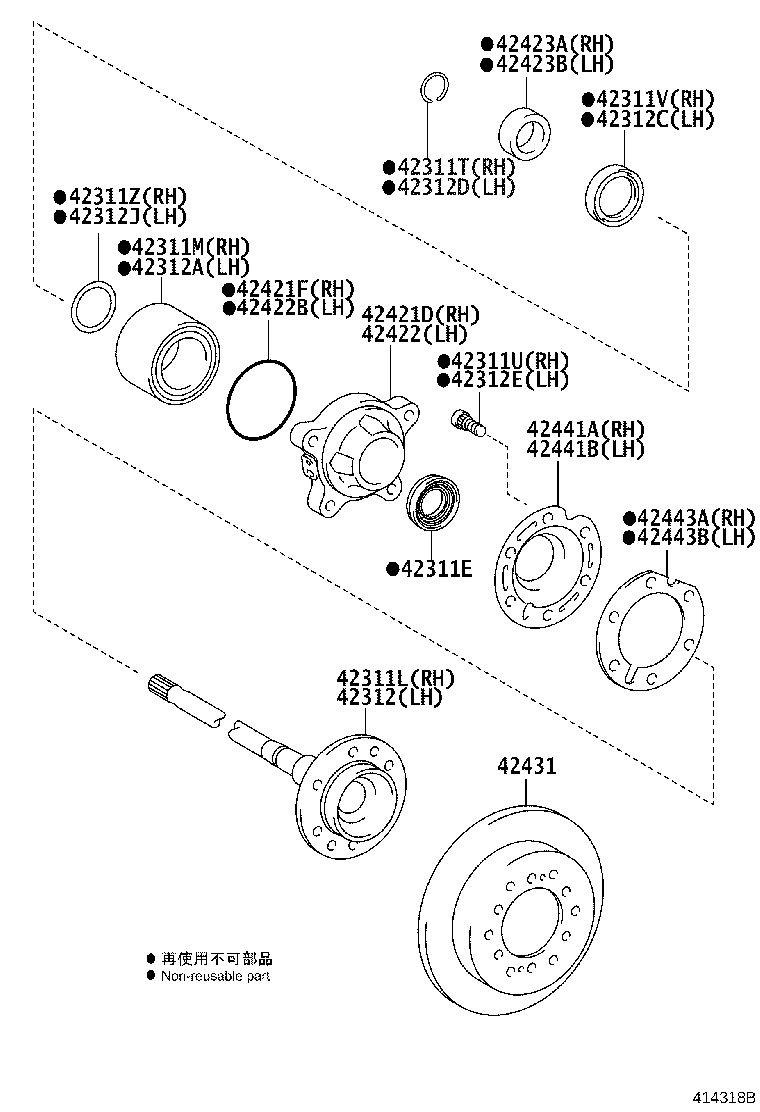

DISC BRAKE

Part #	Description	Period	Qty
42311E - SEAL, OIL (FOR REAR AXLE SHAFT OUTER)
90313-T0002	TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	2
42311L - SHAFT, REAR AXLE, RH
42311-KK040	TGN166..BZAGT,EPT,GCC,GEN,LA,PKN,SA;TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN168..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	1
42311M - BEARING (FOR REAR AXLE SHAFT RH)
90366-T0060	TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	1
42311T - RING, SNAP (FOR REAR AXLE SHAFT RH)
90520-T0033	TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	1
42311U - BOLT, HUB (FOR REAR AXLE RH)
90942-02081	TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	6
42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH)
90310-T0008	TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	1
42311Z - WASHER(FOR REAR AXLE SHAFT RH)
90208-T0001	TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	1
42312 - SHAFT, REAR AXLE, LH
42311-KK040	TGN166..BZAGT,EPT,GCC,GEN,LA,PKN,SA;TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN168..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	1
42312A - BEARING (FOR REAR AXLE SHAFT LH)
90366-T0060	TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	1
42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH)
90310-T0008	TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	1
42312D - RING, SNAP (FOR REAR AXLE SHAFT LH)
90520-T0033	TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	1
42312E - BOLT, HUB (FOR REAR AXLE LH)
90942-02081	TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	6
42312J - WASHER (FOR REAR AXLE SHAFT LH)
90208-T0001	TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	1
42421D - CASE, REAR AXLE BEARING, RH
42421-KK050	KUN156..LA,SA;TGN156..S..GCC;TGN166..L..GEN;TGN166..AGTSU..L;TGN166..IDNSU..S..GCC;GUN165..(SASUV,VNSUV)..6F;TGN156..LHD..(BZAGT,GEN,KZS,LA,SA);TGN166..(IDNSU,SASUV)..(L,M)..(LA,SA);GUN165..6FC..(L,S)..(GEN,LA,SA,TH,VN);GUN156,166..ARL,BZAGT,GCC,GEN,LA,PKN,SA,VN;GGN155,GUN155,KUN165,LAN155,TGN168..BZAGT,GEN,LA,SA,TH;TGN166..(AGTSU,PKNSU,SASUV,THSUV,VNSUV)..(M,S)..(BZAGT,GCC,LA,PKN,SA,VN)	07/2015 - 12/2999	1
42421F - RING, O (FOR REAR AXLE BEARING CASE RH)
90301-T0043	TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	1
42422 - CASE, REAR AXLE BEARING, LH
42422-KK050	KUN156..LA,SA;TGN156..S..GCC;TGN166..L..GEN;TGN166..AGTSU..L;TGN166..IDNSU..S..GCC;GUN165..(SASUV,VNSUV)..6F;TGN156..LHD..(BZAGT,GEN,KZS,LA,SA);TGN166..(IDNSU,SASUV)..(L,M)..(LA,SA);GUN165..6FC..(L,S)..(GEN,LA,SA,TH,VN);GUN156,166..ARL,BZAGT,GCC,GEN,LA,PKN,SA,VN;GGN155,GUN155,KUN165,LAN155,TGN168..BZAGT,GEN,LA,SA,TH;TGN166..(AGTSU,PKNSU,SASUV,THSUV,VNSUV)..(M,S)..(BZAGT,GCC,LA,PKN,SA,VN)	07/2015 - 12/2999	1
42422B - RING, O (FOR REAR AXLE BEARING CASE LH)
90301-T0043	TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	1
42423A - RETAINER, REAR AXLE BEARING, INNER RH
42423-KK010	TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	1
42423B - RETAINER, REAR AXLE BEARING, INNER LH
42423-KK010	TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	1
42431 - DISC, REAR
42431-60311	KUN156..LA,SA;GGN155,GUN15#,16#,KUN165,LAN155,TGN156,16#..AGTSU,SASUV	07/2015 - 10/2020	2
42441A - DEFLECTOR, BRAKE DRUM OIL RH
42441-KK010	TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	1
42441B - DEFLECTOR, BRAKE DRUM OIL LH
42441-KK010	TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	1
42443A - GASKET, BRAKE DRUM OIL DEFLECTOR, RH
42443-60010	TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	1
42443B - GASKET, BRAKE DRUM OIL DEFLECTOR, LH
42443-60010	TGN156..AGTSU,EPTSU,IDNSU,SASUV,THSUV;GGN155,165,GUN15#,16#,KUN156,165,LAN155,TGN16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV	07/2015 - 12/2999	1

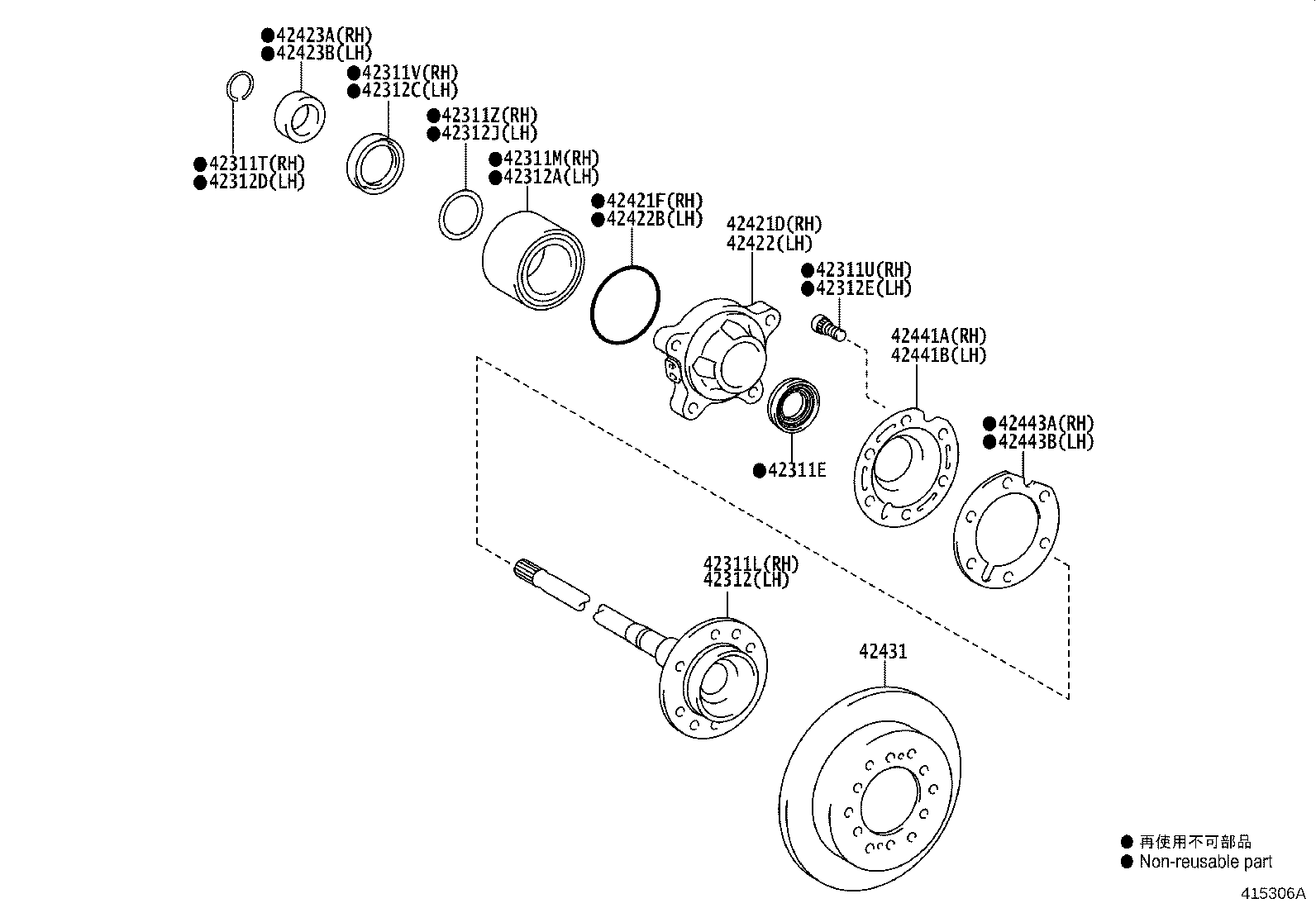

(2006- )

Click highlighted areas on diagram
