GGN155L-SGTMKF (2018)
Toyota Fortuner

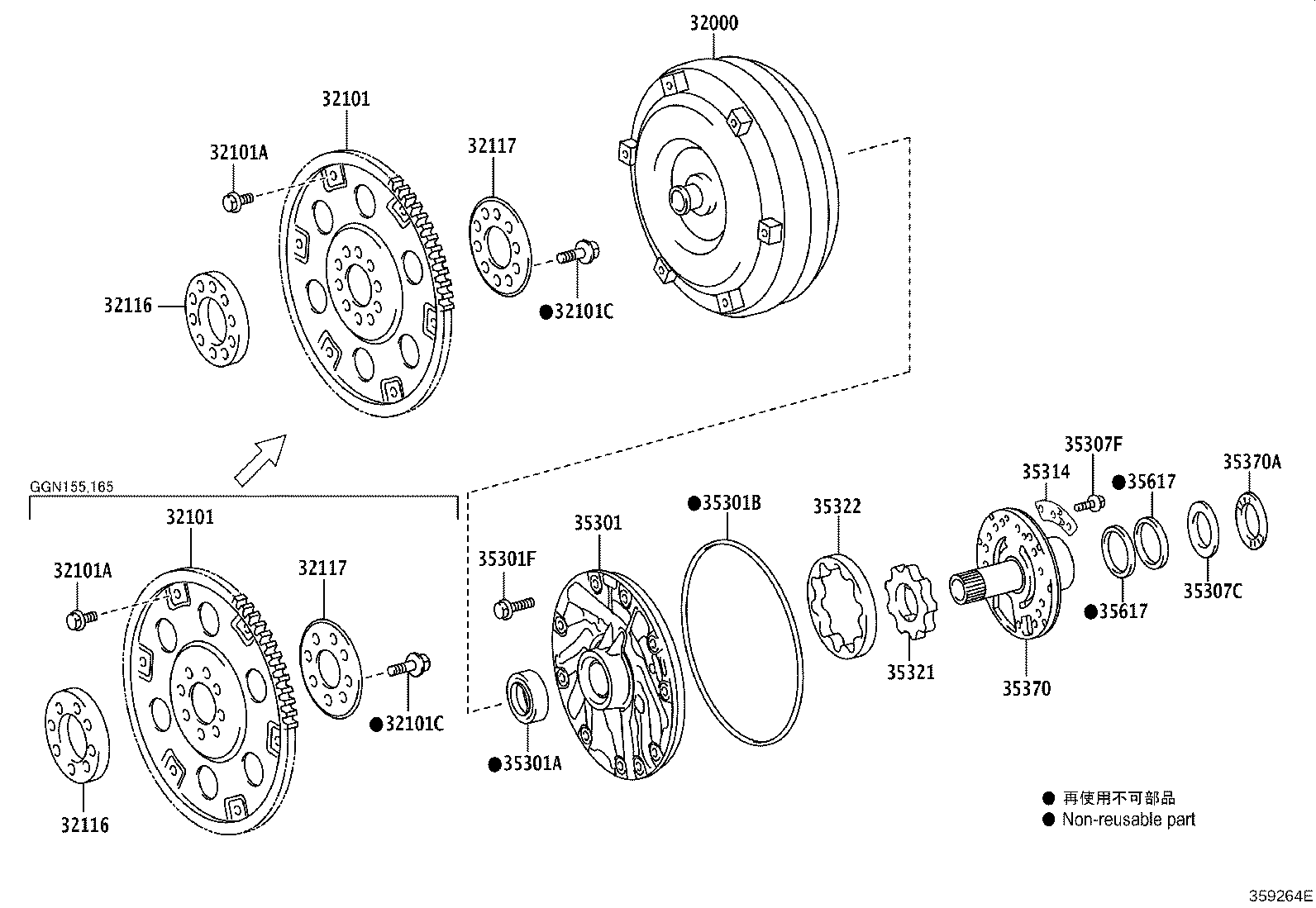

(1507- )GGN155,165,TGN156,16#..6FC
AC60E,AC60F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90119-09026 |
GGN155,165,TGN156,16#..(AGTSU,IDNSU,SASUV,THSUV,VNSUV)..6FC *9-1.25PX12.8-9,BLACK |
1 | ||
| 90119-09027 |
GGN155,165,TGN156,16#..(AGTSU,IDNSU,SASUV,THSUV,VNSUV)..6FC *9-1.25PX12.8-8.8,SILVER WHITE |
5 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90119-09026 |
GGN155,165,TGN156,16#..(AGTSU,IDNSU,SASUV,THSUV,VNSUV)..6FC *9-1.25PX12.8-9,BLACK |
1 | ||
| 90119-09027 |
GGN155,165,TGN156,16#..(AGTSU,IDNSU,SASUV,THSUV,VNSUV)..6FC *9-1.25PX12.8-8.8,SILVER WHITE |
5 | ||
| 35301 - BODY SUB-ASSY, FRONT OIL PUMP | ||||
| 35301-71010 |
GGN165..GCC;TGN156,166..M..LA;GUN165..IDNSU..(H,S)..GCC;TGN156..6FC..(H,L,S)..(BZAGT,EPT,GEN,LA,SA);TGN166..6FC..(H,L,S)..(BZAGT,EPT,GEN,LA,PKN,SA);GGN155,GUN15#,16#,TGN168..6FC..(BZAGT,EPT,LA,PKN,SA) |
1 | ||
| 35301A - SEAL, OIL (FOR FRONT OIL PUMP) | ||||
| 90311-38101 |
GUN155..(SASUV,THSUV)..6FC;TGN156..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)..6FC;GGN155,165,GUN156,16#,TGN16#..(AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..6FC |
1 | ||
| 35301B - RING, O (FOR FRONT OIL PUMP BODY) | ||||
| 35697-60010 |
GUN155..(SASUV,THSUV)..6FC;TGN156..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)..6FC;GGN155,165,GUN156,16#,TGN16#..(AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..6FC |
1 | ||
| 35301F - BOLT (FOR FRONT OIL PUMP SETTING) | ||||
| 90105-08091 |
GUN155..(SASUV,THSUV)..6FC;TGN156..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)..6FC;GGN155,165,GUN156,16#,TGN16#..(AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..6FC *8-1.25PX35-35 |
10 | ||
| 35307C - RACE, THRUST BEARING (FOR STATOR SHAFT) | ||||
| 35789-71070 |
GUN155..(SASUV,THSUV)..6FC;TGN156..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)..6FC;GGN155,165,GUN156,16#,TGN16#..(AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..6FC |
1 | ||
| 35307F - BOLT (FOR STATOR SHAFT) | ||||
| 90148-60079 |
GGN165..GCC;TGN156,166..M..LA;GUN165..IDNSU..(H,S)..GCC;TGN156..6FC..(H,L,S)..(BZAGT,EPT,GEN,LA,SA);TGN166..6FC..(H,L,S)..(BZAGT,EPT,GEN,LA,PKN,SA);GGN155,GUN15#,16#,TGN168..6FC..(BZAGT,EPT,LA,PKN,SA) |
10 | ||
| 35314 - PLATE, FRONT OIL PUMP | ||||
| 35314-71010 |
GUN155..6FC..(MA,SA);TGN156..(AGTSU,EPTSU,IDNSU,MASUV,SASUV)..6FC;GGN155,165,GUN166,TGN168..6FC..(BZAGT,EPT,GCC,GEN,IND,LA,SA);GUN156,165,TGN166..(AGTSU,EPTSU,IDNSU,INDSU,MASUV,PKNSU,SASUV,VNSUV)..6FC |
1 | ||
| 35314-71020 |
GUN156,TGN166..(AGTSU,EPTSU,PKNSU,SASUV)..6FC;GGN155,GUN155,16#,TGN156,168..(AGTSU,EPTSU,SASUV)..6FC |
1 | ||
| 35321 - GEAR, FRONT OIL PUMP DRIVE | ||||
| 35321-71010 |
GGN165..GCC;TGN156,166..M..LA;GUN165..IDNSU..(H,S)..GCC;TGN156..6FC..(H,L,S)..(BZAGT,EPT,GEN,LA,SA);TGN166..6FC..(H,L,S)..(BZAGT,EPT,GEN,LA,PKN,SA);GGN155,GUN15#,16#,TGN168..6FC..(BZAGT,EPT,LA,PKN,SA) T=9.977-9.983 |
1 | ||
| 35322 - GEAR, FRONT OIL PUMP DRIVEN | ||||
| 35322-71010 |
GGN165..GCC;TGN156,166..M..LA;GUN165..IDNSU..(H,S)..GCC;TGN156..6FC..(H,L,S)..(BZAGT,EPT,GEN,LA,SA);TGN166..6FC..(H,L,S)..(BZAGT,EPT,GEN,LA,PKN,SA);GGN155,GUN15#,16#,TGN168..6FC..(BZAGT,EPT,LA,PKN,SA) T=9.977-9.983 |
1 | ||
| 35370 - SHAFT ASSY, STATOR | ||||
| 35370-71010 |
GGN165..GCC;TGN156,166..M..LA;GUN165..IDNSU..(H,S)..GCC;TGN156..6FC..(H,L,S)..(BZAGT,EPT,GEN,LA,SA);TGN166..6FC..(H,L,S)..(BZAGT,EPT,GEN,LA,PKN,SA);GGN155,GUN15#,16#,TGN168..6FC..(BZAGT,EPT,LA,PKN,SA) |
1 | ||
| 35370A - BEARING, THRUST NEEDLE ROLLER(FOR STATOR SHAFT) | ||||
| 90374-71002 |
GUN155..(SASUV,THSUV)..6FC;TGN156..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)..6FC;GGN155,165,GUN156,16#,TGN16#..(AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..6FC |
1 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-50030 |
GUN155..(SASUV,THSUV)..6FC;TGN156..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)..6FC;GGN155,165,GUN156,16#,TGN16#..(AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..6FC |
2 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-50030 |
GUN155..(SASUV,THSUV)..6FC;TGN156..(AGTSU,EPTSU,IDNSU,SASUV,THSUV)..6FC;GGN155,165,GUN156,16#,TGN16#..(AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV)..6FC |
2 | ||

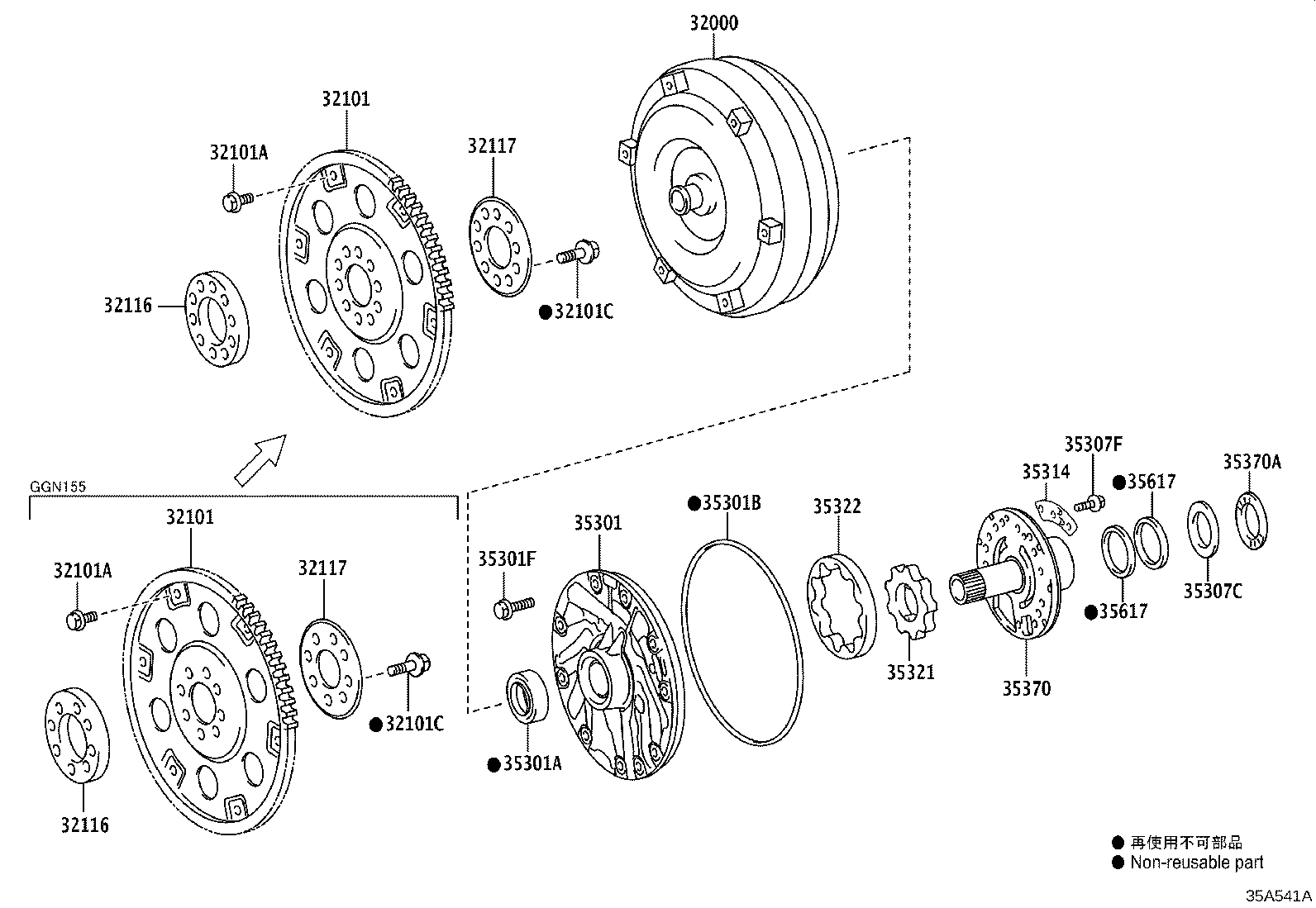

(2006- )GGN155,TGN156,16#..6FC
AC60E,AC60F
| Part # | Description | Qty | Price |
|---|
