GGN155L-SGTMKF (2018)

Toyota Fortuner

Production Aug 2018 - Oct 2020
Engine 1GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 4(2006- )1GRFE

Click highlighted areas on diagram

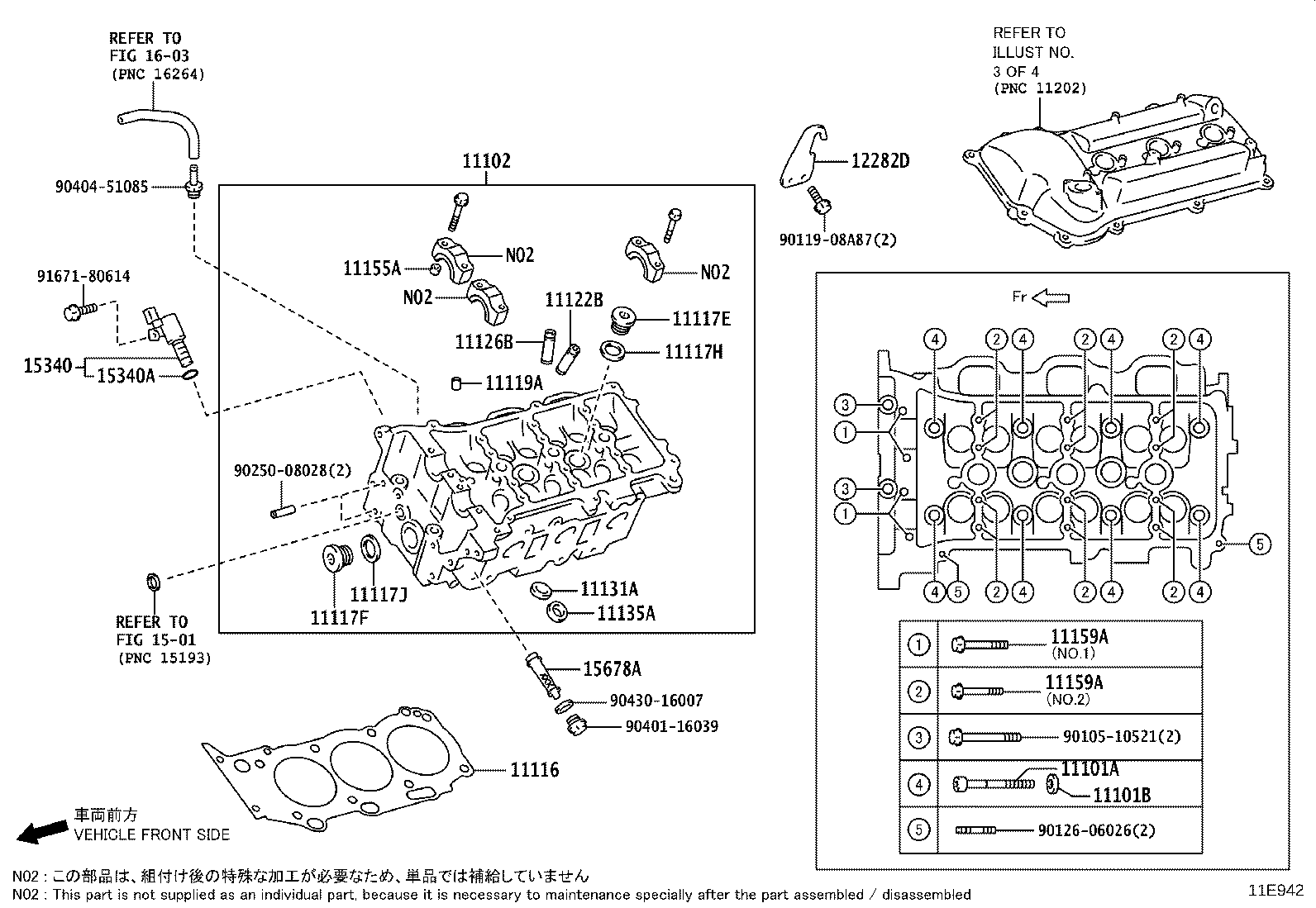

CYLINDER HEAD(LH BANK)

diagram 11101A 11101B 11102 11116 11117E 11117F 11117H 11117J 11119A 11122B 11126B 11131A 11135A 11155A 11159A 11159A 12282D 1501 15340 15340A 15678A 1603 9010510521 9011908A87 9012606026 9025008028 9040116039 9040451085 9043016007 9167180614
Part # Description Qty Price
Common parts
90105-10521
90119-08A87
90126-06026
90250-08028
90401-16039
90404-51085
90430-16007
91671-80614
Linked diagrams
1501
1603

ILLUST NO. 2 OF 4(2006- )1GRFE

Click highlighted areas on diagram

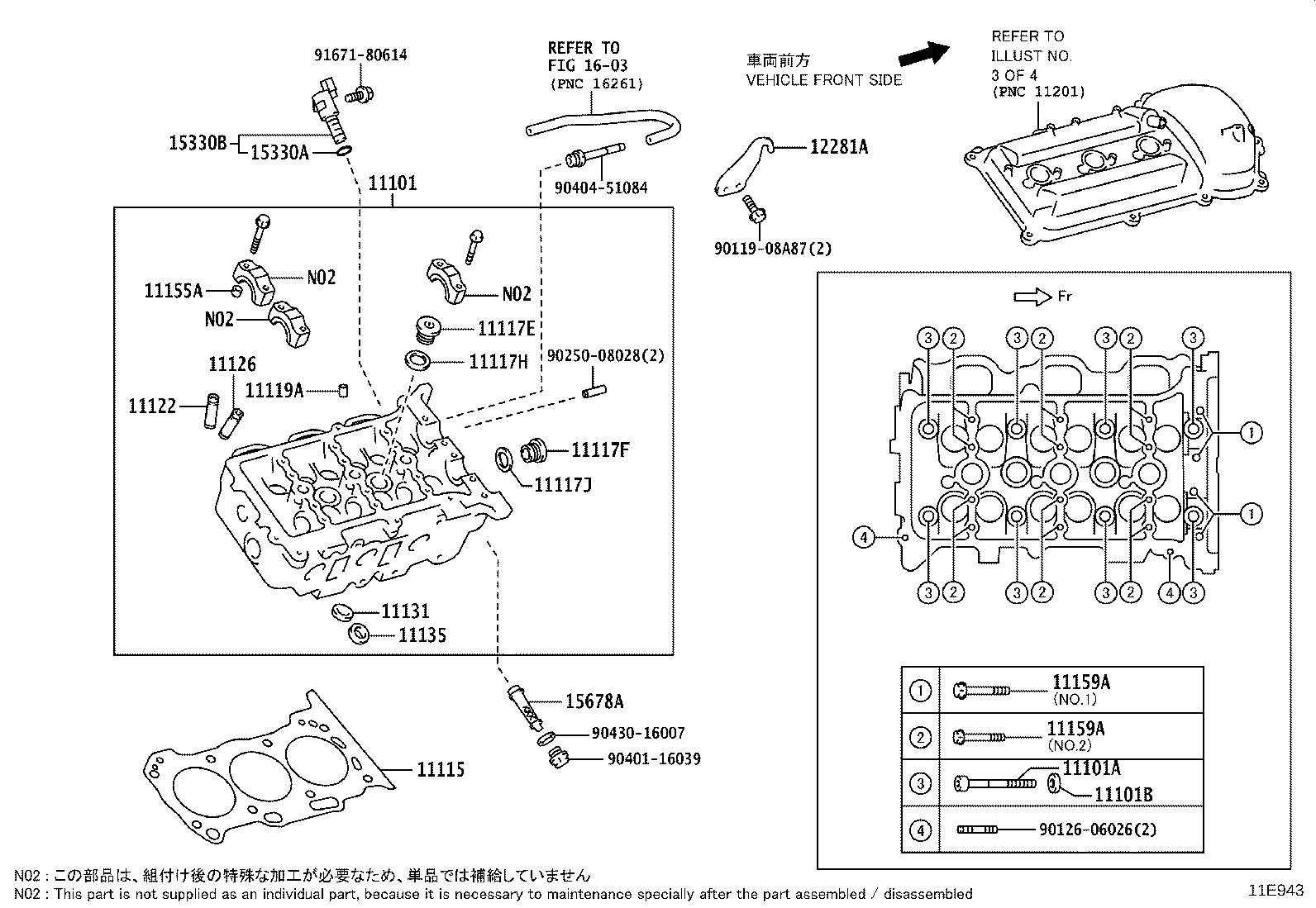

CYLINDER HEAD(RH BANK)

diagram 11101 11101A 11101B 11115 11117E 11117F 11117H 11117J 11119A 11122 11126 11131 11135 11155A 11159A 11159A 12281A 15330A 15330B 15678A 1603 9011908A87 9012606026 9025008028 9040116039 9040451084 9043016007 9167180614
Part # Description Qty Price
Common parts
90119-08A87
90126-06026
90250-08028
90401-16039
90404-51084
90430-16007
91671-80614
Linked diagrams
1603

ILLUST NO. 3 OF 4(2006- )1GRFE

Click highlighted areas on diagram

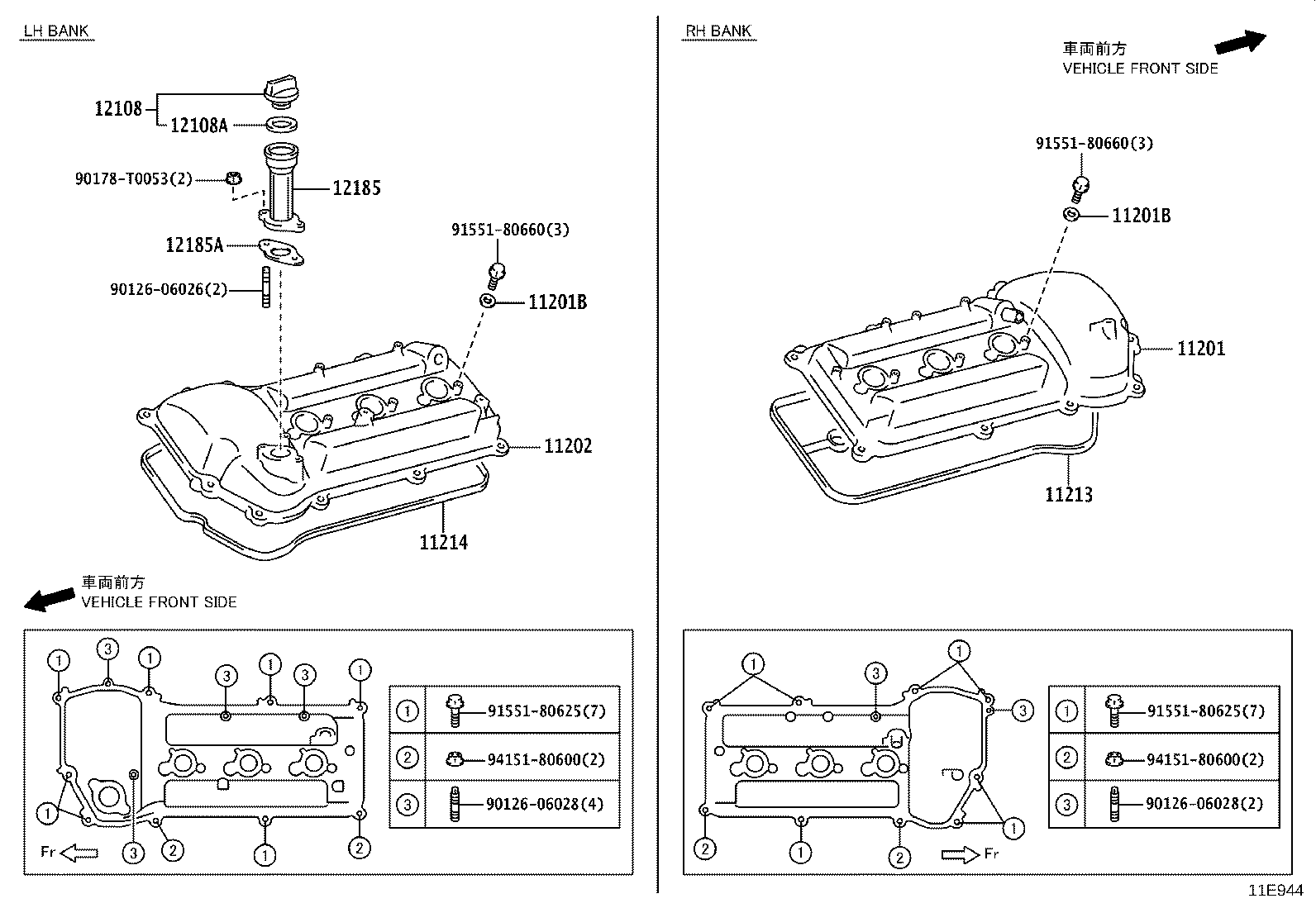

CYLINDER HEAD COVER

diagram 11201 11201B 11201B 11202 11213 11214 12108 12108A 12185 12185A 9012606026 9012606028 9012606028 90178T0053 9155180625 9155180625 9155180660 9155180660 9415180600 9415180600
Part # Description Qty Price
Common parts
90126-06026
90126-06028
90178-T0053
91551-80625
91551-80660
94151-80600

ILLUST NO. 4 OF 4(2006- )1GRFE

Click highlighted areas on diagram

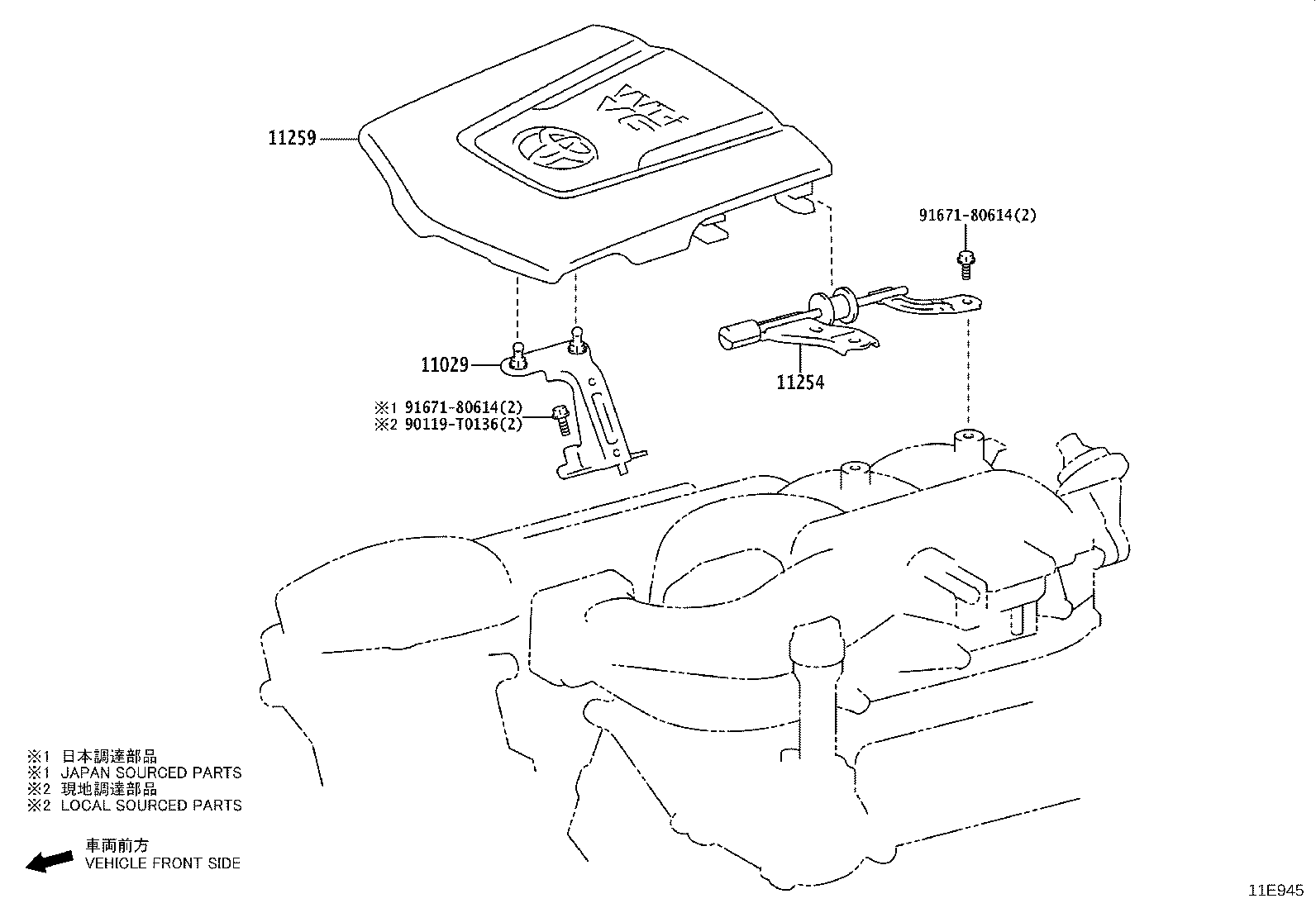

ENGINE COVER & V BANK COVER

diagram 11029 11254 11259 90119T0136 9167180614 9167180614
Part # Description Qty Price
Common parts
90119-T0136
91671-80614
