GGN155L-SGTHKG (2015)

Toyota Fortuner

Production Dec 2015 - Jun 2019
Engine 1GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1512- )1GRFE

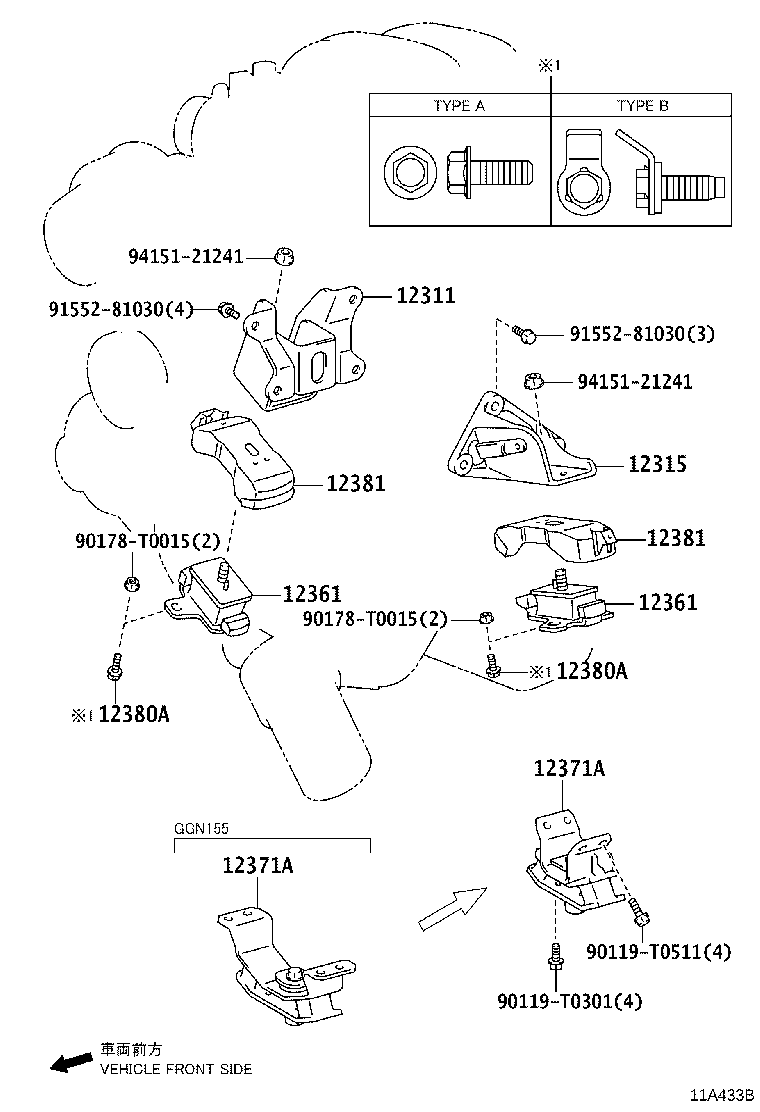

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371A 12371A 12380A 12380A 12381 12381 90119T0301 90119T0511 90178T0015 90178T0015 9155281030 9155281030 9415121241 9415121241
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-31031

1GRFE..GGN155,165..AGTSU,EPTSU,IDNSU,SASUV,THSUV

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-31062

1GRFE..GGN155,165..AGTSU,EPTSU,IDNSU,SASUV,THSUV

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-31380

1GRFE..GGN155,165..AGTSU,EPTSU,IDNSU,SASUV,THSUV

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-31380

1GRFE..GGN155,165..AGTSU,EPTSU,IDNSU,SASUV,THSUV

 2
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-0P230

1GRFE..GGN155..AGTSU,EPTSU,IDNSU,SASUV,THSUV

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-0P230

1GRFE..GGN155..AGTSU,EPTSU,IDNSU,SASUV,THSUV

 1
12380A - BOLT(FOR ENGINE MOUNTING INSURATOR)
90910-03003

1G#,2GDFTV..GGN155,165,GUN15#,16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

TYPE B:REFER ILLUST.

 4
90105-T0174

1G#,2GDFTV..GGN155,165,GUN15#,16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

TYPE A:REFER ILLUST.

 4
12380A - BOLT(FOR ENGINE MOUNTING INSURATOR)
90910-03003

1G#,2GDFTV..GGN155,165,GUN15#,16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

TYPE B:REFER ILLUST.

 4
90105-T0174

1G#,2GDFTV..GGN155,165,GUN15#,16#..AGTSU,EPTSU,IDNSU,PKNSU,SASUV,THSUV,VNSUV

TYPE A:REFER ILLUST.

 4
12381 - STABILIZER, ENGINE MOUNTING
12381-31090

1GRFE..GGN155,165..AGTSU,EPTSU,IDNSU,SASUV,THSUV

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-31090

1GRFE..GGN155,165..AGTSU,EPTSU,IDNSU,SASUV,THSUV

 2
Common parts
90119-T0301
90119-T0511
90178-T0015
91552-81030
94151-21241
