GSJ15R-GKASKN (2010)
Toyota Fj Cruiser
Production
Nov 2010
-
Sep 9999
Engine
1GRFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1011- )RHD

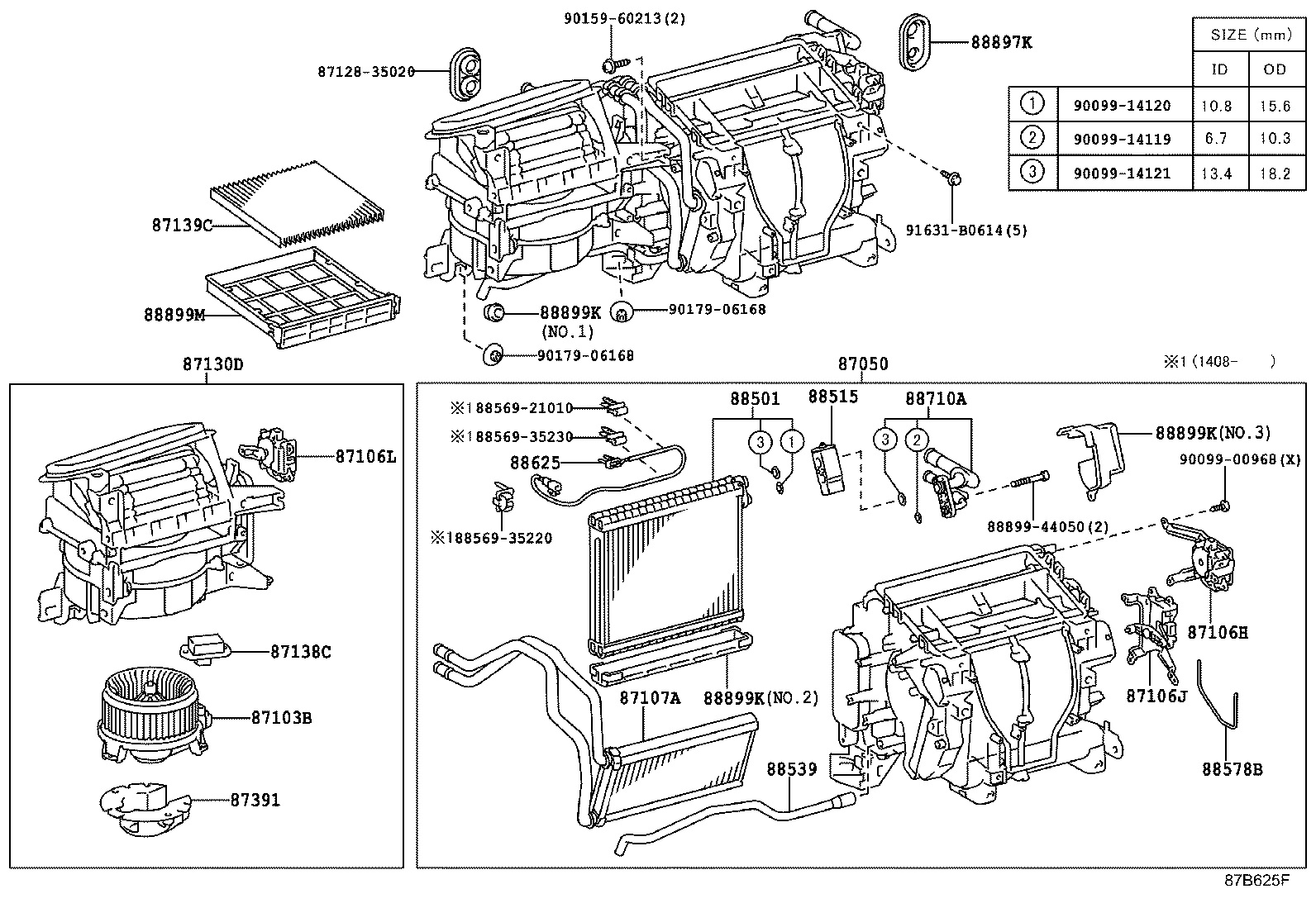

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-35110 |
GSJ15..RHD |
1 | ||
| 87050-35120 |
GSJ15..RHD |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-60360 |
GSJ15..RHD |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-35190 |
GSJ15..ATM |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-35120 |
GSJ15..ATM |
1 | ||
| 87106L - SERVO SUB-ASSY, DAMPER | ||||
| 87106-60170 |
GSJ15..ATM |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-35110 |
GSJ15..RHD |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-35210 |
GSJ15..RHD |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-60270 |
GSJ15..RHD |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-32010 |
GSJ15..ATM MICRO DUST FILTER |
1 | ||
| 87139-47020 |
GSJ15..ATM DEODORANT FILTER |
1 | ||
| 87391 - COVER, BLOWER MOTOR | ||||
| 87391-35010 |
GSJ15..ATM |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-35150 |
GSJ15 |
1 | ||
| 88501-35151 |
GSJ15..ATM |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-60190 |
GSJ15..ATM..(ARL,CHI,GEN,SA) |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-35040 |
GSJ15..RHD |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-35170 |
GSJ15..ATM |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-60190 |
GSJ15..ATM |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-6B390 |
GSJ15..RHD |
1 | ||
| 88897K - GROMMET, (FOR COOLER PIPE) | ||||
| 88897-35020 |
GSJ15..ATM |
1 | ||
| 88899K - PLATE, COVER | ||||
| 88899-3A010 |
GSJ15..ATM NO.1 |
1 | ||
| 88899-60250 |
GSJ15..RHD NO.2 |
1 | ||
| 88899-60260 |
GSJ15..ATM NO.3 |
1 | ||
| 88899K - PLATE, COVER | ||||
| 88899-3A010 |
GSJ15..ATM NO.1 |
1 | ||
| 88899-60250 |
GSJ15..RHD NO.2 |
1 | ||
| 88899-60260 |
GSJ15..ATM NO.3 |
1 | ||
| 88899K - PLATE, COVER | ||||
| 88899-3A010 |
GSJ15..ATM NO.1 |
1 | ||
| 88899-60250 |
GSJ15..RHD NO.2 |
1 | ||
| 88899-60260 |
GSJ15..ATM NO.3 |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-41010 |
GSJ15..ATM |
1 | ||
| Common parts | ||||
| 87128-35020 | ||||
| 88569-21010 | ||||
| 88569-35220 | ||||
| 88569-35230 | ||||
| 88899-44050 | ||||
| 90099-00968 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90159-60213 | ||||
| 90179-06168 | ||||
| 91631-B0614 | ||||
