GSJ15L-GKFSKY (2007)

Toyota Fj Cruiser

Production Jul 2007 - Nov 2010
Engine 1GRFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0707- )LHD

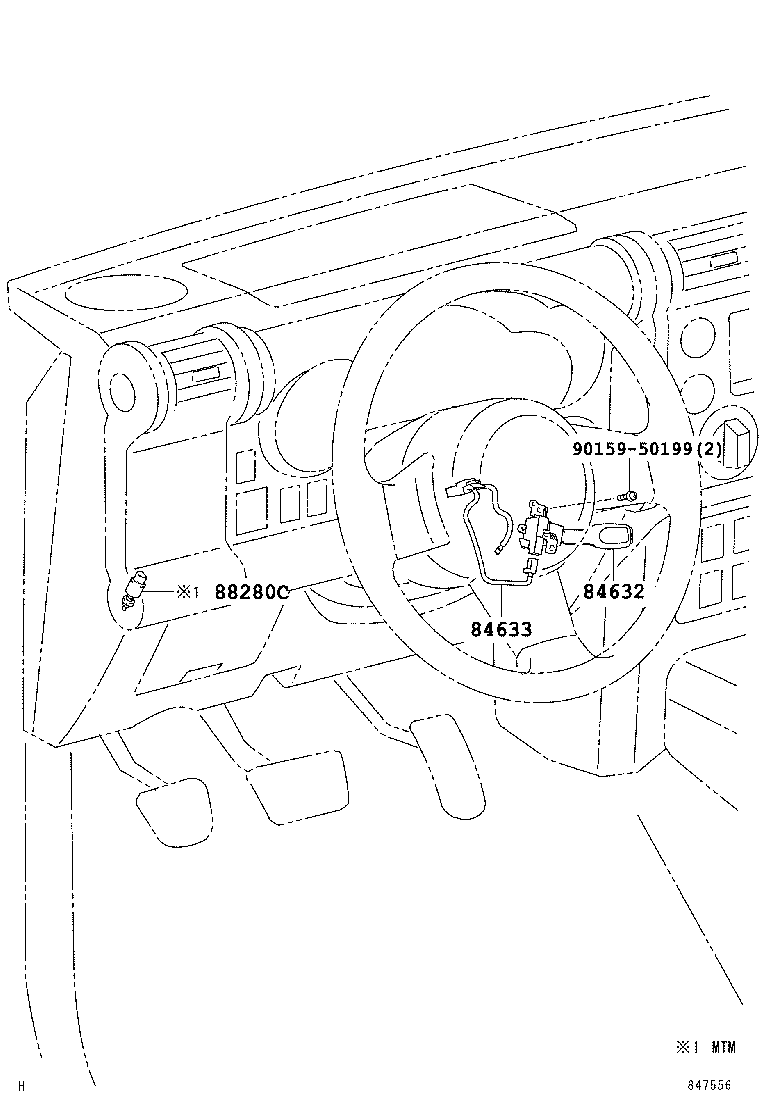

Click highlighted areas on diagram

diagram 84632 84633 88280C 9015950199
Part # Description Qty Price
84632 - SWITCH, CRUISE CONTROL MAIN
84632-34011

GSJ15..CHI,GEN

 1
84633 - WIRE, CRUISE CONTROL SWITCH
84633-64010

GSJ15..GEN

 1
88280C - SWITCH ASSY, CLUTCH
88280-14030

GSJ15..MTM

 1
Common parts
90159-50199
