GSJ15L-GKFSKY (2007)
Toyota Fj Cruiser
ILLUST NO. 4 OF 9(0707- )LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-50030 |
GSJ15 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08274 |
GSJ15 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08202 |
GSJ15 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08281 |
GSJ15 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08282 |
GSJ15 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08280 |
GSJ15 30A,TERM.:FEMALE,PNK,INSTRUMENT PANEL J/B |
1 | ||
| 90982-08283 |
GSJ15 30A,TERM.:FEMALE,PNK,ENGINE ROOM R/B |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08274 |
GSJ15 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08202 |
GSJ15 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08281 |
GSJ15 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08282 |
GSJ15 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08280 |
GSJ15 30A,TERM.:FEMALE,PNK,INSTRUMENT PANEL J/B |
1 | ||
| 90982-08283 |
GSJ15 30A,TERM.:FEMALE,PNK,ENGINE ROOM R/B |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
GSJ15 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09013 |
GSJ15 30A,MINI FUSE,GRN |
1 | ||
| 90982-09011 |
GSJ15 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09009 |
GSJ15 10A,MINI FUSE,RED |
1 | ||
| 90982-09008 |
GSJ15 7.5A,MINI FUSE,BRN |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
GSJ15 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09013 |
GSJ15 30A,MINI FUSE,GRN |
1 | ||
| 90982-09011 |
GSJ15 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09009 |
GSJ15 10A,MINI FUSE,RED |
1 | ||
| 90982-09008 |
GSJ15 7.5A,MINI FUSE,BRN |
1 | ||
| 82731 - BLOCK, DRIVER SIDE JUNCTION | ||||
| 82730-35400 |
GSJ15 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-19025 |
GSJ15..MTM |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
GSJ15 |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-42010 |
GSJ15..MTM |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
GSJ15 |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02027 |
GSJ15 |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90987-02027 |
GSJ15 |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02027 |
GSJ15 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
GSJ15 |
1 | ||
| 89533A - COMPUTER, 4 WHEEL DRIVE CONTROL, NO.2 | ||||
| 89533-35260 |
GSJ15 DIFFERENTIAL LOCK-WITH |
1 | ||
| Common parts | ||||
| 82711-1E350 | ||||
| 90159-40278 | ||||
| 91631-J0612 | ||||
| 91635-G0618 | ||||
| 93315-14012 | ||||
| 94120-41000 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 5551 | ||||
ILLUST NO. 7 OF 9(0707-1011)
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-35030 |
GSJ15 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-10190 |
GSJ15 |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-60080 |
GSJ15..GCC,GEN |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-35B00 |
GSJ15..GEN |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
GSJ15 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-14642 |
GSJ15..GEN |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-35020 |
GSJ15 |
1 | ||
| 89246B - DISC, SENSOR STEERING | ||||
| 89246-34010 |
GSJ15 |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40129 | ||||
| 90464-00551 | ||||
| 93319-15012 | ||||
| Linked diagrams | ||||
| 4501 | ||||

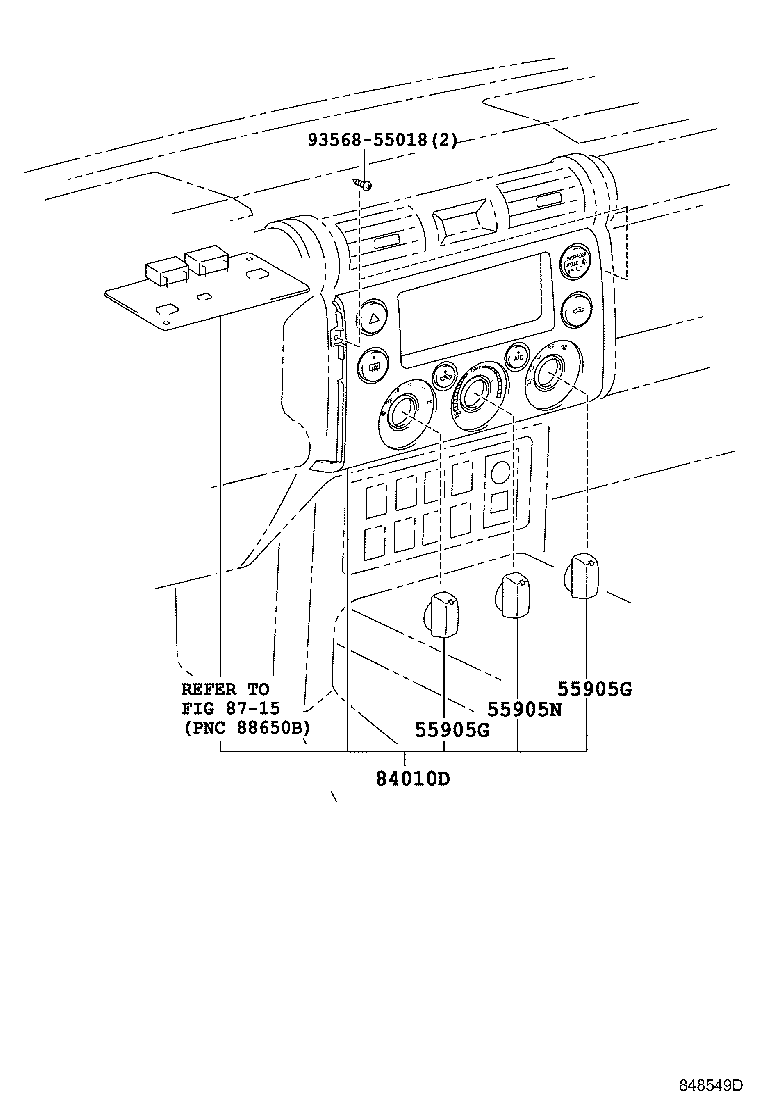

ILLUST NO. 6 OF 9(0707- )LHD
INSTRUMENT PANEL 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905G - KNOB SUB-ASSY, CONTROL | ||||
| 55905-35460 |
GSJ15 |
2 | ||
| 55905G - KNOB SUB-ASSY, CONTROL | ||||
| 55905-35460 |
GSJ15 |
2 | ||
| 55905N - KNOB SUB-ASSY, CONTROL, NO.1 | ||||
| 55905-35470 |
GSJ15 |
1 | ||
| 84010D - CONTROL & PANEL ASSY, INTEGRATION | ||||
| 84010-35130J0 |
GSJ15 BLUE,TRIM11&2JV ,8T6 |
1 | ||
| 84010-35130A0 |
GSJ15 WHITE,TRIM11&058 |
1 | ||
| 84010-35130B1 |
GSJ15 GRAY ME.,TRIM11&2KB |
1 | ||
| 84010-35130F0 |
GSJ15 YELLOW,TRIM11&2JU ,5A3 |
1 | ||
| 84010-35130C0 |
GSJ15 BLACK MC.,TRIM11&211 ,2JW ,2KC |
1 | ||
| 84010-35130E0 |
GSJ15 BEIGE,TRIM11&2JY ,4U0 |
1 | ||
| 84010-35130G0 |
GSJ15 DK.GREEN,TRIM11&2KD |
1 | ||
| 84010-35130B0 |
GSJ15 SILVER ME.,TRIM11&1D4 ,2JR |
1 | ||
| 84010-35130D0 |
GSJ15 BRICK RED ME.,TRIM11&2JX ,3R8 |
1 | ||
| Common parts | ||||
| 93568-55018 | ||||
| Linked diagrams | ||||
| 8715 | ||||
ILLUST NO. 2 OF 9(0707- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28380A - RESISTER, FUEL PUMP | ||||
| 23080-31060 |
1GRFE..GSJ15 |
1 | ||
| Common parts | ||||
| 91631-J0612 | ||||
ILLUST NO. 5 OF 9(0707- )LHD
INSTRUMENT PANEL 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-35030 |
GSJ15..GEN |
1 | ||
| 84415 - SWITCH, CURTAIN AIRBAG CUTOFF | ||||
| 84415-35020 |
GSJ15..GCC,GEN SRS AIR BAG-WITH(CURTAIN SHIELD & ROLLOVER SENSOR) |
1 | ||
| 84415A - BULB, CURTAIN AIRBAG CUTOFF SWITCH | ||||
| 90010-01083 |
GSJ15..GCC,GEN SRS AIR BAG-WITH(CURTAIN SHIELD & ROLLOVER SENSOR) |
1 | ||
| 84725A - SWITCH, DIFFERENTIAL LOCK | ||||
| 84725-35070 |
GSJ15 DIFFERENTIAL LOCK-WITH,NO.1 |
1 | ||
| 84725B - BLUB, DIFFERENTIAL LOCK SWITCH | ||||
| 90010-01083 |
GSJ15 14V 0.91W,W(CAP),DIFFERENTIAL LOCK-WITH |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-34010 |
GSJ15..CHI,GEN |
1 | ||
| 84870D - SWITCH ASSY, OUTER MIRROR, NO.2 | ||||
| 84872-52030 |
GSJ15..CHI,GEN |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-35070 |
GSJ15..GCC,GEN |
1 | ||
| 84988M - BULB, VSC OFF SWITCH | ||||
| 90010-01083 |
GSJ15..GCC,GEN 14V 0.91W,W(CAP) |
1 | ||
| 84988N - SWITCH, TRACTION CONTROL, NO.2 | ||||
| 84988-35060 |
GSJ15..GCC,GEN VSC-WITH(A-TRAC) |
1 | ||
| 84988-35060 |
GSJ15..GCC,GEN VSC-WITH(A-TRAC & CUT OFF SWITCH) |
1 | ||
| 84988P - BULB, TRACTION CONTOROL SWITCH, NO.2 | ||||
| 90010-01083 |
GSJ15..GCC,GEN VSC-WITH(A-TRAC & CUT OFF SWITCH) |
1 | ||
| 90010-01083 |
GSJ15..GCC,GEN VSC-WITH(A-TRAC) |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-33020 |
GSJ15 |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-60100B1 |
GSJ15..GCC,GEN DK.GRAY,TRIM1# |
1 | ||
| 85539 - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60020 |
GSJ15..GCC,GEN |
1 | ||
| Linked diagrams | ||||
| 8417 | ||||

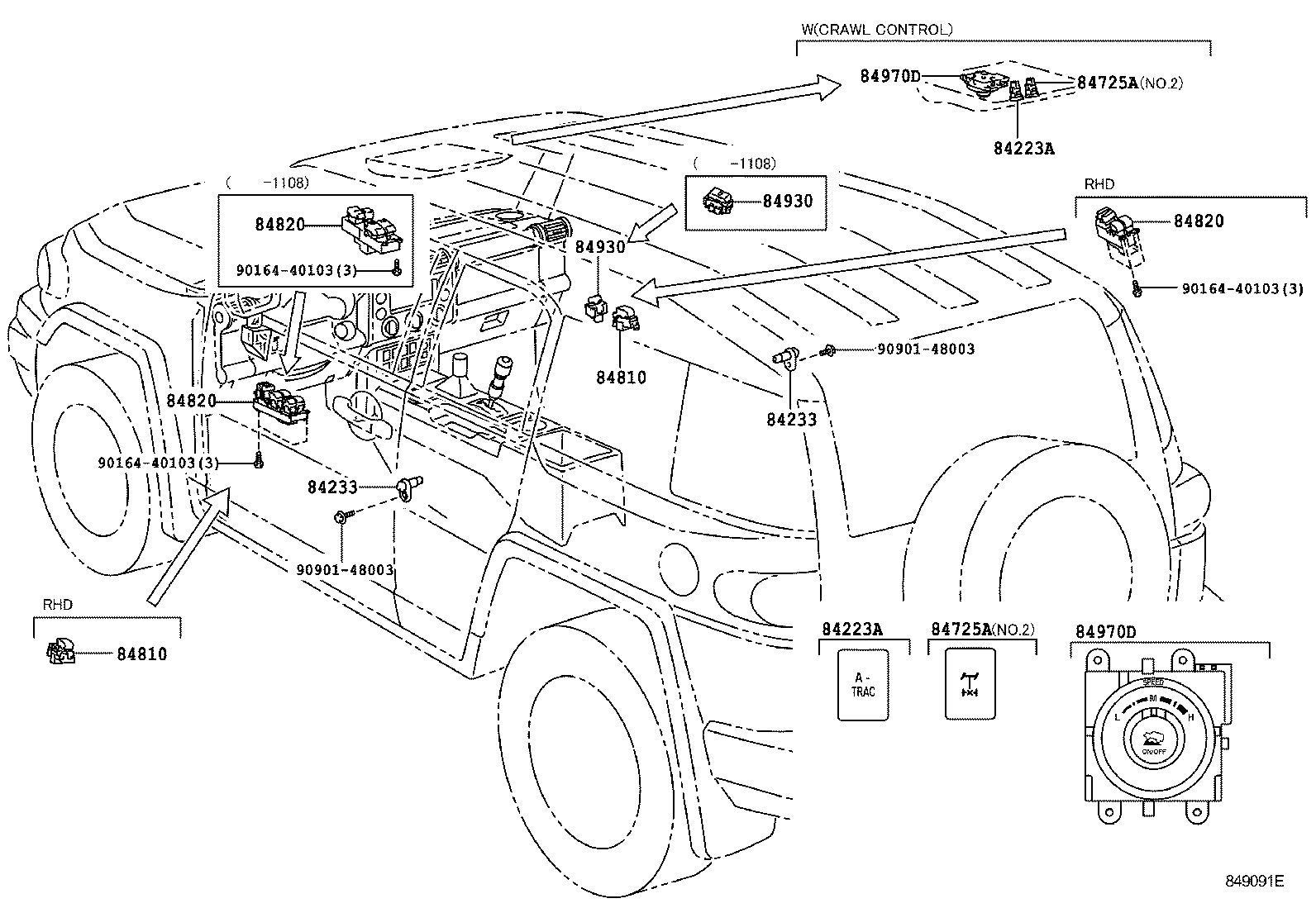

ILLUST NO. 8 OF 9(0707- )
DOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
GSJ15 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-60070 |
GSJ15 |
2 | ||
| 84725A - SWITCH, DIFFERENTIAL LOCK | ||||
| 84725-35070 |
GSJ15 DIFFERENTIAL LOCK-WITH,NO.1 |
1 | ||
| 84725A - SWITCH, DIFFERENTIAL LOCK | ||||
| 84725-35070 |
GSJ15 DIFFERENTIAL LOCK-WITH,NO.1 |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12080 |
GSJ15 |
1 | ||
| 84810-12080 |
GSJ15..GCC,GEN |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12080 |
GSJ15 |
1 | ||
| 84810-12080 |
GSJ15..GCC,GEN |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-35100 |
GSJ15 |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-35100 |
GSJ15 |
1 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-35100 |
GSJ15 |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-33100 |
GSJ15..GCC,GEN |
1 | ||
| 84930-33100 |
GSJ15 |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-33100 |
GSJ15..GCC,GEN |
1 | ||
| 84930-33100 |
GSJ15 |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90901-48003 | ||||

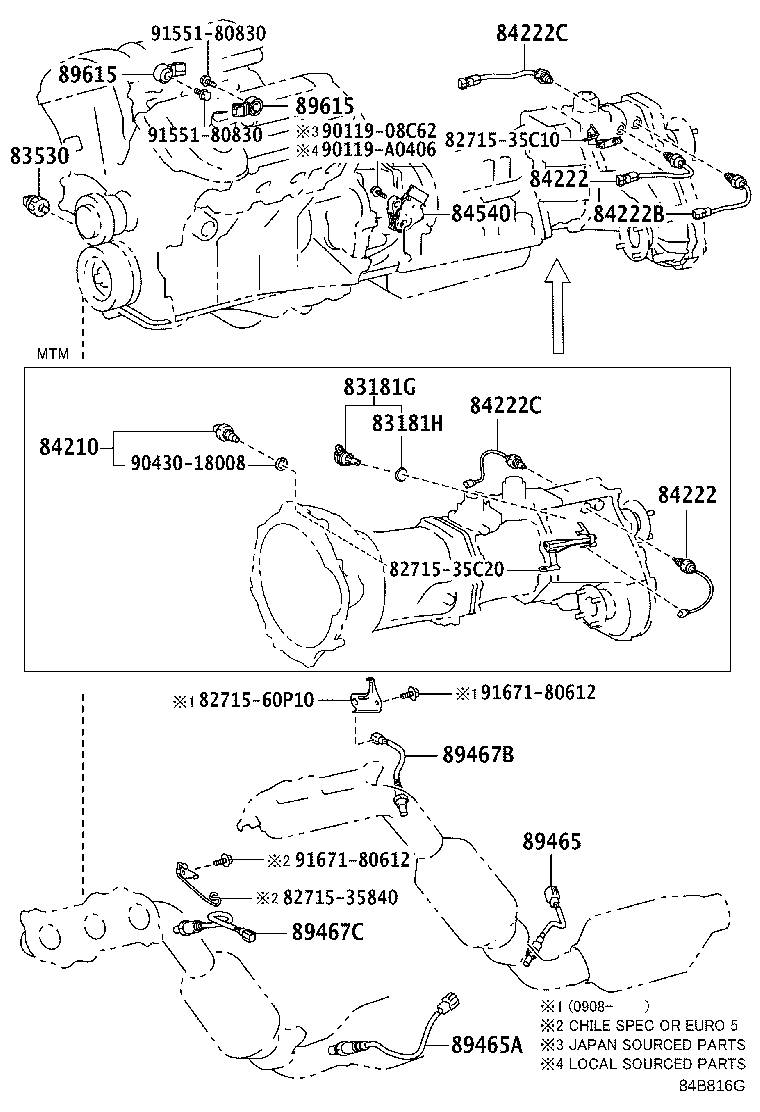

ILLUST NO. 1 OF 9(0707- )
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83181G - SENSOR, SPEEDOMETER | ||||
| 83181-12020 |
GSJ15..MTM |
1 | ||
| 83181H - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24030 |
GSJ15..MTM |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60020 |
GSJ15 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
GSJ15..MTM |
1 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-35080 |
GSJ15 |
1 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-35080 |
GSJ15 |
1 | ||
| 84222C - SWITCH, TRANSFER INDICATOR, NO.3 | ||||
| 84222-60100 |
GSJ15..MTM |
1 | ||
| 84222C - SWITCH, TRANSFER INDICATOR, NO.3 | ||||
| 84222-60100 |
GSJ15..MTM |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-60320 |
GSJ15 MARK=89465-60320 |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-60330 |
GSJ15 MARK=89465-60330 |
1 | ||
| 89465-60430 |
GSJ15 MARK=89465-60430 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-35110 |
GSJ15 MARK=89467-35110 |
1 | ||
| 89467-60060 |
GSJ15 MARK=89467-60060 |
1 | ||
| 89467C - SENSOR, AIR FUEL RATIO, NO.2 | ||||
| 89467-35110 |
GSJ15 MARK=89467-35110 |
1 | ||
| 89467-60060 |
GSJ15 MARK=89467-60060 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
GSJ15 |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
GSJ15 |
2 | ||
| Common parts | ||||
| 82715-35840 | ||||
| 82715-35C10 | ||||
| 82715-35C20 | ||||
| 82715-60P10 | ||||
| 90119-08C62 | ||||
| 90119-A0406 | ||||
| 90430-18008 | ||||
| 91551-80830 | ||||
| 91671-80612 | ||||
ILLUST NO. 9 OF 9(0707- )
FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-35640 |
GSJ15 |
1 | ||
| 84222E - SWITCH, DIFFERENTIAL LOCK INDICATOR | ||||
| 84222-12010 |
GSJ15 DIFFERENTIAL LOCK-WITH |
1 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-60070 |
GSJ15 |
1 | ||
| 89222A - COMPUTER, MULTIPLEX NETWORK DOOR | ||||
| 89222-35021 |
GSJ15 |
1 | ||
| Common parts | ||||
| 90159-50322 | ||||
| 90189-05097 | ||||
| 90430-18008 | ||||
| 90901-48003 | ||||
| 93319-A4010 | ||||
| Linked diagrams | ||||
| 6451 | ||||

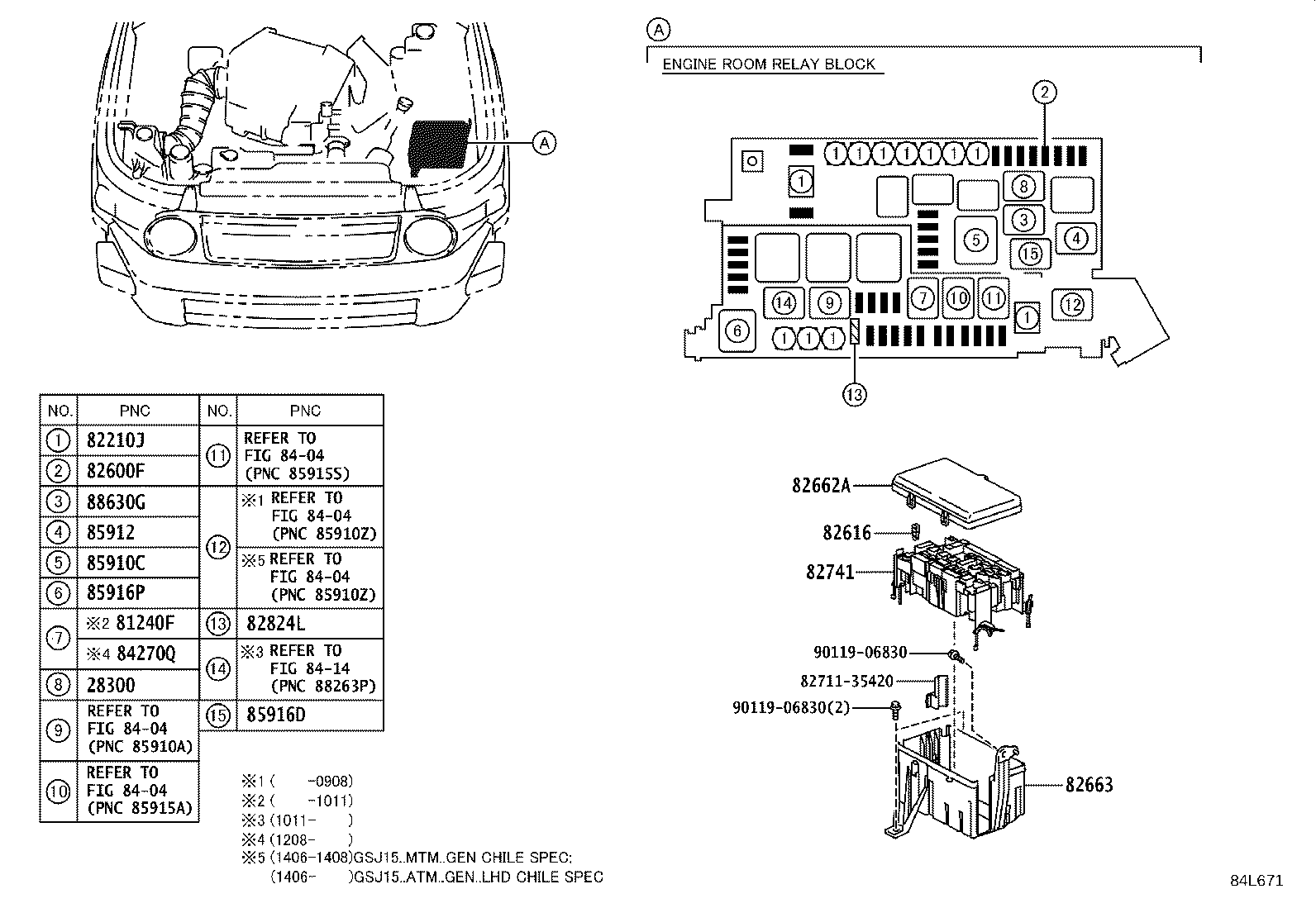

ILLUST NO. 3 OF 9(0707- )
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
1GRFE..GSJ15 |
1 | ||
| 81240F - RELAY, DOME LAMP | ||||
| 90987-02027 |
GSJ15 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08274 |
GSJ15 120A,TERM.:MALE,WHT |
1 | ||
| 90982-08202 |
GSJ15 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08281 |
GSJ15 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08282 |
GSJ15 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08280 |
GSJ15 30A,TERM.:FEMALE,PNK,INSTRUMENT PANEL J/B |
1 | ||
| 90982-08283 |
GSJ15 30A,TERM.:FEMALE,PNK,ENGINE ROOM R/B |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
GSJ15 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09013 |
GSJ15 30A,MINI FUSE,GRN |
1 | ||
| 90982-09011 |
GSJ15 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09009 |
GSJ15 10A,MINI FUSE,RED |
1 | ||
| 90982-09008 |
GSJ15 7.5A,MINI FUSE,BRN |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
GSJ15 |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-3D180 |
GSJ15..GCC,GEN |
1 | ||
| 82662-35A80 |
GSJ15 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-35090 |
GSJ15 |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-35110 |
GSJ15 |
1 | ||
| 82824L - PIN, SHORT | ||||
| 82824-20140 |
GSJ15 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04010 |
GSJ15 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-04004 |
GSJ15 |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
GSJ15 |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02028 |
GSJ15 |
1 | ||
| Common parts | ||||
| 82711-35420 | ||||
| 90119-06830 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8414 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
