GSJ15L-GKFSKY (2007)

Toyota Fj Cruiser

Production Jul 2007 - Nov 2010
Engine 1GRFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 8(0707-0908)

Click highlighted areas on diagram

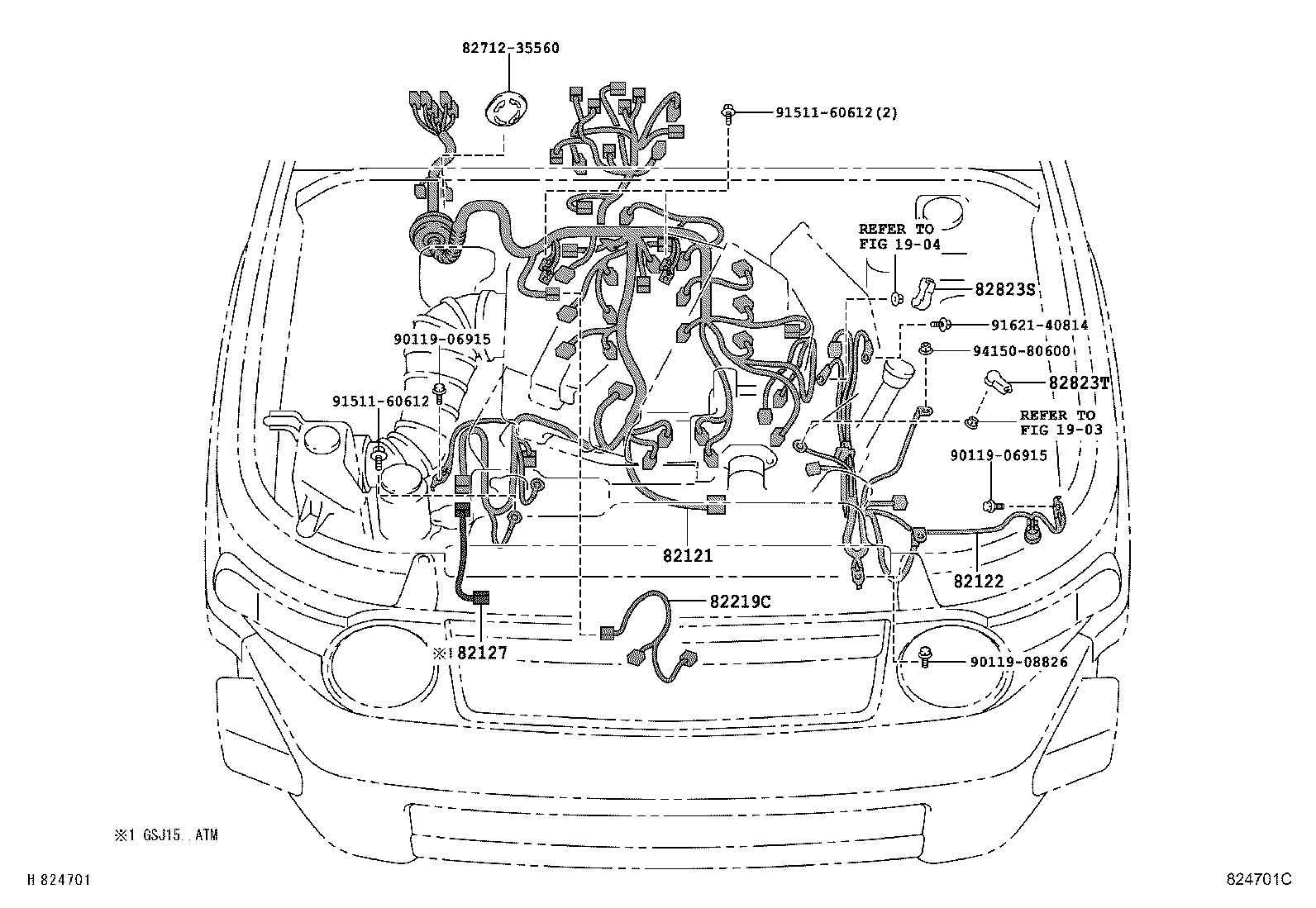

ENGINE

diagram 1903 1904 82121 82122 82127 82219C 8271235560 82823S 82823T 9011906915 9011906915 9011908826 9151160612 9151160612 9162140814 9415080600
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-35C20

GSJ15..MTM

 1
82121-35B30

GSJ15..MTM

 1
82122 - WIRE, ENGINE, NO.2
82122-35A70

GSJ15

 1
82122-35A80

GSJ15..CHI,GEN

 1
82219C - WIRE, SENSOR
82219-35020

GSJ15

 1
82823S - CAP, STARTER TERMINAL
82823-35050

GSJ15

 1
82823T - CAP, ALTERNATOR TERMINAL
82823-60060

GSJ15

 1
82823-22050

GSJ15

 1
Common parts
82712-35560
90119-06915
90119-08826
91511-60612
91621-40814
94150-80600
Linked diagrams
1903
1904

ILLUST NO. 3 OF 8(0707- )LHD

Click highlighted areas on diagram

INSTRUMENT PANEL

diagram 82141 82142 8271235390 8271235400 82734 82735A 9011906915 9011906915 9011906915 9011906915 9011906915 9415080600 9415080600
Part # Description Qty Price
82141 - WIRE, INSTRUMENT PANEL
82141-35K00

GSJ15..MTM

 1
82141-35S10

GSJ15..MTM

 1
82141-35S40

GSJ15..MTM

SRS AIR BAG-WITH(CURTAIN SHIELD & ROLLOVER SENSOR)

 1
82141-35S70

GSJ15..MTM

ALGERIA SPEC

 1
82141-35P00

GSJ15..MTM

SRS AIR BAG-WITH(CURTAIN SHIELD & ROLLOVER SENSOR)

 1
82141-35L30

GSJ15..MTM

 1
82141-35S70

GSJ15..MTM

IVORY COAST SPEC

 1
82142 - WIRE, INSTRUMENT PANEL, NO.2
82142-35060

GSJ15

 1
82142-35070

GSJ15..GCC,GEN

IMAGE PACKAGE-WITH

 1
82734 - BLOCK, CENTER JUNCTION
82734-35050

GSJ15

 1
82735A - BLOCK, DRIVER SIDE JUNCTION
82734-35040

GSJ15

 1
Common parts
82712-35390
82712-35400
90119-06915
94150-80600

ILLUST NO. 4 OF 8(0707- )

Click highlighted areas on diagram

DOOR

diagram 82151 82152 82153 82154 82184 82185 82186 82188A 82819C 82821E 8504 8504 8504 9011906915 9011906915 9098011853 9098011853 91631B0614 91631B0614
Part # Description Qty Price
82151 - WIRE, FRONT DOOR, RH
82151-35460

GSJ15

 1
82152 - WIRE, FRONT DOOR, LH
82152-35380

GSJ15

 1
82153 - WIRE, REAR DOOR, NO.1
82153-35230

GSJ15

 1
82154 - WIRE, REAR DOOR, NO.2
82154-35070

GSJ15

 1
82184 - WIRE, BACK DOOR, NO.1
82184-35280

GSJ15..GEN

BACK MONITOR-WITH

 1
82184-35241

GSJ15..GEN

 1
82184-35250

GSJ15..GEN

ALGERIA SPEC

 1
82184-35350

GSJ15..GEN

ALGERIA SPEC&BACK MONITOR-WITH

 1
82184-35250

GSJ15..GEN

IVORY COAST SPEC

 1
82184-35350

GSJ15..GEN

IVORY COAST SPEC&BACK MONITOR-WITH

 1
82185 - WIRE, BACK DOOR, NO.2
82185-35120

GSJ15

 1
82186 - WIRE, REAR WINDOW, NO.1
82186-35010

GSJ15

 1
82188A - WIRE, BACK DOOR, NO.3
82188-35020

GSJ15..GEN

ALGERIA SPEC&BACK MONITOR-WITH

 1
82188-35020

GSJ15..GEN

BACK MONITOR-WITH

 1
82188-35020

GSJ15..GEN

IVORY COAST SPEC&BACK MONITOR-WITH

 1
82819C - GROMMET, WIRING HARNESS
82819-35320

GSJ15

 2
Common parts
90119-06915
90980-11853
91631-B0614
Linked diagrams
8504

ILLUST NO. 6 OF 8(0707- )

Click highlighted areas on diagram

CLAMP & BRACKET

diagram 8271060060 8271135690 827113F040 8271260840 8271535630 8271535810 8271535A00 8271535A10 8271535A20 8271535C80 827153D471 827153D480 827153D490 827153D560 827153D580 827153D590 827153D600 827153D610 827153D630 827153D640 827153D680 8271560C90 8271560N10 8271560N20 8271560N30 8271560P50 8271560P60 8271560P70 827156A120 827156A130 827156A210 9011906935 9017906178 9017906178 9151160612 9151160612 9151160612 9151160612 9151160612 9151160612 9151160612 9151160612 9151160612 9151160612 9151160612 9151160612 9151160612 9151160612 9151160612 9151160612 9167180614 9167180816 9167380610
Part # Description Qty Price
Common parts
82710-60060
82711-35690
82711-3F040
82712-60840
82715-35630
82715-35810
82715-35A00
82715-35A10
82715-35A20
82715-35C80
82715-3D471
82715-3D480
82715-3D490
82715-3D560
82715-3D580
82715-3D590
82715-3D600
82715-3D610
82715-3D630
82715-3D640
82715-3D680
82715-60C90
82715-60N10
82715-60N20
82715-60N30
82715-60P50
82715-60P60
82715-60P70
82715-6A120
82715-6A130
82715-6A210
90119-06935
90179-06178
91511-60612
91671-80614
91671-80816
91673-80610

ILLUST NO. 1 OF 8(0707- )LHD

Click highlighted areas on diagram

ENGINE ROOM

diagram 82111 82113 82817 8401 8401 8401 8401 8401 8401 9011906923 9011906923
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82111-35C50

GSJ15..MTM

 1
82111-35F80

GSJ15..MTM

 1
82111-35D50

GSJ15..MTM

 1
82111-35G30

GSJ15..MTM

ALGERIA SPEC

 1
82111-35G30

GSJ15..MTM

IVORY COAST SPEC

 1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-32840

GSJ15

 1
Common parts
90119-06923
Linked diagrams
8401

ILLUST NO. 5 OF 8(0707-1011)

Click highlighted areas on diagram

FLOOR,FRAME & ROOF

diagram 4101 8121 8121 82127A 82161 82162 82163C 82163C 82163D 82164 82171 82666A 82666B 9011906915 9011906915 9011906915 9011906915 9011906915 9017906178 91621J0614 91631J0612 91631J0612
Part # Description Qty Price
82127A - WIRE, DIFFERENTIAL (TO WIRE FRAME)
82127-60040

GSJ15

DIFFERENTIAL LOCK-WITH

 1
82127-35270

GSJ15

DIFFERENTIAL LOCK-WITH

 1
82161 - WIRE, FLOOR
82161-35880

GSJ15..GCC,GEN

SRS AIR BAG-WITH(CURTAIN SHIELD)

 1
82161-35870

GSJ15

 1
82161-35A10

GSJ15..GCC,GEN

SRS AIR BAG-WITH(CURTAIN SHIELD & ROLLOVER SENSOR)

 1
82161-35880

GSJ15..GEN

SRS AIR BAG-WITH(CURTAIN SHIELD)

 1
82162 - WIRE, FLOOR, NO.2
82162-35860

GSJ15..GCC,GEN

DIFFERENTIAL LOCK-WITH&SRS AIR BAG-WITH(CURTAIN SHIELD)

 1
82162-35C00

GSJ15..GCC,GEN

 1
82162-35840

GSJ15..GCC,GEN

DIFFERENTIAL LOCK-WITH

 1
82162-35830

GSJ15..GCC,GEN

 1
82162-35C10

GSJ15..GCC,GEN

DIFFERENTIAL LOCK-WITH

 1
82162-35A30

GSJ15..GCC,GEN

 1
82162-35C20

GSJ15..GCC,GEN

SRS AIR BAG-WITH(CURTAIN SHIELD & ROLLOVER SENSOR)

 1
82162-35850

GSJ15..GCC,GEN

SRS AIR BAG-WITH(CURTAIN SHIELD)

 1
82162-35C50

GSJ15..GEN

ALGERIA SPEC&DIFFERENTIAL LOCK-WITH

 1
82162-35A50

GSJ15..GCC,GEN

SRS AIR BAG-WITH(CURTAIN SHIELD & ROLLOVER SENSOR)

 1
82162-35C40

GSJ15..GEN

IVORY COAST SPEC

 1
82162-35C50

GSJ15..GEN

IVORY COAST SPEC&DIFFERENTIAL LOCK-WITH

 1
82162-35C60

GSJ15..GEN

ALGERIA SPEC&SRS AIR BAG-WITH(CURTAIN SHIELD)

 1
82162-35C40

GSJ15..GEN

ALGERIA SPEC

 1
82162-35A60

GSJ15..GCC,GEN

DIFFERENTIAL LOCK-WITH&SRS AIR BAG-WITH(CURTAIN SHIELD & ROLLOVER SENSOR)

 1
82162-35C60

GSJ15..GEN

IVORY COAST SPEC&SRS AIR BAG-WITH(CURTAIN SHIELD)

 1
82162-35A40

GSJ15..GCC,GEN

DIFFERENTIAL LOCK-WITH

 1
82162-35C70

GSJ15..GEN

ALGERIA SPEC&DIFFERENTIAL LOCK-WITH&SRS AIR BAG-WITH(CURTAIN SHIELD)

 1
82162-35C30

GSJ15..GCC,GEN

DIFFERENTIAL LOCK-WITH&SRS AIR BAG-WITH(CURTAIN SHIELD & ROLLOVER SENSOR)

 1
82162-35C70

GSJ15..GEN

IVORY COAST SPEC&DIFFERENTIAL LOCK-WITH&SRS AIR BAG-WITH(CURTAIN SHIELD)

 1
82163C - WIRE, FLOOR NO.3 RH
82163-35090

GSJ15..GEN

ALGERIA SPEC

 1
82163-35070

GSJ15..GEN

 1
82163-35090

GSJ15..GEN

IVORY COAST SPEC

 1
82163C - WIRE, FLOOR NO.3 RH
82163-35090

GSJ15..GEN

ALGERIA SPEC

 1
82163-35070

GSJ15..GEN

 1
82163-35090

GSJ15..GEN

IVORY COAST SPEC

 1
82163D - WIRE, FLOOR NO.3 LH
82163-35080

GSJ15..GEN

 1
82164 - WIRE, FRAME
82164-35A00

GSJ15

 1
82164-35A10

GSJ15

DIFFERENTIAL LOCK-WITH

 1
82171 - WIRE, ROOF, NO.1
82171-35890

GSJ15..GCC,GEN

 1
82171-35A10

GSJ15..GCC,GEN

 1
82171-35A30

GSJ15..GCC,GEN

BACK MONITOR-WITH

 1
82666A - HOLDER, CONNECTOR NO.2
82666-35430

GSJ15

 1
82666B - HOLDER, CONNECTOR NO.3
82666-35440

GSJ15

 1
Common parts
90119-06915
90179-06178
91621-J0614
91631-J0612
Linked diagrams
4101
8121

ILLUST NO. 8 OF 8(0707- )

Click highlighted areas on diagram

CONNECTOR(1/2)

diagram 8282460460 9098010619 9098010906 9098010908 9098011003 9098011003 9098011016 9098011019 9098011020 9098011020 9098011156 9098011156 9098011162 9098011162 9098011162 9098011168 9098011314
Part # Description Qty Price
Common parts
82824-60460
90980-10619
90980-10906
90980-10908
90980-11003
90980-11016
90980-11019
90980-11020
90980-11156
90980-11162
90980-11168
90980-11314

ILLUST NO. 7 OF 8(0707- )

Click highlighted areas on diagram

CLAMP & BRACKET

diagram 827111E350 827113F040 827113F040 8271160600 8271535C00 827153D720 827153D760 8271560N50 8271560N80 827156A540 9017008042 9017010021 9151160612 91621J0612 91621J0612 9415080600
Part # Description Qty Price
Common parts
82711-1E350
82711-3F040
82711-60600
82715-35C00
82715-3D720
82715-3D760
82715-60N50
82715-60N80
82715-6A540
90170-08042
90170-10021
91511-60612
91621-J0612
94150-80600

ILLUST NO. 2 OF 8(0908- )LHD

Click highlighted areas on diagram

ENGINE

diagram 82121 82122 82127 82219C 8271235560 82817A 82817B 82817C 82817D 82823T 9011906915 9011906915 9011908826 9151160612 9151160612 9151160612 9151560616 9162140814 9415080600
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-35C20

GSJ15..MTM

 1
82121-35B30

GSJ15..MTM

 1
82122 - WIRE, ENGINE, NO.2
82122-35A70

GSJ15

 1
82122-35A80

GSJ15..CHI,GEN

 1
82219C - WIRE, SENSOR
82219-35020

GSJ15

 1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-60G70

GSJ15

 1
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-60G80

GSJ15

 1
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-60G90

GSJ15

 1
82817D - PROTECTOR, WIRING HARNESS, NO.5
82817-60M70

GSJ15

 1
82823T - CAP, ALTERNATOR TERMINAL
82823-60060

GSJ15

 1
82823-22050

GSJ15

 1
Common parts
82712-35560
90119-06915
90119-08826
91511-60612
91515-60616
91621-40814
94150-80600

ILLUST NO. 8 OF 8(0707- )

Click highlighted areas on diagram

CONNECTOR(2/2)

diagram 8282421030 9098010996 9098010997 9098011070 9098011246 9098011856 9098012038 9098012303 9098012390 9098012392 9098012449 9098012450 9098012460 9098012490 9098012495 9098012551 9098012552 9098012699 9098012710
Part # Description Qty Price
Common parts
82824-21030
90980-10996
90980-10997
90980-11070
90980-11246
90980-11856
90980-12038
90980-12303
90980-12390
90980-12392
90980-12449
90980-12450
90980-12460
90980-12490
90980-12495
90980-12551
90980-12552
90980-12699
90980-12710
