GSJ15L-GKFSKY (2007)
Toyota Fj Cruiser
Production
Jul 2007
-
Nov 2010
Engine
1GRFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0707- )GCC,GEN..LHD

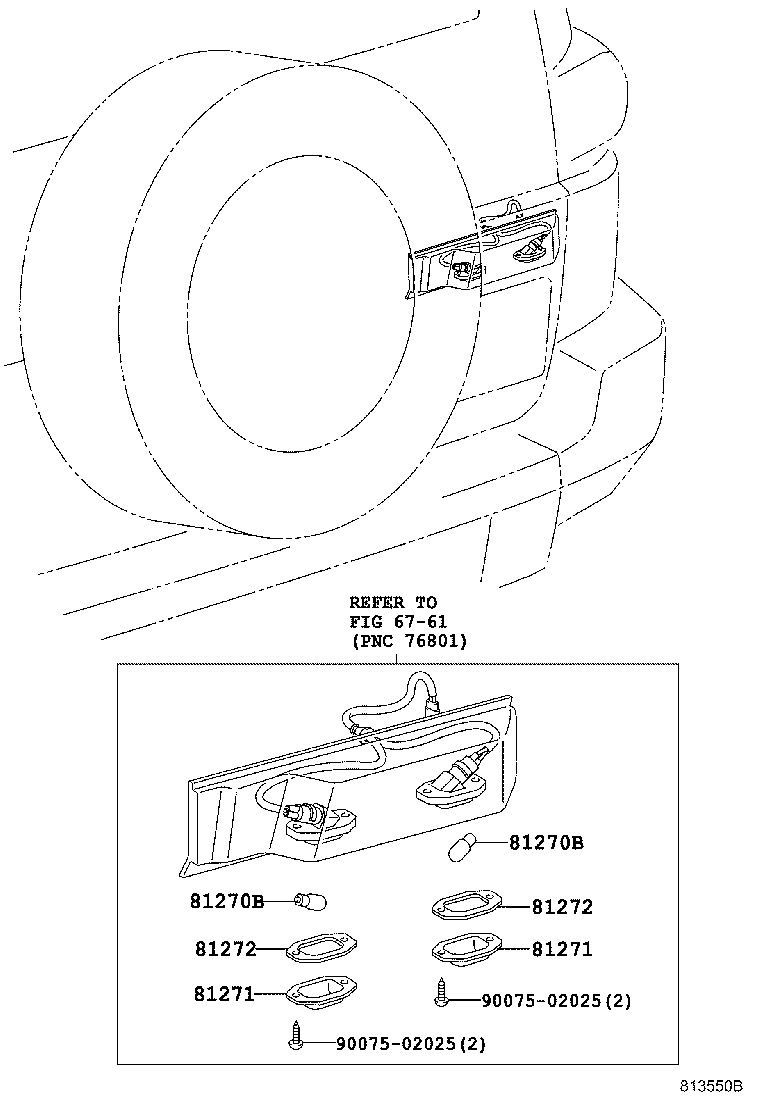

Click highlighted areas on diagram
FOR BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-12050 |
GSJ15 12V 5W |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-12050 |
GSJ15 12V 5W |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-24010 |
GSJ15 |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-24010 |
GSJ15 |
2 | ||
| 81272 - GASKET, LICENSE PLATE LAMP LENS | ||||
| 81272-24010 |
GSJ15 |
2 | ||
| 81272 - GASKET, LICENSE PLATE LAMP LENS | ||||
| 81272-24010 |
GSJ15 |
2 | ||
| Common parts | ||||
| 90075-02025 | ||||
| Linked diagrams | ||||
| 6761 | ||||
