GSJ15L-GKFSKY (2007)

Toyota Fj Cruiser

Production Jul 2007 - Nov 2010
Engine 1GRFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0707- )GEN..LHD

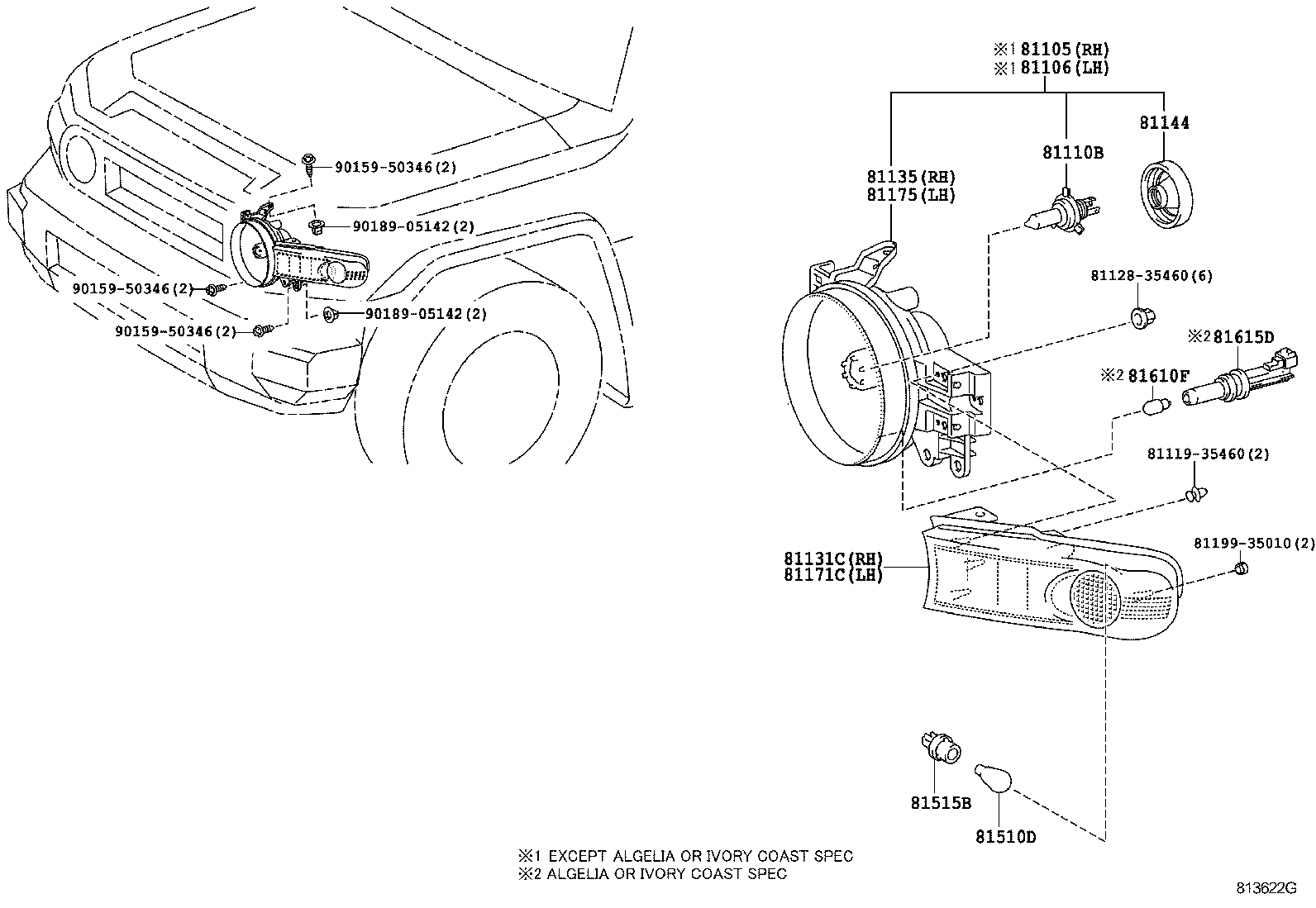

Click highlighted areas on diagram

diagram 81105 81106 81110B 8111935460 8112835460 81131C 81135 81144 81171C 81175 8119935010 81510D 81515B 81610F 81615D 9015950346 9015950346 9015950346 9018905142 9018905142
Part # Description Qty Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-35465

GSJ15..GEN

 1
81105-35464

GSJ15..GEN

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-35444

GSJ15..GEN

 1
81106-35445

GSJ15..GEN

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13058

GSJ15

12V 60/55W,HALOGEN

 2
81131C - LENS, FRONT TURN SIGNAL LAMP, RH
81131-35491

GSJ15..GEN

IVORY COAST SPEC

 1
81131-35492

GSJ15..GEN

ALGERIA SPEC

 1
81131-35491

GSJ15..GEN

ALGERIA SPEC

 1
81131-35460

GSJ15..GCC,GEN

 1
81131-35492

GSJ15..GEN

IVORY COAST SPEC

 1
81135 - UNIT ASSY, HEADLAMP, RH
81140-35502

GSJ15..GEN

ALGERIA SPEC

 1
81140-35464

GSJ15..GEN

 1
81140-35502

GSJ15..GEN

IVORY COAST SPEC

 1
81140-35503

GSJ15..GEN

ALGERIA SPEC

 1
81140-35503

GSJ15..GEN

IVORY COAST SPEC

 1
81140-35465

GSJ15..GEN

 1
81144 - COVER, HEADLAMP, NO.1
81139-52010

GSJ15

 2
81171C - LENS, FRONT TURN SIGNAL LAMP, LH
81171-35440

GSJ15..GCC,GEN

 1
81171-35491

GSJ15..GEN

ALGERIA SPEC

 1
81171-35492

GSJ15..GEN

IVORY COAST SPEC

 1
81171-35492

GSJ15..GEN

ALGERIA SPEC

 1
81171-35491

GSJ15..GEN

IVORY COAST SPEC

 1
81175 - UNIT ASSY, HEADLAMP, LH
81070-35502

GSJ15..GEN

ALGERIA SPEC

 1
81070-35503

GSJ15..GEN

IVORY COAST SPEC

 1
81070-35502

GSJ15..GEN

IVORY COAST SPEC

 1
81070-35503

GSJ15..GEN

ALGERIA SPEC

 1
81070-35444

GSJ15..GEN

 1
81070-35445

GSJ15..GEN

 1
81510D - BULB (FOR FRONT TURN SIGNAL LAMP)
99132-21210

GSJ15

12V 21/5W

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
81555-97223

GSJ15

 2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

GSJ15..GEN

12V 5W,IVORY COAST SPEC

 2
99132-12050

GSJ15..GEN

12V 5W,ALGERIA SPEC

 2
81615D - SOCKET, CLEARANCE LAMP
81945-35010

GSJ15..GEN

IVORY COAST SPEC

 2
81945-35010

GSJ15..GEN

ALGERIA SPEC

 2
Common parts
81119-35460
81128-35460
81199-35010
90159-50346
90189-05142
