GSJ15L-GKFSKY (2007)
Toyota Fj Cruiser
ILLUST NO. 3 OF 3(0707- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64780A - PANEL ASSY, BACK DOOR TRIM | ||||
| 64780-35050B0 |
GSJ15 DK.GRAY,TRIM1# |
1 | ||
| 64780-35051B0 |
GSJ15 DK.GRAY,TRIM1# |
1 | ||
| 64791C - COVER, BACK DOOR TRIM, RH | ||||
| 64791-35020B0 |
GSJ15 DK.GRAY,TRIM1# |
1 | ||
| 64792 - COVER, BACK DOOR TRIM, LH | ||||
| 64792-35010B0 |
GSJ15 DK.GRAY,TRIM1# |
1 | ||
| 64798 - COVER, BACK DOOR LOCK | ||||
| 64798-35020B0 |
GSJ15..GCC,GEN DK.GRAY,TRIM1# |
1 | ||
| 64798-35020B0 |
GSJ15 DK.GRAY,TRIM1# |
1 | ||
| 67750A - CLIP(FOR BACK DOOR TRIM) | ||||
| 90467-09206 |
GSJ15 TYPE A:REFER ILLUST. |
11 | ||
| 67771-26240 |
GSJ15..GCC,GEN TYPE C:REFER ILLUST. |
1 | ||
| 90467-10161 |
GSJ15 TYPE B:REFER ILLUST. |
4 | ||
| 67771-26240 |
GSJ15 TYPE C:REFER ILLUST. |
1 | ||
| 90467-10161 |
GSJ15..GCC,GEN TYPE B:REFER ILLUST. |
4 | ||
| 90467-09206 |
GSJ15..GCC,GEN TYPE A:REFER ILLUST. |
11 | ||
| 67751 - BOARD, BACK DOOR TRIM | ||||
| 64781-35030B0 |
GSJ15 DK.GRAY,TRIM1# |
1 | ||
| 64781-35031B0 |
GSJ15 DK.GRAY,TRIM1# |
1 | ||
| 67772S - CAP, DOOR TRIM RETAINER | ||||
| 67772-35010B0 |
GSJ15 DK.GRAY,TRIM1# |
2 | ||
| Common parts | ||||
| 90159-60431 | ||||
| 90189-06095 | ||||

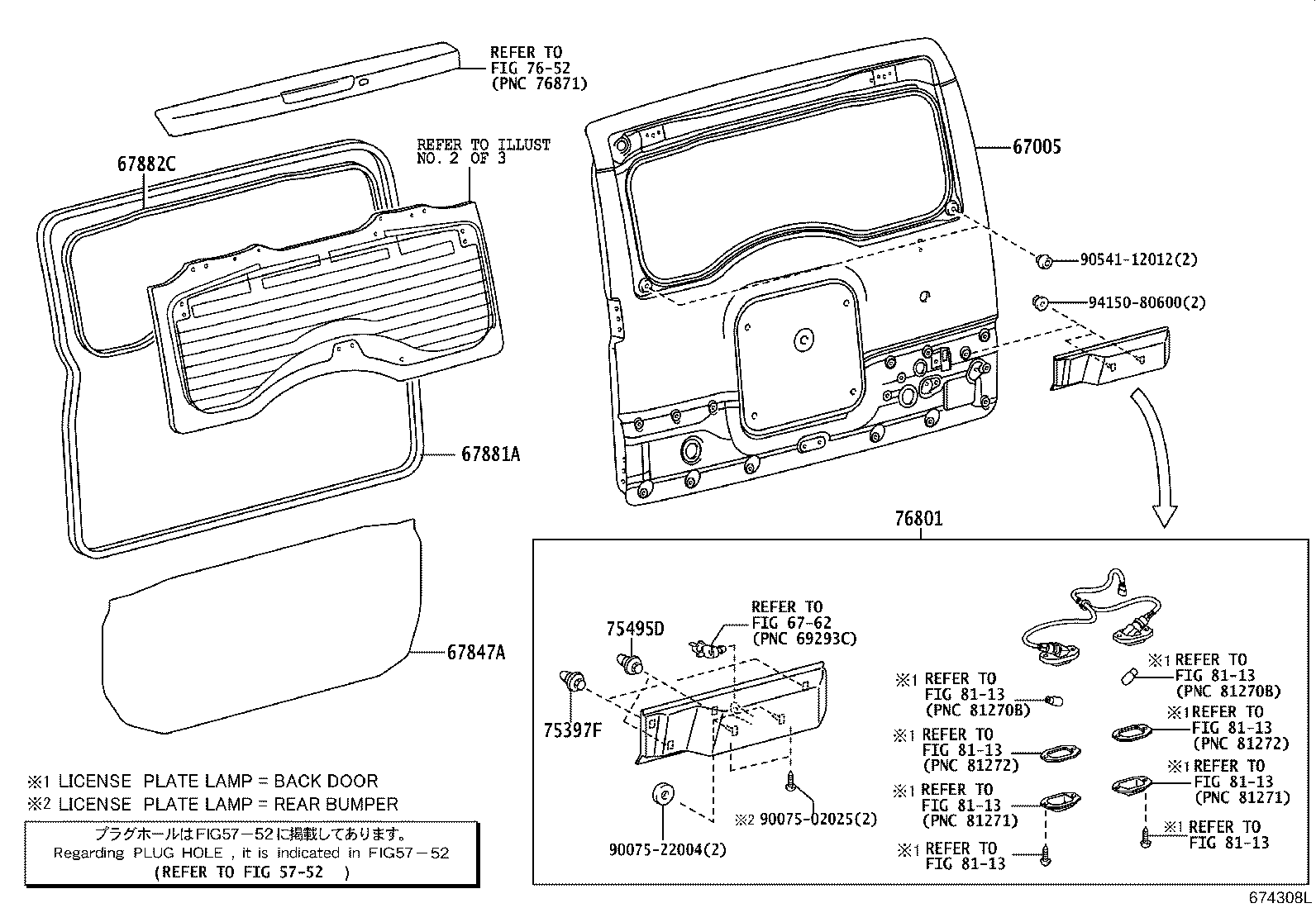

ILLUST NO. 1 OF 3(0707- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-35400 |
GSJ15..GEN BACK MONITOR-WITH |
1 | ||
| 67005-35361 |
GSJ15..CHI,GEN |
1 | ||
| 67005-35360 |
GSJ15..CHI,GEN |
1 | ||
| 67847A - COVER, BACK DOOR SERVICE HOLE | ||||
| 67847-35030 |
GSJ15 |
1 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-35050 |
GSJ15 |
1 | ||
| 67882C - WEATHERSTRIP, BACK DOOR, NO.2 | ||||
| 67882-35011 |
GSJ15 |
1 | ||
| 67882-35010 |
GSJ15 |
1 | ||
| 75397F - CLIP, OUTSIDE MOULDING, NO.3 | ||||
| 75397-35010 |
GSJ15 |
2 | ||
| 75495D - CLIP, OUTSIDE MOULDING, NO.4 | ||||
| 75495-35010 |
GSJ15 |
2 | ||
| 76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE | ||||
| 76801-35480 |
GSJ15..GEN NO PAINT REQ. |
1 | ||
| 76801-35490 |
GSJ15..GEN NO PAINT REQ.,ALGERIA SPEC |
1 | ||
| 76801-35490 |
GSJ15..GEN NO PAINT REQ.,IVORY COAST SPEC |
1 | ||
| Common parts | ||||
| 90075-02025 | ||||
| 90075-22004 | ||||
| 90541-12012 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 5752 | ||||
| 6762 | ||||
| 7652 | ||||
| 8113 | ||||
ILLUST NO. 2 OF 3(0707- )
DOOR GLASS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68131 - GLASS, BACK DOOR | ||||
| 68150-35904 |
GSJ15..GEN *EHTT,T=5.0,P.GRAY,BACK GLASS-PRIVACY |
1 | ||
| 68150-35903 |
GSJ15..GCC,GEN *EHTT,T=5.0,GREEN |
1 | ||
| 68150-35905 |
GSJ15..GCC,GEN *EHTT,T=5.0,GREEN |
1 | ||
| 68150-35906 |
GSJ15..GEN *EHTT,T=5.0,DK.GLAY,BACK GLASS-PRIVACY |
1 | ||
| Linked diagrams | ||||
| 6762 | ||||
