GSJ15L-GKFSKY (2007)

Toyota Fj Cruiser

Production Jul 2007 - Nov 2010
Engine 1GRFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0707- )

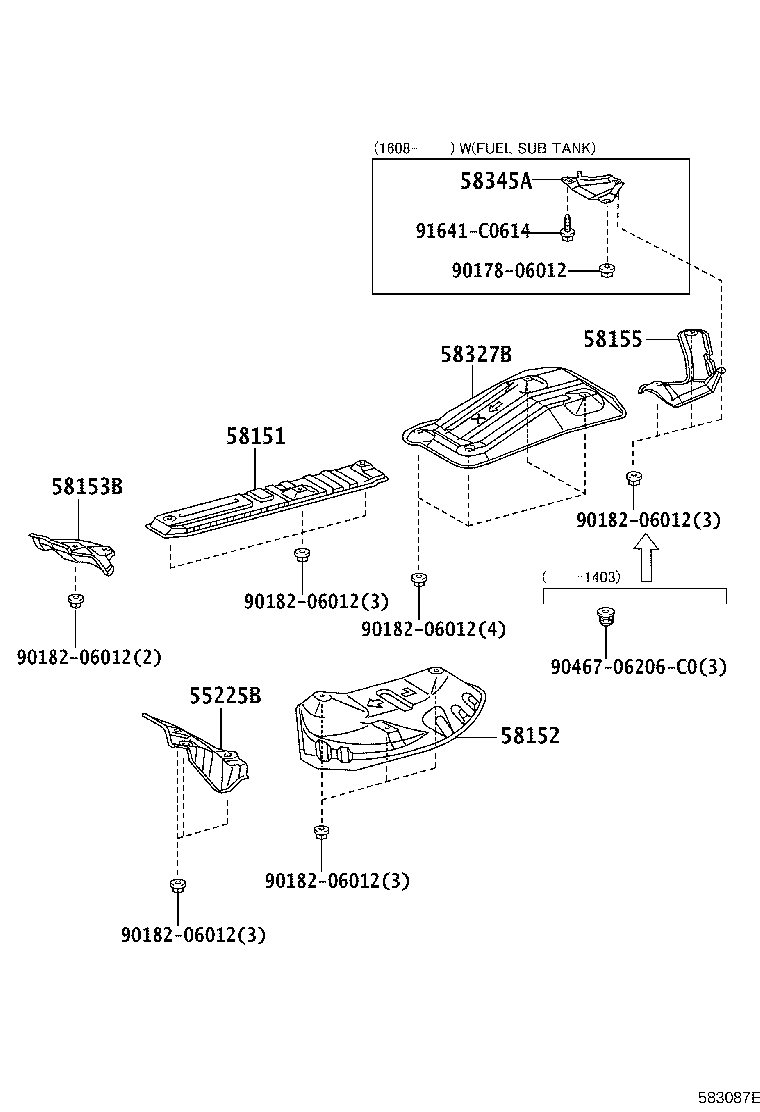

Click highlighted areas on diagram

diagram 55225B 58151 58152 58153B 58155 58327B 58345A 9017806012 9018206012 9018206012 9018206012 9018206012 9018206012 9018206012 9046706206C0 91641C0614
Part # Description Qty Price
55225B - INSULATOR, DASH PANEL HEAT
55225-35170

GSJ15

 1
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-35120

GSJ15

 1
58152 - INSULATOR SUB-ASSY, CENTER FLOOR HEAT, NO.2
58152-35010

GSJ15

 1
58153B - INSULATOR, FLOOR HEAT, NO.3
58153-35130

GSJ15

 1
58155 - INSULATOR, FRONT FLOOR HEAT, NO.3
58155-35020

GSJ15

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-35061

GSJ15

 1
Common parts
90178-06012
90182-06012
90467-06206C0
91641-C0614
