GSJ15L-GKFSKY (2007)

Toyota Fj Cruiser

Production Jul 2007 - Nov 2010
Engine 1GRFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0707- )

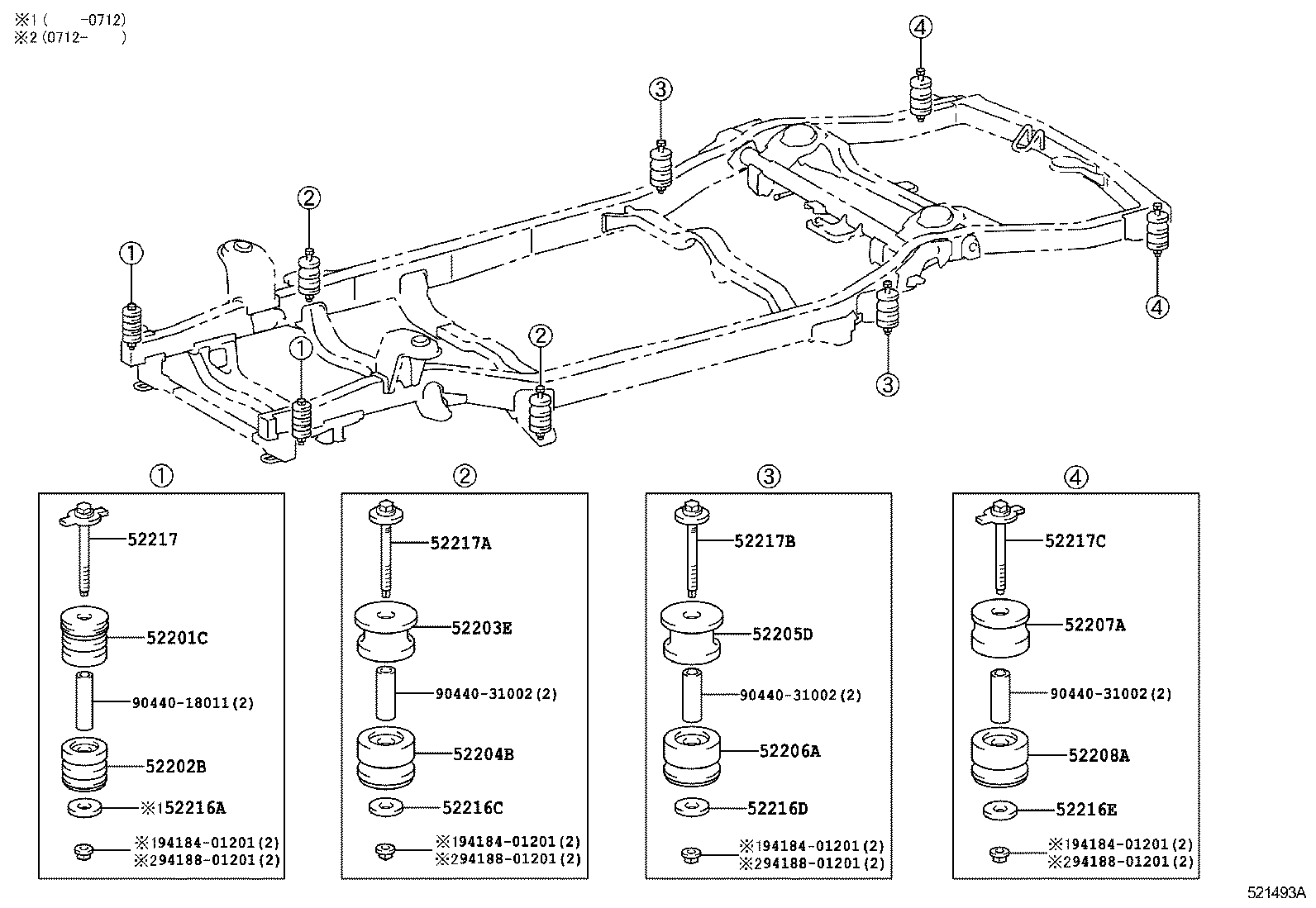

Click highlighted areas on diagram

diagram 52201C 52202B 52203E 52204B 52205D 52206A 52207A 52208A 52216A 52216C 52216D 52216E 52217 52217A 52217B 52217C 9044018011 9044031002 9044031002 9044031002 9418401201 9418401201 9418401201 9418401201 9418801201 9418801201 9418801201 9418801201
Part # Description Qty Price
52201C - CUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER
52201-35100

GSJ15

 2
52202B - CUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER
52202-35090

GSJ15

 2
52203E - CUSHION SUB-ASSY, CAB MOUNTING, NO.2
52203-35210

GSJ15

 2
52204B - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER
52204-35120

GSJ15

 2
52205D - CUSHIION SUB-ASSY, CAB MOUNTING, NO.3 UPPER
52205-35160

GSJ15

 2
52206A - CUSHION SUB-ASSY, CAB MOUNTING, NO.3 LOWER
52206-35040

GSJ15

 2
52207A - CUSHION SUB-ASSY, CAB MOUNTING, NO.4 UPPER
52207-35050

GSJ15

 2
52208A - CUSHION SUB-ASSY, CAB MOUNTING, NO.4 LOWER
52208-35050

GSJ15

 2
52216A - STOPPER, CAB MOUNTING CUSHION
90201-12078

GSJ15

 2
52216C - STOPPER, CAB MOUNTING CUSHION
90201-12078

GSJ15

 2
52216-60040

GSJ15

 2
52216D - STOPPER, CAB MOUNTING CUSHION
52216-60040

GSJ15

 2
90201-12078

GSJ15

 2
52216E - STOPPER, CAB MOUNTING CUSHION
90201-12078

GSJ15

 2
52216-60040

GSJ15

 2
52217 - BOLT, BODY MOUNTING
52217-35180

GSJ15

 2
52217A - BOLT, BODY MOUNTING
52217-35191

GSJ15

 2
52217B - BOLT, BODY MOUNTING
52217-35191

GSJ15

 2
52217C - BOLT, BODY MOUNTING
52217-35180

GSJ15

 2
Common parts
90440-18011
90440-31002
94184-01201
94188-01201
