GSJ15L-GKFSKY (2007)
Toyota Fj Cruiser
Production
Jul 2007
-
Nov 2010
Engine
1GRFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0707-1001)

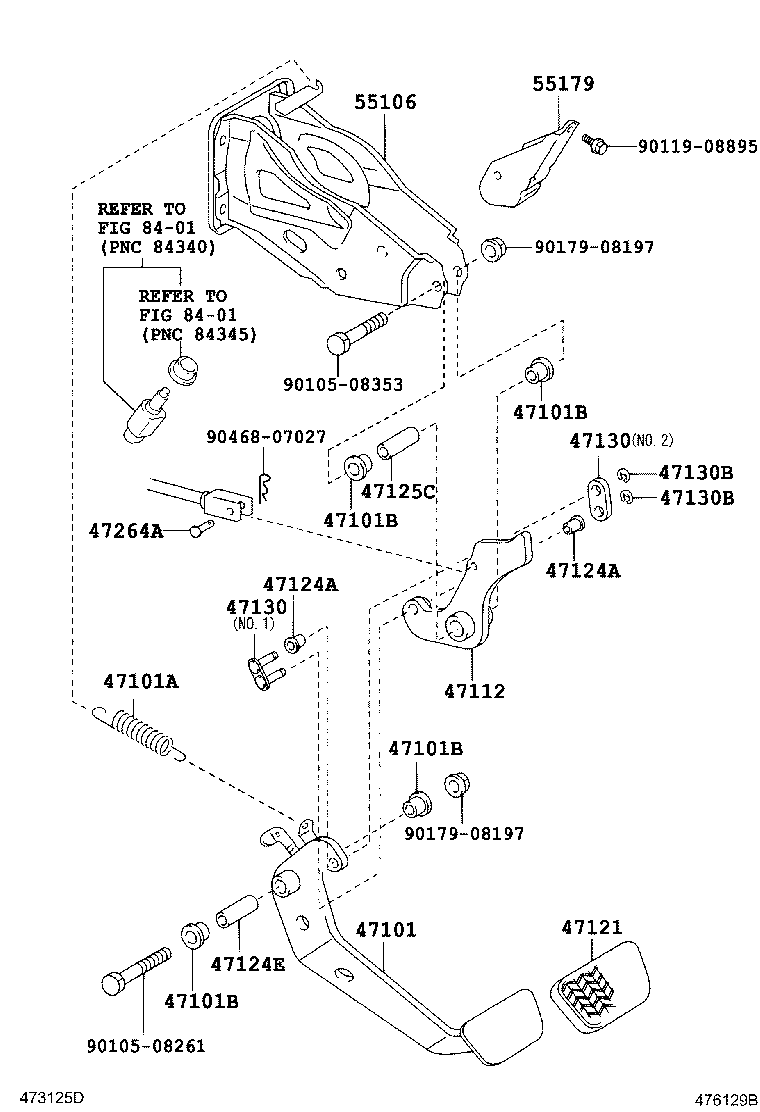

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101 - PEDAL SUB-ASSY, BRAKE | ||||
| 47101-35430 |
GSJ15..MTM |
1 | ||
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 90507-20033 |
GSJ15 |
1 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-14015 |
GSJ15 |
4 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-14015 |
GSJ15 |
4 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-14015 |
GSJ15 |
4 | ||
| 47101B - BUSH(FOR BRAKE PEDAL) | ||||
| 90386-14015 |
GSJ15 |
4 | ||
| 47112 - LEVER, BRAKE PEDAL | ||||
| 47112-35040 |
GSJ15 |
1 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 31321-52010 |
GSJ15..MTM |
1 | ||
| 47124A - COLLAR(FOR BRAKE PEDAL SHAFT) | ||||
| 47144-34010 |
GSJ15 |
2 | ||
| 47124A - COLLAR(FOR BRAKE PEDAL SHAFT) | ||||
| 47144-34010 |
GSJ15 |
2 | ||
| 47124E - COLLAR, BRAKE PEDAL SHAFT, NO.2 | ||||
| 90387-08160 |
GSJ15 |
1 | ||
| 47125C - COLLAR(FOR BRAKE PEDAL BRACKET) | ||||
| 47144-60020 |
GSJ15 |
1 | ||
| 47130 - LINK ASSY, BRAKE PEDAL | ||||
| 4710A-28010 |
GSJ15 NO.1 |
1 | ||
| 47130-60021 |
GSJ15 NO.2 |
1 | ||
| 47130 - LINK ASSY, BRAKE PEDAL | ||||
| 4710A-28010 |
GSJ15 NO.1 |
1 | ||
| 47130-60021 |
GSJ15 NO.2 |
1 | ||
| 47130B - RING E, BRAKE PEDAL LINK PIN | ||||
| 96160-00400 |
GSJ15 |
2 | ||
| 47130B - RING E, BRAKE PEDAL LINK PIN | ||||
| 96160-00400 |
GSJ15 |
2 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 90240-06023 |
GSJ15 |
1 | ||
| 90240-06027 |
GSJ15 |
1 | ||
| 55106 - SUPPORT SUB-ASSY, BRAKE PEDAL | ||||
| 55106-35170 |
GSJ15 |
1 | ||
| 55179 - REINFORCEMENT, BRAKE PEDAL SUPPORT | ||||
| 55179-35050 |
GSJ15 |
1 | ||
| Common parts | ||||
| 90105-08261 | ||||
| 90105-08353 | ||||
| 90119-08895 | ||||
| 90179-08197 | ||||
| 90468-07027 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(1001- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47101A - SPRING(FOR BRAKE PEDAL RETURN) | ||||
| 90507-20033 |
GSJ15 |
1 | ||
| 47110 - SUPPORT ASSY, BRAKE PEDAL | ||||
| 47110-35071 |
GSJ15..MTM |
1 | ||
| 47121 - PAD, BRAKE PEDAL | ||||
| 31321-52010 |
GSJ15..MTM |
1 | ||
| 47264A - PIN(FOR PUSH ROD) | ||||
| 90240-06023 |
GSJ15 |
1 | ||
| 90240-06027 |
GSJ15 |
1 | ||
| Common parts | ||||
| 90119-08895 | ||||
| 90468-07027 | ||||
| Linked diagrams | ||||
| 8401 | ||||
